Philips ILS-CL-8RES Manual de usuario

Lightolier Controls

2828 Trade Center Drive, Suite 130B

Carrollton, TX 75007

+1-800-526-2731 (In the United States and Canada)

214-647-7880

Fax: 214-647-8032

www.lolcontrols.com

Lilghtolier Controls is a hilips Controls brand.

This manual is for informational use only and is subject to change without notice.

Lightolier Controls assumes no responsibility or liability for any claims resulting

from errors or inaccuracies that may appear in this manual.

Version as of: November 18, 2009

Document: 85-6370A0

Lytemode 8-Button Remote Station User’s Guide

THREE YEAR LIMITED WARRANTY

The hilips Controls product, when properly installed and under normal conditions of use

(without overload, abuse or alteration), is warranted to you, the original user, for a period

of three years form the date of original retail purchase, to be free from defects in materials

and workmanship. If during the warranty period you believe the purchased product or any

part thereof has such a defect, you must return the product (or part) at your cost during

such period, with proof of purchase (or if installed by a third-party a written explanation

of installation transaction with proof of date), to hilips Controls, 2828 Trade Center Dr.

Ste. 130B, Carrollton, TX 75007, for repair or replacement (or to an authorized hilips

Controls supplier which agrees in advance to handle the return and replacement by

factory authorization). If the product or part is found by hilips Controls to have been

defective in material or workmanship it will be repaired or replaced (as deemed necessary

by hilips Controls), and the replacement will be returned to you free of charge. The

original user is solely responsible for any costs associated with removal and

re-installation of the product and shipping to hilips Controls or its authorized supplier.

HILI S CONTROLS LIMITS THE DURATION OF THE IM LIED WARRANTY OF

MERCHANTABILITY WITH RES ECT TO THE RODUCT TO THE LIMITED

WARRANTY ERIOD SET FORTH ABOVE, AND OTHERWISE DISCLAIMS ALL

IM LIED WARRANTIES WITH RES ECT TO THE RODUCT AND ITS ARTS.

Some states disallow certain limitations on implied warranties so you should consult your

state law if you have a questions regarding this limitation and disclaimer. hilips Controls

disclaims any and all liability for incidental, consequential, special or indirect damage

arising out of any claimed breach of warranty or otherwise. However, some states do not

allow exclusion or limitation of such damages, so this disclaimer may not apply to you.

The remedy provided in the Limited Warranty for defective products is the user’s sole and

exclusive remedy, subject to your state law. Further, this Warranty gives the user specific

legal rights, and the user may also have other rights which may vary from state to state.

If you believe warranty claim is warranted, you may contact your nearest authorized

hilips Controls supplier. If one does not exist in your area, please contact hilips

Controls Customer Service at the above address (or at 1-800-526-2731), or please visit us

at www.lolcontrols.com.

Room Combine Switch User’s Guide 1

Table of Contents

Customer Service .....................................................................2

Lytemode System Overview ...................................................3

Room Combine Switch Overview ...........................................4

Installation ...............................................................................5

Setting ILS Network ID ...........................................................6

Setup ........................................................................................8

Mode .................................................................................8

ID Address ......................................................................10

LED Intensity .................................................................11

Display Version ..............................................................12

Operation ...............................................................................13

Setting Combine IDs (Method 1) ...................................13

Setting Combine IDs (Method 2) ...................................15

Combine/Un-combine Rooms ........................................16

Factory Defaults and Troubleshooting ..................................17

Resetting Factory Defaults .............................................17

Troubleshooting ..............................................................18

Installing Custom Buttons .....................................................19

Specifications ........................................................................20

Accessories ............................................................................20

2Customer Service

Customer Service

Technical and Sales assistance for Lytemode products are

available worldwide.

Phone: +1-800-526-2731 (In the United States and Canada)

+1-214-647-7880 (Worldwide)

Room Combine Switch User’s Guide 3

Lytemode System Overview

The Lytemode System is designed to control architectural

lighting by distributing both power and intelligence. The system

provides processing power and control at each respective Master or

Remote Station, eliminating the need for a central processor.

Lytemode Master Stations provide individual control for up to 16

channels, 13 scenes plus “Off”, and adjustable fade times. Multiple

Master Stations may be linked together for control of up to 128

Channels and 13 preset scenes. By combining Lytemode Master

Stations with Lytemode Remote Stations, the system provides

remote access to scenes, Master Raise/Lower control, Multi-room

partition control, or Master Station Lockout. Lytemode Master

Stations are easily programmed using the front panel buttons,

without removing the Master Station from the wall, and without the

need for a computer. Lytemode Master Stations are compatible with

both Lightolier Controls Insulated Gate Bipolar Transistor

(IGBT) Dimming Cabinets as well as Silicon Controlled Rectifier

(SCR) Dimming Panels.

Lytemode products are controlled by the Intelligent Lytemode

System (ILS) protocol. All Lytemode control devices must be

connected to the ILS system and given a unique ID (or address) in

order to interact properly. The ID identifies the device on the

network and allows the device to avoid network collisions when

transmitting data.

4Room Combine Switch Overview

Room Combine Switch Overview

The Lytemode Room Combine Switch provides easy partition

control of meeting rooms, banquet halls, and other large partitioned

spaces. When partitions are open, the Room Combine Switch links

the Master Stations in each room so that adjustments to one Master

Station are duplicated on all linked Master Stations, maintaining a

uniform look throughout the expanded space. When partitions are

closed, the Room Combine Switch isolates the Master Stations in

each room for individual room control.

The Room Combine Switch is capable of controlling up to eight

partitions. Three Room Combine Switches may be linked together

for control of up to 24 partitions.

ALighting Panel

Room Combine

North East

West South

PF1 PF2

Room Combine Switch User’s Guide 5

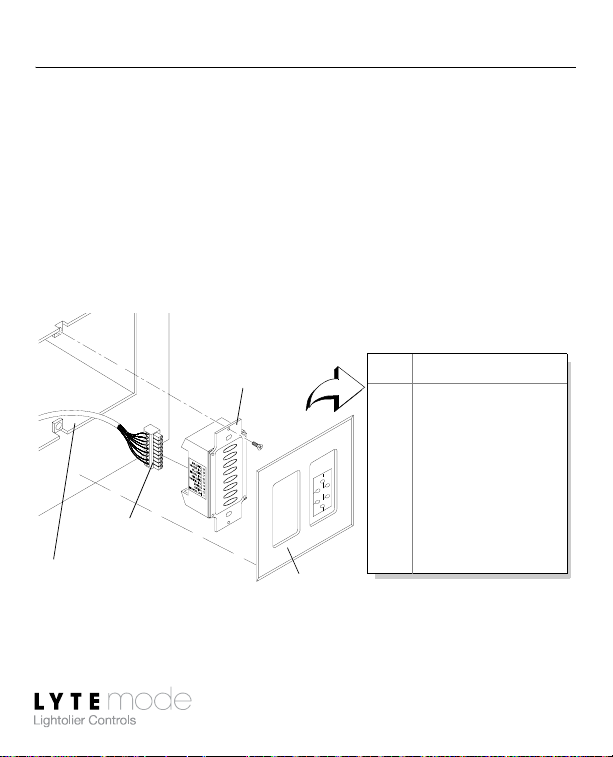

Installation

The Lytemode ILS Network consists of a single CAT5e cable

connecting all ILS modules in a daisy chain manner. All units

connect to the network using a 9-pin connector (included).

To install:

Step 1. Unpack unit and inspect for any signs of shipping damage.

Ensure that two mounting screws are included.

Step 2. Connect ILS Network Cable to 9-pin connector at back of

Room Combine Switch.

Step 3. Insert Combine Switch into standard deep rough-in box

(not included). Secure with two supplied mounting screws.

Step 4. Snap faceplate into place.

1WH/OR(+Data)

2 OR (- Data)

3SHIELD

4WH/GN(+Volts)

5 GN (Ground)

6WH/BL(+Volts)

7 BL (Ground)

8WH/BR(+Volts)

9 BR (Ground)

9-Pin Connector Wiring

PIN SIGNAL

9-Pin

Faceplate

Connector

Room

Combine

Switch

Rough-In Box

(not included)

6Setting ILS Network ID

Setting ILS Network ID

Lytemode products are controlled by the Intelligent Lytemode

System (ILS) protocol. All Lytemode ILS devices must be given an

ID (or address), which identifies the device on the network and

allows it to avoid network collisions when transmitting data.

Standard IDs are in the range of 1 to 255. An ID of 0 will disable

the unit and prevent it from transmitting on the network.

IDs are typically unique. For example, an ILS Master will require a

unique ID to allow dimmers to track its channel levels. However,

ILS Remotes should be given the same ID as the ILS Master it

controls. ILS Remotes rely on the fact that they are manually

triggered to avoid network collisions with other ILS Remotes

having the same ID.

The table on the following page provides guidelines for addressing.

Room Combine Switch User’s Guide 7

ILS Network Addressing:

* Notes:

1 – Matches ILS Master ID.

2 – ILS Masters must be programmed to accept.

3 – Will respond to Remote Polls, Status Requests and Commands.

4 – Unit uses a self generated ID.

Note: Refer to the instructions included with your particular

device(s) in order to set corresponding control IDs.

Device ID Sub-ID Devices / ID Remotely

Polled? Notes *

Remote 1-255 0 Multiple No 1

Two Button

Remote Auto 0 n/a No 4

Global Remote 1-255 0 Multiple No 2

Remote Keypad 1-255 0-7 1 Yes 3

Remote I/O 1-255 0-7 1 Yes 3

Room Combine 1-255 0 1 Yes 3

Mini-Master 1-255 0-7 1 Yes 3

Master 1-255 0-7 1 Yes 3

RS-232 Port Auto 0 n/a No 4

Smart Matrix

Dimmer Rack 1-255 n/a 1 Yes 3

Capio Dimmer

Rack 1 -255 n/a 1 Yes 3

8Setup

Setup

This section describes how to program the unit’s Mode, Address,

LED Brightness, and display the unit’s Version.

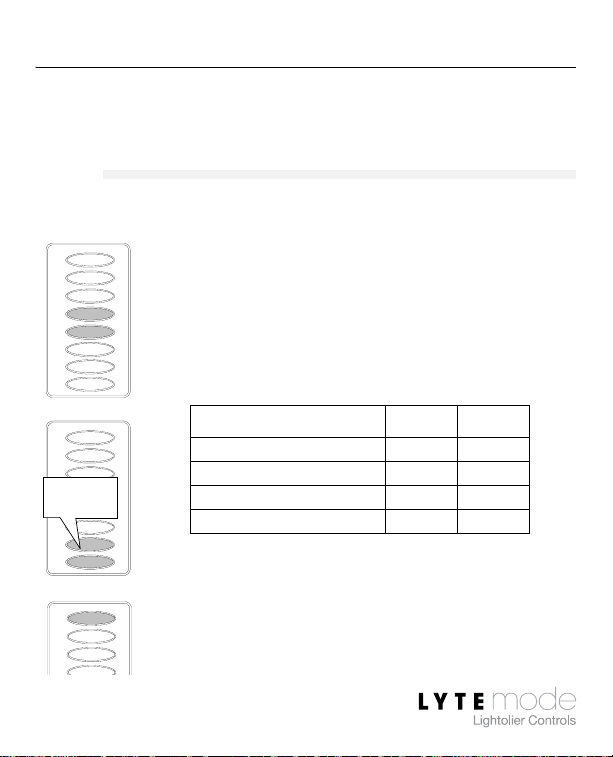

Mode

The unit can be set to function in one of several Modes as follows:

Step 1. Press and hold D and E for 3 seconds.

ALED will blink rapidly.

Step 2. Enter Mode by setting Gand Hbuttons as

either Off or On as shown in the following

table. (LEDs will blink for any Mode not

supported.)

Step 3. Press Ato save and exit.

Mode G H

0 – RCGP Remote (1-8) Off Off

1 – RCGP Remote (9-16) Off On

2 – RCGP Remote (17-24) On Off

3 – RCGP Master On On

Example:

Mode 3
