Philips MCD109 Manual de usuario

ANGLEPROG

AUDIO MUTE

GOTO

VOL

ZOOM

DSC

DBB

SYSTEM MENU

SUBTITLE REPEAT A-B SHUFFLE

SLOWDISPLAY

OSD

DISC MENU

DISC AUX

CR2025

MCD109

Quick Start Guide

What’s in the Box?

You should find these items upon opening the box.

Quick Start Guide

Quick start guide

User Manual

Remote control with one

CR2025 battery loaded

DIN cable

User manual

Composite video cable

AC power cord

Remove the insulation plastic tab

before use

MCD109 QSG_Eng-98 26/4/06, 11:101

Important!

–This set can only be operated after the

supplied DIN cable has been connected.

–Before connecting the AC power cord

to the wall socket, make sure that the

VOLTAGE SELECTOR (located on the rear

of the left speaker) is adjusted to match

the local power voltage.

Tips

–See the User Manual for otherTV

connection options.

–For connecting to a Progressive Scan

TV, refer to the user manual for proper

connections and detailed setup.

Connect the speaker wires of the right speaker to the left speaker.

Connect the left speaker and the DVD player by using the supplied

DIN cable.

Connect the DVD player to your TV by using the supplied composite

video cable.

Connect the supplied power cord to the left speaker and the wall socket.

AC power cord

Voltage selector

DVD player

Right speaker Left speaker

DIN cable

Video cable

Speaker wires

MCD109 QSG_Eng-98 26/4/06, 11:102

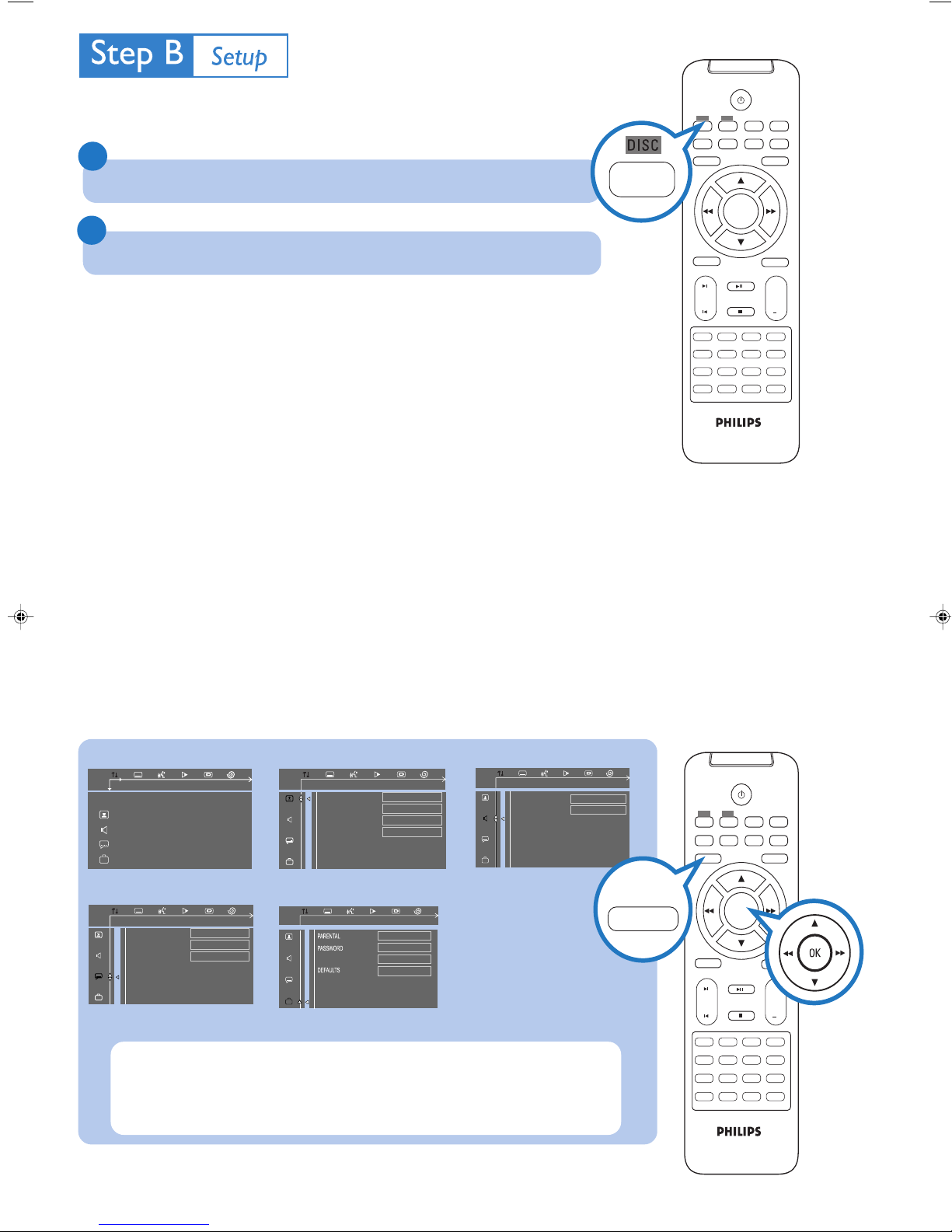

Press SOURCE (DISC on the remote) to select disc source.

Turn on the TV and set it to the correct Video In channel.

Setting DVD menu options

IMPORTANT!

If the progressive scan feature is activated but the connected TV does not support

progressive signals or the video cables are not connected accordingly, see the user

manual for proper progressive scan setup or deactivate the progressive scan

feature as below:

1) Turn off your TV progressive scan mode or turn on to interlaced mode.

2) Select “OFF” in PROGRESSIVE menu of the system setup menu to turn off

progressive scan, then press SYSTEM MENU on the remote to exit the system

menu.

Tip

See chapters "Getting Started" and "DVD menu operations" in the

User Manual for detailed descriptions.

SETUP MENU

OFF

NIGHT MODE

GOTO SOUND SETUP PAGE

TEST TONE

ENGLISH

GOTO LANGUAGE SETUP PAGE

AUDIO

SUBTITLE

DISC MENU

8 ADULT

CHANGE

ENGLISH

RESET

GOTO FEATURE SETUP PAGE

OSD LANG

WIDE

MULTI

OFF

GOTO PICTURE SETUP PAGE

TV DISPLAY

TV TYPE

PROGRESSIVE

SCREEN SAVER

Setting up the TV

ANGLEPROG

AUDIO MUTE

GOTO

VOL

ZOOM

DSC

DBB

SYSTEM MENU

SUBTITLE REPEAT A-B SHUFFLE

SLOWDISPLAY

OSD

DISC MENU

DISC AUX

ANGLEPROG

AUDIO MUTE

GOTO

VOL

ZOOM

DSC

DBB

SYSTEM MENU

SUBTITLE REPEAT A-B SHUFFLE

SLOWDISPLAY

OSD

DISC MENU

DISC AUX

SYSTEM MENU

MCD109 QSG_Eng-98 26/4/06, 11:103

Playing a disc

Push OPEN /CLOSEçto open the disc door.

Load in a disc with the label side facing up, then close the disc door.

Playback will start automatically. If not, pressÉÅ.

To stop playback, press 9.

PDCC-JH-0617

2006 CKoninklijie Philips Electronics

http://www.philips.com

Tip

Detailed playback features and

additional functions are described in the

accompanied user manual.

Notes for the remote control:

– First, select the source you wish to

control by pressing one of the source select

keys on the remote control (DISC or AUX,

for example).

–Then select the desired function (

for example).

MCD109 QSG_Eng-98 26/4/06, 11:104
