Philips Cucina HR7633 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Food processor

HR7633

RI7633

03/04

HR7633/AB : LATAM version 450 Watt

RI7633/AB : Brazil version 450 Watt

PRODUCT INFORMATION

The food processor is equipped with mechanical safety

switches.

Motor power consumption : /AB - 450 W /BB - 600 W

Kneading capacity : max. 400 g of ﬂour

max. 680 g of dough

Voltage & frequency : 220-230 V; 50-60 Hz

115 V; 50-60 Hz

Cordset : 150 cm

Speed setting : 2 speeds + pulse

Bowl capacity : 1,8 l dry ingredients

1,2 l liquids

Dimensions fancy box : 245 x 197 x 330

HR7633/BB : LATAM version 600 Watt

RI7633/BB : Brazil version 600 Watt

Safety lock

- The motor unit as well as the lid have been provided with

marks. The appliance will only function if the arrow on the

motor unit is placed directly opposite the mark on the lid.

Cleaning

- The bowl, lid of the bowl, pusher and accessories can also

be washed in the dishwasher.

- The cover with insert storage is not dishwasher proof.

After the product has been repaired, it should

function properly and has to meet the safety

requirements as ofﬁcially laid down at this

moment.

HR7633 / RI7633

PARTS LIST

Rotor

White

Orange

Blue

Dark blue

Off

Pulse Sp1

Mains

Sp2

Brown

Light blue

Yellow

Black

185131492 11

Rotor

Blue

Black

Dark blue

Off

Pulse Sp1

Mains

Sp2

Brown

Light blue

18 92 11

Brown

Orange

Black

Yellow

White

Blue

Light blue

Brown

Black

Blue

Light blue

RI 7633

HR 7633

Pos Service code Description

4206 133 93130

4206 133 95270

4206 100 01320

4206 100 02140

4206 100 02150

4206 133 94220

4206 133 94260

4206 133 95300

4206 133 95290

4206 136 52830

4206 133 94460

4206 133 93380

4206 133 93210

4206 132 41020

4206 133 93190

4206 136 52950

4206 136 52960

4206 130 07880

4206 136 53240

4206 136 53250

4206 136 53510

4206 133 86550

4206 133 94310

Housing cover printed

HR7633/AB & RI7633/AB

Housing cover printed

HR7633/BB & RI7633/BB

Cord set Brazil

Cord set Argentina

Cord set Latam

Housing one col. printed - HR7633/AB

Housing one col. printed - RI7633/AB

Housing printed - HR7633/BB

Housing printed - RI7633/BB

Main switch assy

Lever - blender

Lever - horizontal

Lever - switch

Helicoidal spring

Air guide

Micro switch assy Latam/Argentina

Micro switch assy Brazil

CS ring

Motor assy 110/120V - Brazil

Motor assy 220/230V - Brazil

Motor assy 220/230V - Lat./Argent.)

Small air guide

Bearing insulation

Pos Service code Description

4206 133 93980

4206 133 93170

4206 133 93160

4206 133 53580

4206 136 52910

4206 133 53640

4206 133 07770

4206 133 53550

4206 136 52940

4206 136 52840

4206 136 53270

4203 065 62310

4203 065 61550

4203 063 35540

9965 000 06941

9965 000 06924

9965 000 06925

9965 000 06932

9965 000 12158

9965 000 06936

9965 000 06930

9965 000 06928

9965 000 12313

9965 000 12314

Transfer shaft cap

Lock spindle

Transfer shaft

Rubber ring

Decoupling box assy

Metal frame rubber

Washer

Belt

Toothed wheel assy

Metal frame assy

Bottom assy with studs

Shredding insert coarse

Shredding insert ﬁne

Slicing insert

Insert carrier assy

Mono pusher

Special cover

Whisk

Metal knife assy

Kneading knife

Accessory holder assy

Spatula

Bowl cover assy

Bowl

2-4

HR7633 / RI7633

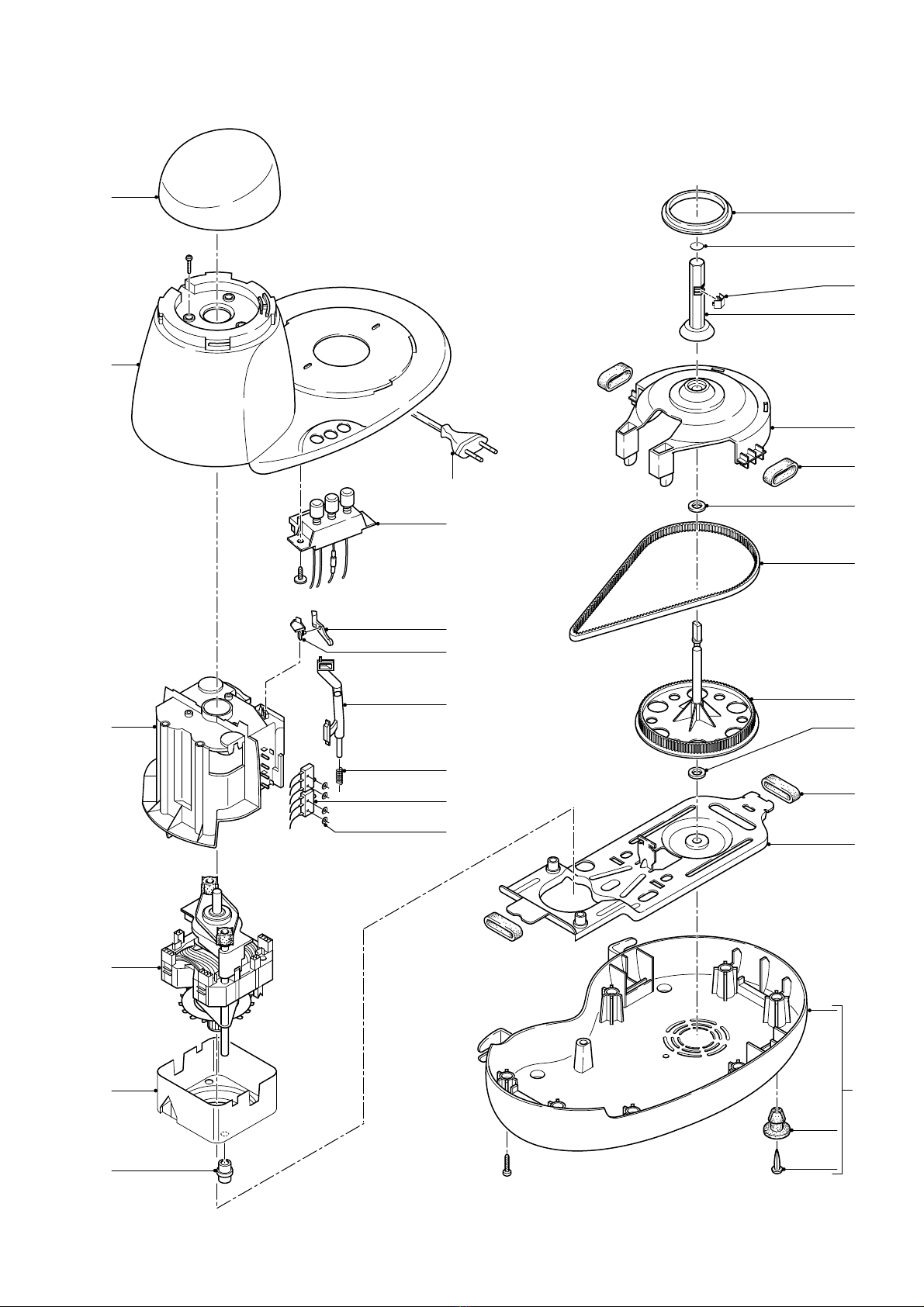

EXPLODED VIEW

3-4

HR7633 / RI7633

EXPLODED VIEW ACCESSORIES

4-4
