Philips HR7639 /J Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Cucina ivory Food processor

HR7639 /J

HR7640 /J

03/04

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

REPAIR INSTRUCTIONS

- No specific issues

ASSEMBLY & DISASSEMBLY ADVICE

- No specific issues

OPTIONAL (accessories)

- HR2945 = Mill

Capacity cup : 200 ml effective

TECHNICAL INFORMATION

- The food processor is equipped with mechanical and

thermal safety switches.

- Motor power consumption : 600 W

- Kneading capacity : max. 400 g of flour

max. 680 g of dough

- Voltage & frequency : 220 - 240 V; 50 - 60 Hz

120 V; 50 - 60 Hz

- Cordset : 150 cm

- Speed setting : 2 speeds + pulse

- Bowl capacity : 1,8 l dry ingredients

1,2 l liquids

- Blender beaker : 1,5 l total

1,25 l effective

- Dimensions fancy box : 433 x 248 x 414

HR7639 /J & HR7640 /J

Automatic resetable thermal cut-out

- In order to avoid an hazardous situation due to in advertent

resetting of the thermal cut-out, this appliance must not be

supplied through a timer.

- To prevent damage due to overheating, the appliance has

been equipped with an automatic cut-out system.

This system will automatically cut off the power supply

when the appliance overheats.

If the appliance suddenly stops running:

- Unplug the appliance

- Press the button ‘pulse / 0’

- Let the appliance cool down for 60 minutes

- Plug the appliance in again

- Switch the appliance on again

Safety Mill HR2945

- Assemble the mill (bowl and knife unit) before it can be

assembled onto the blender motor unit.

Safety lock

- The motor unit as well as the lid have been provided with

marks. The appliance will only function if the arrow on the

motor unit is placed directly opposite the mark on the lid.

- If both the blender and the bowl have been correctly

mounted, only the blender will function.

- For using the bowl, the blender jar has to be removed from

the appliance and the screwcap has to be attached.

Otherwise only the blender will work.

Cleaning

- The bowl, lid of the bowl, pusher and accessories can also

be washed in the dishwasher.

- The cover with insert storage and the blender jar are not

dishwasher proof.

Important:

- If the appliance is used without the blender jar, the

appliance will not function if the screw cap has not been

screwed onto the attaching hole for the blender.

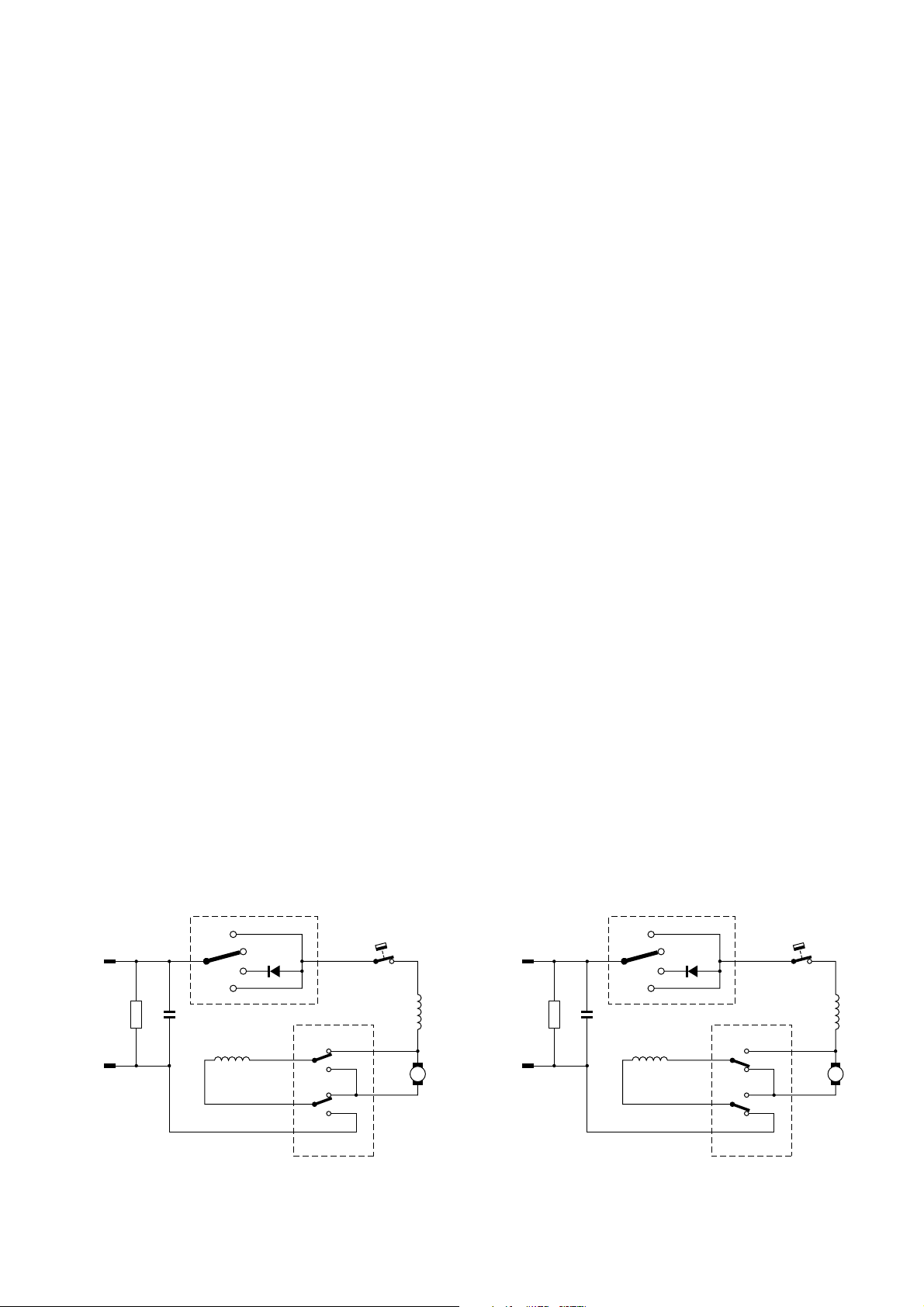

TECHNICAL INFORMATION

MAINS RC

Change-over switch

in braking position

Rotor

Upper-switch

Lower-switch

blue

brown

orange

yellow

white

black

Thermal cut-out

Circuit diagram without accessorie(s)

OFF

MAINS RC

Change-over switch

in braking position

Rotor

Upper-switch

Lower-switch

blue

brown

orange

yellow

white

black

Thermal cut-out

Circuit diagram with accessorie(s)

OFF

2-5

HR7639 /J & HR7640 /J

PARTS LIST

3-5

Pos Service code Description

9965 000 18341

9965 000 06964

9965 000 18345

9965 000 06776

9965 000 06787

9965 000 06789

9965 000 18332

9965 000 18333

9965 000 06972

9965 000 06970

9965 000 06777

9965 000 06772

9965 000 06814

9965 000 06912

9965 000 06914

9965 000 06916

9965 000 06817

9965 000 06819

9965 000 06815

9965 000 06967

9965 000 06974

9965 000 07073

9965 000 06818

9965 000 06962

9965 000 06802

9965 000 18334

Blender cover printed

Blender coupling assy

Housing one colour printed

Rubber piece

Motor assy 110 - 127 V

Motor assy 220 - 240 V

Cordset - EU version

Main switch assy

Coupling fork

Coupling lever assy

Air tunnel assy

Switch lever assy

Motor screw assy

Rubber sealing ring

Locking piece

Drive shaft

Bearing disc

Locking plate assy

Rubber tube

Spindle assy

Compression spring

Coupling piece

Tooth belt

Drive wheel assy

Metal mounting plate assy

Bottom assy

Pos Service code Description

9965 000 06927

9965 000 06925

9965 000 06924

9965 000 06922

9965 000 12316

9965 000 12314

4203 065 61570

4203 065 61550

4203 065 61560

4203 065 62310

9965 000 06943

4203 065 61530

4203 065 61540

9965 000 06940

9965 000 06935

9965 000 06933

9965 000 06931

9965 000 06929

9965 000 12160

9965 000 06977

4822 418 10418

4822 418 10417

4822 690 10207

4822 267 31591

9965 000 01056

Spatula

Special cover

Mono pusher

Bearing insert

Bowl cover assy

Bowl

Granulating insert HR7639/J

Shredding insert ﬁne

Shredding insert medium

Shredding insert coarse

Juliene/Chinese shredding insert

HR7640/J

Slicing insert ﬁne

Slicing insert medium

Insert carier assy

Kneading knife

Metal knife assy

Whisk

Accessory holder assy

Soybean/ Fruit ﬁlter

Jar lid

Jar assy

Bowl only

Mill assy

wire connector for two wires

wire connector for three wires

HR7639 /J & HR7640 /J

EXPLODED VIEW

4-5

HR7639 /J & HR7640 /J

EXPLODED VIEW

5-5
