Philips MatchLine FlatTV 50PF9965 Manual de usuario

Flat TV

VGA IN

AUDIO VGA OUT

AUDIO IN Y

CVBS

Y/C

S-VHS

CVBS

AV3

AV2

AV1

AV4

AUDIO

OUT

AUDIO

MAINS

INLET

~ MAINS

EXTERNAL 5

ANTENNA EXTERNAL 3

EXTERNAL 1 EXTERNAL 2

EXTERNAL 4

AUDIO OUT

NO FUNCTION

PL/MAC IN

CENTER IN

MONITOR OUT

RPr

CABLE

AUDIO

AUDIO AUDIO

~ MAINS

RS232 DVI-D Y/C S-VHS

AUDIO IN AUDIO IN

G/Y/Y

CVBS B/Pb/Cb

R/Pr/Cr V

AUDIO IN

VGA 1 VGA 2 RC-OUT

AV2 AV1 AV3

AUDIO

VGA 1VGA 2DVI-D

DVI-D

Y/C S-VHS G/Y/Y

CVBS B/Pb/Cb

R/Pr/Cr V

VIDEO 2

(AV2)

VIDEO 1

(AV1)

VIDEO 3

(AV3)

MAINS INLET

~ MAINS

RS232

VGA 1 VGA 2 RC-OUT

CVBS 1

CVBS 2

Y/C

VGA

R/Cr/Pr

Cb/Pb

Cr/Pr

DVD/HD1 RGB/DVD/HD2

G/Y

B/Cb/Pb

DVI

EXTERNAL

CONTROL

Contents

Preparation ...................................................................................... 2

Your remote control .................................................................. 3-4

Keys in front of the TV receiver box ......................................... 4

To use the menus ........................................................................... 5

Select the menu language and country ..................................... 5

Store TV channels .......................................................................... 6

Automatic installation ............................................................6

Manual installation................................................................... 6

Give name ................................................................................. 7

Reshuffle the programme list................................................. 7

Select favourite TV channels ................................................. 7

TV setup menu ............................................................................... 8

General .................................................................................. 8-9

Source ........................................................................................ 9

Decoder .................................................................................. 10

Installation

TV menu

Picture menu .................................................................... 10-11

Sound menu ........................................................................... 12

Features menu ................................................................. 12-13

Dual screen / PIP / Multipip ........................................................ 14

NEXTVIEW/Teletext guide ...................................................... 15-16

Teletext ..................................................................................... 17-18

Connect peripheral equipment

Connecting and selecting equipment .................................19-21

Audio and Video equipment keys ............................................. 22

Record with your recorder with Easy Link ........................... 22

Tips .......................................................................................... 23-24

Operation

EasyLink features are based on the “one touch operation” approach.This

means that a sequence of actions are executed at the same time in both the

television and the video cassette recorder, provided both are fitted with the

EasyLink function and connected with the eurocable supplied with your video

recorder.

REnd of life directives

Philips is paying a lot of attention to

producing environmentally-friendly in

green focal areas.Your new TV contains

materials which can be recycled and

reused. At the end of its life specialised

companies can dismantle the

discarded TV to concentrate the

reusable materials and to minimise

the amount of materials to be

disposed of.

Please ensure you dispose of your old

TV according to local regulations.

Help?

If this instruction manual does

not give an answer or if ‘Tips’ do

not solve your TV problem, you

can call your Local Philips

Customer or Service Centre. See

the supplied World-wide

guarantee booklet.

Please, have the Model and

Product number which you can

find at the back of your

television set or on the

packaging, ready, before calling

the Philips helpline.

Model: FTR 9965/12

Product No: AG ....................................

EnglishDeutschFrançaisNederlandsItaliano

∂ÏÏËÓÈÎ¿

1029.2 en 25-03-2003 15:25 Pagina 1

Preparation

&Place the receiver box wherever you want, but

make sure that air can circulate freely through

the ventilation slots. Do not install the receiver

box in a confined space such as a book case or

a similar unit.

To prevent any unsafe situations, no naked

flame sources, such as lighted candles, should

be placed on or in the vicinity.Avoid heat,

direct sunlight and exposure to rain or water.

The equipment shall not be exposed to

dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on it.

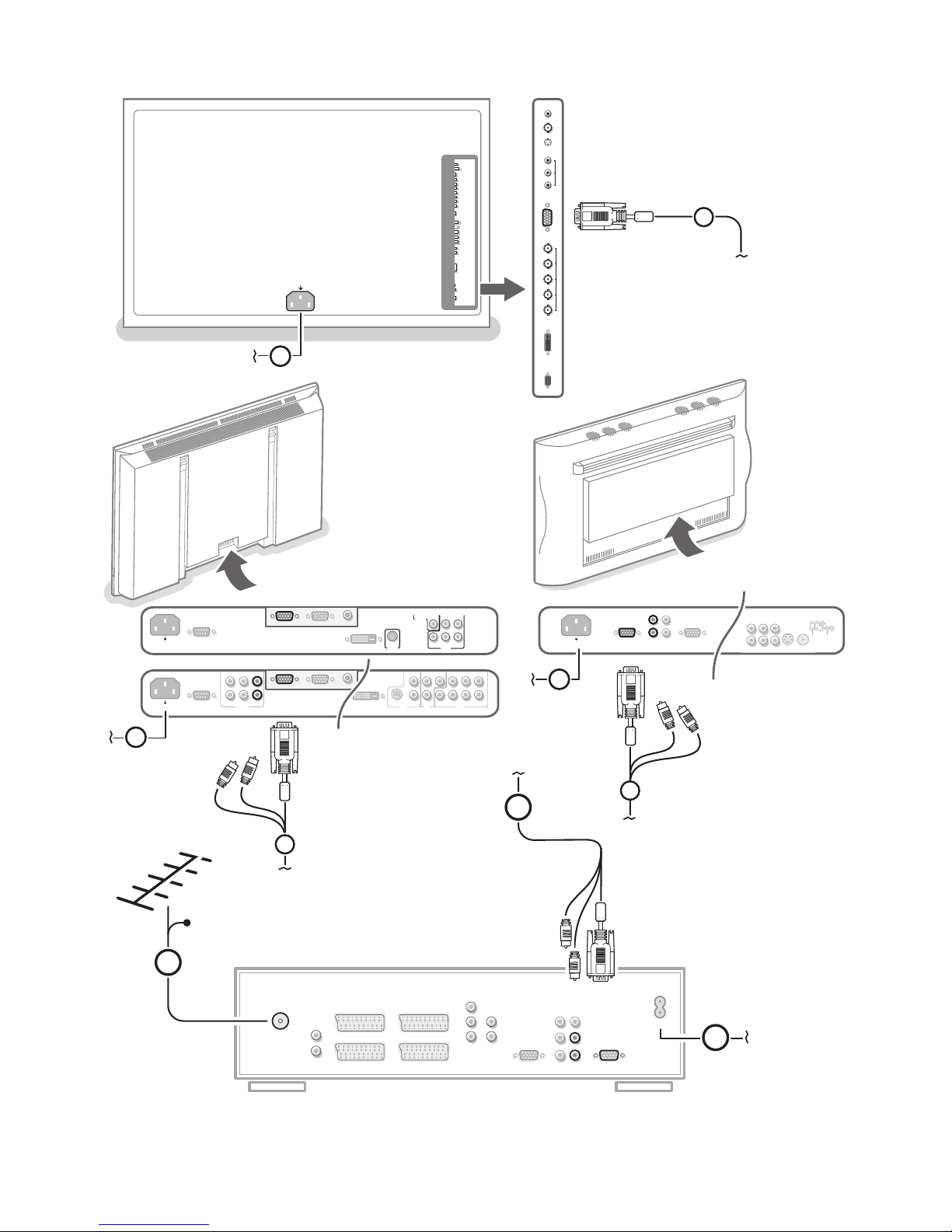

éConnect the supplied aerial cable 1and the

VGA cable with trailing audio cinch connectors

2as shown in the inside frontcover of this

handbook. Make sure all screws of the cable

2are tightened well.

TV receiver box with speakerless monitor:

In case you connect your TV receiver box with

a speakerless monitor, and without having

connected an audio receiver, all references

made in this instruction book to sound

reproduction, volume control, and audio

connections, are not applicable (except for a

headphone connection).

The keys on the remote control referring to

sound have no function either.

“To connect your computer, see the separate

supplied instruction manual with your monitor.

To connect other peripherals, see p. 19.

If you dispose of a Cinema Link combination

(Cinema Link Audio receiver and/or Cinema

Link video recorder and/or DVD player), see

the separate supplied instruction manual.

In order to obtain the best result, please use

only the supplied antenna cables between the

receiver box and videorecorder, and between

videorecorder and antenna connector.

‘Insert the mains cord supplied 3into the

mains at the back of the monitor and the mains

cord 4at the back of the receiver. Put both

in the wall sockets.

(Remote control:Insert the 2 batteries

supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy

metals mercury and cadmium. Please check on how

to dispose of exhausted batteries according to local

regulations.

§Switch the TV on :Press the power switch B

at the right side of the monitor and the one on

the front of your receiver box.An indicator on

the front of the TV lights up and the screen

comes on. If the TV is in standby mode, press

the -P+ keys or the red Bkey on the remote

control.

1 m

min.

1029.2 en 25-03-2003 15:25 Pagina 2

Use of the remote control RC4301

BStandby

Press to switch the TV on or off.

When switched off, a red indicator on

the TV lights up.When acquiring

NEXTVIEW,see p. 16, an orange

indicator lights up and after a period

of max. 1 hour the TV is switched to

full standby and the red indicator

lights up.

®Ò‡π†

Audio and Video equipment keys,

see p. 22.

®Instant record

See Record with your recorder

with EasyLink, p. 22.

UTime display

The time is displayed on the

screen.

QSurround mode

Press this key repeatedly to

select on/off.

ÌCinema Go

See separate Cinema Link

booklet supplied.

æNEXTVIEW On/Off see p. 15

Press bto show NEXTVIEW/

Teletext Guide on the right half

of the screen.

SFreeze/Replay/Photo finish

See p. 8.

iOn Screen information

Press to display information

about the selected TV channel

and programme.

0Smart surf / NEXTVIEW

themes

With this key you can easily

switch between 2 up to 9

different TV channels or sources

or quickly select TV programmes

if NEXTVIEW with defined themes

is broadcast. See General, Smart

surf, p. 8.

Press the OK key or wait for the

time out to dismiss the Smart

surf display.

VCR DVD SAT AMP CD

See ‘Audio- and Video equipment

keys’, p. 22.

vSelect your computer or

other peripherals

See p. 21.

xPixel Plus demo on/off

In the right part Pixel Plus and

Digital Natural Motion are

switched on.

bTeletext On/Off see p. 17

Press the bkey to show

teletext on the right half of the

screen.

OK Press this key

• to activate your choice, when in

the menus.

• to display the programme list.

MENU Main menu on/off see p. 5

VTo adjust the volume.

¬Interrupt the sound or restore it.

PProgramme selection

To browse through the TV

channels and sources stored in

the favourite list.

0/9 Digit keys

To select a TV channel.

For a two digit programme

number, enter the second digit

before the dash disappears.To

switch immediately to a selected

one digit TV channel, keep the

digit key pressed a bit longer.

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.

When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.

The list will be removed automatically after 4 seconds or press OK to remove immediately.

Remark: in VGA mode only some keys are valid. See VGA menu, p. 21.

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

1029.2 en 25-03-2003 15:25 Pagina 3

bDual screen / PIP / Multipip

See p. 8 and p. 14.

hActive control see p. 11.

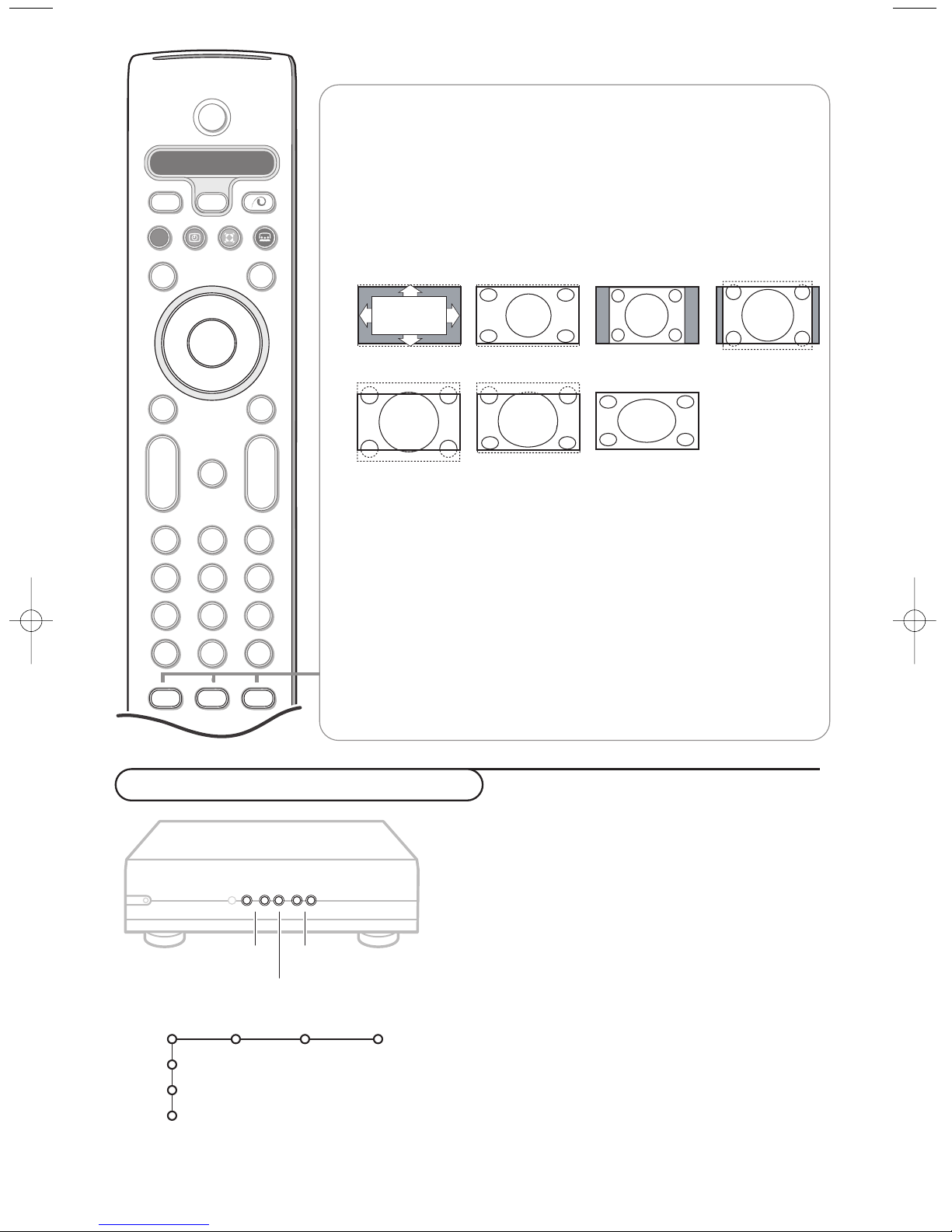

qPicture format

Press this key repeatedly or press the cursor up/down to select another

picture format: Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie

Expand 16:9, Subtitle zoom or Wide screen.

Auto format makes the picture fill the screen as much as possible.

In case of subtitles in the bottom black bar, Auto format makes the

subtitles visible.

In case of a broadcaster logo in the corner of the top black bar, the logo

disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programs with

minimal distortion.

When in Movie Expand 14:9, 16:9, Super zoom or Subtitle zoom picture

format, you can make subtitles visible with the cursor up/down.

Note: in VGA mode press the qkey to switch between a 4:3 or a Wide

screen picture format.

Auto format Super zoom 4:3 Movie Expand 14:9

Movie Expand 16:9 Subtitle zoom Wide screen

Select

VCR DVD SAT AMP CD

123

456

789

‡π

†

Active Control

Keys in front of the TV receiver box

Should your remote be lost or broken you can still

change some of the basic settings with the keys in front

of the TV receiver box.

Press:

•the VOLUME- or + key to adjust the volume;

•the -CH/PR+ keys to select the TV channels or

sources.

The MENU key can be used to summon the main menu

without the remote control.

Use:

•the V- and + keys and the CH/PR- and CH/PR+

keys to select menu items in the directions as shown;

•the MENU key to confirm your selection.

Note:

When activated via the MENU key in front of the TV

receiver box, only Exit lets you dismiss the menu.

Navigate to Exit and press the MENU key.

VOLUME

CH/PR

Setup

Install

Exit

Picture Sound Features

1029.2 en 25-03-2003 15:25 Pagina 4

To use the menus

&Press the MENU key on the remote control to summon the

main menu.At any moment you can exit the menu by

pressing the MENU key again.

Note: If you have connected equipment with Cinema Link, more

menu items are present.

éUse the cursor in the up/down direction to select the TV,

Setup or Install menu.

Use the cursor left/right to select Picture,Sound or

Features.

Note: Sometimes not all the menu items are visible on the screen

(indicated by a cluster of blue balls). Use the cursor down or right

to reveal all items.

“Use the cursor in the left/right direction to select the menu

item.

‘Use the cursor up/down again to select the control you

want to select or to adjust.

Note: Items temporary not available or not relevant are displayed in a

light grey colour and cannot be selected.

vSelect

VCR DVD SAT AMP CD

‡π

†

cursor to select

adjustments

OK key to

activate

return or switch

main menu on/off

Installation

&Press the MENU key on the remote control.

éUse the cursor down to select Install.

“Use the cursor right to select Language.

Follow the instructions on screen.

‘Use the cursor up/down to select your preferred language

and press the OK key to confirm your selection.

(Use the cursor right to select Country.

§Select the country where you are now located and press

the OK key.

Select Other when none of the countries applies.

èProceed with the Install menu.

Setup

Install

Picture Sound Features

Install

Language Country Automatic Manual Give name Reshuffle Favourite

install install programmes

The installation menu contains the following items:

EasyLink

If your video recorder has an EasyLink function, during installation, the language, country and available channels are

automatically transmitted to the video recorder.

Language

English

Deutsch

Français

Install

Country

Austria

Belgium

Croatia

Install

Select the menu language and country

1029.2 en 25-03-2003 15:25 Pagina 5

&Select Automatic install in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If

requested, enter your code to unlock all channels. (See TV,

Features menu, Childlock, p. 13.)

éPress the cursor down.

The autoprogramming option label Start appears.

“Press the cursor right.

‘The message Searching appears and the progress of

autoprogramming is displayed.

If a cable system or a TV channel which broadcasts ACI

(Automatic Channel Installation) is detected, a programme list

appears.Without ACI broadcast, the channels are numbered

according your language and country selection.You can use

Reshuffle to renumber them. See p. 7.

It is possible that the cable company or the TV channel displays a

broadcast selection menu. Layout and items are defined by the cable

company or the TV channel. Make your choice with the cursor and

press the OK key.

After language and country are set correctly, you can now search for and store the TV channels in two

different ways: using Automatic Installation or Manual Installation (tuning-in channel by channel).

Select your choice with the cursor right.

Automatic install

Install Start

Install

Manual installation

Automatic installation

Searching for and storing TV channels is done channel by

channel.You must go through every step of the Manual

Installation menu.

&Select Manual install in the Install menu.

éPress the cursor down.

Follow the instructions on screen.

Note: Search or direct selection of a TV channel.

If you know the frequency, the C- or S-channel number, enter the

3 or 2 digits of the frequency or the channel number directly with

the digit keys 0 to 9 (e.g. 048). Press the cursor down to proceed.

Repeat to search for another TV channel.

Manual install

Install

Selection mode

System

Programme

Fine tune

Store

Store TV channels

1029.2 en 25-03-2003 15:25 Pagina 6

It is possible to change the name stored in the

memory or to assign a name to a TV channel or

external for which a name has not yet been

entered.A name with up to 5 letters or numbers

can be given to the programme numbers 0 to 99.

Note : It is not possible to rename the VGA source.

&Select Give Name in the Install menu and

press the cursor down.

éSelect the programme number.

Note: keep the cursor up/down pressed to scroll

through the programme list quickly.

“Press the cursor right.

A keyboard appears on the screen.

Press the cursor right to enter the keyboard.

Press the cursor up/down, left/right to select

the first character and press OK.Repeat for

every character you want to enter.

Select Space to enter a space; Delete to erase

the highlighted character in the name entered;

Shift to display upper- or lowercase characters

on the keyboard; Special to display special

characters on the keyboard. Press OK to

confirm.

‘Press the cursor left repeatedly when you have

finished the name giving.

(Select another programme number and repeat

steps “to ‘.

Give name

pπ

® Space ® Delete

ABCDEFG 123

HIJKLMN 456

OPQRSTU 789

VWXYZ 0

® Shift ® Special

Give name

Install

VCR1

BBC1

BBC2

CNN

TVE

.....

Reshuffle the programme list

You can change the order of the stored TV

channels.

&Select Reshuffle in the Installation menu.

éFollow the instructions on screen.

Select Favourite TV channels

A VGA source always belongs to the list of

Favourite programmes.

&Select Favourite programmes in the Install

menu.

éSelect your programme number with the

cursor up/down.

“Select Ye s or No with the cursor right.

‘Repeat éand “for every TV channel or

external you want to make a favourite or a

non-favourite TV channel or external.

1029.2 en 25-03-2003 15:25 Pagina 7

TV Setup

The Setup menu contains items that control the settings

of the TV’s functions, features, services and peripherals

you may have connected.

The General menu allows you to change settings that

will typically be accessed only occasionally.

The Source menu allows you to select a source.

The Decoder menu allows you to define one or more

programme numbers as decoder programme numbers.

General

Menu background

Smart surf

Dual screen format

Freeze format

Factory settings

NEXTVIEW provider

OSD

Programme title

Teletext level 2.5

Set/Change code

Setup

This menu allows you to change various

settings that are presumably adjusted less

frequently than most other settings.

Menu background

Select Ye s or No to turn the menu background

on or off.

Smart surf

&Select Smart surf.

éWith the cursor right, select

• 2 programmes if you want the 0key to

toggle between the current and the previously

selected channel,

•9 programmes if you want the 0key to

summon a list of up to 9 channels which can be

selected,

•Themes if you want the 0key to quickly

select TV programmes if NEXTVIEW with

defined themes is broadcast.

To add/remove a channel or source:

Tune to the channel or source you wish to add

or remove. Press the 0key and press the

cursor right to add or remove.

Note: If there are already 9 channels/sources in the

list, the one at the bottom of the list will be

removed.

Dual screen format

(not available for HD sources)

This menu allows you to select the preferred

format which can then be displayed toggling the

bkey on and off.

See Dual screen/PIP/ Multipip, p. 14.

Select Dual screen,PIP,Large PIP,Medium

PIP or Small PIP,PIP 3,PIP 8 or PIP 12 with

the cursor up/down.

When Dual screen mode is activated with the

remote control bkey, and when:

•Dual screen is selected, the TV splits the

screen into two equally sized screens.

•Large PIP,Medium PIP or Small PIP is

selected, the TV shows a full screen of video

with a small, medium or large window of video

on top of it;

• PIP3,PIP8 or PIP12 is selected, the TV will

display 3, 8 or 12 PIP screens.

Note : Continuing to hold the bkey down will

also cycle the TV through the Dual screen and the

various PIP sizes.

Freeze format

This function is not possible with a VGA

source. Freeze format allows you to select

among three options: Freeze,Replay or Photo

finish,to be activated when you press the S

key on the remote control. See p. 3.

Note: Continuing to hold the Skey down will also

cycle the TV through the various formats. Changing

the format this way does not store the selected

format.

Factory settings

This resets the picture and sound settings to

their predefined factory values, but maintains

the channel installation settings.

NEXTVIEW provider

Select a TV broadcaster that provides

NEXTVIEW data. How to make use of NEXTVIEW,

see p. 15.

1029.2 en 25-03-2003 15:25 Pagina 8

Otros manuales para MatchLine FlatTV 50PF9965

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Televisor de pantalla plana de Philips

Philips

Philips 42PFL7562D - annexe 1 Manual de usuario

Philips

Philips 26PFL5322 Manual de usuario

Philips

Philips 20-LCD TV 20PF9925 Manual de usuario

Philips

Philips 37PF5321 Manual de usuario

Philips

Philips 40PFL5705DV Manual de usuario

Philips

Philips 32PFL5332S Manual de usuario

Philips

Philips 37FD9954 - 37" Plasma Panel Manual de usuario

Philips

Philips Cineos 34PT8422 Manual de usuario

Philips

Philips 29PT8842S/60 Manual de usuario

Philips

Philips 32PFL9705H Manual de usuario

Philips

Philips 42PF1000/62 Manual de usuario

Philips

Philips 23PF4321/01 Manual de usuario

Philips

Philips 26PF3302 Manual de usuario

Philips

Philips 42PFL5322 Manual de usuario

Philips

Philips 32TA2800/55 Manual de usuario

Philips

Philips 32PF5521D/10 Manual de usuario

Philips

Philips 37PF9730 Manual de usuario

Philips

Philips 1EMN26039A Manual de usuario

Philips

Philips Match Line 29PT8444 Manual de usuario

Philips

Philips 15PFL4122 Manual de usuario

Philips

Philips 50PF5521D Manual de usuario

Philips

Philips 28PW6506 - annexe 1 Manual de usuario

Philips

Philips 37PF5521D/12 Manual de usuario

Philips

Philips 32-LCD HDTV MONITOR FLAT TV DIGITAL CRYSTAL CLEAR... Manual de usuario

Manuales populares de Televisor de pantalla plana de otras marcas

Samsung

Samsung LT-P326W Manual de instrucciones

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manual de usuario

JVC

JVC LT-26DX7BFN Manual de usuario

Samsung

Samsung CT2Z45 Manual de usuario

Samsung

Samsung LNR1550X Manual de usuario

Westinghouse

Westinghouse TX-42F970Z Manual de usuario

Toshiba

Toshiba 32BV500B Manual de usuario

Samsung

Samsung Smart TV UN55D6000 Guía

RCA

RCA MR53R400 Manual de usuario

JVC

JVC GGT0362-001A-H Manual de usuario

Sanyo

Sanyo FVM4212 Manual de usuario

JVC

JVC LT-32Z48 Manual de usuario

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Instrucciones de uso

Vizio

Vizio M190MV Manual de uso y cuidado

Samsung

Samsung UN55F7050AF Manual de usuario

RCA

RCA TruFlat F20TF30 Manual de usuario

Samsung

Samsung LW32A33W Guía de inicio rápido

Sony

Sony FD Trinitron Wega KV-30HS420 Manual de usuario
