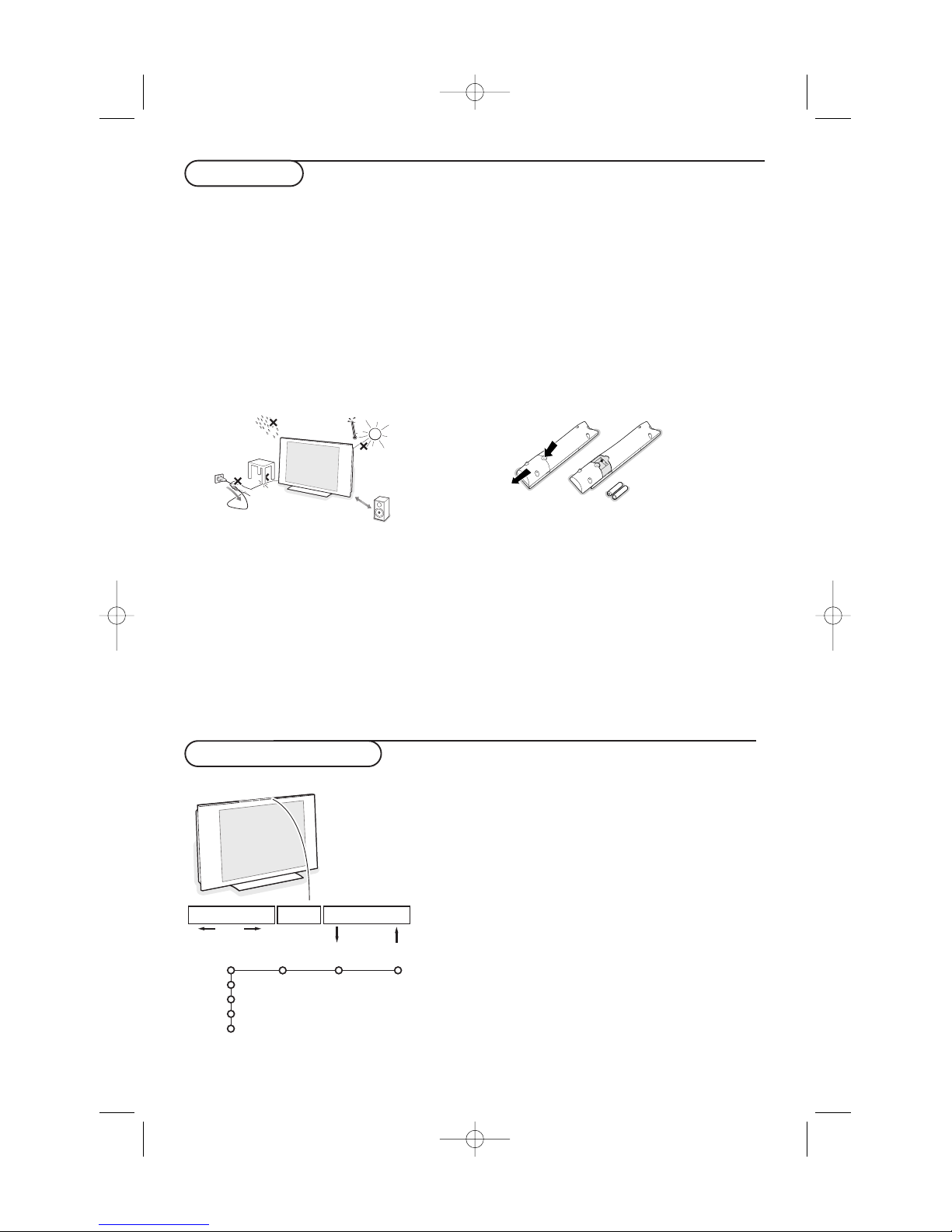

Preparation

&Wall mounting instructions

For the wall mounting instructions follow the

separate template.

Make sure that the wall mount is being fixed

securely enough so that it meets safety

standards.The weight of the TV (excl.

packaging) is about 40 kg.

Note: not supplied stands are optional accessories.

Consult your dealer.

éPlace or hang the TV wherever you want, but

make sure that air can circulate freely through

the ventilation slots. Do not install the TV in a

confined space such as a book case or a

simular unit.

To prevent any unsafe situations, no naked

flame sources, such as lighted candles, should

be placed on or in the vicinity. Avoid heat,

direct sunlight and exposure to rain or water.

The equipment shall not be exposed to

dripping or splashing and no objects filled with

liquids, such as vases, shall be placed on it.

“Insert the aerial plug firmly into the aerial

socket xat the bottom of the TV. For best

picture quality use the suppressor-aerial cable

supplied.

‘To connect your computer, see p. 18.

To connect other peripherals, see p. 17.

In order to obtain the best result, please use

only the supplied antenna cables between the

TV and videorecorder, and between

videorecorder and antenna connector.

(Insert the mains cord supplied into the mains

at the bottom of the TV and in the wall socket

having a mains voltage of 220-240V.

To prevent damaging the power (AC) cord

which could cause a fire or electric shock, do

not place the TV on the cord.

§Remote control:Insert the 2 batteries

supplied (Type R6-1,5V).

The batteries supplied do not contain the heavy

metals mercury and cadmium. Please check on how

to dispose of exhausted batteries according to local

regulations.

èSwitch the TV on :Press the power switch B

at the right side of the TV.

An indicator on the front of the TV lights up

and the screen comes on. If the TV is in

standby mode, press the -P+ keys or the B

key on the remote control.

min.

Keys on top of the TV Should your remote be lost or broken you can still

change some of the basic settings with the keys on top

of your TV.

Press:

•the V-or +key to adjust the volume;

•the -P/CH+ keys to select the TV channels or sources.

The MENU/OK key can be used to summon the main

menu without the remote control.

Use:

•the V- and + keys and the P/CH- and P/CH+ keys

to select menu items in the directions as shown;

•the MENU/OK key to confirm your selection.

Note:

When activated via the MENU/OK key on top of the TV,

only Exit lets you dismiss the menu.

Navigate to Exit and press the MENU/OK key.

MENU/OK- V + - P/CH +

Setup

Demo

Install

Exit

Picture Sound Features

2264.1 gb 19-12-2003 14:01 Pagina 2

Use of the remote control RC2080

BStandby

Press to switch the TV on or off.

When switched off, a red indicator on

the TV lights up.

vSelect peripherals (p. 17)

VCR DVD AMP SAT

Audio- and Video equipment keys

(p. 19)

Note: For most keys pressing a key once will activate the function. Pressing a second time will de-activate it.

When a key enables multiple options, a small list will be shown. Press repeatedly to select the next item in the list.

The list will be removed automatically after 4 seconds or press OK to remove immediately.

Remark: in VGA mode only some keys are valid.

213

546

879

®Ò‡π

†

æb

VCR DVD AMP

¬V PP

PIXEL

PLUS

UQÌ

hb S

SAT

®Ò‡π†

Audio- and Video equipment keys

(p. 19)

®Record

See Record with your recorder

with EasyLink, p. 19

UTime display

The time is displayed on the

screen.

æno function.

OK Press this key

• to activate your choice, when in the

menus.

• to display the programme list.

VTo adjust the volume.

¬Interrupt the sound or restore

it.

iOn Screen information

Press to display (when available)

information about the selected

TV channel and programme.

Menu/Remote control info

When a menu is on screen, press

ito display info on the

selected menu item. For

information on the remote

control functions, while the

menu info is displayed, press any

key on the remote control.

The normal function of the key is

not executed.

QSurround mode

Incredible surround

With stereo transmission, and

when Incredible surround is

selected, it seems as though the

loudspeakers are spread further

apart from one another.

Virtual Dolby surround

Optimal with Dolby surround

signals. Enables you to experience

the effect of Dolby surround Pro

Logic, reproducing a rear sound

effect. See Sound menu, 3D effect,

p. 11.

Note:You can make the same

selection in the Sound menu,

surround mode, p. 11.

Ìno function.

PIXEL PLUS no function

bTeletext on/off p. 13

ÏMain menu see p. 5

PProgramme selection

To browse through the TV

channels and sources stored in

the favourite list.

0/9 Digit keys

To select a TV channel.

For a two digit programme

number, enter the second digit

within 2 seconds.To switch

immediately to a selected one

digit TV channel, keep the digit key

pressed a bit longer.

2264.1 gb 19-12-2003 14:01 Pagina 3

213

546

879

®Ò‡π

†

æb

VCR DVD AMP

¬V P

PIXEL

PLUS

UQÌ

hb S

SAT

0Previous TV channel

Press to display the previously selected TV channel.

bDual screen

&Press the bor ækey.

Press the bkey to show Teletext or Teletext Guide on the right half of

the screen.

éMove the puck to the blue ball in the left screen.

Press +P- to select another TV channel.

“Press the qkey to select a vertical squeezed or a non vertical squeezed

picture size.

‘Press the bkey to switch off Dual screen.

Active screen selection

When in dual screen picture/teletext, enter the desired page number with

the -P+ key, then press the MENU key, then select the left screen (with

the blue ball at the top).

You can now select a compressed or full screen view of picture/teletext

with the qkey.

hActive control see p. 11

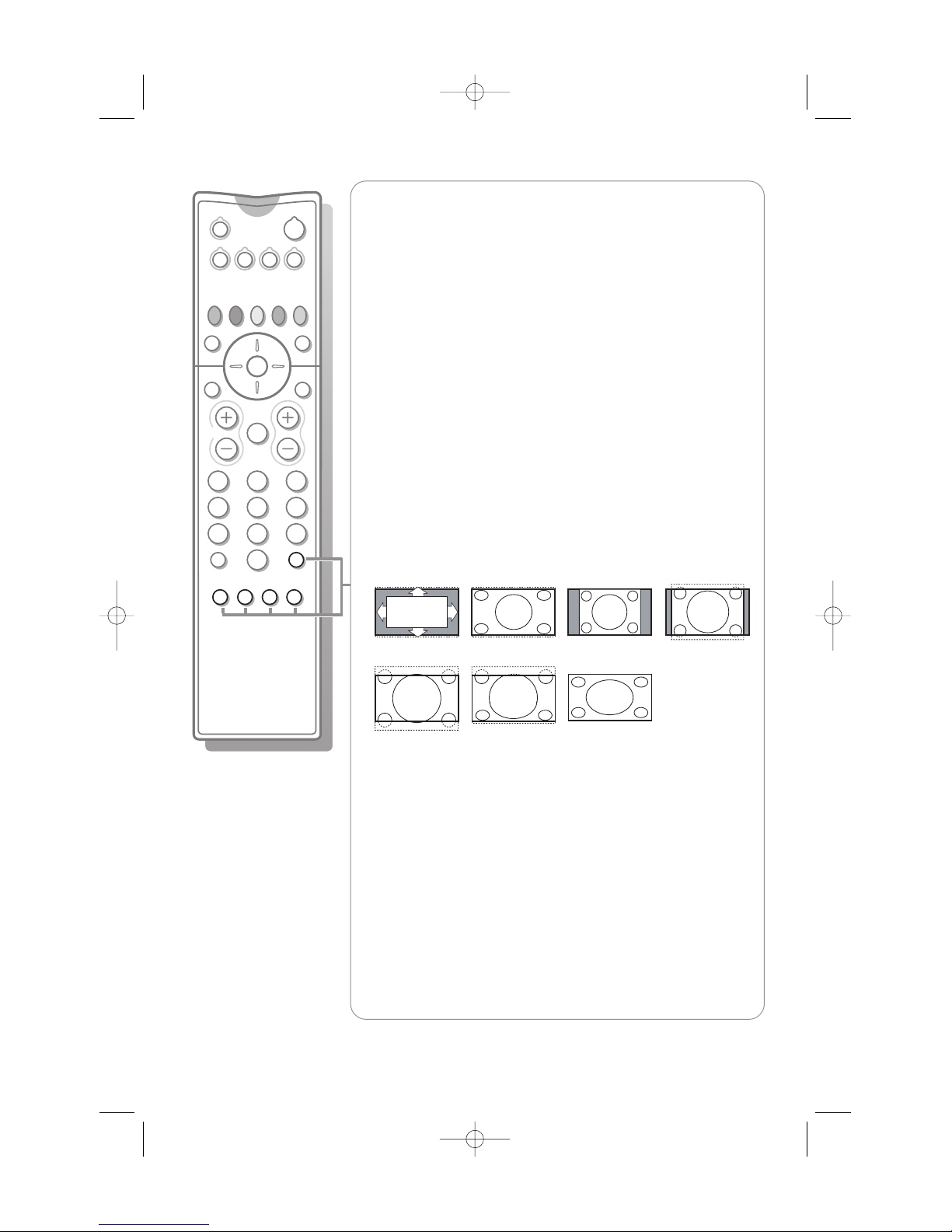

q Picture format

Press this key repeatedly or press the cursor up/down to select another

picture format:Auto format, Super zoom, 4:3, Movie Expand 14:9, Movie

Expand 16:9, Subtitle zoom or Wide screen.

Auto format makes the picture fill the screen as much as possible.

In case of subtitles in the bottom black bar,Auto format makes the

subtitles visible. If subtitles are only partly visible, press cursor up.

In case of a broadcaster logo in the corner of the top black bar, the logo

disappears from the screen.

Super zoom removes the black bars on the sides of 4:3 programs with

minimal distortion.

When in Movie Expand 14:9, 16:9, Super zoom or Subtitle zoom picture

format, you can make subtitles visible with the cursor up/down.

Note: With signals via the VGA IN connector less picture formats are

selectable.

SFreeze

To freeze the picture.

Dependent on the input signal, the function may not be possible.

Auto format Super zoom 4:3 Movie Expand 14:9

Movie Expand 16:9 Subtitle zoom Wide screen

2264.1 gb 19-12-2003 14:01 Pagina 4

To use the menus &Press the MENU Ïkey on the remote control to summon

the main menu.At any moment you can exit the menu by

pressing the MENU Ïkey again.

éUse the cursor in the up/down direction to select the TV,

Setup,Demo or Install menu.

Use the cursor left/right to select Picture,Sound or

Features.

Note: Sometimes not all the menu items are visible on the screen

(indicated by a cluster of blue balls). Use the cursor down or right

to reveal all items.

“Use the cursor in the left/right direction to select the menu

item.

‘Use the cursor up/down again to select the control you

want to select or to adjust.

Note: Items temporary not available or not relevant are displayed

in a light grey colour and cannot be selected.

213

®Ò‡π

†

æb

VCR DVD AMP SAT

¬V

PIXEL

PLUS

UQÌ

cursor to select

adjustments

OK key to

activate

return or switch

main menu on/off

Setup

Demo

Install

Picture Sound Features

Press the ikey to get

information about the selected

menu item.

Installation

&Press the MENU Ïkey on the remote control.

éUse the cursor down to select Install.

“Use the cursor right to select Language.

Follow the instructions on screen.

‘Use the cursor up/down to select your preferred language

and press the OK key to confirm your selection.

(Proceed with the Install menu.

Install

Language Automatic Manual Give name Reshuffle Favourite

install install programmes

The installation menu contains the following items:

EasyLink

If your video recorder has an EasyLink function, during installation, the language and available channels are

automatically transmitted to the video recorder.

Language

English

Deutsch

Français

Install

Select the menu language

2264.1 gb 19-12-2003 14:02 Pagina 5

&Select Automatic install in the Install menu.

Note: All channels must be unlocked in order to autoprogram. If

requested, enter your code to unlock all channels. (See TV, Features

menu, Childlock, p. 12.)

éPress the cursor down.

The autoprogramming option label Start appears.

“Press the cursor right.

‘The message Searching appears and the progress of

autoprogramming is displayed.

When the Automatic installation is complete, the puck navigates

to Install again.The channel list is automatically filled with all the

channels numbers of the TV channels transmitted.

Note: Channels numbers and names will always be written in Latin

characters, even when a language has been selected which uses other

characters.

After language is set correctly, you can now search for and store the TV channels in two different ways:

using Automatic Installation or Manual Installation (tuning-in channel by channel).

Select your choice with the cursor right.

Automatic install

Install Start

Install

Manual installation

Automatic installation

Searching for and storing TV channels is done channel by

channel.You must go through every step of the Manual

Installation menu.

&Select Manual install in the Install menu.

Note: If requested, enter your code to unlock all channels.

(See TV, Features menu, Childlock, p. 12.)

éPress the cursor down.

Follow the instructions on screen.

Note: Search or direct selection of a TV channel.

If you know the frequency, the C- or S-channel number, enter the 3

or 2 digits of the frequency or the channel number directly with

the digit keys 0 to 9 (e.g. 048). Press the cursor down to proceed.

Repeat to search for another TV channel.

Manual install

Install

Selection mode

System

Programme

Fine tune

Store

Store TV channels

2264.1 gb 19-12-2003 14:02 Pagina 6

It is possible to assign a name to a TV channel.

A name with up to 5 letters or numbers can be

given to the programme numbers 0 to 99.

Note : It is not possible to rename the VGA source.

&Select Give Name in the Install menu and

press the cursor down.

éSelect the programme number.

Note: keep the cursor up/down pressed to scroll

through the programme list quickly.

“Press the cursor right.

A keyboard appears on the screen.

Press the cursor right to enter the keyboard.

Press the cursor up/down, left/right to select

the first character and press OK.Repeat for

every character you want to enter.

Select Space to enter a space; Delete to erase

the highlighted character in the name entered;

Shift to display upper- or lowercase characters

on the keyboard; Special to display special

characters on the keyboard. Press OK to

confirm.

‘Press the cursor left repeatedly when you have

finished the name giving.

(Select another programme number and repeat

steps “to ‘.

Give name

pπ

® Space ® Delete

ABCDEFG 123

HIJKLMN 456

OPQRSTU 789

VWXYZ 0

® Shift ® Special

Give name

Install

VCR1

BBC1

BBC2

CNN

TVE

.....

Reshuffle the programme list

You can change the order of the stored TV

channels.

&Select Reshuffle in the Installation menu.

éFollow the instructions on screen.

Select Favourite TV channels

A VGA source always belongs to the list of

Favourite programmes.

&Select Favourite programmes in the Install

menu.

éSelect your programme number with the

cursor up/down.

“Select Ye s or No with the cursor right.

‘Repeat éand “for every TV channel or

external you want to make a favourite or a

non-favourite TV channel or external.

TV Setup

The Setup menu contains items that control the settings

of the TV’s functions, features, services and peripherals

you may have connected.

The General menu allows you to change settings that

will typically be accessed only occasionally.

The Source menu allows you to select a source.

General

Menu background

Factory settings

OSD

Programme title

Teletext 2.5

Auto surround

Set/Change code

Setup

2264.1 gb 19-12-2003 14:02 Pagina 7

General

Menu background

Select Ye s or No to turn the menu background

on or off.

Factory settings

This resets the picture and sound settings to

their predefined factory values, but maintains

the channel installation settings.

OSD (On Screen Display)

See Use of the remote control, p. 3, iOn

screen information.

&Select OSD.

éSelect Normal to activate the continuous

display of the programme number.Also TV

channel and programme information are

extended. Minimum will display reduced

channel information.

Note: When subtitles is switched on, see Features,

p.12, continuous display of the programme number

is not possible.

Programme title

Select Programme title Yes or No.

When selected Ye s ,after the selection of a TV

programme or after pressing the ikey on

the remote control, a TV channel which

broadcasts teletext may transmit the name of

the TV channel or the programme title.

When selected No,the programme title will

only appear after pressing the ikey, and not

after the selection of a TV channel.

Teletext level 2.5

Some broadcasters offer the opportunity to see

more colours, other background colours and

nicer pictures in the teletext pages.

&Select Teletext level 2.5.

éPress the cursor right to select Teletext level

2.5 On to take advantage of this feature.

“Press the cursor right again to select Teletext

level 2.5 Off if you like the more neutral

teletext layout.

The selection made is valid for all channels

which broadcast teletext level 2.5.

Note: It may take a few seconds before teletext

broadcast switches over to Teletext level 2.5.

Auto Surround

Sometimes the broadcaster transmits special

signals for Surround Sound encoded

programmes.

The TV automatically switches to the best

surround sound mode when Auto Surround is

switched On.

Set/Change code

The Child lock feature (see TV, Features, p. 12)

allows you to lock channels to prevent others

from watching certain programmes.To watch

locked channels, a 4-digit code must be entered.

The Set/Change code menu item allows you to

create or change a Personal Identification

Number (PIN).

&Select Set/Change code.

éIf no code exists yet, the menu item is set to

Set code.

If a code has previously been entered, the menu

item is set to Change code.Follow the

instructions on screen.

Important:You have forgotten your code !

&Select Change code in the General menu and

press OK.

éPress the cursor right and enter the overriding

code 8-8-8-8.

“Press the cursor again and enter a new

personal 4-digit code.The previous code is

erased and the new code is stored.

This menu allows you to change various settings that are presumably adjusted less frequently than

most other settings.

Press the ikey on the remote control to get information about the selected menu item.

2264.1 gb 19-12-2003 14:02 Pagina 8

Source

This menu allows you to indicate the peripheral

you connected to one of the external inputs.

&Press the cursor right to enter the list of types

of peripherals attached to the selected input.

éSelect the peripheral device with the cursor

up/down.

Once you have selected the source type, e.g. DVD,

this source will automatically be selected when

your remote control is in DVD mode, see p. 3, and

when you press the vkey on the remote

control.

Centre input - Centre in volume

When you have connected a surround receiver

to the TV, see p. 17, the loudspeakers of the TV

can act as centre speaker, making a separate

centre speaker unnecessary.

Select Centre input On.When having selected

On you can adjust the Centre in volume with

the cursor left/right to correct volume level

differences of the external audio receiver and

speakers.

Source

EXT1

EXT2

EXT3

YPbPr

Centre input

Centre in volume

Setup

Demo The Demo menu allows to demonstrate the TV

features separately or in a continuous loop.

If Auto demo has been selected the demo will

automatically present the features sequentially in a

loop. Press one of the cursor keys to stop the Auto

demo.

If one of the features has been selected, this

particular feature demo will run only once, and the

Demo menu will reappear.

Note:The Dealer demo is not part of the automatic

sequence and can only be activated separately.

Auto demo

......

Dealer demo - Dig natural motion

- Light sensor

- Comb filter

Setup

Demo

Install

2264.1 gb 19-12-2003 14:02 Pagina 9

&Press the cursor right to select Picture.

éSelect the menu items in the Picture menu with the cursor

up/down.

“Adjust the settings with the cursor left/right or enter the list of

submenu items with the cursor right. Select a submenu item

with the cursor up/down.

Note:To remove the menu background before adjusting the picture

settings, see Select TV setup, General, p. 8.

Smart picture

Select Smart picture to display a list of predefined picture

settings, each corresponding with specific factory settings.

Personal refers to the personal preference settings of picture in

the picture menu.

Dig natural motion

Line doubling eliminates line flicker, motion compensation

reduces jitter and offers smooth, yet sharp motion reproduction

in movie broadcasts.

Select On or Off to really see the difference in picture quality.

Dynamic contrast

Sets the level at which the TV automatically enhances the details

in dark, middle and light areas of the picture.

DNR

This sets the level at which noise is measured and reduced in

the picture.

Colour enhancement

This makes the colours more vivid and improves the resolution

of details in bright colours.

Hue

This compensates for the colour variations in NTSC encoded

transmissions.

Picture format

This will adjust the size of the picture dependent on the

broadcast format and your preferred setting.

TV menu

Press the MENU Ïkey on the remote control to summon the main menu.

Note: Dependent on the input signal, one or more menu items may not be selectable.

Press the ikey on the remote control to get information about the selected menu item.

Picture Sound Features

Smart picture

Contrast

Brightness

Colour

Sharpness

Tint

Dig natural motion

Dynamic contrast

DNR

Colour enhancement

(Hue)

Picture format

Picture menu

2264.1 gb 19-12-2003 14:02 Pagina 10

Otros manuales para 42PF9945 - annexe 1

Tabla de contenidos

Otros manuales de Televisor de pantalla plana de Philips

Philips

Philips 42PF5520D Manual de usuario

Philips

Philips 17PF9945/58I Manual de usuario

Philips

Philips Matchline 50FD9935/01S Manual de usuario

Philips

Philips 37PFL3512D/12 Manual de usuario

Philips

Philips 47PFL7403H Manual de usuario

Philips

Philips 42PFL7332D Manual de usuario

Philips

Philips 32PF5520D Manual de usuario

Philips

Philips 15PF9936/78 Manual de usuario

Philips

Philips 706216 Manual de usuario

Philips

Philips 28PW6506 - annexe 1 Manual de usuario

Philips

Philips 42PFL7482/98 Manual de usuario

Philips

Philips 37PFL5603H Manual de usuario

Philips

Philips 37PFL5332D - 37" LCD TV Manual de usuario

Philips

Philips 32-LCD HDTV MONITOR FLAT TV DIGITAL CRYSTAL CLEAR... Manual de usuario

Philips

Philips 42PW9982 Manual de usuario

Philips

Philips Cineos 42PF9831D Manual de usuario

Philips

Philips 42PF542ID Manual de usuario

Philips

Philips Cineos 42PF9830 Manual de usuario

Philips

Philips 21PT3335 Manual de usuario

Philips

Philips Matchline 33SL5796/10B Manual de usuario

Philips

Philips Flat TV Manual de usuario

Philips

Philips matchline 32PW9566 Manual de usuario

Philips

Philips 19PFL3504D - 19" LCD TV Manual de usuario

Philips

Philips 37PF9631D Guía de inicio rápido

Manuales populares de Televisor de pantalla plana de otras marcas

Samsung

Samsung LT-P326W Manual de instrucciones

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manual de usuario

JVC

JVC LT-26DX7BFN Manual de usuario

Samsung

Samsung CT2Z45 Manual de usuario

Samsung

Samsung LNR1550X Manual de usuario

Westinghouse

Westinghouse TX-42F970Z Manual de usuario

Toshiba

Toshiba 32BV500B Manual de usuario

Samsung

Samsung Smart TV UN55D6000 Guía

RCA

RCA MR53R400 Manual de usuario

JVC

JVC GGT0362-001A-H Manual de usuario

Sanyo

Sanyo FVM4212 Manual de usuario

JVC

JVC LT-32Z48 Manual de usuario

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Instrucciones de uso

Vizio

Vizio M190MV Manual de uso y cuidado

Samsung

Samsung UN55F7050AF Manual de usuario

RCA

RCA TruFlat F20TF30 Manual de usuario

Samsung

Samsung LW32A33W Guía de inicio rápido

Sony

Sony FD Trinitron Wega KV-30HS420 Manual de usuario
