Thank you for purchasing this television set.

This handbook has been designed to help you install and operate your TV set.

We strongly recommend that you read it thoroughly.

Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Preparation/Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Television keys and connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Remote Control keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Remote Control keys (Other functions) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Quick installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Programme sort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Auto store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Manual store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Naming of channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Picture and Sound settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Using the Contrast+ and NR (Noise Reduction) features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Timer function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Using the PIP (Picture-in-Picture) feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Screen Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Using the Smart Picture and Sound features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Using the Active Control feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Teletext . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Using the TV as PC monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using the TV in HD (High Definition) Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connect peripheral equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Troubleshooting tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Reference table of Countries for selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Introduction

Table of Contents

Recycling

The packaging of this product is intended to be recycled. Apply to the local authorities

for correct disposal.

Disposal of your old product

Your product is designed and manufactured with highly quality material and components,

which can be recycled and reused. When this crossed-out wheeled bin symbol is attached

to a product, it means the product is covered by the European Directive 2002/976/EC.

Please inform yourself about the local separate collection system for electrical and

electronic products.

Please act according to your local rules and do not dispose off your old products with

your normal household waste. The correct disposal of your product will help prevent

potential negative consequences for the environment and human health.

Safety information

Avoid placing your TV set under direct sunlight

or heat.

To prevent fire or shock hazard, do not expose

your TV to rain or moisture.

Take care not to connect too many equipment

to the same mains socket as it may cause

overloading resulting in fire or electric shock.

Pull the power lead by the plug. Do not pull on

the power lead. Do not use a poor fitting mains

socket. Insert the plug fully into the mains. If it is

loose, it may cause arching and result in fire.

No naked flame sources (lighted candles) should

be placed on the top of the set or near it.

When cleaning the surface or the screen of the

set, wipe gently with absorbent cotton or cloth

or other soft material like chamois. Do not use

too wet a cloth which is dripping with water.

Do not use acetone, toulene or alcohol to

clean the TV. As a safety precaution, unplug the

power cord from the mains.

As a safety precaution, do not touch any part of

the TV, power lead or aerial lead during lightning

storms.

Installation of the TV set on the wall should be

carried out by qualified serviceman. Improper

and incorrect installation may render the set

unsafe.

Avoid placing vase filled with water on the TV.

Water spilled into the set could result in electric

shock. Do not operate set if water is spilled into

it. Have it checked immediately by a qualified

serviceman.

Leave at least 10 cm around each side of the

TV set to allow for proper ventilation. Place

the set on a stable, level surface. Never cover

the ventilation slots of the TV with a cloth or

other material. It may cause overheating. Do not

insert anything in the ventilation holes. If metal

or something flammable is inserted in these

holes, it may result in fire or electric shock.

VOL P

5 6

87 9

- -

+ +

[

SMART

VOL P

5 6

87 9

- -

+ +

[

SMART

10 cm 10 cm

10 cm

VOL P

5 6

87 9

- -

+ +

[

SMART

VOL P

5 6

87 9

- -

+ +

[

SMART

Using the Remote Control

Pull out the plastic insulation sheet from the

battery to enable the remote control to operate.

Switching on the TV set

• To switch on the TV set, press the POWER

button. A green indicator comes on and the

screen lights up.

• If the TV set remains in standby mode (red

indicator), press the PROGRAM – /

+ key on

the keyboard or the P – / + key on the

remote control.

Preparation / Getting started

Positioning the TV set

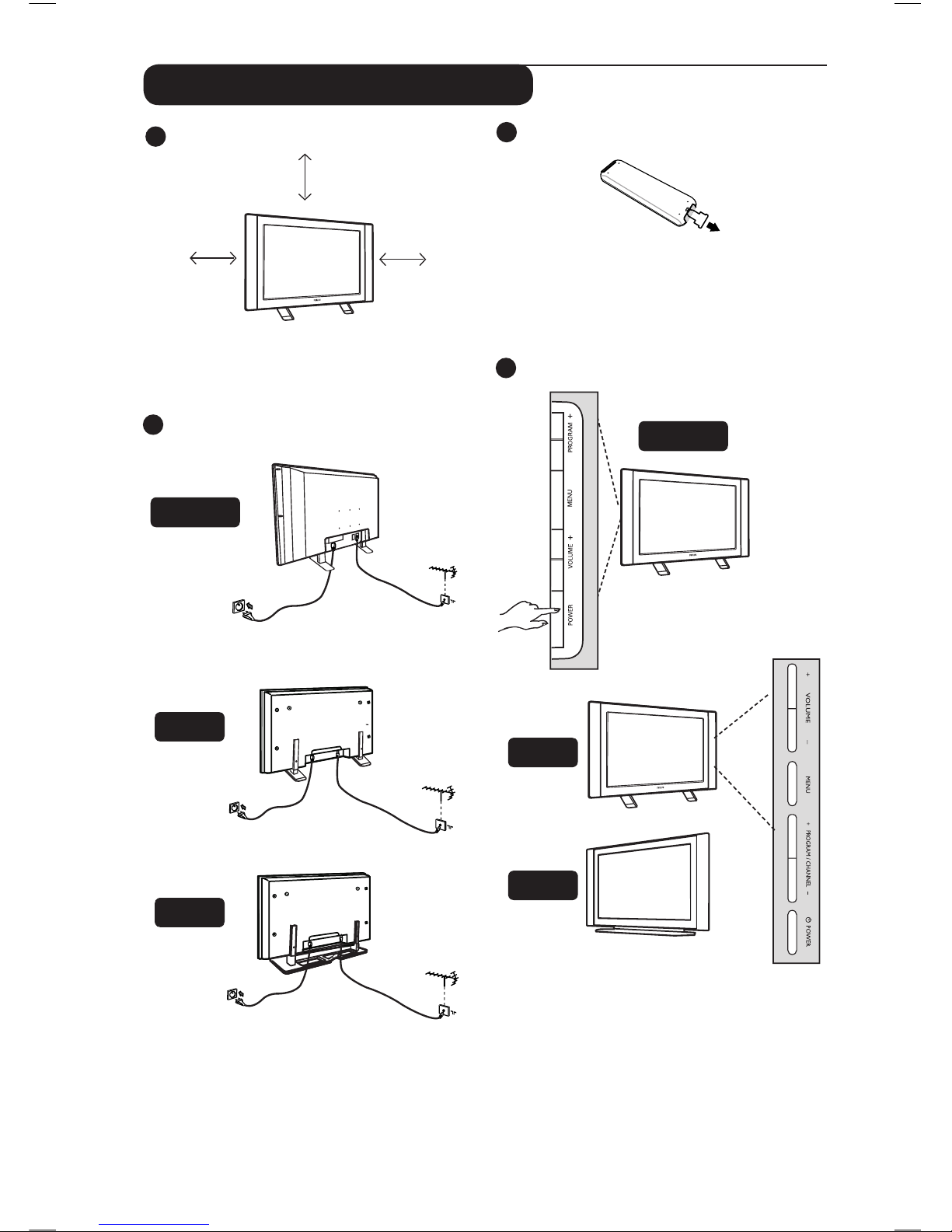

Place your TV set on a solid stable surface,

leaving a space of at 10 cm around the set.

Connections

• Insert the aerial plug into the 75� :

socket at the bottom of the set.

• Insert the mains plug into a wall socket

(220-240V / 50/60Hz).

10 cm

26” / 32”

–

26” / 32”

37”

42”

37”

42”

Televison keys and connectors

––

AC in ~

EXT 4

EXT 2 /SVHS2

EXT 1

DVI

(AUDIO IN)

HDMI

AUDIO

R L

Pb Y

26” / 32”

EXT 4

EXT 2 /SVHS2

EXT 1

DVI

(AUDIO IN)

HDMI

AUDIO

R L

Pb Y

AC in ~

AUDIO

VIDEO

S-VIDEO

EXT3/SVHS3

42”

37”

AUDIO

VIDEO

S-VIDEO

EXT3/SVHS3

Television keys and connectors

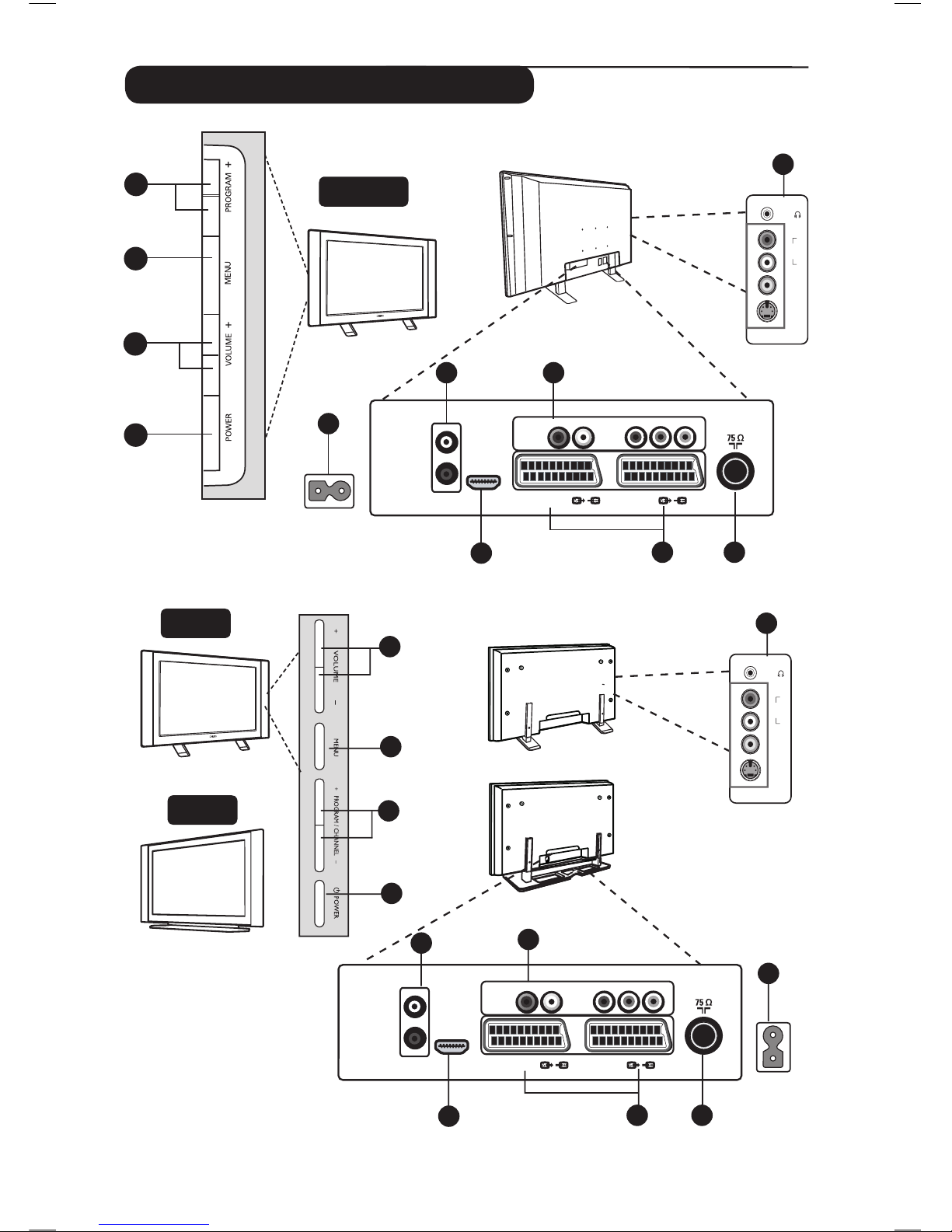

1 POWER . : to switch the TV on and off.

2 VOLUME –/+: to adjust sound level.

3 MENU : to access or close menus.

The PROGRAM /CHANNEL –/+ keys can

be used to select a menu item and the

VOLUME –/+ keys to enter into the selected

menu item and make adjustments.

4 PROGRAM / CHANNEL –/+ : to select

programmes.

POWER socket :

Insert the mains plug into

a wall socket.

DVI Audio Input : for connecting a HD

(high definition) equipment or computer with

DVI output.

Component Video inputs / Audio Inputs

(

EXT4)

: to connect to equipment like DVD,

Set-Top box which have the same sockets.

Connect the audio inputs of the TV to the

outputs of the device together with the

Component Video Inputs.

HDMI socket : to connect to set-top box,

DVD player/recorder, High Definition

equipment or Personal Computer.

EXT1 and EXT2/SVHS2 sockets : connect to

equipment

like DVD player/recorder, VCR,

Decorder which have scart connections.

Important : In order to connect your

decoder, please use EXT1 scart only.

TV Aerial socket :

Insert the aerial plug

into the 75 : socket.

Side connections

EXT3/SVHS3

: for

connecting to devices like camera or

camcorder. Also allows you to connect your

headphone for your personal listening

pleasure.

Remote Control keys

Standby

To set the TV to standby mode. To switch the

TV set on again, press , to ,

P – / + or AV key.

No function.

DVD / AUX (see page 7).

Surround Sound

To activate / deactivate the surround sound

effect. In stereo, this gives the impression that

the speakers are further apart. For models

equipped with Virtual Dolby Surround, you can

experience Dolby Surround Pro Logic sound

effects

Telextext keys (see page 15).

To display Source List to select TV or peripheral

equipment connected to EXT 1, EXT 2/SVHS2,

EXT 3/SVHS3, EXT 4 or HDMI.

Active Control (

ee page 14).

To call up or exit the TV menus.

Cursors

These 4 keys are used for selection and adjustment

of menu items.

Conﬁrms selection.

Volume ( – VOL + )

To adjust the sound level.

12 Smart Picture /Sound

Used to access a series of predeﬁned picture

and sound settings (see page 14).

13 / Numerical keys

For direct access to programmes. For a 2

digit programme number, the 2nd digit must

be entered before the dash disappears.

14 Screen information

To display/remove the programme number,

the sound mode, the remaining time of the

sleeptimer and the *signal strength indicator.

Mode

Select between TV, DVD and AUX mode (see

“Remote Control - Other functions” on page 7).

Programme List

To display / clear the list of programmes.

Use the Î ï keys to select a programme and

the Æ key to display it.

Picture-in-Picture

To display a PIP window on the TV screen (see

page 12 on how to use the PIP feature).

18 Sound mode

Used to force programmes in Stereo

and Nicam Stereo to Mono or, for

bilingual programmes, to choose between

Dualå or Dual». The Mono indication is red

when in forced position.

Screen Format (see page 13).

DVD / AUX (see page 7).

Mute

Press to mute or restore sound.

22 Selecting TV programmes (P – / +)

To select the next or previous programme.

The number and the sound mode

are displayed for a few seconds. For some

TV programmes, the title of the programme appears

at the bottom of the screen.

Previous/Present programme

To alternate between the last viewed and

present programme.

* The signal strength indicator shows

the signal strength of the transmission

of the programme you are watching.

AUX

Remote Control keys (Other functions)

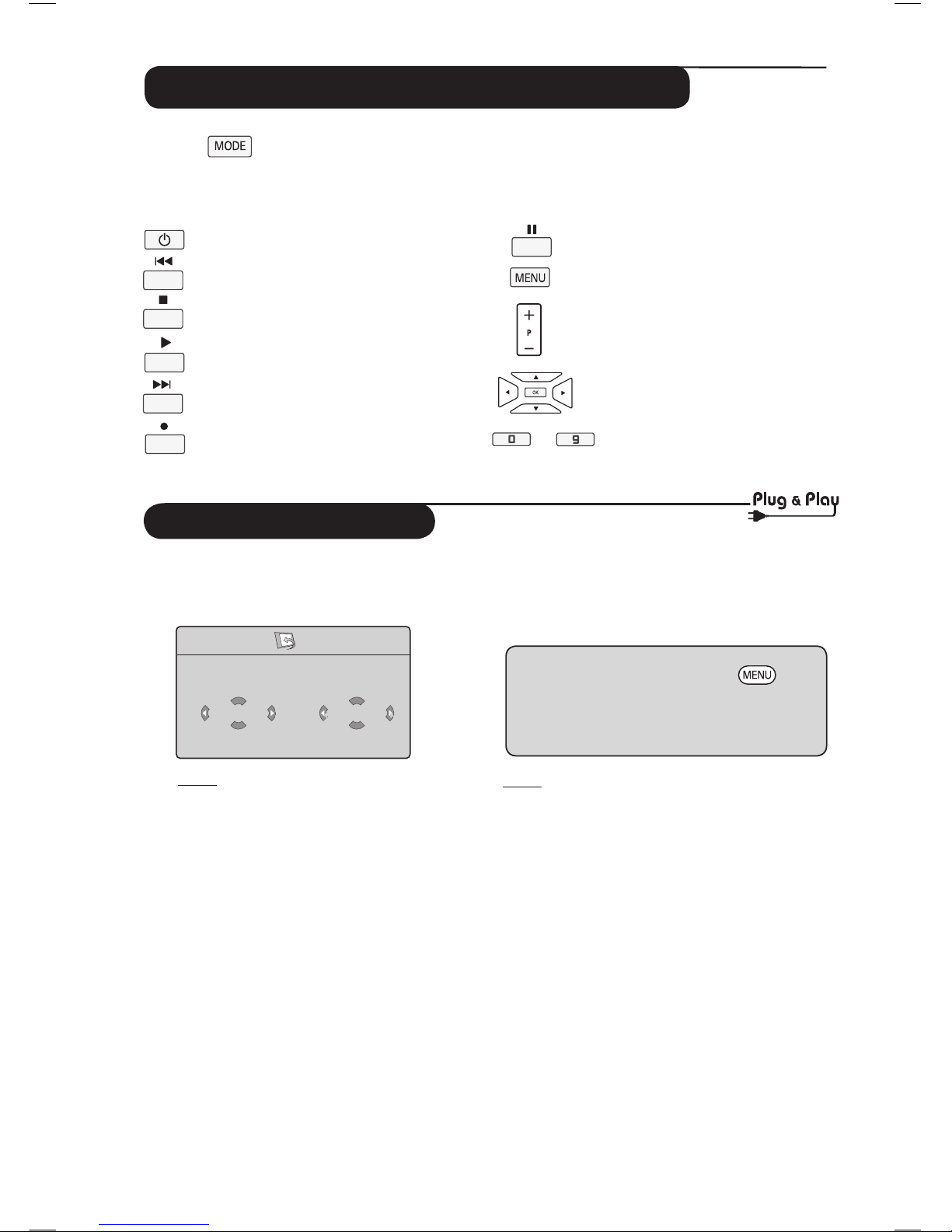

The remote control also allows you to control the main functions of some Philips DVD models

Press the key to select the required mode: DVD or AUX.

The remote control indicator lights up to display the selected mode. It switches off automatically

after 20 seconds if left idle. The mode automatically returns to TV mode.

The following buttons are operational, depending on the equipment:

standby

fast rewind

stop

play

fast forward

record

pause

display and exit menu

programme selection

navigation and adjustments,

confirms selection

digit keys

Quick Installation

When you switch on the TV set for the

first time, a menu is displayed on screen.

This menu prompts you to select the

country and language for the menus.

Note

If the above menu is not displayed, proceed to

do the installation of channels by the

Auto Store method (see page 8). If above

menu is displayed, proceed to do the following

steps.

& Use the Î ï keys on the remote control

to select your country. If your country does

not appear in the list, select “. . . “ . Refer to the

“Reference table of Countries available for

selection” on page 24.

é Use the Æ key to move to the Language

mode and select your language by the Î ï

keys.

“ Use the Æ key to start search.

Plug’n’Play

Country

Language

English

The search starts automatically. All the

available TV programmes will be stored. This

operation takes a few minutes. The display

shows the progress of the search and the

number of programmes found.

Important : To exit or interrupt the search

before it is completed, press the key.

If you interrupt search during auto store, not

all channels will be stored. For all channels to

be stored, you need to do a complete auto

store search again.

Note

ATS (Automatic Tuning System) feature

If the transmitter or cable network sends the

automatic sort signal, the programmes will be

numbered correctly. In this case, the installation

is complete. If this is not the case, you need to

use the Sort menu to number the programmes

correctly.

ACI (Automatic Channel Installation)

feature

If a cable system or a TV channel which

broadcasts ACI is detected, a programme

list appears. Without ACI broadcast, the channels

are numbered according to your language and

country selection. You can

use the Sort menu to renumber them.

Some transmitters or cable networks broadcast their

own sort parameters (region, language, etc.). In this

case, indicate your choice using the Î ï keys and

confirm with Æ key.

Note : Functions not available to Philips DVD-R device.

Programme Sort

Press the key. The TV Menu is

displayed on the screen.

Use the ï key, select the Install menu

and the Æ / key to enter the

Install menu.

Use the ï key to select Sort and the

Æ / key to enter sort mode.

Select the programme number you want to

move using the Î ï keys and the Æ /

key to enter sorting mode (The arrow cursor

now points to the left).

Use the Î ï keys to select the new

programme number and confirm with the

Í / key. (The arrow points to the

right and sorting is completed).

Repeat steps and for each

programme number you wish to re-number.

To return to previous menu, press the

key.

To exit the menu, press the key.

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name

Æ • 0

Æ • 1

Æ • 2

Æ • 3

Æ • 4

Æ • 5

Auto Store

Press the key.

Using the ï key, select Install and the

Æ / key to enter the Install menu

(Language is highlighted).

Select your desired menu *Language with

the Í Æ keys.

Select Country with the ï key and

use the Í Æ keys to select the country of

your choice.

Using the ï key, select Auto Store and

the Æ / key to start automatic

searching of the channels. All the available TV

programmes will be stored. This operation

takes a few minutes. The display shows the

progress of the search and the number of

programmes found.

After the search is completed, press the

key to exit menu.

Important : To exit or interrupt the search

before it is completed, press the key.

If you interrupt search during auto store, not

all channels will be stored. For all channels to

be stored, you need to do a complete auto

store search again.

TV Menu


Sound

Features

Install

Language

Country

Auto Store

Manual Store

Sort

Name

* Selecting the language

If you have selected the wrong language for one

reason or another and do not understand the

language to operate the set, do the following to

bring you back to your preferred language :

– press the key to exit the existing

menu.

– press the key to enter the TV menu.

– press the

ï key repeatedly until the

FOURTH item in the TV menu is

highlighted.

– press the

Æ / key to go into the Install

menu.

– press the Í Æ keys to select your preferred

language (the menu will now appear in the

chosen language). You can proceed to install

the TV channels.

Otros manuales para 42PF3321

Tabla de contenidos

Otros manuales de Televisor de pantalla plana de Philips

Philips

Philips Match Line 29PT8444 Manual de usuario

Philips

Philips 37PFL9603D Manual de usuario

Philips

Philips 42-inch 3D-Intelligent Display 42-3D6W02/00 Manual de usuario

Philips

Philips 32PFL7762D - annexe 1 Manual de usuario

Philips

Philips FlatTV 15PF4121 Manual de usuario

Philips

Philips Matchline 32PF9986 Manual de usuario

Philips

Philips 42ta648bx/37 Manual de usuario

Philips

Philips 37PFL7662D/05 Manual de usuario

Philips

Philips 37PF5320/10 Manual de usuario

Philips

Philips 20PFL5122/01 Manual de usuario

Philips

Philips 32PFL7403D Manual de usuario

Philips

Philips 15PF5121 Manual de usuario

Philips

Philips 52PFL9632D Manual de usuario

Philips

Philips 32PFL7782D Manual de usuario

Philips

Philips XGA LCD Manual de usuario

Philips

Philips 42PFL5422 Manual de usuario

Philips

Philips 37PFL7562D Manual de usuario

Philips

Philips FTR9952/12 Manual de usuario

Philips

Philips 37PF7321D Manual de usuario

Philips

Philips 42PFL5432D/37E Documento técnico

Philips

Philips 32PFL3403D Manual de usuario

Philips

Philips 42PFL5403S/98 Manual de usuario

Philips

Philips 29PT5606 Manual de usuario

Philips

Philips MATCH LINE 55PP925 Manual de usuario

Manuales populares de Televisor de pantalla plana de otras marcas

Samsung

Samsung LT-P326W Manual de instrucciones

Sony

Sony WEGA KE-50XBR900, KE-42XBR900 Manual de usuario

JVC

JVC LT-26DX7BFN Manual de usuario

Samsung

Samsung CT2Z45 Manual de usuario

Samsung

Samsung LNR1550X Manual de usuario

Westinghouse

Westinghouse TX-42F970Z Manual de usuario

Toshiba

Toshiba 32BV500B Manual de usuario

Samsung

Samsung Smart TV UN55D6000 Guía

RCA

RCA MR53R400 Manual de usuario

JVC

JVC GGT0362-001A-H Manual de usuario

Sanyo

Sanyo FVM4212 Manual de usuario

JVC

JVC LT-32Z48 Manual de usuario

Sony

Sony KE-42XBR900 - 42" Xbr Plasma Wega™ Integrated... Instrucciones de uso

Vizio

Vizio M190MV Manual de uso y cuidado

Samsung

Samsung UN55F7050AF Manual de usuario

RCA

RCA TruFlat F20TF30 Manual de usuario

Samsung

Samsung LW32A33W Guía de inicio rápido

Sony

Sony FD Trinitron Wega KV-30HS420 Manual de usuario
