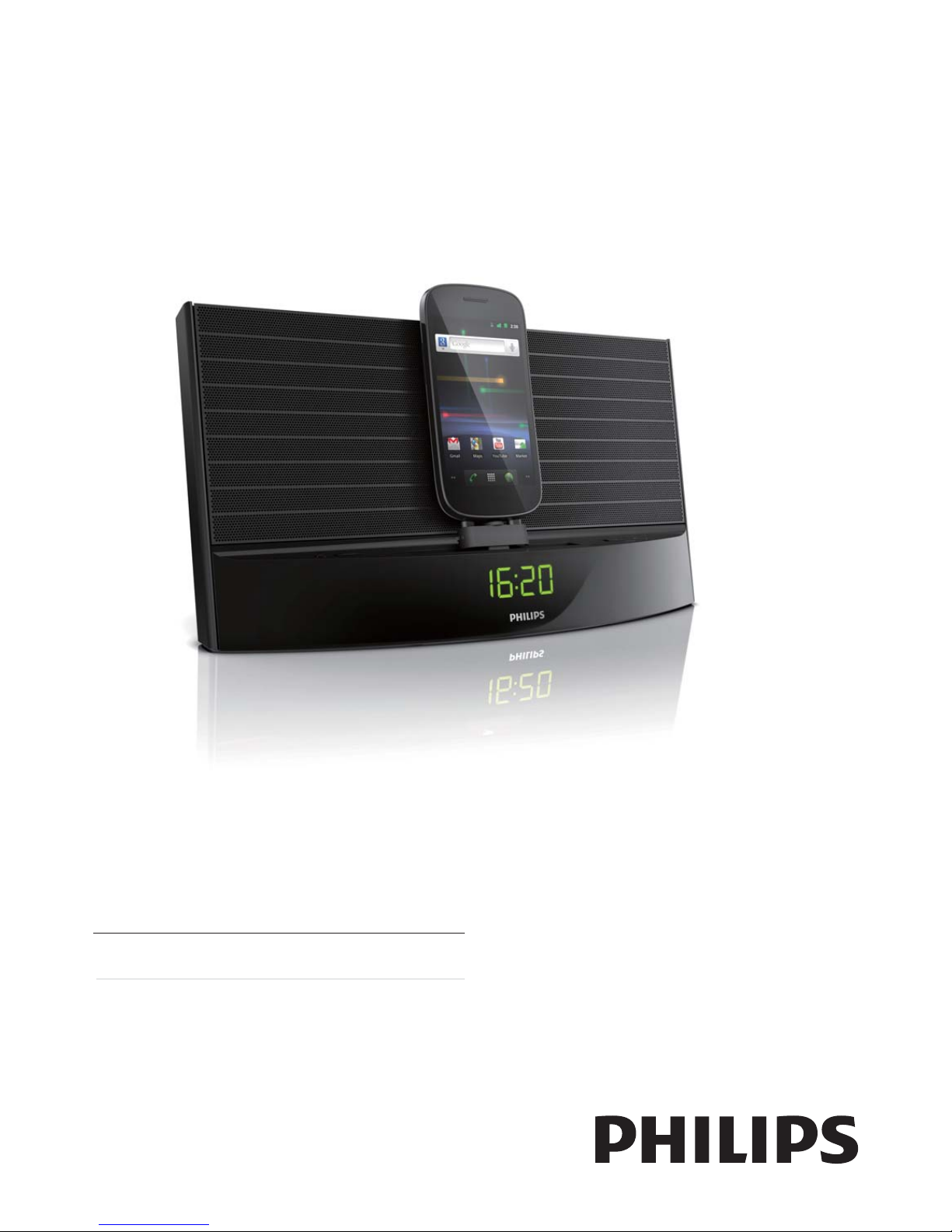

Philips AS140 Manual de usuario
AS140
EN User manual
Register your product and get support at
www.philips.com/welcome
2EN
Contents
1 Important 3
Safety 3
Know these safety symbols 3
2 Your Docking System for AndroidTM 4
Introduction 4
What's in the box 4
Overview of the docking system 5
3 Get started 6
Connect power 6
Turn on 7
Switch to standby mode 7
Select a source 7
4 Play and charge 7
Compatible with AndroidTM 7
Play audio through manual Bluetooth
connection 7
Play audio through auto Bluetooth
connection with Fidelio app 9
Install "Fidelio app" onto Android-
powered device 9
Activate Bluetooth with Fidelio app 13
Sync time automatically 15
Install "Songbird app" to enjoy music 15
Install Songbird app on Android-
powered device 15
Install Songbird on your computer 17
Sync music from PC to Android-
powered device 17
Use more features with Fidelio app 18
Set alarm timer 18
Set sleep timer 19
Listen to Internet radio 20
Dock and charge Android-powered
phone 21
Dock Android-powered phone 21
Use dock extension 21
Charge Android-powered phone 22
5 Listen to FM radio 22
Tune to FM radio stations 22
Store FM radio stations automatically 22
Store FM radio stations manually 23
Select a preset radio station 23
6 Other features 23
Set time 23
Set alarm timer 23
Set alarm 23
Select alarm source 24
Activate/deactivate alarm timer 24
Snooze alarm 24
Set sleep timer 24
Play audio from an external device 24
Adjust display brightness 24
7 Product information 25
Tuner 25
General information 25
8 Troubleshooting 25
9 Notice 26
Disposal of your old product 26
3EN
1 Important
Safety
Read these instructions.
Heed all warnings.
Follow all instructions.
Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
Do not install near any heat sources such
as radiators, heat registers, stoves, or
produce heat.
Protect the power cord from being
walked on or pinched, particularly at plugs,
convenience receptacles, and the point
where they exit from the unit.
by the manufacturer.
Unplug this unit during lightning storms or
when unused for long periods of time.
personnel. Servicing is required when the
unit has been damaged in any way, such
as power-supply cord or plug is damaged,
liquid has been spilled or objects have
fallen into the unit, the unit has been
exposed to rain or moisture, does not
operate normally, or has been dropped.
This unit shall not be exposed to dripping
or splashing.
Do not place any sources of danger on
Where the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Know these safety symbols
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
shock, this apparatus should not be exposed to
such as vases, should not be placed on this
apparatus.
CAUTION:To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
4EN
2 Your Docking
System for
AndroidTM
Congratulations on your purchase, and
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this docking system, you can:
enjoy audio from your Android-powered
device;
charge your phone through micro USB
connector;
listen to FM radio;
wake up to buzzer alarm, radio, or audio in
your device; and
experience a variety of features brought by
Philips Fidelio and Songbird app.
What's in the box
Check and identify the contents of your
package:
Main unit
Power adapter
Dock extension
MP3 link cable x 1
Quick start guide
Safety sheet
5EN
Overview of the docking
system
a SET TIME/PROG
Set clock.
Store FM radio stations.
b PRESET /
Select a preset radio station.
Adjust hour and hour format.
c SNOOZE/BRIGHTNESS
Snooze alarm.
Adjust display brightness.
d
Turn the docking system on or off .
Switch the system to standby mode.
e SOURCE
Select a source: FM tuner, Bluetooth
device, or MP3 link.
a
b
c
d
e
f
l
m
n
g
h
i
j
k
o
f Display panel
Show current information.
g AL1/AL2
Set alarm.
View alarm settings.
Activate or deactivate alarm timer.
h SLEEP
Set sleep timer.
i TUNING · /
Tune to FM radio stations.
Adjust minute.
j VOLUME +/-
Adjust volume.
k Dock for Android phone
Dock your Android-powered phone.
6EN
l AL1/AL2 RADIO·BUZZ·DOCK
Select alarm source for Alarm 1 or
Alarm 2.
m MP3 LINK
Connect an external audio device.
n FM ANTENNA
Improve FM reception.
o DC IN
Power supply socket.
3 Get started
Always follow the instructions in this chapter in
sequence.
Caution
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
Connect power
Caution
Risk of product damage! Ensure that the power voltage
corresponds to the voltage printed on the back or
underside of the device.
Risk of electric shock! When you unplug the power
adapter, always pull the plug from the socket. Never
pull the cord.
Note
The type plate is located on the bottom of the docking
system.
Connect the power adapter to:
the DC IN socket of the docking system.
the wall socket.
7EN
Turn on
Press .
» The docking system switches to the last
selected source.
Switch to standby mode
Press again to switch the docking system to
standby mode.
» [OFF]
displayed.
Select a source
Press SOURCE repeatedly to select a source:
Bluetooth, FM tuner, or MP3 link.
Note
When an android-powered device is docked, the
system automatically switches to Bluetooth mode.
4 Play and charge
With this docking system, you can enjoy audio
in two ways:
through manual Bluetooth connection;
through automatic Bluetooth connection
with Philips Fidelio app.
Compatible with AndroidTM
To make full use of your docking system, your
Android-powered device should satisfy the
following requirements:
With Android operation system (Version
With Bluetooth software (Version 2.1 or
With a micro USB connector.
For other devices with micro USB connector
and Bluetooth, you can still use the docking
system to do the the following:
Charge your device through the USB
connector;
Enjoy audio through Bluetooth.
Tip
Play audio through manual
Bluetooth connection
The docking system uses Bluetooth wireless
technology to stream music from your portable
device to the system.
8EN
Note
Before you connect a Bluetooth device to this
docking system, familiarize yourself with the Bluetooth
capabilities of the device.
Keep this docking system away from other electronic
devices that may cause interference.
1 Press to turn on Bluetooth function of
the docking system.
» The Bluetooth indicator blinks on the
display panel.
2 On your portable device, go to [Settings]
[Wireless and networks]
[Bluetooth
settings]
Different devices may have different
way to activate Bluetooth.
3 Tap [Bluetooth]
Bluetooth on your device.
4 Tap [Search for devices] (Search for
5 Tap [PHILIPS AS140].
» A Bluetooth pairing request appears.
9EN
6 Tap [Accept]
device with the docking system.
» After Bluetooth connection, a different
Bluetooth icon can be found on the
top of the screen.
7 Play audio with the media player of your
portable device.
» The audio comes out through the
docking system.
Note
The effective operation range between the docking
system and the paired device is approximately 10
Any obstacle between the system and the device can
reduce the operational range.
Play audio through auto
Bluetooth connection with
Fidelio app
Philips Fidelio app brings a suite of new features
to your docking system, including automatic
Bluetooth connection, Songbird music player,
Internet radio and a multi-function alarm clock.
To enjoy more features, you are recommended
to download and install free "Fidelio app".
Install "Fidelio app" onto Android-
powered device
You have two ways to install "Fidelio app" on
your Android-powered device.
10EN
Install "Fidelio app" through QR code
Note
Make sure that your Android-powered device is
connected to the internet.
Make sure that your device has a barcode scanner such
as "QR Droid". If not, download one from the Android
market.
1 Use the barcode scanner to scan the QR
code.
2 Tap [Install]
3 Tap [Accept & download] (accept and
app".
» Fidelio app is installed.
