Philips AD530/79 Manual de usuario

AD530/79

www.philips.com/welcome

User manual

Always there to help you

Question?

Contact

Philips

1EN

Contents

1 Important 2

2 Notice 3

Recycling 3

3 Your Docking Speaker 4

Introduction 4

What's in the box 4

Overview of the main unit 5

4 Get started 6

Connect power 6

5 Play 7

Play from iPod/iPhone 7

Play from Bluetooth device 7

Play from an external audio device 8

Adjust volume 8

Mute sound 8

6 Product information 9

Specications 9

7 Troubleshooting 10

About Bluetooth device 10

2EN

1 Important

• Read these instructions.

• Heed all warnings.

• Follow all instructions.

• Do not use this apparatus near water.

• Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

• Do not install near any heat sources such

as radiators, heat registers, stoves, or

otherapparatus(includingampliers)that

produce heat.

• Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

• Onlyuseattachments/accessoriesspecied

by the manufacturer.

• Unplug this apparatus during lightning

storms or when unused for long periods

of time.

• Referallservicingtoqualiedservice

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

• Apparatus shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on the

apparatus(e.g.liquidlledobjects,lighted

candles).

• Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

•Never remove the casing of this apparatus.

•Never place this apparatus on other electrical

equipment.

•Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect the apparatus from

the power.

3EN

2 Notice

Anychangesormodicationsmadetothis

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

“Made for iPod” and “Made for iPhone”

mean that an electronic accessory has been

designedtoconnectspecicallytoiPodor

iPhonerespectively,andhasbeencertiedby

the developer to meet Apple performance

standards. Apple is not responsible for the

operation of this device or its compliance with

safety and regulatory standards. Please note that

the use of this accessory with iPod or iPhone

may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc.,

registered in the U.S. and other countries.

Recycling

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When you see the crossed-out wheel bin

symbol attached to a product, it means the

product is covered by the European Directive

2002/96/EC:

Never dispose of your product with other

household waste. Please inform yourself about

the local rules on the separate collection of

electrical and electronic products.The correct

disposal of your old product helps prevent

potentially negative consequences on the

environment and human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separateintothreematerials:cardboard(box),

polystyrenefoam(buffer)andpolyethylene

(bags,protectivefoamsheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and old

equipment.

4EN

3 Your Docking

Speaker

Congratulations on your purchase, and

welcometoPhilips!Tofullybenetfromthe

support that Philips offers, register your product

at www.philips.com/welcome.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Introduction

With this docking speaker, you can enjoy audio

from the iPod/iPhone, Bluetooth devices, and

other external audio devices.

What's in the box

Check and identify the contents of your

package:

• Main unit

• AC power adaptor

• Quick start guide

•

5EN

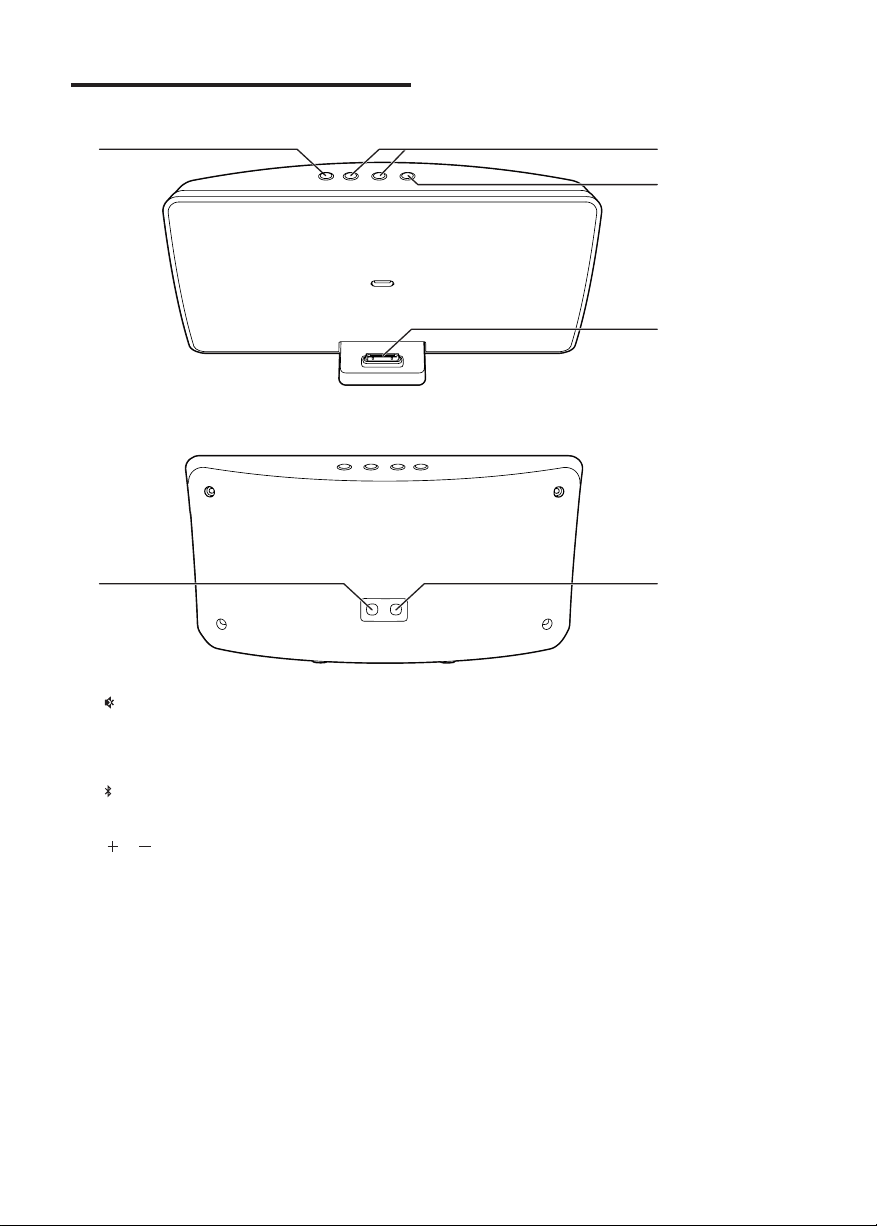

Overview of the main unit

• Mute or unmute sound.

b Dock for the iPod/iPhone

• Enable or disable Bluetooth function.

d /

• Adjust volume.

e MP3-LINK

• Connect an external audio device.

f DC IN

• Connect power.

6EN

4 Get started

Always follow the instructions in this chapter in

sequence.

Connect power

Caution

•Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the unit.

•Risk of electric shock! When you unplug the AC

adaptor, always pull the plug from the socket. Never

pull the cord.

Note

•The type plate is located at the back of the main unit.

Connect the power adaptor to:

• the DC IN socket at the back of the

docking speaker.

• the wall outlet.

DC IN

7EN

5 Play

Play from iPod/iPhone

You can enjoy audio from your iPod/iPhone

through this docking speaker.

Compatible iPod/iPhone

The docking speaker supports the following

iPod and iPhone models:

Made for.

• iPod touch (1st, 2nd, 3rd, and 4th

generation)

• iPod classic

• iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th

generation)

• iPhone 4S

• iPhone 4

• iPhone 3GS

• iPhone 3G

• iPhone

Listen to the iPod/iPhone

1 Place an iPod/iPhone in the dock.

2 Play audio from the iPod/iPhone.

To remove the iPod/iPhone:

Pull the iPod/iPhone out of the dock.

Charge the iPod/iPhone

When the docking speaker is connected to

power, the docked iPod/iPhone begins to

charge automatically.

Play from Bluetooth device

Pair with Bluetooth devices

Note

•Before you connect a Bluetooth device to this docking

speaker, familiarize yourself with the Bluetooth

capabilities of the device.

•The effective operational range between the docking

system and the paired device is approximately 10

meters.

•Any obstacle between the docking speaker and the

paired device can reduce the operational range.

1 Press to select Bluetooth source.

» The Bluetooth button blinks.

2 Turn on Bluetooth function on your device.

• Different devices may have different

way to activate Bluetooth.

3 Scan Bluetooth devices that can pair with

your device.

4 When “AD530” is displayed on your

device, select it to start connection.

» If connection is successful, you will hear

doublebeepconrmationtone,and

theBluetoothbuttonstopsashing.

» A different Bluetooth icon is displayed

on your device.

8EN

5 Play audio on your device.

» Audio streams from your device to the

docking speaker.

Tip

•If your Bluetooth device has been paired with this

speakerbefore,youjustneedtondout“AD530”on

yourBluetoothmenu,thenconrmtheconnection.

To disconnect Bluetooth:

• Press on the docking speaker again.

• Deactivate Bluetooth function on your

device; or

• Move the device beyond the

communication range.

AD530

Play from an external audio

device

With this docking speaker, you can also enjoy

audio from an external device such as an MP3

player.

Note

•Make sure that no iPod/iPhone is docked in the docking

speaker.

1 ConnectanMP3linkcable(notsupplied)

to:

• the MP3-LINK socket at the back of

the docking speaker.

• the headphone socket on an external

device.

» The docking speaker switches to MP3

link mode automatically.

2 Play music on the device (see the device's

usermanual).

Adjust volume

During play, press / to adjust volume.

Mute sound

During play, press to mute or unmute sound.

9EN

6 Product

information

Note

•Product information is subject to change without prior

notice.

Specications

Amplier

Total Output Power 4 W per channel

x 2

Signal to Noise Ratio > 62 dBA

MP3 Link 650 mV RMS

Bluetooth

Standard Bluetooth Standard

Version 2.1+EDR

Output power 4dBm(Class2)

Frequency band 2.402 ~ 2.480

GHzISM Band

Range 10m(freespace)

General information

AC Power Model: AS110-080-

AM130(Philips);

Input: 100-240 V ~

50/60Hz, 0.5A;

Output: 8 V 1.3 A

Operation Power

Consumption 15 W

Standby Power

Consumption <0.5 W

Max. load for iPod/

iPhone 5 V 1 A

Dimensions

-MainUnit(WxHxD) 261 x 130 x 103 mm

Weight

- Main Unit 0.9 kg
