User manual

All manuals and user guides at all-guides.com

all-guides.com

2EN

Contents

1 Important 3

2 Your Docking Speaker 4

Introduction 4

What's in the box 4

Overview of the main unit 5

3 Get started 6

Connect power 6

4 Play 6

Play from iPod/iPhone 6

Play from Bluetooth device 7

Play from an external audio device 7

Adjust volume 8

Mute sound 8

5 Product information 8

 

6 Troubleshooting 9

About Bluetooth device 9

7 Notice 10

Recycling 10

All manuals and user guides at all-guides.com

3EN

1 Important

 Read these instructions.

 Heed all warnings.

 Follow all instructions.

 Do not use this apparatus near water.

 Do not block any ventilation openings.

Install in accordance with the

manufacturer's instructions.

 Do not install near any heat sources such

as radiators, heat registers, stoves, or



produce heat.

 Protect the power cord from being

walked on or pinched, particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

 

by the manufacturer.

 Unplug this apparatus during lightning

storms or when unused for long periods

of time.

 

personnel. Servicing is required when

the apparatus has been damaged in any

way, such as power-supply cord or plug

is damaged, liquid has been spilled or

objects have fallen into the apparatus, the

apparatus has been exposed to rain or

moisture, does not operate normally, or

has been dropped.

 Apparatus shall not be exposed to

dripping or splashing.

 Do not place any sources of danger on the





 Where the plug of the Direct Plug-in

Adapter is used as the disconnect device,

the disconnect device shall remain readily

operable.

Warning

 Never remove the casing of this apparatus.

 Never place this apparatus on other electrical

equipment.

 Ensure that you always have easy access to the power

cord, plug or adaptor to disconnect the apparatus from

the power.

All manuals and user guides at all-guides.com

4EN

2 Your Docking

Speaker

Congratulations on your purchase, and



support that Philips offers, register your product

at www.philips.com/welcome.

If you contact Philips, you will be asked for the

model and serial number of this apparatus.The

model number and serial number are on the

bottom of the apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Introduction

With this docking speaker, you can enjoy audio

from the iPod/iPhone, Bluetooth devices, and

other external audio devices.

What's in the box

Check and identify the contents of your

package:

 Main unit

 AC power adaptor

 Quick start guide

All manuals and user guides at all-guides.com

5EN

Overview of the main unit

 Mute or unmute sound.

b Dock for the iPod/iPhone

 Enable or disable Bluetooth function.

d /

 Adjust volume.

e MP3-LINK

 Connect an external audio device.

f DC IN

 Connect power.

All manuals and user guides at all-guides.com

6EN

3 Get started

Always follow the instructions in this chapter in

sequence.

Connect power

Caution

 Risk of product damage! Make sure that the power

supply voltage matches the voltage printed on the

bottom of the unit.

 Risk of electric shock! When you unplug the AC

adaptor, always pull the plug from the socket. Never

pull the cord.

Note

 The type plate is located at the back of the main unit.

Connect the power adaptor to:

 the DC IN socket at the back of the

docking speaker.

 the wall outlet.

DC IN

4 Play

Play from iPod/iPhone

You can enjoy audio from your iPod/iPhone

through this docking speaker.

Compatible iPod/iPhone

The docking speaker supports the following

iPod and iPhone models:

Made for.

 iPod touch (1st, 2nd, 3rd, and 4th



 iPod classic

 iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th



 iPhone 4S

 iPhone 4

 iPhone 3GS

 iPhone 3G

 iPhone

Listen to the iPod/iPhone

1 Place an iPod/iPhone in the dock.

2 Play audio from the iPod/iPhone.

All manuals and user guides at all-guides.com

all-guides.com

7EN

To remove the iPod/iPhone:

Pull the iPod/iPhone out of the dock.

Charge the iPod/iPhone

When the docking speaker is connected to

power, the docked iPod/iPhone begins to

charge automatically.

Play from Bluetooth device

Pair with Bluetooth deivces

Note

 Before you connect a Bluetooth device to this docking

speaker, familiarize yourself with the Bluetooth

capabilities of the device.

 The effective operation range between the docking

system and the paired device is approximately 10



 Keep this docking speaker away from other electronic

devices that may cause interference.

1 Press to select Bluetooth source.

» The Bluetooth button blinks.

2 Turn on Bluetooth function on your device.

 Different devices may have different

way to activate Bluetooth.

3 Scan Bluetooth devices that can pair with

your device.

4 When “AD533” is displayed on your

device, select it to start connection.

» 

heard and the Bluetooth button stops

blinking if connection is successful.

» A different Bluetooth icon is displayed

on your device.

5 Play music in your device.

» Music comes through the docking

speaker.

Tip

 If your Bluetooth device has been paired with AD533





To disconnect Bluetooth:

 Press on the docking speaker again.

 Deactivate Bluetooth function on

your device or move it beyond the

communication range.

Play from an external audio

device

With this docking speaker, you can also enjoy

audio from an external device such as an MP3

player.

Note

 Make sure that no iPod/iPhone is docked in the docking

speaker.

All manuals and user guides at all-guides.com

8EN

1 

to:

 the MP3-LINK socket at the back of

the docking speaker.

 the headphone socket on an external

device.

» The docking speaker switches to MP3

link mode automatically.

2 Play music on the device (see the device's



Adjust volume

During play, press / to adjust volume.

Mute sound

During play, press to mute or unmute sound.

5 Product

information

Note

 Product information is subject to change without prior

notice.





Rated Output Power 4 W per channel x 2

Signal to Noise Ratio > 62 dBA

MP3 Link 650 mV RMS

Bluetooth

Standard Bluetooth Standard Version

2.1+EDR

Output power 

Frequency band 2.402 ~ 2.480 GHzISM Band

Range 

General information

AC Power Model: AS110-080-



Input: 100-240 V ~,



Output: 8 V 1.3 A

Operation Power

Consumption

15 W

Standby Power

Consumption

<0.5 W

Max. load for iPod/iPhone 5 V 1 A

Dimensions

- Main Unit



261 x 130 x 103 mm

Weight

- Main Unit

- With Packing

0.9 kg

1.5 kg

All manuals and user guides at all-guides.com

9EN

6 Troubleshooting

Warning

 Never remove the casing of this device.

To keep the warranty valid, never try to repair

the system yourself.

If you encounter problems when using this

device, check the following points before

requesting service. If the problem remains

unsolved, go to the Philips Web page



Philips, make sure that the device is nearby

and the model number and serial number are

available.

No power

Ensure that the AC power adaptor of the

unit is connected properly.

Ensure that there is power at the AC

outlet.

No sound

Adjust the volume.

No response from the unit

Disconnect and reconnect the AC power

adaptor, then turn on the unit again.

About Bluetooth device

Music playback is unavailable on the system

even after successful Bluetooth connection.

The device cannot be used with the

system to play music.

The audio quality is poor after connection

with a Bluetooth-enabled device.

The Bluetooth reception is poor. Move

the device closer to the system or remove

any obstacle between the device and the

system.

Cannot connect with the system.



required for the system.

The Bluetooth function of the device is not

enabled. Refer to the user manual of the

device for how to enable the function.

The system is not in the pairing mode.

The system is already connected with

another Bluetooth-enabled device.

Disconnect that device or all other

connected devices and then try again.

The paired device connects and disconnects

constantly.

The Bluetooth reception is poor. Move

the device closer to the system or remove

any obstacle between the device and the

system.

For some devices, the Bluetooth

connection may be deactivated

automatically as a power-saving feature.

This does not indicate any malfunction of

the system.

All manuals and user guides at all-guides.com

10EN

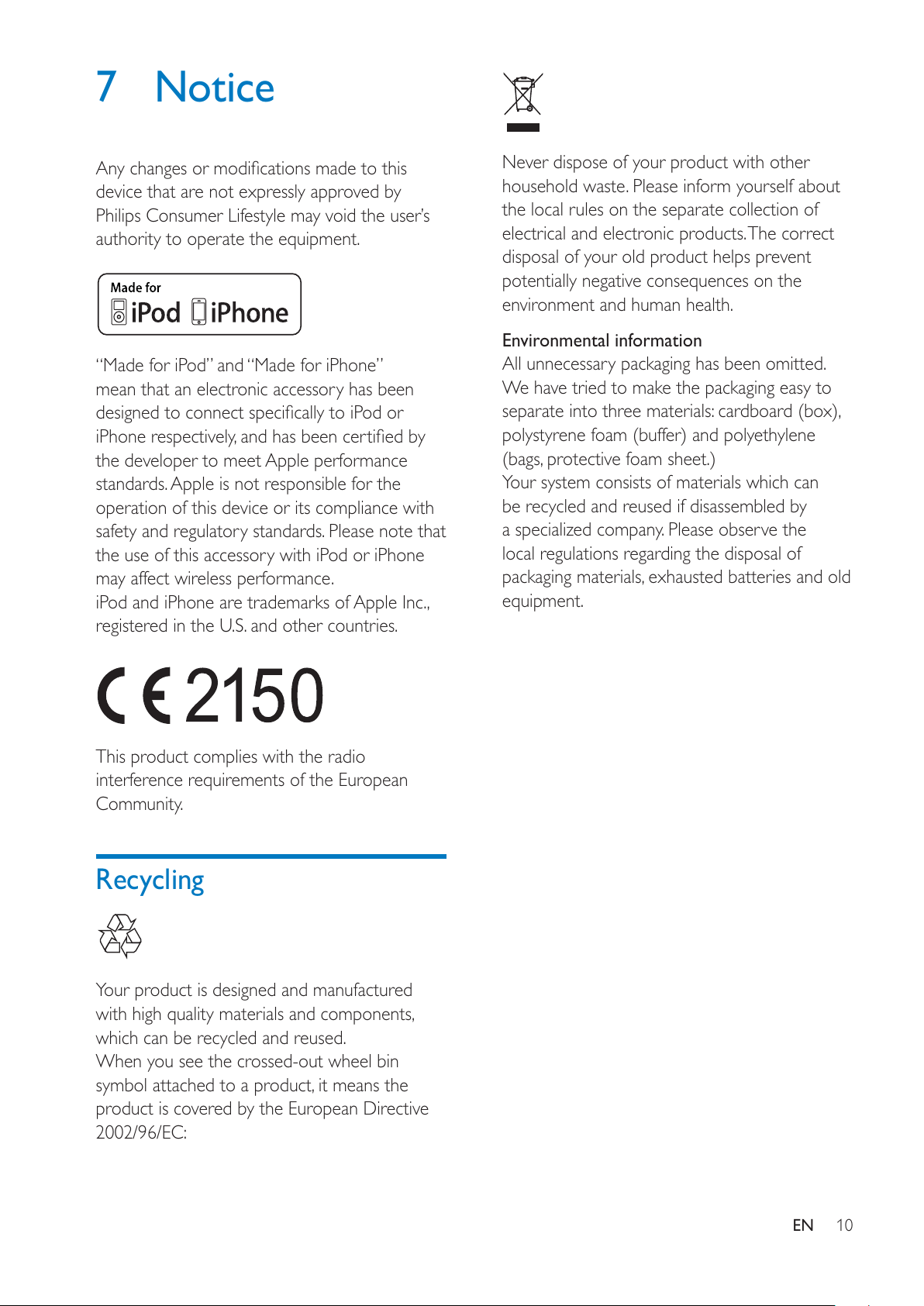

7 Notice



device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.



mean that an electronic accessory has been





the developer to meet Apple performance

standards. Apple is not responsible for the

operation of this device or its compliance with

safety and regulatory standards. Please note that

the use of this accessory with iPod or iPhone

may affect wireless performance.

iPod and iPhone are trademarks of Apple Inc.,

registered in the U.S. and other countries.

This product complies with the radio

interference requirements of the European

Community.

Recycling

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When you see the crossed-out wheel bin

symbol attached to a product, it means the

product is covered by the European Directive

2002/96/EC:

Never dispose of your product with other

household waste. Please inform yourself about

the local rules on the separate collection of

electrical and electronic products.The correct

disposal of your old product helps prevent

potentially negative consequences on the

environment and human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to







Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and old

equipment.

All manuals and user guides at all-guides.com

Otros manuales para AD533

Tabla de contenidos

Otros manuales de Altavoces de acoplamiento de Philips

Philips

Philips DS8530/10 Manual de usuario

Philips

Philips DS7550 Manual de usuario

Philips

Philips DC291/12 Manual de usuario

Philips

Philips AD530/79 Manual de usuario

Philips

Philips DS3600/12 Manual de usuario

Philips

Philips AS140 Manual de usuario

Philips

Philips DS3205 Manual de usuario

Philips

Philips DS-9 Manual de operación y mantenimiento

Philips

Philips DS7600/05 Manual de usuario

Philips

Philips DS-9010 Manual de operación y mantenimiento

Philips

Philips AS111 Manual de usuario

Philips

Philips DS1400 Manual de usuario

Philips

Philips DS3150/12 Manual de usuario

Philips

Philips DS7550/93 Manual de usuario

Philips

Philips DCM580 Manual de usuario

Philips

Philips DS-700 Manual de operación y mantenimiento

Philips

Philips DS8550/37 Manual de usuario

Philips

Philips AS851/37 Manual de usuario

Philips

Philips DS1150 Manual de usuario

Philips

Philips SBD8100/10 Manual de usuario

Philips

Philips AD385/12 Manual de usuario

Philips

Philips DS3000/93 Manual de usuario

Philips

Philips Fidelio DS700 Manual de usuario

Philips

Philips DS3010 Manual de usuario

Manuales populares de Altavoces de acoplamiento de otras marcas

LG PA36 Manual de usuario

PURE

PURE Contour Manual de usuario

LG ND8520 Manual de usuario

Maxell

Maxell BT3100 Manual de usuario

Boston

Boston i-DS3 plus Manual de usuario

aqprox!

aqprox! APPSP06X Manual de usuario

iLive

iLive ISD291B Manual de usuario

JBL

JBL on stager III WM Manual de usuario

JAMO

JAMO i200 FM Manual de usuario

AUVIO

AUVIO Auvio 40-294 Manual de usuario

Insignia

Insignia NS-IPSD1 Guía de inicio rápido

Pioneer

Pioneer XW-NAS3 Manual de usuario

Amethyst

Amethyst A9 iExecutive Manual de usuario

Memorex

Memorex Mi2032 - Portable Speakers With Digital Player... Manual de usuario

Dok

Dok CR11 Manual de usuario

LENCO

LENCO IPD-4100/2 Series Manual de usuario

LG ND5520 Manual de usuario

Boston

Boston i-DS3 plus Manual de usuario
