Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/Video cabinet)

• Leave at least 5 cm around each side of TV set for

ventilation to avoid over-heating.

• Do not place TV set near a radiator or other sources of

heat.

• Do not place TV set where it can be exposed to rain or

excessive moisture.

Antenna Connection

• Connect the aerial plug to the antenna socket ¬¬

¬¬

¬on the

backcover.

Mains Connection

• For correct mains voltage, refer to type sticker at the rear

of the TV set

• Consult your dealer if mains supply is different.

Note : This diagram is not representative of the actual

plug and socket.

Use of Remote Control

• Insert correct type of batteries into the compartment.

• Replace the battery cover.

Note : Always remove the batteries from the remote

control handset if handset is not used for a long period.

This can help prevent damage to handset from possible

battery leakage.

Switching on the Set

• Press the main power button to switch on/off the TV.

If the set is on standby (indicator is red), press STANDBY

button on the remote control to switch on set.

INSTALLATION

PHILIPS

÷÷

◊

5 cm 5 cm

5 cm

PHILIPS

Great user manuals database on UserManuals.info

PHILIPS

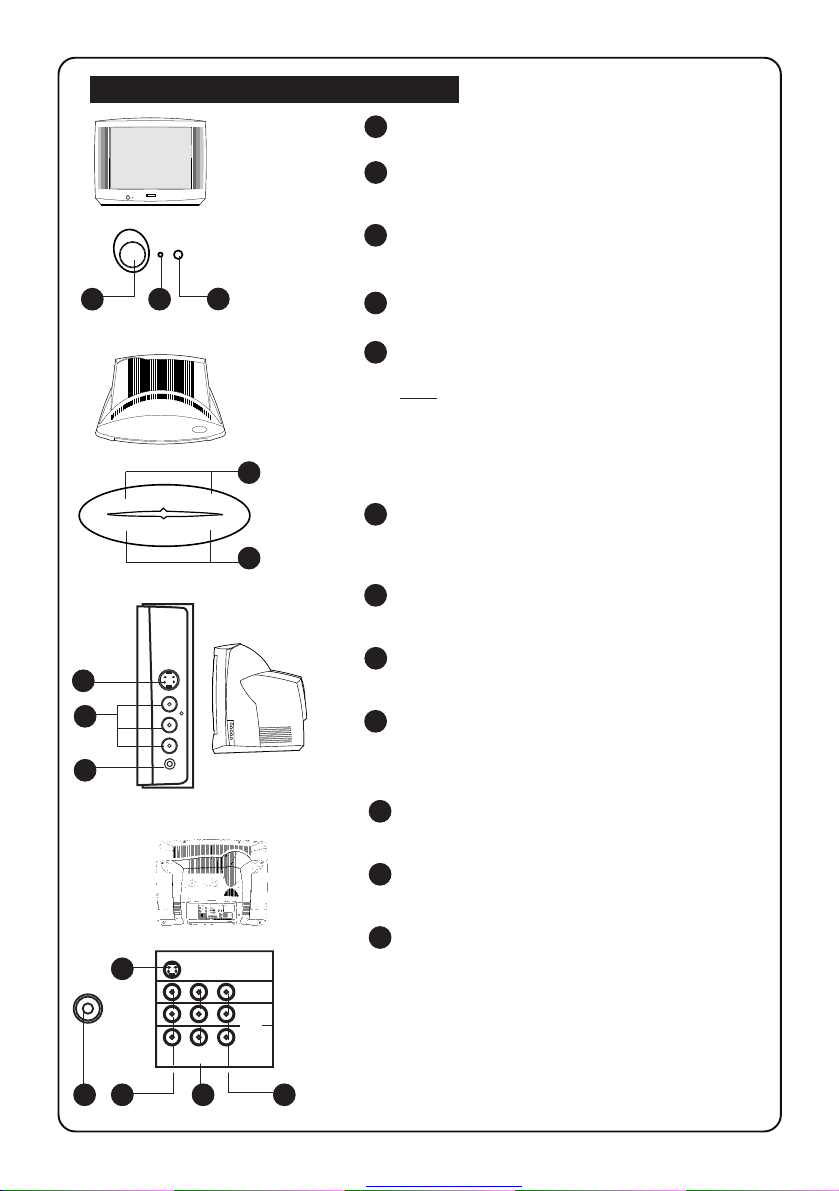

FUNCTIONS OF TV CONTROLS/SOCKETS

123

➠

810 11 12

1Mains Power button

Switch mains power on or off.

2Standby light indicator

Indicate red light when standby mode is

activated.

3Remote Sensor

Aim remote control handset at remote

sensor when operating the TV.

4Volume +/ – button

Adjust sound volume louder/softer.

5P (Programme) +/ – button

Select channel in ascending/descending order.

Note

• You can enter the main menu by pressing both

the Volume + / – buttons at the same time.

• Press Programme + / – button to select

sub-menu.

• Press Volume + / – button to activate sub-menu.

6AV3 in sockets

Connect to Output sockets of VCR/laser disc

player to the AV3 in sockets to playback

programmes.

7Headphone socket

Connect headphone jack to socket for

personal listening.

8Antenna socket

Connect the aerial plug to the antenna socket

on the backcover.

9S-Video In socket

Connect the S-VIDEO Output socket (if available)

of the VCR to the S-VIDEO in socket to enhance

picture quality.

10 AV1 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV1 in sockets to playback programmes.

11 AV2 In sockets

Connect the Output sockets of the VCR/laser disc

to the AV2 in sockets to playback programmes.

12 Monitor out sockets

Connect the VIDEO out socket of the TV to the

Input socket of VCR to record programmes.

To enhance sound of your TV, connect the

AUDIO L and Rsockets to an external audio

system.

S-VIDEO

VIDEO

AUDIO

K

K

S-VIDEO

AV1

VIDEO

AUDIO

AV2

out

Monitor

Great user manuals database on UserManuals.info

FUNCTIONS OF REMOTE CONTROL

1SLEEPTIMER

Allows you to select a time period after which the set

will switch to standby mode automatically. You can

set the timer in steps of 15 minutes from OFF mode

up to a maximum of 120 minutes.

2OSD (On-Screen Display)

Displays :

– channel number.

– remaining time of the sleeptimer.

– programme name.

– information line

– transmission mode.

3AV

Selects AV1, S-VID1, AV2, AV3, S-VID3 and the last

viewed channel respectively. The correct channel

must be selected when viewing a playback

programme.

4INCREDIBLE SURROUND

Allows you to select incredible surround sound

when transmission is in stereo mode.

5INCREDIBLE PICTURE

Allows you to view a more vivid and realistic picture

with better contrast when the “ON” function is

selected.

6SMART SOUND

Allows you to select 4 types of sound settings

7MENU

Allows you to adjust picture and sound settings and

activate the features and install the channels

automatically.

8CURSOR UP

Allows you to select the sub-menus.

9CURSOR LEFT

Allows you to access or adjust the sub-menus.

10 VOLUME + /–

Increases/Decreases volume.

11 TELEXTEXT

Allows you to select teletext information.

MENU SURF

SMARTSMART

±`

A/CH

GAME

INCREDIBLE

INC. SURR.

Great user manuals database on UserManuals.info

FUNCTIONS OF REMOTE CONTROL

12 STANDBY

Switch set off temporarily to standby mode.

(The red light indicator lights up when set is on

standby mode). To switch on set from standby

mode, press and hold button for a few seconds.

13 44

Allows you to switch from Stereo to Mono

sound (stereo transmission) or to choose

between language5and language 6.

14 TIMER

Not applicable.

15 A/CH

Alternates between last viewed channel and

present channel.

16 GAME

Allows you to select Video mode as input for

video games.

17 DIGIT (0 - 9)

Allows you select a channel. For a 2- digit

channel number, the second digit must be

entered before the “ – “ sign disappears

18 SMART PICTURE

Allows you to select 4 types of picture settings.

19 SURF

Allows you to select up to a maximum of 10

channels and view quickly the selected channels.

20 CURSOR RIGHT

Allows you to access or adjust the sub-menus.

21 CURSOR DOWN

Allows you to select the sub-menus.

22 CHANNEL + / –

Allows you to select channel in ascending or

descending order.

23 MUTE

Mutes sound. To restore sound, press button

again.

MENU SURF

SMARTSMART

±`

A/CH

GAME

INCREDIBLE

INC. SURR.

Great user manuals database on UserManuals.info

MENU SURF

MENU SURFMENU SURF

ACCESSING THE MAIN MENU

The main menu allows you access to the PICTURE, SOUND, FEATURES and INSTALL

menus.

How to call up the main menu

1. Press the MENU button. 2. The main menu appears on the screen.

How to access the menus in the main menu

The 4 buttons (CURSOR DOWN, UP, LEFT and RIGHT) allow you to select the desired

menu, make adjustments and access the sub-menus.

How to exit from the menus

Press the (OSD) button to exit menu from screen or press (MENU) button

repeatedly to exit all menus from screen.

➠

MENU SURF

PICTURE BRIGHTNESS

SOUND COLOUR

FEATURES CONTRAST

INSTALL SHARPNESS

COLOUR TEMP

Great user manuals database on UserManuals.info

MENU SURF

SMARTSMART

±`

A/CH

GAME

INCREDIBLE

INC. SURR.

LANGUAGE SELECTION / AUTOMATIC TUNING OF TV CHANNELS

How to tune in the channels automatically (Auto Store)

Press button Result on TV Screen

Enter main menu .

Press button repeatedly

until INSTALL is selected.

Enter install menu.

Enter language mode.

Select desired language

– ENGLISH, B.MELAYU

or .

Go back to language

mode.

Select AUTO STORE.

Start automatic tuning.

Note : To interrupt

tuning, press MENU

button.

Exit menu from screen.

PICTURE BRIGHTNESS

SOUND COLOUR

FEATURES CONTRAST

INSTALL SHARPNESS

COLOUR TEMP


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

LANGUAGE ENGLISH

AUTO STORE B. MELAYU

MANUAL STORE

SORT

CHANNEL EDIT

➤➤

INSTALL

LANGUAGE ENGLISH

AUTO STORE B. MELAYU

MANUAL STORE

SORT

CHANNEL EDIT

➤➤

INSTALL

LANGUAGE

AUTO STORE

MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

AUTO STORE

SEARCHING

PLEASE WAIT

CHAN. FOUND 8

INSTALL

LANGUAGE

AUTO STORE

MANUAL STORE

SORT

CHANNEL EDIT

Great user manuals database on UserManuals.info

INSTALL

MANUAL STORE

SYSTEM AUTO

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

SEARCH 062.25 MHZ

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM NTSC -M

CHANNEL

STORE

NAME

➤

MANUAL TUNING OF TV CHANNELS

How to tune in the channels manually (Manual Store)

Manual tuning of channels allows you to select your preferred programme number

for every available programme.

Press button Result on TV Screen

Enter main menu

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu

Press button repeatedly

until MANUAL STORE

is selected.

Enter MANUAL STORE

menu. Press button

again to enter SYSTEM

mode.

Select the respective

transmission – AUTO,

NTSC -M, SECAM-DK,

PAL -DK, PAL -I or PAL-BG.

Note : If AUTO is selected,

the respective colour system

will be automatically selected

according to the transmission

system.

Go back to MANUAL STORE.

Highlight SEARCH.

MENU SURF

SMARTSMART

±`

ACH

AV \

A/CH

GAME

INCREDIBLE

INC. SURR.


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

INSTALL

LANGUAGE

AUTO STORE SYSTEM

MANUAL STORE SEARCH

SORT CHANNEL

CHANNEL EDIT STORE

Great user manuals database on UserManuals.info

INSTALL

MANUAL STORE

SYSTEM

SEARCH 062.25 MHZ

CHANNEL

STORE

NAME

➤

...... MANUAL TUNING OF TV CHANNELS

Press button Result on TV Screen

Enter MANUAL STORE

menu.

Enter MANUAL STORE

mode.

Start searching for the next

transmitting channel.

Searching stops once a

transmitting channel is found.

Go back to MANUAL STORE

menu.

Highlight CHANNEL.

Key in the desired channel

number.

Highlight STORE.

Store tuned channel.

To continue searching for

the next transmitting

channel, repeat all the

above steps.

Exit menu from screen.

INSTALL

MANUAL STORE

SYSTEM

SEARCH 196.25 MHZ

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL 3

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL 8

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

CHANNEL

STORE

NAME

➤

INSTALL

MANUAL STORE

SYSTEM

SEARCH 196.25 MHZ

CHANNEL

STORE

NAME

➤

MENU SURF

SMARTSMART

±`

AV \

A/CH

GAME

INCREDIBLE

INC. SURR.

SMARTSMART

±`

Great user manuals database on UserManuals.info

1010

INSTALL

MANUAL STORE

CHANNEL

STORE

NAME

➤

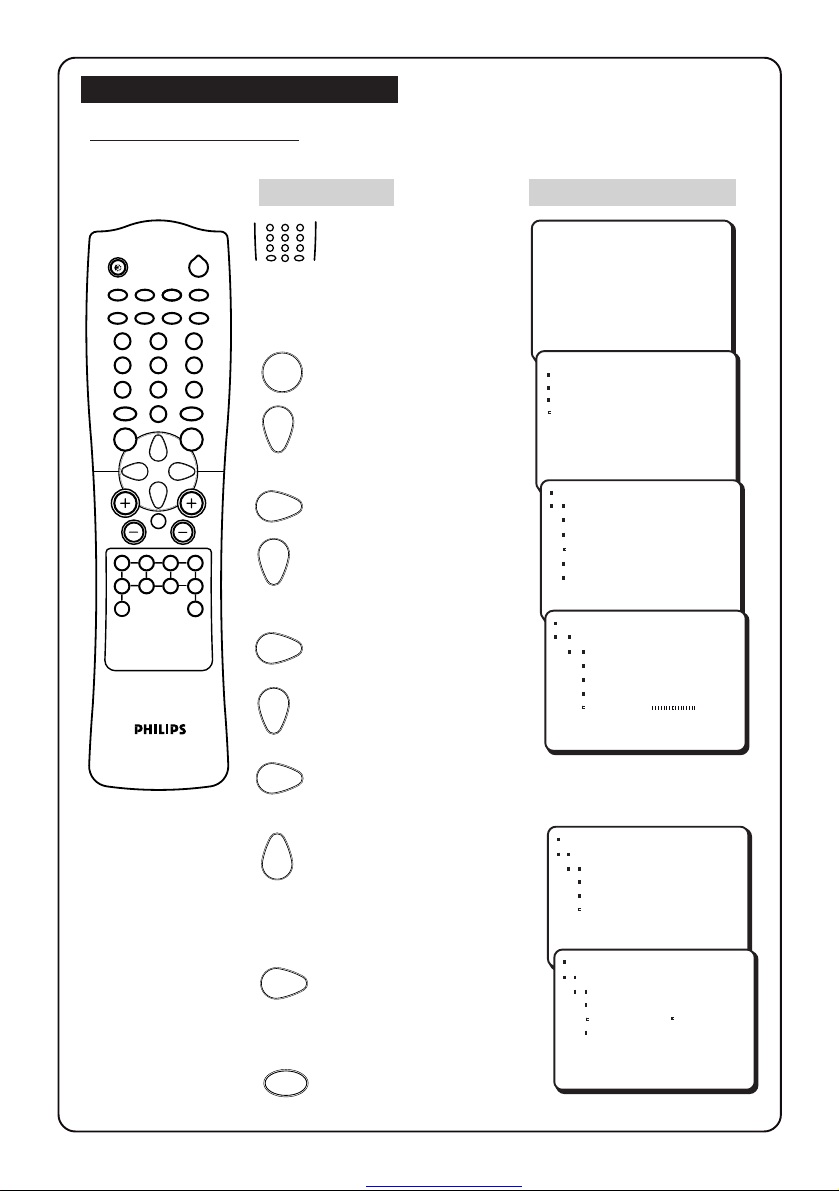

FINE TUNING OF TV CHANNELS

How to do fine tuning

This feature allows you to adjust the picture reception in area of weak reception.

Press Button Result on TV Screen

Select the channel you

want to fine-tune.

Enter main menu.

Press button repeatedly

until INSTALL is selected.

Enter INSTALL menu.

Press button repeatedly

until MANUAL STORE

is selected.

Enter MANUAL STORE

menu .

Press button repeatedly

until FINE TUNE is

selected.

Start fine-tuning until

desired picture and sound

is obtained.

Press button repeatedly

until STORE is selected.

Store last fine-tuned

status.

Exit menu from screen.


SOUND LANGUAGE

FEATURES AUTO STORE

INSTALL MANUAL STORE

SORT

CHANNEL EDIT

➠

MENU SURF

SMARTSMART

±`

A/CH

GAME

INCREDIBLE

INC. SURR.

INSTALL

MANUAL STORE

SYSTEM

SEARCH 224.25 MHZ

CHANNEL

STORE

➤

INSTALL

LANGUAGE

AUTO STORE SYSTEM

MANUAL STORE SEARCH

SORT CHANNEL

CHANNEL EDIT STORE

INSTALL

MANUAL STORE

CHANNEL

STORE

NAME

FINE TUNE

SMARTSMART

±`

Otros manuales para 29PT5673

Tabla de contenidos

Otros manuales de Televisor CRT de Philips

Philips

Philips 25PT4456 - annexe 2 Manual de usuario

Philips

Philips 21PT5457 Manual de usuario

Philips

Philips PR1910B Manual de usuario

Philips

Philips 14PT2666 Manual de usuario

Philips

Philips COLOR TV 13 INCH PORTABLE PR1317C Manual de usuario

Philips

Philips COVER L9 TS2556C1 Manual de usuario

Philips

Philips 21HT3154 Manual de usuario

Philips

Philips COLOR TV 36 INCH TABLE TS3654C Manual de usuario

Philips

Philips COLOR TV 36 INCH TABLE TS3658C Manual de usuario

Philips

Philips 28PW8719 Manual de usuario

Philips

Philips PR1390C Manual de usuario

Philips

Philips 21HT3304 Manual de usuario

Philips

Philips 28PW9513 - annexe 1 Manual de usuario

Philips

Philips 27-WIDE HOTEL-MOTEL A-V SMART CARD PCW227C Manual

Philips

Philips 21PT4340/94 Manual de usuario

Philips

Philips NICAM 28PW6302 Manual de usuario

Philips

Philips 14PT2002 Manual de usuario

Philips

Philips 21PT5322 - annexe 1 Manual de usuario

Philips

Philips 21PT4437/94 Manual de usuario

Philips

Philips PPC732C Manual de uso y mantenimiento

Philips

Philips 28PW9515 - annexe 1 Manual de usuario

Philips

Philips COLOR TV 5 INCH RD0525C Manual de usuario

Philips

Philips 29PT5515 Manual de usuario

Philips

Philips 29PT Manual de usuario

Manuales populares de Televisor CRT de otras marcas

JVC

JVC AV-21QS5SP Manual de usuario

Hitachi

Hitachi 27CX01B Manual de usuario

LG 30FZ1DC Manual de usuario

Sony

Sony FD TRINITON WEGA KV-24FS120 Manual de usuario

RCA

RCA F19442 Manual de usuario

Samsung

Samsung CS761 Manual de usuario

Panasonic

Panasonic TC-29P100 Series Manual de usuario

RCA

RCA F19422 Manual de usuario

Sony

Sony WEGA KV 32HS20 Manual de usuario

Samsung

Samsung SlimFit TX R3079WH Manual de usuario

Palsonic

Palsonic MODEL 5179G Manual de usuario

Toshiba

Toshiba CF13H22 Manual de usuario

Magnavox

Magnavox MS3650C - 36" Smart Ctv Manual

Toshiba

Toshiba 14AF41 Manual de usuario

Mitsubishi

Mitsubishi CS-35305 Manual de usuario

Hitachi

Hitachi 35UX60B, 35TX10B Manual de usuario

Sony

Sony KD-34XBR970 - 34" Hdtv 16x9 Format Manual de usuario

Toshiba

Toshiba 27A34 - 27" CRT TV Manual de usuario
