Philips 21PT3952 Manual de usuario

L92000 3139 125 28591

21PT3952

Positioning of the TV set

• Place TV set on a solid base (e.g. a TV/

Video cabinet)

• Leave at least 5 cm around each side of TV

set for ventilation to avoid over-heating.

• Do not place TV set near a radiator or

other sources of heat.

• Do not place TV set where it can be

exposed to rain or excessive moisture.

Mains Connection

• For correct mains voltage, refer to type

sticker at the rear of the TV set.

• Consult your dealer if mains supply is

different.

Note : This diagram is not representative

of the actual plug and socket.

Connections

• Connect the aerial plug to the antenna

socket ¬¬

¬¬

¬on the backcover.

• Insert the mains plug into a wall socket.

Use of Remote Control

• Insert correct type of batteries into the

compartment.

• Ensure the batteries are placed in the right

direction.

Switching on the set

• Press the mains power button to switch

on/off the TV.

• If the set is on standby mode (indicator is

red), press STANDBY button on the

remote control to switch on set.

INSTALLATION

5 cm 5 cm

5 cm

USEFUL TIPS

• Avoid heat and

direct sunlight.

• Avoid direct

exposure to rain

or water.

• Never repair the TV yourself – get a skilled

personnel!

• DO NOT leave your TV on standby for a

prolonged period.

• Switch off your TV if not in use.

• This will allow the TV to be demagnetised,

giving good picture.

• Clean the TV’s screen with a slightly damp

soft cloth ONLY WHEN NECESSARY.

Note : Do not use abrasive solvent as it can

damage the screen’s coating.

CONNECTING PERIPHERAL EQUIPMENT

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VCR VCR

VCD/DVD

OR OR

Laser disc player

VCR

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

Connection for playback

1. Connecting to AV sockets

You may choose to connect to AV1 in or

AV2 in sockets or both.

• Connect the corresponding sockets of

the equipment to that of the TV.

• To playback programme, select the first

AV channel (if connection is made to

sockets at AV1 in) or the second AV

channel (if connection is made to

sockets at AV2).

Note : For mono equipment, connect to

the AV1 in or AV2 in and “L” sockets

only.

2. Connecting to S-Video socket

If you have a S-Video equipment,

connect to the S-Video socket for better

picture quality.

• Connect the corresponding socket of the

equipment to that of the TV.

• To view playback programmes, select

the AV2 channel.

Note : Do not connect Video “in” socket

of the TV if S-Video socket is used.

Equipment such as VCR, Laser disc player, VCD, DVD etc. can be connected to

the video and audio (AV) sockets at the rear of the TV. Switch off mains power

of the TV and equipment before making any connection.

CONNECTING PERIPHERAL EQUIPMENT

VCR

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

VCR 1 VCR 2

AV 2

Monitor

out

AV 1

S-VIDEO

AUDIO

VIDEO

Connection for recording

1. From the TV channel you are watching

•Connect the corresponding sockets of

the VCR to the Monitor “out”sockets

at the rear of the TV.

2. From one VCR to another VCR

•Connect the sockets of the VCR which

you wish to record from to the

corresponding sockets at either AV1 or

AV2.

•Connect the sockets of the receiving

VCR to the Monitor “out”sockets at

the rear of the TV.

FUNCTIONS OF TV CONTROLS/SOCKETS

1Mains Power button Switch mains power on or off.

2Standby light indicator Indicate red light when standby mode is

activated.

3Remote sensor Aim remote control handset at remote sensor

when operating the TV.

4Headphone socket Connect headphone jack to socket for personal

listening.

5AV “in”sockets Connect to Video “out”and Audio “out”

sockets of VCR, laser disc player, etc.

6Volume adjustment Adjust sound volume louder/softer. Pressing

these two buttons together will call up the

main menu. Press these two buttons again will

exit menu. Works as cursor left ( ) or right

( ) in a menu.

7Channel adjustment Select channel in ascending/descending order.

Works as cursor up ( ) or down ( ) in a

menu.

VIDEO

AUDIO

123

456

789

INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

±`

A/CH

SURF

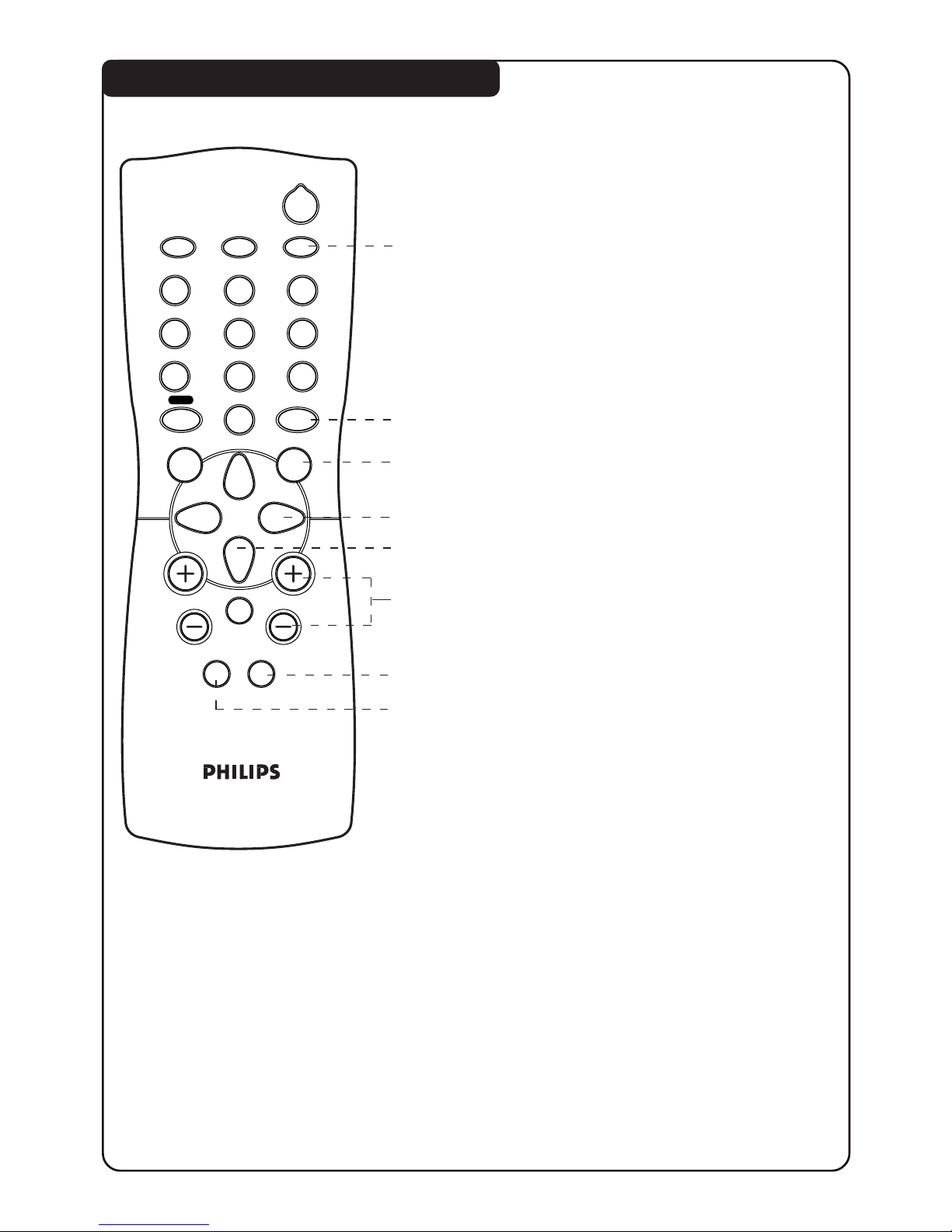

FUNCTIONS OF REMOTE CONTROL

1. STANDBY

Switch off set temporarily to standby

mode. (The red light indicator lights

up when set is on standby mode). To

switch on set, press STANDBY or any

DIGIT button.

2. AV

Selects the AV channels.

3. OSD (On-Screen Display)

– Displays channel number and

sound transmission mode.

– Allows you to exit menu from screen.

4. DIGIT (0 - 9)

Allows you select a channel. For a

2-digit channel number, the second

digit must be entered before the “ – “

sign disappears.

5. SURF / ALTERNATE CHANNEL

– When surf mode is activated

through the main menu, it allows you

to select up to a maximum of 8 chan-

nels and view quickly the selected chan-

nels.

– It also allows you to alternate between

the last viewed channel and the present

channel if alternate channel mode is

activated.

6. MENU

To display or exit menu from screen.

7. CURSOR UP

Allows you to select the next item on

the menu.

8. CURSOR LEFT

Allows you to access the sub-menus

and adjust the settings.

9. VOLUME + / –

Increases / decreases volume.

10. MUTE

Mutes sound. To restore sound, press

button again.

123

456

789

INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

A/CH

SURF

FUNCTIONS OF REMOTE CONTROL

11. SLEEPTIMER

Allows you to select a time period

after which the set will switch to

standby mode automatically. You

can set the timer from OFF mode

up to a maximum of 240 minutes.

12. SAP

Allows you to switch to stereo,

SAP (Second Audio programme) or

mono sound. You can select up to 2

different languages in simultaneous

transmission when the programme

is transmitted in SAP mode.

13. INCREDIBLE SURROUND

Allows you to select incredible

surround sound (enhanced stereo

sound) when transmission is stereo

mode.

14. CURSOR RIGHT

Allows you to access the sub-menus

and adjust the settings.

15. CURSOR DOWN

Allows you to select the next item

on the menu.

16. CHANNEL + / –

Allows you to select channel in

ascending or descending order.

17. SMART PICTURE

Allows you to access 4 different

types of picture settings.

18. SMART SOUND

Allows you to access 4 different

types of sound settings.

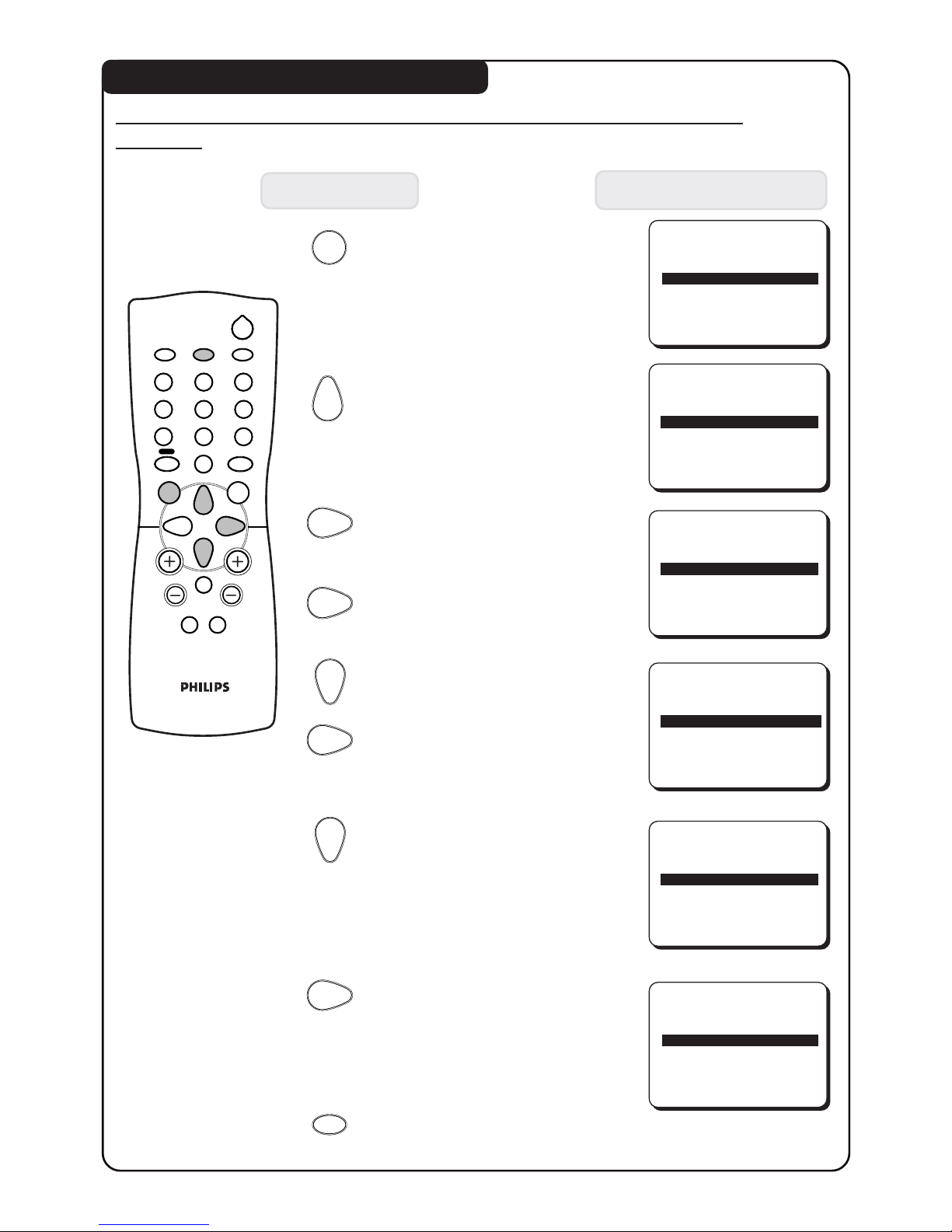

INSTALLATION OF THE TV CHANNELS

Selecting the language, tuner type and automatic tuning of the

channels

Press button Result on TV Screen

1. Enter main menu.

2. Select INSTALLATION.

3. Enter INSTALLATION

menu. LANGUAGE

option is highlighted.

4. Select your desired

language.

5. Select TUNER.

6. Select CABLE or ANTENNA.

7. Select AUTO INSTALL.

8. Start automatic tuning.

After tuning is completed,

the INSTALLATION menu

will appear.

9. Exit menu from screen.

SURF A/CH

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

BLUE MUTE OFF

INSTALLATION ÉÉ

ÉÉ

BRIGHTNESS

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

COLOUR

IIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

CONTRAST

IIIIIIII

❙ ❙ ❙ ❙ ❙ ❙

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL É

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

MANUAL É

AUTO INST

IIIII

❙ ❙ ❙ ❙ ❙ ❙ ❙ ❙

OSD

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

±`

A/CH

SURF

1010

SKIPPING OF CHANNELS

This feature allows you to skip channels which have bad or weak TV signal or

channels that you do not watch often. Note : Once a channel is skipped, you

cannot have access to it by the CH (Channel) + or –button. you can only have

access to the channel by the DIGIT (0 - 9) buttons.

1. Enter main 2. Select 3. Enter

menu. INSTALLATION. installation mode.

Press button Result on TV Screen

4. Press button repeatedly

until SKIP is selected.

5. Enter skip menu.

6. Key in the channel to

be skipped.

7. Select SKIP.

8. Select YES to skip

channel.

9. Exit menu from screen.

How to restore skipped channels

1. Repeat steps 1 to 5as in “Skipping of Channels”.

2. Key in the channel to be restored by the DIGIT (0- 9) button.

3. Select SKIP by the button.

4. Select NO to restore channel.

5. Exit menu from screen by the

OSD

button.

CHANNEL 3

SKIP NO

CHANNEL 3

SKIP NO

CHANNEL 3

SKIP YES

CHANNEL DELETED

123

456

789

OSD

123

456

789

MENU INC.

SURR.

SLEEPOSDAV

SAP

SMART SMART

±`

A/CH

SURF

MENU INC.

SURR. MENU INC.

SURR.

➠➠➠

LANGUAGE ENGLISH

TUNER ANTENNA

AUTO INSTALL ÉÉ

ÉÉ

TUNER ANTENNA

AUTO INSTALL ÉÉ

ÉÉ

SKIP ÉÉ

ÉÉ

MANUAL ÉÉ

ÉÉ

EXTERNAL ÉÉ

ÉÉ
