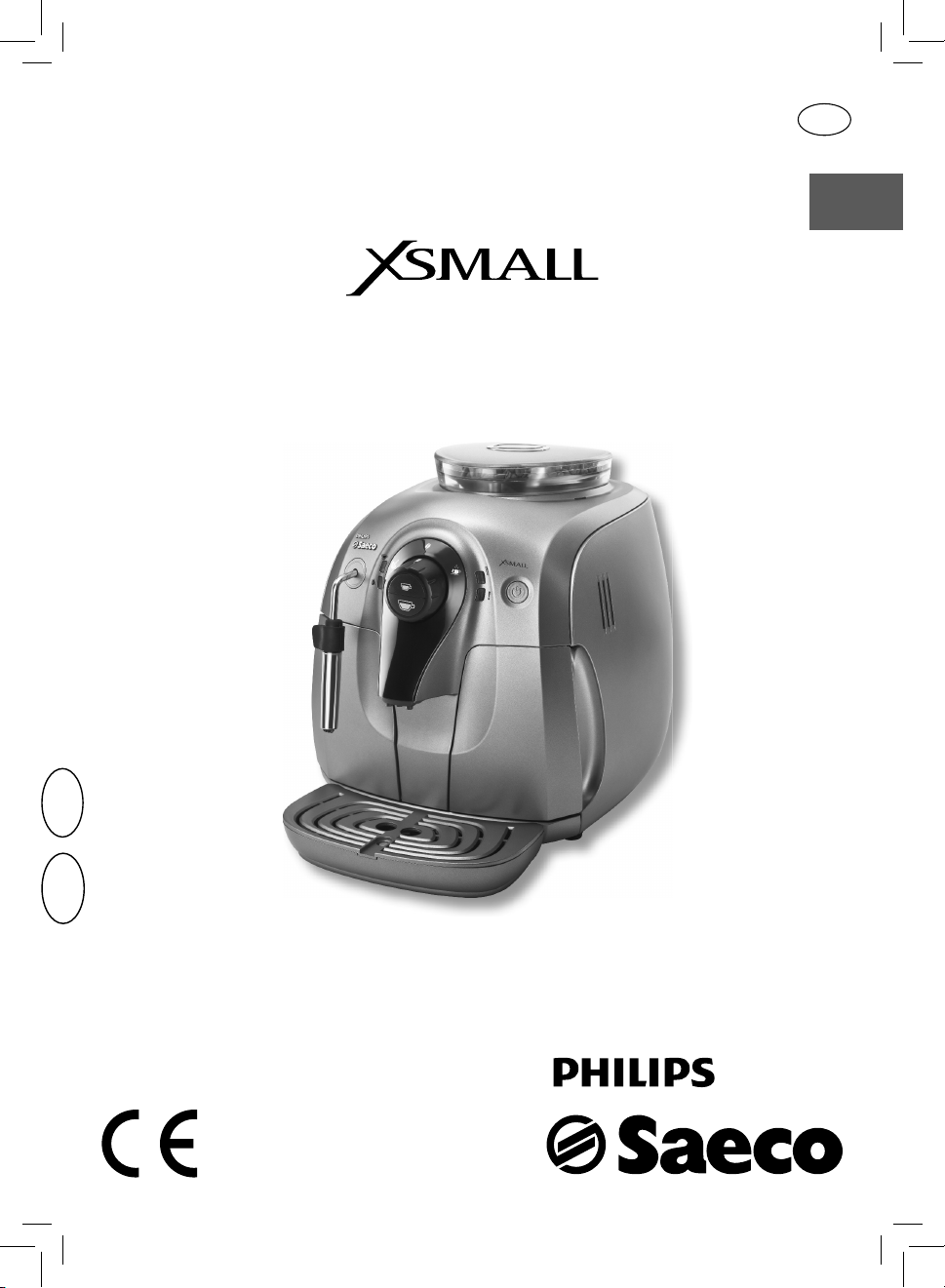

Philips Saeco Xsmall HD8745/57 Manual de usuario

The manufacturer reserves the right to change the features of the product without prior notice.

www.philips.com/saeco

Rev.01 del 15-02-12

OPERATING INSTRUCTIONS

READ THESE OPERATING INSTRUCTIONS CAREFULLY BEFORE USING THE MACHINE.

www.philips.com/welcome

Type HD8743 / HD8745 / HD8747

SUP 033R

English

• 2 •

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse

cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near

children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the

appliance malfunctions, or has been damaged in any manner. Return

appliance to the nearest authorized service facility for examination, repair

or adjustment.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

surfaces.

10.Do not place on or near a hot gas or electric burner, or in a heated

oven.

11.Always attach plug to appliance first, then plug cord into wall outlet. To

disconnect, turn any control to “off”, then remove plug from wall outlet.

12.Do not use appliance other than for intended use.

13.Save these instructions.

SAVE THESE INSTRUCTIONS

• 3 •

English

CAUTION

This appliance is for household use only. Any servicing, other than cleaning

and user maintenance, should be performed by an authorized service center.

Do not immerse machine in water. To reduce the risk of fire or electric shock,

do not disassemble the machine. There are no parts inside the machine

serviceable by the user. Repair should be done by authorized service personnel

only.

1Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2Never use warm or hot water to fill the water tank. Use cold water only.

3Keep your hands and the cord away from hot parts of the appliance during

operation.

4Never clean with scrubbing powders or harsh cleaners. Simply use a soft

cloth dampened with water.

5For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6Do not use caramelized or flavored coffee beans.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

A. A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce risks resulting from becoming entangled in or tripping

over a longer cord.

B. Longer detachable power-supply cords or extension cords are available

and may used if care is exercised in their use.

C. If a long detachable power-supply cord or extension cord is used,

1. The marked electrical rating of the detachable power-supply cord or extension

cord should be at least as great as the electrical rating of the appliance

2. If the appliance is of the grounded type, the extension cord should be a

grounding-type 3-wire cord, and

3. The longer cord should be arranged so that it will not drape over the counter top

or table top where it can be pulled on by children or tripped over.

• 4 •

GENERAL INFORMATION

The coee machine is suitable for preparing espresso coees using whole coee beans and is

equipped with a device to dispense steam and hot water.

The machine is designed for domestic use and is not suitable for heavy or professional use.

Keep these operating instructions in a safe place and make them available to anyone

who may use the coee machine.

For further information or in case of problems that are not included or not completely explai-

ned in these instructions, please contact the Saeco customer service or an authorized service

center.

Warning. No liability is assumed for damage caused by:

• Incorrect use not in accordance with the intended uses;

• Repairs not carried out by authorized service centers;

• Tampering with the power cord;

• Tampering with any part of the machine;

• Storage or use of the machineat a temperatureoutside the operating temperature

range (+15°C / +45°C);

• Use of non-original spare parts and accessories.

In these cases, the warranty shall be deemed null and void.

SAFETY REGULATIONS

Never allow water to come into contact with any of the electrical parts of the

machine: Danger of short circuit! Steam and hot water may cause scalding! Do

not direct the steam or hot water jet towards body parts. Carefully handle the steam/

hot water spout by means of the special handle: Danger of scalding!

Intended Use

The coee machine is intended for domestic use only. Do not make any technical changes or use

the machine for unauthorized purposes since this would create serious hazards!The appliance is

not to be used by persons (including children) with reduced physical, mental or sensory abilities

or with limited experience and/or expertise, unless they are supervised by a person responsible

for their safety, or they are instructed by this person on how to properly use the machine.

Power Supply - Power Cord

Only connect the coee machine to a suitable socket.

The socket to which the machine is connected must be:

- Compatible with the type of plug installed on the machine;

- Sized to comply with the data on the tag attached to the appliance;

- Connected to an ecient earthing system.

Never use the coee machine if the power cord is defective or damaged.

If damaged, the power cord must be replaced by the manufacturer or an authorized service

center. Do not pass the power cord around corners, over sharp edges or over hot objects and

keep it away from oil. Do not use the power cord to carry or pull the coee machine.

Do not pull out the plug by the power cord or touch it with wet hands. Do not let the power cord

hang freely from tables or shelves.

• 5 •

English

For the Safety of Others

Keep children under control to prevent them from playing with the product. Children are not

aware of the risks related to electric household appliances. Do not leave the machine packaging

materials within the reach of children.

Danger of Burns

Never direct the jet of hot steam and/or hot water towards yourself or others: Danger of scal-

ding! Always use the handles or knobs provided.

Machine Location - Suitable Location for Operation and Maintenance

For best use, it is recommended to:

• Choose a safe, level surface, where there will be no danger of overturning it or being inju-

red.

• Choose a location that is suciently well-lit, clean and near an easily reachable socket.

• Allow for a minimum distance from the sides of the machine as shown in the illustration;

• During machine turning on/o, it is recommended to place an empty glass under the di-

spensing spout.

Do not keep the machine at a temperature below 0°C (32°F). Frost may damage the machine.

Do not use the coee machine outdoors. In order to prevent its housing from melting or being

damaged, do not place the machine on very hot surfaces or close to open ames.

Storing the Machine - Cleaning

Before cleaning the machine, turn it o by pressing the ON/OFF button, then remove the plug

from the socket.

Wait for the machine to cool down.

Never immerse the machine in water!

It is strictly forbidden to tamper with the internal parts of the machine.

Water left in the tank for several days should not be consumed. Wash the tank and ll it with

fresh drinking water.

If the machine is to remain inactive for a long time, dispense water from the steam wand, and

carefully clean the Pannarello (if supplied), then turn it o and unplug it. Store it in a dry place,

out of the reach of children. Keep it protected from dust and dirt.

Repairs / Maintenance

In case of failure, problems or a suspected fault resulting from the falling of the machine, im-

mediately remove the plug from the socket. Never attempt to operate a faulty machine.

Servicing and repairs may only be carried out by authorized service centers. All liability for

damages resulting from work not carried out by professionals is declined.

Fire Safety Precautions

In case of re, use carbon dioxide (CO2) extinguishers. Do not use water or dry powder extin-

guishers.

• 6 •

Coee bean hopper lid

Grinder adjustment key

Power cord

Brew group lubricant

Double coee light and brewed

coee length setting Temperature light

Water tank level

light

Warning light

Small coee button

Large coee button

Control dial

ON/OFF button

Pannarello (optional - only available

for certain models)

Brew group

Dregdrawer

Service door

Coee bean hopper

Dispensing spout

Grill

Full drip tray indicator

Drip tray

Water tank

Hot water/steam wand

Protective handle

Control panel

• 7 •

English

INSTALLATION

For your safety and the safety of

others, carefully follow the instruc-

tions provided in the “Safety Regula-

tions” section.

Machine Packaging

The original packaging has been designed

and constructed to protect the machine

during transport. We recommend keeping

the packaging material for possible future

transport.

Preliminary Operations

• Remove the coee bean hopper lid and

the drip tray with grill from the packa-

ging.

• Remove the coee machine from the

packaging and position it in a place that

meetstherequirementsdescribed in the

“Safety Regulations”.

• Place the drip tray with grill into its

appropriate seat on the machine. Make

sure it is fully inserted to its limit stop.

• Replace the coee bean hopper lid.

Note: Insert the plug into the

socket only when indicated

and check that the ON/OFF button is

not pressed.

ImportantNote:Carefullyread

the explanations of all the

warnings displayed by the machine

to the user by means of the lights on

the control panel (see section “Control

Panel Lights”).

NEVER remove the drip tray

whenthe machineis turnedon.

Wait a couple of minutes after turning

on/o, since the machine will carry out

a rinse/self-cleaning cycle (see section

“Rinse/Self-Cleaning Cycle”).

MAX

MIN

• Remove the water tank.

• Rinse and ll it with fresh water ma-

king sure that it is not lled exceeding

the MAX level indicated in the water

tank. Put the water tank back in its

seat to its limit stop.

Use only fresh, non-sparkling

water to fill the tank. Hot

wateroranyother liquid maydamage

the tank and/or the machine. Do not

turn on the machine when the tank

is empty: Make sure there is enough

water in the tank.

• Remove the coee bean hopper lid.

Note: The hopper may be

fitted with different safety

features according to the regula-

tions of the country of use of the

machine.

• Slowly pour the coee beans into the

hopper.

Only coee beans must be put

into the coee bean hopper.

Ground coffee, instant coffee or

any other object may damage the

machine.

• Replace the lid on the coee bean hop-

per.

• Insert the plug into the socket located

on the back of the machine.

• Insert the plug of the other end of the

power cord into a wall socket with

suitable power voltage.

• 8 •

• Make sure control dial is on “ ” posi-

tion; if this is not the case, set it to that

position.

• Simply press the ON/OFF button to

turn the machine on; the “ “ light will

begin to blink rapidly indicating that

the water circuit must be primed.

Note: Before starting the

machine for the first time,

prime the water circuit.

Using the machine for the

first time or after a long

period of inactivity.

These simple operations will make it pos-

sible to always brew excellent coee.

They have to be performed:

A) At rst start-up.

B) When the machine remains inactive

for a long time (more than 2 weeks).

Dispensed watermust be em-

ptied into an adequate drain.

It is not suitable for food use.

1 Place a container under the dispensing

spout.

2 Before starting the procedure, check

that the“ “ light is steady on.

Priming the Water Circuit

• To prime the water circuit, place a

container under the hot water / steam

wand.

• Turn the control dial clockwise to set it

to the “ ”position and wait.

When water steadily comes out and the

““ light will blink slowly - indicating

that the knob can be turned o - rotate

the control dial counter-clockwise to set

it back to the “ ”position.

• At this point the “ “ light begins to

blink slowly, indicating that the ma-

chine is in warm-up mode.

When warm-up is complete,

the machine performs a rinse

cycle of the internal circuits.

• When the above steps are complete,

check that the “ “ light is on steady.

The machine is now ready for use.

• To brew coee, dispense hot water or

steam, and for a proper use of the ma-

chine, carefully follow the instructions

provided.

3 Brew one coee. Press and release the

““ button. The machine starts

brewing coee.

4 Wait until brewing is complete and

remove the container.

5 Placea containerunderthesteamwand

(Pannarello, if supplied).

6 Turn the selector switch clockwise to

the“ ”position.

7 Dispense water until the no water

signal is displayed. The “ ”light re-

mains steady on.

Now turn the selector switch counter-

clockwise to set it back to the“ ” po-

sition.

8 At the end, fill the water tank again.

Then the products can be brewed as

described in the following sections

• 9 •

English

Blinking

Steady on

Rinse/Self-Cleaning Cycle

This cycle will rinse the internal circuits

with fresh water.

The cycle is carried out:

• At machine start (with cold boiler)

• After priming the water circuit (with

cold boiler)

• During the standby preparation phase

(if a coee product has been brewed)

• During the turning off phase after

pressing the ON/OFF button (if a coee

product has been brewed).

Note: Before dispensing,

place a container beneath the

dispensing spout.

A small amount of water will be dispensed

which will rinse and heat all the machine

components; in this phase the indicator

lights ash counter-clockwise.

Wait for the cycle to nish automatically.

You can stop dispensing as well, by pres-

sing either coee button.

ADJUSTMENTS

The machine that you have bought allows

for certain adjustments that will permit

you to use it to its full potential.

Saeco Adapting System

Coffee is a natural product and its cha-

racteristics may change according to its

origin, blend and roast.The Saeco coee

machine is equipped with a self-adjusting

system that allows the use of all types of

coee beans available on the market (non

caramelized).

• The machine automatically adjusts

itself in order to optimize the extrac-

tion of the coffee, ensuring perfect

compression of the beans to obtain a

creamyespresso coee that will release

all the aromas, regardless of the type of

coee used.

• The optimization process is a learning

process that requires the brewing of a

certain number of coees to allow the

machine to adjust the compactness of

the ground coee.

• Attention should be given to spe-

cial blends, which require grinder

adjustments in order to optimize the

extraction of the coee (see section

“Coee Grinder Adjustment”).

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cafetera de Philips

Philips

Philips HD7583/50 Manual de usuario

Philips

Philips 740607308 Manual de usuario

Philips

Philips HD7817/20 Manual de usuario

Philips

Philips HD7698 Manual de usuario

Philips

Philips HD8856/04 Manual de usuario

Philips

Philips Senseo HD7860/63 Manual de usuario

Philips

Philips Cafe Gourmet HD 5400 Manual de usuario

Philips

Philips LatteGo 1200 Series Manual de usuario

Philips

Philips EP3246/70 Manual de usuario

Philips

Philips Saeco Xelsis SM7480 Manual de usuario

Philips

Philips Senseo Latte Duo HD6570/60/B Manual de usuario

Philips

Philips Senseo Up HD7884/30 Manual de usuario

Philips

Philips HD7132/00 Manual de usuario

Philips

Philips Saeco PICOBARISTO SM3054 Manual de usuario

Philips

Philips SENSEO HD 7810/65 Manual de usuario

Philips

Philips HD7817/40 Manual de usuario

Philips

Philips Senseo HD7820/60 Manual de usuario

Philips

Philips Saeco Intelia HD8751 Manual de usuario

Philips

Philips HD7603/00 Manual de usuario

Philips

Philips Senseo HD7812/50/C Manual de usuario

Philips

Philips SENSEO HD7854 Manual de usuario

Philips

Philips HD7450 Manual de usuario

Philips

Philips Senseo HD7842 Manual de usuario

Philips

Philips Senseo HD7814/60/C Manual de usuario

Manuales populares de Cafetera de otras marcas

Taurus

Taurus Livorno 6 Manual de usuario

Delta-q

Delta-q QUICK Manual de usuario

Bunn

Bunn LCA-1 Guía de solución de problemas

Black & Decker

Black & Decker BLACK DECKER HOME DE790 Instrucciones de instalación

Saeco

Saeco Vienna Plus Sup 018M Manual de usuario

DeLonghi

DeLonghi DC300 Manual de usuario

INCAPTO

INCAPTO BXCO1470E Manual de usuario

Bosch

Bosch TASSIMO finesse TAS16B Series Manual de usuario

Exido

Exido 245-072 Manual de usuario

Animo

Animo OptiVend Choco Manual de usuario

Siemens

Siemens TQ505DF Series Manual de usuario

DeLonghi

DeLonghi ECI341 Manual de usuario

Krups

Krups KT406511 Manual de usuario

Cimbali

Cimbali M32 Classic Manual de usuario

Bosch

Bosch TES 515 SERIES Manual de usuario

Tekmatix

Tekmatix TMFM - 65 Manual de usuario

Scarlett

Scarlett SC-CM33005 Manual de usuario

LAVAZZA

LAVAZZA CLASSY PLUS Manual de usuario
