Philips HD7622/81 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee maker Essence II

HD7622/81

4322 277 00954

03/07

This product meets the requirements regard-

ing interference suppression on radio and TV.

After the product has been repaired, it should

function properly and has to meet the safety

requirements as ofﬁcially laid down at this

moment.

SAP coding HD7622/81

PRODUCT INFORMATION

Voltage : 100 V, 120 V, 220 - 240 V

Frequency : 50 - 60 Hz

Power consumption : 1400 W

Coloursetting : Anthracite / frost grey

Contents : 1200 cc

Colour code identiﬁcation:

To determine which service manual is suitable for the

appliance that has to repaired please check the following.

Look at the type plate identiﬁcation from the appliance on

the second row.

The ﬁrst sledge number is the colour code for that

appliance. ( /99 )

(for example below the colour code is /01)

Example of a type plate:

TYPE HD7624

/01 /A

…

At the service manual heading, the type and colour code

are also mentioned for example HD7624/01

/01 is the colour code.

Descaling:

Regular de-scaling will prolong the life of your appliance and

will guarantee optimal brewing results.

Follow below steps to de-scale the appliance.

1. Fill the water tank with white vinegar.

2. Let the appliance complete two runs.

3. Let the appliance complete two more ﬂushing cycles

with clean water to rinse away all vinegar.

If the above procedure does not restore the function, then

switch off the coffee maker when the acid passed through

during appr. 3 min.

Keep the appliance in this condition overnight and continue

the steps see above procedure.

Element

1400 W

Thermostat

Thermal

fuse

On/Off switch

Repair instruction for replacing switch:

If the switch has to be replaced please follow the next steps:

• Remove bottom base plate.

• Pull the complete pump unit (including hose pieces) downwards until the hose

pieces are loosened from the two water tank pipes. (hose pieces and wires

must stay connected to the pump).

• Remove the complete top cover including the water tank. (see picture 1)

• Now it is possible to get to the switch.

• To remove the switch from the housing, follow the steps see pictures below.

• The new switch can be placed on the same way, to do so follow the above steps backwards!

• Insert the complete top cover assy including plastic tank gently back into the housing.

• Take the pump unit and attach the hose pieces to the water tank pipes of the previously inserted tank.

(be sure that the hose pieces are well attached to the water tank pipes, otherwise leakage problems can occur)

• Assemble the base plate again.

Transportation lock:

To prevent damaging the dosing/weighting system in case the appliance has to

be shipped/transported, It is possible to order a special transportation lock.

For the position of the transportation lock see picture 2.

The code number transportation lock: 4222 247 59510

Commercial trade number jug + lid: HD7965/81 (frost grey)

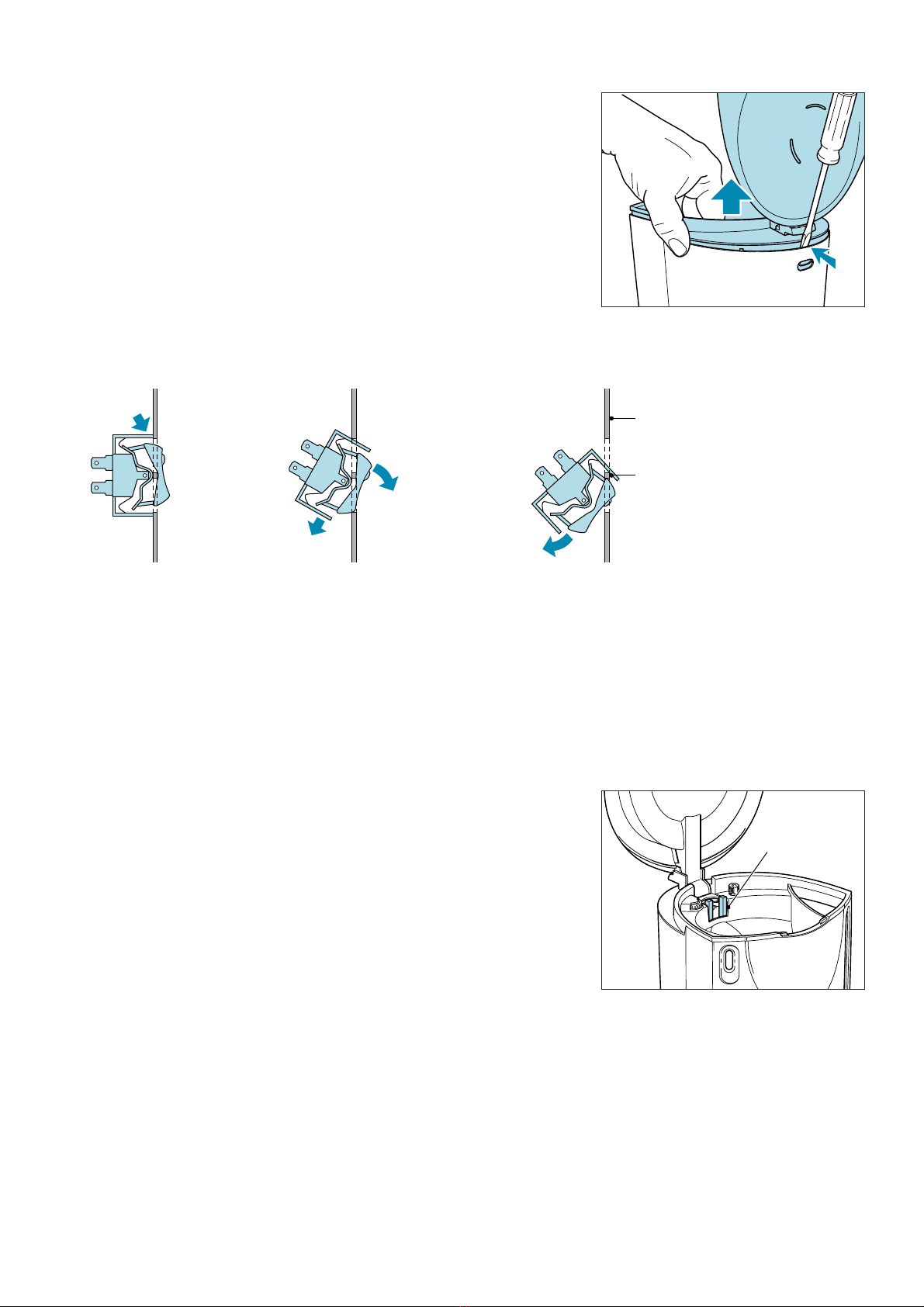

picture 1

START

POSITION

MID

POSITION

END

POSITION

PRESS

IN THIS

DIRECTION

PULL AND

R OTAT E

CLOCKWISE

MOVE THE

SWITCH IN

THIS DIRECTION

HOUSING

PA RT

SMALL

DETENT

PIECE A

4222 247 59510

picture 2

Pos Description Service code

Tank lid assy frost grey

Strenght select button

Spoutpipe

Tare-adjuster

Frame ADS printed

ADS spring

Spring support

Sealing ring tank

Permanent ﬁlter

Filterholder

Dripstop ring

Dripstop assy

Lid frost grey

Jug frost grey

4222 259 03750

4222 247 36500

4222 247 35580

4222 247 35620

4222 259 02330

4222 240 06350

4222 247 35660

4222 247 06880

4222 247 36680

4222 247 35700

4222 247 06630

4222 259 05070

4222 247 36660

8827 965 81010

HD7622/81

Pos Description Service code

Switch 230 V frost grey

Switch 100-120 V frost grey

ADS window

Cap frost grey

Foot anthracite

Valve + hose piece assy

Hose piece

Hotplate

Hotplate ring

Pump assy 230 V

Pump assy 100 V

Pump assy 120 V

Wire spring thin

Wirespring

Baseplate frost grey

Foot, rubber

4222 246 16010

4222 246 16970

4222 259 03890

4222 247 36020

4222 247 36700

4222 247 20470

4222 247 06440

4222 240 06260

4222 247 50300

4222 259 13760

4222 259 13740

4222 259 13730

4222 245 71650

4222 245 71470

4222 259 05660

4213 247 05250
