Philips Essence HD7622 Manual de usuario

ServiceManual

Philips Domestic Appliances and Personal Care

Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification

Coffee maker Essence

HD7622/02

04/01

PRODUCT INFORMATION

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Voltage : 100 V, 120 V, 220 - 240 V

- Frequency : 50 - 60 Hz

- Power consumption : 1400 W

- Coloursetting : White / vapour dusk

- Contents : 1200 cc

- SAP coding : HD7622/02

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- If the switch has to be replaced please follow the next

steps:

• Remove bottom base plate.

• Pull the complete pump unit (including hose pieces)

downwards until the hose pieces are loosened from the

two water tank pipes. (hose pieces and wires must stay

connected to the pump).

• Remove the complete top

cover including the water

tank. (see picture 1)

• Now it is possible to get

to the switch.

• To remove the switch from the housing, follow the steps

shown in picture 2.

• The new switch can be placed on the same way, to do so

follow the above steps backwards!

• Insert the complete top cover assy including plastic tank

gently back into the housing.

• Take the pump unit and attach the hose pieces to the water

tank pipes of the previously inserted tank.

(be sure that the hose pieces are well attached to the water

tank pipes, otherwise leakage problems can occur)

• Assemble the base plate again.

picture 1

START

POSITION

MID

POSITION

END

POSITION

PRESS

IN THIS

DIRECTION

PULL AND

ROTATE

CLOCKWISE

MOVE THE

SWITCH IN

THIS DIRECTION

HOUSING

PA R T

SMALL

DETENT

PIECE A

picture 2

HD7622/02

REPAIR INSTRUCTION

Colour code identification:

To determine which service manual is suitable for the

appliance that has to repaired please check the following.

Look at the type plate identiﬁcation from the appliance on the

second row.

The ﬁrst sledge number is the colour code for that

appliance. ( /99 )

(for example below the colour code is /01)

Example of a type plate:

TYPE HD7624

/01 /A

…

At the service manual heading, the type and colour code are

also mentioned for example HD7624/01

/01 is the colour code.

Descaling:

Regular de-scaling will prolong the life of your appliance and

will guarantee optimal brewing results.

Follow below steps to de-scale the appliance.

1. Fill the water tank with white vinegar.

2. Let the appliance complete two runs.

3. Let the appliance complete two more ﬂushing cycles

with clean water to rinse away all vinegar.

If the above procedure does not restore the function, then

switch off the coffee maker when the acid passed through

during appr. 3 min.

Keep the appliance in this condition overnight and continue

the steps see above procedure.

Transportation lock:

To prevent damaging the dosing/weighting system in case the

appliance has to be shipped/transported, It is possible to order

a special transportation lock.

For the position of the transportation lock see picture 3.

The code number transportation lock: 4222 247 59510

OPTIONAL (accessories)

- Commercial trade number jug + lid: HD7965/02

(vapour dusk)

Element

1400 W

Thermostat

Thermal

fuse

On/Off switch

4222 247 59510

picture 3

2-4

HD7622/02

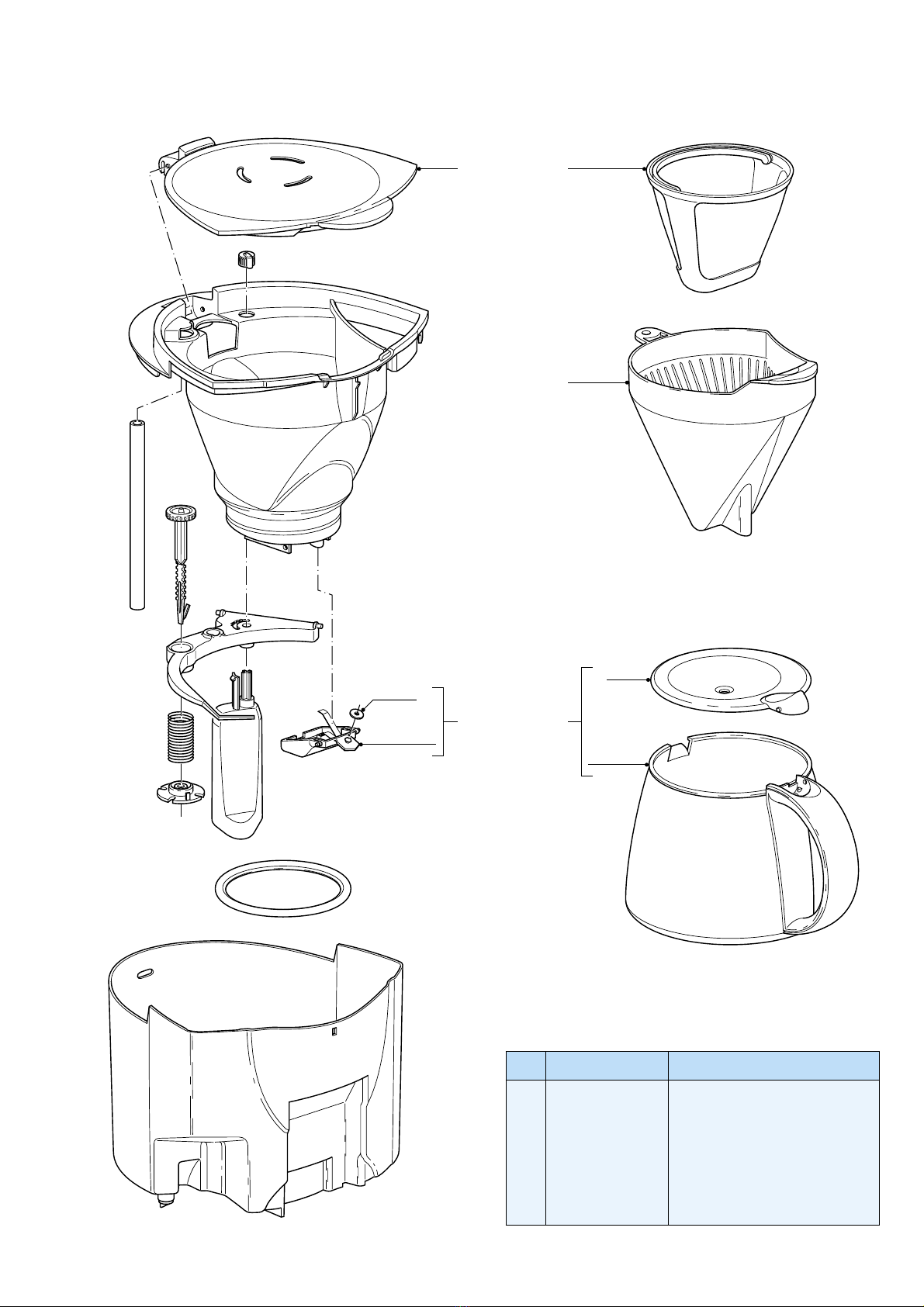

PARTS LIST & EXPLODED VIEW

3-4

Pos Service code Description

4222 259 03710

4222 247 36680

4222 247 35700

4222 247 06630

4222 259 05070

4222 247 35440

4222 259 17430

Tank lid assy vapour dusk

Permanent ﬁlter

Filter holder

Dripstop ring

Dripstop assy

Lid vapour dusk

Jug + lid vapour dusk

HD7622/02

PARTS LIST & EXPLODED VIEW

4-4

Pos Service code Description

4222 246 16310

4222 246 16960

4222 259 20460

4222 247 06440

4222 240 06260

4222 247 50300

4222 259 13760

4222 259 13740

4222 259 13730

4222 245 71650

4222 245 71470

4222 259 05240

4213 247 05250

4222 247 35400

Switch 230 V vapour dusk

Switch 100-120 V vapour dusk

Valve + hose piece assy

Hose piece

Hotplate

Hotplate ring

Pump assy 230 V

Pump assy 100 V

Pump assy 120 V

Wire spring thin

Wirespring

Baseplate vapour dusk

Foot, rubber

Coffee spoon
