PHILIPS

AZ

8320

Radio

Cassette

Recorder

/

CD

Player

RIT

RE

moi

0000

CE)

Espana

Declaración

de

conformidad

con

normas

El

que

suscribe,

en

nombre

y

representación

de:

Audio

Electronics

Sdn.

Berhad

-

Penang

declara,

bajo

su

propia

responsabilidad,

que

el

equipo:

radiocasete

-

lector

de

CD

fabricado

por:

Audio

Electronics

Sdn.

Berhad

en:

Far

East

marca:

Philips

modelo:

AZ

8320

objeto

de

esta

declaración,

cumple

con

la

normativa

siguiente:

Reglamento

sobre

Perturbaciones

Ra-

dioeléctricas,

Real

Decreto

138/1989,

Anexo

V.

Hecho

en:

Malaysia,

01-08-1992

Firma:

rebas

e

Nombre:

Khoo

Bee

Im

Cargo:

Safety

Coordinator

@ex)

México

KOM

PRECAUCION

-

ADVERTENCIA

“No

abrir,

riesgo

de

choque

eléctrico

IN

ATENCIÓN

Verifique

que

el

voltaje

de

alimentación

sea

el

requerido

para

su

aparato

Para

evitar

el

riesgo

de

choque

eléctrico,

no

quite

la

tapa.

En

caso

de

requerir

servicio,

diríjase

al

personal

calificado.

Es

necesario

que

lea

cuidadosamente

su

instructivo

de

manejo.

Garantía

y

Seguridad

........................

sess

página

37

Danmark

Typeskiltet

findes

pà

undersiden

af

apparaten.

Dette

produkt

overholder

kravene

til

radio-interferens

af

Europæisk

Fællesskab.

Bemærk:

Netafbryderen

er

sekundært

indkoblet

og

afbryder

ikke

strømmen

fra

nettet.

Den

indbyggede

netdel

er

derfor

tilsluttet

til

lysnettet

så

længe

net-

stikket

sidder

i

stikkontakten.

Advarsel:

Usynlig

laserudstráling

ved

ábning

når

sikkerhetsafbrydere

er

ude

af

funktion.

Undgå

udsættelse

for

stråling.

(ND)

Norge

Typeskilt

finnes

på

apparatens

underside.

Observer:

Nettbryteren

er

sekundert

innkoplet.

Den

innebygde

netdelen

er

derfor

ikke

frakoplet

nettet

sà

lenge

apparatet

er

tilsluttet

nettkontakten.

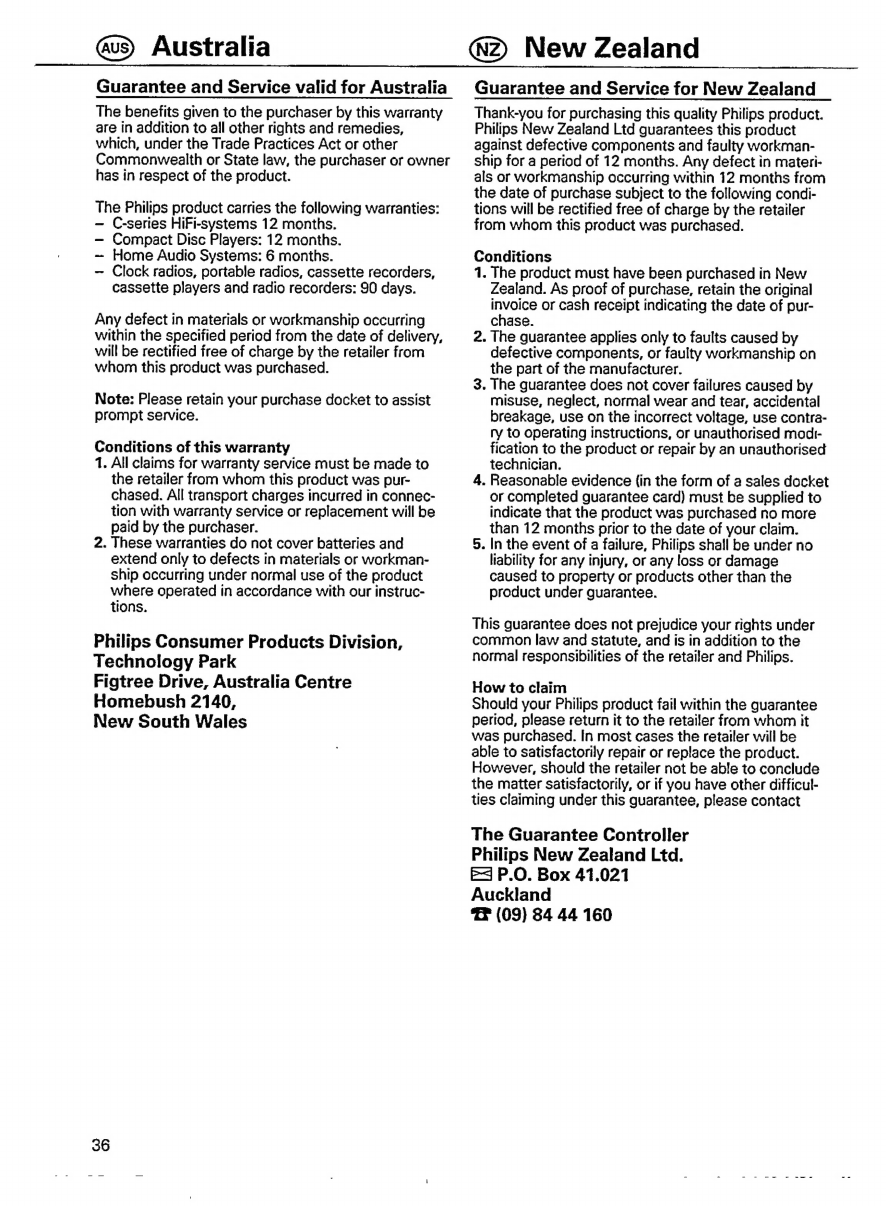

Australia

Guaramee,..

cileni

page

36

(iz

New

Zealand

GUANO

allea

page

36

2

INDEX

English

Illustrations

page

3

CF)

Francais

|

Illustrations

page

8

page

3

Francais

©)

Deutsch

Abbildungen

Seite

12

Seite

3

pagina

16

pagina

3

(D

Nederlands

Afbeeldingen

CE)

Espanol

llustraciones

_

página

20

'

pàgina

3

CD

Italiano

Illustrazioni

pagina

24

pagina

3

italiano

sida

28

sida

3

Cs)

Svenska

Figurer

Svenska

CLASS

1

LASER

PRODUCT

AC

MAINS

VOLTAGE

CONTROLS

TOP

AND

FRONT

PANEL

-

fig.

1

(

VOLUME

control

(2HIGH

SPEED

DUBBING

-

to

copy

a

cassette

at

high

speed

(S

POWER

-

on/off

switch

@

DYNAMIC

BASS

BOOST

-

bass

button,

press

to

boost

the

bass

response

©)

FM

STEREO

-

FM

stereo/mono

button

(STONE

control

(MODE

-

to

select

the

sound

source

(S)

OPEN-CLOSE

-

to

open

the

CD

cover

@

BAND

SELECTOR

-

to

select

the

wave

band

FINE

TUNING

-

for

SW

stations

(not

on

all

versions)

a)

TUNING

knob

42

POWER

-

on/off

indicator

(3

DBB

:%

-

Dynamic

Bass

Boost

switched

on

HIGH

SPEED

%

High

Speed

Dubbing

switched

on

(5

FM

STEREO

3%

FM

stereo

reception

(9

cassette

deck

1

keyboard

(recording/playback):

RECORD

e

PLAY

>

REWIND

««

-

fast

rewind

F.FWD

»»

-

fast

forward

wind

STOP-EJECT

E

PAUSE

It

@

CD

keyboard

and

display:

PLAY-PAUSE

»

play

and

pause

button

STOP

Il

button

4

PREVIOUS/NEXT

>»:

in

position

playback

or

STOP,

press

briefly

to

jump

to a

previous

He

or

next

»»

track

during

playback,

keep

pressed

to

search

fast

back-

ward

m«

or

forward

»»:

.

INTROSCAN

-

to

play

only

the

beginning

of

each

track

MEMORY

-

press

briefly

to

store

the

displayed

track

number

in

the

memory

press

longer

than

1

second

to

display

all

stored

track

numbers

MODE

-

press

so

many

times

until

the

required

function

appears

in

the

display:

SHUFFLE

play

all

tracks

in

a

random

order

SHUFFLE

REPEAT

continuously

repeat

the

CD

in

the

SHUFFLE

mode

REPEAT

ALL

(MEMORY)

continuously

repeat

the

CD

(or

the

stored

selection

-

MEMORY)

REPEAT

1

continuously

repeat

1

title

CD

display,

shows:

na

di

-

no

CD

inserted

TRACK-the

total

number

of

tracks,

and

during

play

the

number

of

the

track

being

played.

TIME-

the

total

playing

time

of

the

CD,

and

during

play

the

elapsed

time

of

that

track

REPEAT

(ALL

or

1)

activated

SHUFFLE

activated

MEMORY

-the

stored

selection

(memory)is

played

INTROSCAN

activated

PAUSE

activated

cassette

deck

2

keyboard

(playback

only):

PLAY»

REWIND««

-

fast

rewind

F.FWD

»»-

fast

forward

wind

STOP-EJECT

RN

PAUSE

11

N

stereo

headphone

socket

4

—

A

TR

a

HU

m

tp

m

o

m

PC

y

a

n

ne

SUPPLY

BACK

PANEL

-

fig.

2

Q9

AC

MAINS

-

socket

for

mains

lead

@

VOLTAGE

selector

(not

on

all

versions)

@

MIC

MIXING

-

microphone

socket

The

type

plate

is

located

on

the

base

of

the

set

SUPPLY

Battery

supply

*

Open

the

battery

compartment

(fig.

2)

and

insert

as

indicated

eight

batteries,

type

R20,

UM1

or

D-cells.

e

Remove

the

batteries

if

exhausted

or

if

they

will

not

be

used

again

for

a

long

period.

The

battery

supply

is

switched

off

when

the

set

is

connected

to

the

mains.

To

change

over

to

battery

supply,

pull

out

the

plug

from

the

AC

MAINS

socket.

Mains

supply

e

Check

if

the

mains

voltage

as

shown

on

the

type

plate

(on

the

base

of

the

set)

corresponds

to

your

local

mains

voltage.

If

it

does

not,

consult

your

dealer

Or

Service organisation.

If

the

set

is

equipped

with

a

VOLTAGE

selector

23

(fig.

3),

set

this

selector

to

the

local

mains

voltage.

*

Connect

the

mains

lead

to

the

AC

MAINS

socket

Q9

(fig.

3)

and

the

wall

socket.

The

mains

supply

is

switched

on.

e

To

disconnect

the

set

from

the

mains

completely,

withdraw

the

mains

plug

from

the

wall

socket.

Important

notes

for

users

in

the

U.K.:

Mains

Plug

This

apparatus

is

fitted

with

an

approved

moulded

13

Amp

plug.

To

change

a

fuse

in

this

type

of

plug

proceed

as

follows

e

Remove

fuse

cover

and

fuse.

e

Fixnew

fuse

which

should

be

a

BS1362

5

A,

AS.T.A.

or

BS!

approved

type.

e

Refit

the

fuse

cover.

If

the

fitted

plug

is

not

suitable

for

your

socket

outlets,

it

should

be

cut

off

and

an

appropriate

plug

fitted

in

its

place.

lf

the

mains

plug

contains

a

fuse,

this

should

have

a

value

of

5

A.

Ifa

plug

without

a

fuse

is

used,

the

fuse

at

the

distribution

board

should

not

be

greater

than

5

A.

Note:

The

severed

plug

must

be

destroyed

to

avoid

a

possible

shock

hazard

shoulditbe

inserted

mtoa

13

A

socket

elsewhere.

How

to

connect

a

plug

The

wires

in

the

mains

lead

are

coloured

with

the

following

code:

blue

=

neutral

(N),

brown

=

live.

(L)

As

these

colours

may

not

correspond

with

the

colour

markings

identifying

the

terminals

in

your

plug,

proceed

as

follows

o

cued

the

blue

wire

to

the

terminal

marked

N

or

coloured

ack.

°

RE

brown

wire

tothe

terminalmarked

Lor

coloured

red.

*

Donot

connect

either

wire

to

the

earth

terminal

in

the

plug,

marked

E

(or

+)

or

coloured

green

(or

green

and

yellow)

Before

replacing

the

plug

cover,

make

certain

that

the

cord

grip

is

clamped

over

the

sheath

of

the

lead

-not

simply

over

the

two

wires.

Copyright:

Recording

and

playback

of

material

may

require

consent.

See

Copyright

Act

1956

and

The

Performer's

Protec-

tion

Acts

1958

to

1972.

etm

S

-

—

—

—

——

--—

—

CONNECTIONS

CONNECTIONS

-

fig.

1-2

Stereo

headphones

socket

£3

You

may

connect

stereo

headphones

with

3.5

mm

plug

to

the

€

socket

(3.

The

loudspeakers

are

then

muted.

Microphone

socket

MIC

MIXING

@

For

a

microphone

with

3.5

mm

plug.

You

can

reproduce

your

voice

amplified

through

the

speakers

or

you

can

mix

your

voice

with

the

radio,

CD

or

cassette

signal

(‘Karaoke’).

You

can

record

it

all

on

deck

1.

e

Connect

a

microphone

to

the

MIC

MIXING

@

socket.

To

avoid

disturbing

noise,

reduce

the

volume

before

connection.

Set

the

MODE

selector

@)

to

the

desired

position:

—

Microphone

only:

set

the

MODE

selector

to

TAPE.

-

Mixing

with

cassette:

set

the

MODE

selector

to

TAPE

and

play

a

cassette

in

deck

2.

—

Mixing

with

radio:

set

the

MODE

selector

to

TUNER

-

Mixing

with

CD:

set

the

MODE

selector

to

CD.

e

Adjust

the

sound

with

the

controls

VOLUME

(9),

TONE

©

and

DYNAMIC

BASS

BOOST

(2).

e

|f

a

howling

sound

occurs:

keep

the

microphone

away

from

the

speakers,

or

reduce

the

volume,

or,

when

recording,

use

headphones

for

monitoring.

RADIO

RECEPTION

e

Switch

on

the

set

using

the

POWER

(3)

button.

POWER

:

42

lights

up.

e

Set

the

MODE

selector

@

to

TUNER.

e

Adjust

the

sound

with

the

controls

VOLUME

@),

TONE

©

and

DYNAMIC

BASS

BOOST

(2).

e

Select

the

wave

band

using

BAND

SELECTOR

@).

(LW

and

SW

not

on

all

versions)

e

Tune

to

a

radio

station

using

the

TUNING

knob

@.

For

SW

stations

use

the

FINE

TUNING

knob

(40)

(not

on

all

versions).

—

For

FM,

pull

out

the

telescopic

aerial.

To

improve

FM-reception,

incline

and

turn

the

aerial.

Reduce

its

length

if

the

FM-signal

is

too

strong

(very

close

to

a

transmitter).

—

For

AM/MW

and

LW,

the

set

is

provided

with

a

built-in

aerial,

so

the

telescopic

aerial

is

not

need-

ed.

Direct

the

aerial

by

turning

the

whole

set.

—

For

SW,

the

telescopic

aerial

must

be

pulled

out

and

placed

in

the

vertical

position.

To

improve

reception,

vary

the

length

of

the

aerial.

e

When

FM

STEREO

*

@

lights

up,

you

are

receiv-

ing

a

FM-stereo

transmitter.

A

disturbing

noise,

due

to

a

weak

FM-stereo

signal,

can

be

suppressed

by

pressing

the

FM

STEREO

button

©).

FM

STEREO

x:

45)

will

then

go

out

and

you

will

hear

(and

record)

the

FM

programme

in

mono.

e

Always

switch

off

the

set

after

use

with

the

POWER

(3)

button.

RADIO

COMPACT

DISC

PLAYING

A

CD

e

Switch

on

the

set

using

the

POWER

©

button.

POWER

43

lights

up.

e

Set

the

MODE

selector

(7)

to

CD.

e

Press

OPEN-CLOSE

@

to

open

the

CD

cover.

e

Insert

the

CD,

printed

side

facing

up

(fig.

4).

e

Close

the

cover.

The

CD-player

starts

and

scans

the

contents

list

of

the

CD.

After

that,

the

total

play-

ing

time

and

the

number

of

tracks

appear

on the

dis-

play

and

the

CD-player

stops.

e

Playback

will

start

by

pressing

PLAY

b.

As

soon

as

playback

starts,

the

display

shows

the

track

number

and

the

elapsed

playing

time.

e

Adjust

the

sound

with

the

controls

VOLUME

(1),

TONE

($)

and

DYNAMIC

BASS

BOOST

(2).

e

For

brief

interruptions,

press

PLAY-PAUSE

».

The

word

PAUSE

then

appears.

To

continue

playback,

press

PLAY-PAUSE

>

again.

e

To

stop

playback,

press

STOP

E.

The

CD

player

also

goes

to

position

STOP:

—

by

pressing

OPEN-CLOSE

(3);

—

when

the

end

of

the

CD

is

reached;

—

if

you

move

the

MODE

selector

(7);

—

if

the

batteries

run

down

or

if

the

power

supply

is

interrupted

in

another

way.

*

To

take

out

the

CD,

open

the

CD

cover

by

pressing

OPEN-CLOSE

@).

Open

the

CD

cover

only

if

the

CD-

player

is

in

position

STOP.

e

Always

switch

off

the

set

after

use

with

the

POWER

button

(3).

Remarks

—

|f

the

battery

voltage

is

not

sufficient

any

more

for

playing

a

CD,

the

CD-player

will

not

start.

—

If

^a

Y

(Sf

appears,

the

CD-player

cannot

read

the

CD.

Possible

causes

are:

—

you

did

not

insert

a

CD;

—

you

inserted

the

CD

the

wrong

way:

the

label

should

face

up

(fig.

4);

—

the

surface

of

the

CD

is

badly

scratched

or

dirty,

see

‘Maintenance’;

—

the

lens

(9)

(fig.

5)

is

steamed

up,

see

'Mainte-

nance’.

INTROSCAN

The

INTROSCAN

function

can

be

switched

on

from

the

STOP

and

PLAY

mode.

e

Press

INTROSCAN.

The

word

INTROSCAN

then

appears.

Only

the

first

few

seconds

of

each

track

are

played.

e

The

moment

you

press

PLAY

>,

the

INTROSCAN

function

is

defeated

(the

word

INTROSCAN

disap-

pears)

and

the

CD

is

played

in

the

normal

way

from

this

title.

e

If

you

press

NEXT

»»

or

4

PREVIOUS,

the

INTROSCAN

function

remains

operative

and

the

beginning

of

the

next

»»i

or

previous

e

track

is

played.

e

|f

INTROSCAN

is

not

defeated

by

pressing

PLAY

»

or

STOP

Ili,

the

CD

player

returns

to

STOP

as

soon

as

all

the

tracks

are

scanned.

`

Français

English

Deutsch

©

c

<

G

=

Svenska

Suomi

ys:¡Su3

COMPACT

DISC

MODE

(SHUFFLE

and

REPEAT)

By

pressing

the

MODE

button

several

times,

all

play

modes

will

successively

appear

on

the

display:

1x

SHUFFLE

to

play

all

tracks

in

a

random

order;

2x

SHUFFLE

REPEAT

to

repeat

the

CD

continuously

in

a

random

order;

3x

REPEAT

ALL

to

repeat

the

CD

(or

the

pro-

grammed

selection

-

MEMORY)

continuously;

4x

REPEAT

1

to

repeat

the

actual

title

continuously.

5x

normal

(no

display

indication)

to

defeat

the

SHUFFLE

and

REPEAT

modes.

To

defeat

the

REPEAT

and

SHUFFLE

modes,

choose

the

normal

position

(no

display

indication).

ma

PREVIOUS/NEXT

>»

1.

Go

to

the

next

or

previous

track

press

briefly

(less

than

1

second)

a.

During

PLAY

and

INTROSCAN:

NEXT

»»

-

go

to

the

next

track

(title)

You

can

jump

to

the

next

title

by

pressing

»»

once

briefly.

If

you

want

to

skip

more

than

one

track,

then

press

»»

more

than

once

briefly

until

the

display

shows

the

desired

track

number.

4

PREVIOUS

-

go

to

the

previous

track

(title)

If

you

want

to

repeat

the

running

title

from

the

beginning,

press

««

once

briefly.

If

you

want

to

repeat

one

of

the

previous

titles,

press

m4

more

than

once

briefly

until

the

display

shows

the

required

track

number.

b.

In

position

STOP

with

a

CD

inserted

you

can

select

the

desired

title

by

pressing

««

and

»»

briefly,

once

or

more

than

once,

until

the

display

shows

the

required

track

number.

2.

Search

during

PLAY

keep

pressed

(longer

than

1

second)

During

PLAY,

keep

»»

for

search

forward

and

te

for

search

backward

pressed.

The

CD

is

played

partly

and

at

high

speed,

however,

the

sound

is

still

recognizable.

Release

the

button

as

soon

as

you

recognize

the

required

passage:

the

CD

will

be

played

in

the

nor-

mal

way

from

this

passage.

If

the

button

is

pressed

longer

than

5

seconds,

the

search

speed

increases.

PROGRAMMING

TRACK

NUMBERS

You

may

select

a

number

of

tracks

and

store

these

in

the

memory

in

the

desired

sequence.

When

playing,

you

will

only

hear

the

stored

titles

in

the

selected

sequence.

Manual

selecting

e

Load

the

CD,

but

do

not

press

PLAY

P

yet.

e

Select

the

desired

track

using

the

buttons

#«

PRE-

VIOUS

and

NEXT

»»

until

the

display

shows

the

required

track

number.

*

Store

this

track

by

pressing

MEMORY.

e

Select

and

store

in

this

way

all

desired

titles.

Storing

during

INTROSCAN

*

Press

INTROSCAN

to

play

the

first

few

seconds

of

each

track.

6

CASSETTE

*

Press

MEMORY

as

soon

as

you

recognize

a

desired

title

Storing

during

PLAY

*

During

normal

PLAY

you

may

store

the

running

title

by

pressing

MEMORY

—

After

pressing

MEMORY

the

character

*

(PRO-

GRAM)

appears,

indicating

that

the

track

has

been

stored.

—

Store

all

desired

titles

in

the

required

sequence

You

may

store

each

track

more

than

once.

—

At

most,

20

tracks

can

be

stored

in

the

memory

When

the

memory

is

full,

the

character

^

(FULL)

appears.

-

When

pressing

MEMORY

for

longer

than

1

sec-

ond,

the

display

shows

in

sequence

the

remaining

stored

track

numbers.

—

You

can

simply

erase

the

whole

memory

by

press-

ing

STOP

E

twice:

the

character

Z

for

CLEAR

appears

now.

The

contents

of

the

memory

are

also

erased:

-

by

opening

the

CD

cover

using

OPEN-CLOSE

(6);

—

if

you

move

the

MODE

selector

(2);

-

if

the

batteries

get

exhausted

or

if

the

power

sup-

ply

is

interrupted

in

another

way.

How

to

play

the

stored

selection

To

play

your

selection,

the

CD-player

should

be

in

position

STOP;

then

press

PLAY

>:

now,

the

word

MEMORY

appears.

To

repeat

the

selection

continuously,

choose

the

mode

REPEAT

ALL.

Playing

the

selection

in

the

SHUF-

FLE

or

SHUFFLE

REPEAT

mode

is

not

possible

RECORDING

(on

deck

1

only)

Preparation

Recording

is

permissible

insofar

as

copyright

or

other

rights

of

third

parties

are

not

infringed.

During

recording,

the

deck

2

buttons

should

not

be

pressed

(except

for

PLAY

»

during

dubbing).

e

Switch

on

the

set

using

the

POWER

button

(3).

POWER

*

@

lights

up.

e

Press

on

deck

1

STOP-EJECT

E

to

open

the

cas-

sette

holder.

*

|nsert

the

cassette

into

deck

1

(fig.

7).

For

recording

you

must

use

a

NORMAL

cassette

(IEC

type

I)

on

which

the

tabs

(fig.

8)

are

not

broken

out.

At

the

very

beginning

and

end

of

the

tape,

no

record-

ing

will

take

place

during

the

first

7

seconds

when

the

leader

tape

passes

the

recorder

heads.

e

Safeguarding

against

erasure:

Keep

the

cassette

side

to

be

safeguarded

in

front

of

you

(fig.

8)

and

break

out

the

left

tab.

Now,

recording

on

this

side

is

no

longer

possible.

e

When

monitoring

during

recording,

adjust

the

sound

with

the

controls

VOLUME

@,

TONE

©

and

DYNAMIC

BASS

BOOST

(2).

These

controls

do

not

affect

the

recording.

*

For

fast

winding,

press

REWIND

««

or

F.FWD

»».

To

stop,

press

STOP

E.

Recording

from

the

CD-player

e

Set

the

MODE

selector

(7)

to

CD.

It's

not

neces-

sary

to

start

the

CD-player

separately:

if

you

press

RECORD

6,

the

CD-player

starts

automatically:

CASSETTE

-

if

the

CD-player

is

in

position

STOP,

recording

will

start

from

the

beginning

of

the

CD

(or

from

the

beginning

of

the

programmed

selection);

-

if

the

CD-player

is

in

position

PAUSE,

recording

will

start

from

this

very

position;

-

in

position

INTROSCAN

the

CD-player

will

first

return

to

the

beginning

of

that

track

and

then

recording

will

start.

Recording

from

the

radio

e

Set

the

MODE

selector

@

to

TUNER.

e

In

case

of

FM

radio

recordings,

set

the

FM

STEREO

button

©

to

the

desired

position.

Microphone

recording

*

Connect

the

microphone

to

the

socket

MIC

MIX-

ING

@

and

set

the

MODE

selector

(2

to

the

desired

position,

see

‘CONNECTIONS’

Starting

and

stopping

e

Start

recording

by

pressing

RECORD

0.

*

For

brief

interruptions,

press

PAUSE

IL

To

restart

recording,

press

this

button

once

more.

e

To

stop

recording,

press

STOP

li.

On

pressing

again,

the

cassette

holder

will

open.

e

Always

switch

off

the

set

after

use

with

the

POWER

button

(3).

DUBBING

-

Copying

from

deck

2

to

1

When

copying,

it

is

recommended

to

use

fresh

bat-

teries

or

to

connect

the

set

to

the

mains

supply.

*

Switch

on

the

set

using

the

POWER

button

(3).

POWER

¥

@

lights

up.

e

Set

the

MODE

selector

@

to

TAPE.

Do

not

move

this

selector

during

dubbing.

e

For

high

speed

copying

press

the

HIGH

SPEED

DUBBING

button

(2).

HIGH

SPEED

=

ás)

lights

up.

Do

not

switch

the

button

during

dubbing.

e

Press

both

STOP-EJECT

W

buttons

and

insert

a

recorded

cassette

into

deck

2

and

a

cassette

which

is

suited

for

recording

into

deck

1

(fig.

7).

e

Press

on

deck

1

PAUSE

II

and

then

RECORD

@.

e

To

start

dubbing,

press

PLAY

>

on

deck

2.

PAUSE

Il

is

then

released.

e

By

pressing

PAUSE

tl

on

deck

1,

you

can

omit

undesired

passages

while

deck

2

continues.

To

restart

copying,

press

PAUSE

Il

once

more.

e

Using

PAUSE

Il

of

deck

2,

deck

1

will

record

a

blank

part.

e

To

stop

dubbing,

press

both

STOP

lil

buttons.

*

Always

switch

off

the

set

after

use

with

the

POWER

button

(3).

CASSETTE

PLAYBACK

Playback

on

deck

1

or

2

Deck

1

will

not

play

if

the

PLAY

>

and

PAUSE

II

but-

tons

on

deck

2

are

pressed.

e

Switch

on

the

set

using

the

POWER

button

(3).

POWER

+

42

lights

up.

e

Set

the

MODE

selector

(7)

to

TAPE.

e

Press

STOP-EJECT

iil

and

insert

a

recorded

cas-

sette

(fig.

7).

*

For

fast

winding,

press

REWIND

««

or

F.FWD

»».

To

stop,

press

STOP

li.

e

Press

PLAY

>

and

playback

will

start.

e

Adjust

the

sound

with

the

controls

VOLUME

(1),

TONE

©

and

DYNAMIC

BASS

BOOST

(2.

—

A

—

A

A

—

—

-

-

——————

———

—

-

A

a:

TL

nn

MAINTENANCE

e

To

stop,

press

STOP

lil.

On

pressing

again,

the

cas-

sette

holder

will

open.

When

the

end

of

the

tape

is

reached,

the

recorder

buttons

are

released.

*

Always

switch

off

the

set

after

use

with

the

POWER

button

(3).

Continuous

play

e

Switch

on

the

set

using

the

POWER

button

(3).

POWER

=

(2

lights

up.

e

Set

the

MODE

selector

(7)

to

TAPE.

e

Press

both

STOP-EJECT

lii

buttons

and

insert

a

recorded

cassette

into

both

decks

(fig.

7).

e

Press

on

deck

2

PLAY

>

and

on

deck

1

PAUSE

Il

and

then

PLAY

>:

deck

2

will

now

play

and

deck

1

stands

still.

As

soon

as

deck

2

stops

(at

the

end

of

the

cassette

or

when

its

STOP

Bi

button

is

pressed),

PAUSE

Il

is

released

and

deck

1

will

start

playing

back.

e

To

stop,

press

STOP

E.

*

Always

switch

off

the

set

after

use

with

the

POWER

button

(3).

MAINTENANCE

CD-player

and

CDs

—

The

lens

®

(fig.

5)

should

never

be

touched

or

cleaned.

The

lens

may

steam

up

when

the

set

is

taken

from

a

cold

into

a

warm

environment.

Playing

a

CD

is

not

possible

then.

Do

not

clean

the

lens,

but

let

the

set

acclimatize

for

a

while.

—

Always

pick

up

the

CD

by

the

edge

and

put

it

back

in

its

box

immediately

after

use.

To

clean,

breathe

on

the

CD

and

wipe

it

off

in

a

straight

line

from

centre

to

edge

(fig.

6)

using

a

soft,

lint-free

cloth.

Cleaning

agents

may

harm

the

CD.

Cassette

deck

To

ensure

a

good

recording

and

playback

quality,

clean

the

parts

indicated

in

fig.

9

after

every

50

hours

of

operation

or,

on

average,

once

a

month.

e

Open

the

cassette

holder

using

STOP-EJECT

B.

*

Use

a

cotton

bud

slightly

moistened

with

alcohol

or

a

special

head

cleaning

fluid.

e

Press

PLAY»

and

clean

the

pressure

roller

©).

e

Then

press

PAUSE

Il

and

clean

the

capstan

©,

recording/playback

head

(8)

and

erase

head

(à).

e

After

cleaning,

press

STOP

B.

Cleaning

of

the

heads

(à)

and

(&)

can

also

be

done

by

playing

a

cleaning

cassette

through

once.

Remarks

—

The

CD-player

and

the

cassette

decks

are

fitted

with

self-lubricating

bearings

which

must

not

be

oiled

or

greased.

—

Fingerprints,

dust

and

dirt

on

the

apparatus

can

be

removed

using

a

soft,

clean

and

slightly

damp

leather

cloth.

Do

not

use

any

cleaning

agents,

since

they

may

affect

and

harm

the

cabinet.

—

Keep

the

set,

batteries,

CDs

and

cassettes

away

from

rain,

moisture,

sand

and

excessive

heat,

e.g.

near

heating

equipment

or

in

cars

parked

in

the

sun.

This

product

complies

with

the

radio

interference

requirements

of

the

European

Community.
