Philips AZ7680/00 Manual de usuario
Portable CD player AZ7680
AZ7681
AZ7682
AZ7688
2
Es necesario que lea cuidadosamente su instructivo de manejo.
Descripción: Tocadiscos de CD portatil
Modelo: AZ 7680, AZ 7681, AZ 7682, AZ 7688
Alimentación: 110–127/220–240 V; ~50–60 Hz
Consumo: 4 W (AY 3170)
8 W (AY 3160)
Importador: Philips Mexicana, S.A. de C.V.
Domicilio: Norte 45, # 669, Col. Industrial Vallejo
Localidad y Telefono: C.P. 02300 México D.F., Tel. 7284200
Exportador: Philips Hong Kong, Ltd.
País de Origen: China
Nº de Serie: ______________________________
LEA CUIDADOSAMENTE ESTE INSTRUCTIVO
ANTES DE USAR SU APARATO.
No abrir, riesgo de choque eléctrico
Verifique que el voltaje de alimentación
sea el requerido para su aparato
ATENCIÓN
Para evitar el riesgo de choque eléctrico, no quite la tapa.
En caso de requerir servicio, dirijase al personal calificado.
PRECAUCIÓN - ADVERTENCIA
México n
3
English
English
Controls .............................................4–5
Quick start .............................................6
Power supply.....................................7–8
Battery pack/Headphones.....................9
CD play..........................................10–11
Features.........................................12–15
In-car connection.................................16
General information ............................17
Troubleshooting.............................18–19
Français
Français
Commandes...................................20–21
Mise en service rapide........................22
Alimentation électrique ................23–24
Bloc accumulateur/Ecouteurs .............25
Lecture CD.....................................26–27
Fonctions spéciales.......................28–31
Raccordement en voiture ....................32
Informations générales .......................33
Pannes et remèdes .......................34–35
Español
Español
Controles .......................................36–37
Descripción rápida...............................38
Suministro eléctrico......................39–40
Unidad de baterías/Auriculares..........41
Reproducción de CD......................42–43
Características ..............................44–47
Conexión para el automóvil ................48
Información general ............................49
Localización de averías.................50–51
∑
Guarantees
Polizia de garantia
Mexico.........................................68–69
Philips product warranty for
Australia......................................70–71
Guarantee and service for
New Zealand ....................................72
English
4
0
DBB
MODE
PROG
13
14
1
2
3
4
5
6
7
8
9
10
11
12
CONTROLS
CONTROLS
5
12;.................switches the set on, starts and interrupts CD play
29....................stops CD play, erases a program, activates charging and switches
the set off
3§..................skips and searches forward
4.......................display
5∞..................skips and searches backward
6DBB................DYNAMIC BASS BOOST switches the bass enhancement on/off
7MODE............selects the different playing possibilities: SHUFFLE,
SHUFFLE REPEAT ALL, REPEAT, REPEAT ALL and SCAN
8RESUME........stores the last position played
HOLD ............locks all buttons
OFF.................switches RESUME and HOLD off
9PROG .............programs tracks and reviews the program
0p....................3.5 mm headphone socket
!VOL E.......adjusts the volume
@4.5V DC..........socket for external power supply
#.......................typeplate
$OPEN 2.........opens the CD lid
English
This set complies with the radio interference requirements of the
European Community
QUICK START
6
English
1OPEN
0
DBB
MODE
PROG.
2.
2
AA
LR6
UM3
0
3CD 4
0
0
P
5
DBB
MODE
HOLD➟OFF
D
BB
MODE
PROG
6PLAY 7VOLUME
1. 2.
!!!
6
1.
~1sec
POWER SUPPLY
7
With this set you can use either:
• alkaline batteries (type LR6, UM3 or AA), or
• the rechargeable Ni-Cd battery pack AY 3361. Make sure you purchase this special
battery pack, as any pack other cannot be recharged.
Inserting batteries
1Push OPEN 2to open the CD lid.
2Open the battery compartment and insert either
2 alkaline batteries or the rechargeable battery pack.
Notes: – Old and new or different types of batteries
should not be used in combination.
– Remove batteries if they are empty or if the
set will not be used for a long time.
Batteries contain chemical substances, so they should be disposed of properly.
Indication of empty batteries
• Replace the batteries or connect the mains adapter
as soon as Ais shown and bAtt is displayed.
Note: The average playing time under normal conditions is 14 hours for alkaline
batteries and 4 hours for the rechargeable battery pack.
Batteries (supplied or optionally available)
English
POWER SUPPLY
8
Only use the AY 3170 or AY 3160 mains adapter
(4.5 V direct current, positive pole to the center
pin). Any other product may damage the set.
1Make sure the local voltage corresponds to the
adapter’s voltage.
2Connect the mains adapter to the 4.5V DC
socket of the player and to the wall socket.
Note: Always disconnect the adapter when you are not using it.
1Make sure you insert the rechargeable Ni-Cd battery pack AY 3361.
2Connect the mains adapter to the 4.5V DC socket of the player and to the wall socket.
3If necessary press 9once or twice until the set is
switched off.
yais shown and ChArGE is displayed.
• Recharging stops when you switch on the set or when
8 hours have passed by.
4When the battery pack is recharged fully, ais
shown and FULL is displayed.
Note: It is normal for the battery pack to become warm
during recharging.
Recharging the battery pack
Mains adapter (supplied or optionally available)
English
BATTERY PACK/HEADPHONES
9
• Recharging already charged or half-charged batteries will shorten their lifetime.
Therefore, after using the battery pack a few times, discharge it completely before
recharging.
• To avoid a short circuit, the battery pack should not touch any metal objects.
• When the battery pack quickly becomes empty after recharging, the end of its
lifetime has been reached.
Connecting the headphones
• Connect the supplied headphones to p.
Note:
p
can also be used for connecting your HiFi
system (signal lead) or your car radio (adapter
cassette or signal lead). In both cases, the volume
of the CD player must be set to position 8.
0
Headphones (AY 3677, AY 3674)
Battery pack handling
English
Use your head when using headphones
• Hearing safety: Do not play your headset at a high volume. Hearing experts advise
against continuous extended play. If you experience a ringing in your ears, reduce
the volume or discontinue use.
• Traffic safety: Do not use while operating a motorized vehicle. It may create a traffic
hazard and it’s illegal in many areas. You should use extreme caution or temporarily
discontinue use in potentially hazardous situations. Even if your headset is an
open-air type designed to let you hear outside sounds, don’t turn up the volume so
high that you can’t hear what’s around you.
CD PLAY
10

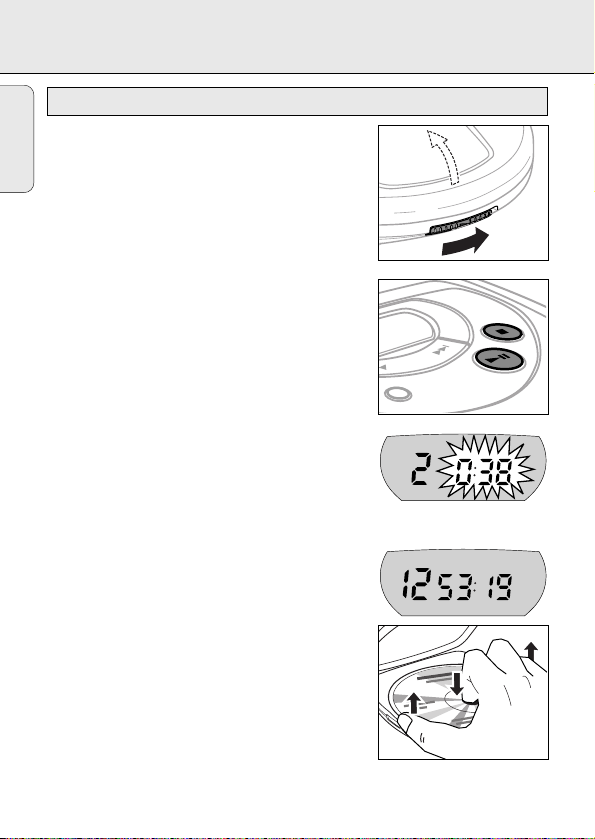

This CD player can play all kinds of Audio Discs such
as CD Recordables and CD Rewritables. Do not try to
play a CD ROM, CDi, CDV or computer CD.
1Push the OPEN 2slider.
yThe lid opens.
2Insert an audio CD, printed side up, by pressing
gently on the CD center so that it fits onto the hub.
Close the lid by pressing it down on the left side.
3Press 2; for approximately 1 second to switch the
set on and start playback.
yThe current track number and the elapsed
playing time are displayed.
• You can interrupt playback by pressing 2;.
yThe time where playback was interrupted is
flashing.
• Continue playback by pressing 2; again.
4Press 9 to stop playback.
yThe total number of tracks and the total playing
time of the CD are displayed.
5Press 9 again to switch off the set.
6To remove the CD, hold it by its edge and press
the hub gently while lifting the CD.
0
PROG
Playing a CD
English
