CD Radio Cassette Recorder AZ 1560

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

DIGITAL EQUALIZER

DIGITAL TUNER

INCREDIBLE SURROUND

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

AZ 1560

CD RADIO CASSETTE RECORDER

AZ 1560

CD RADIO CASSETTE RECORDER

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

DIGITAL EQUALIZER

DIGITAL TUNER

INCREDIBLE SURROUND

)

(

MAINS ~

12345

890 @

!#$ % ^&

CONTROLS

TOP AND FRONT PANELS

1DIGITAL EQUALIZER – selects volume or the

various frequencies for adjustment: volume,

bass, mid and high frequencies

2VOLUME/SOUND CONTROL CENTER –

adjusts the volume level and digital equalizer

settings

3DIGITAL DBB (Dynamic Bass Boost) –

enhances the bass

4INCREDIBLE SURROUND – creates a super-

enhanced stereo effect

5POWER slider – selects the sound source for

CD/ TUNER/ TAPE and also

switches the set off

6CASSETTE RECORDER keys:

RECORD 0– starts recording

PLAY 1– starts playback

SEARCH 5, 6– fast winds/rewinds the tape

OPEN•STOP /9 – opens the cassette

compartment

– stops the tape;

PAUSE ;– interrupts recording or playback

7OPEN•CLOSE – opens/ closes the CD door

8STOP 9– stops CD playback or erase a CD

programme

9PLAY•PAUSE 2; – starts or interrupts CD

playback

0BATT LOW – indicates when battery power is

running low

!PROG – CD: programmes tracks and reviews

the programme;

Tuner: programmes preset tuner

stations

@SHUFFLE – plays CD tracks in random order

#SEARCH ∞, §

Tuner: - (down, up) tunes to radio stations;

CD: - searches back and forward within a

track;

- skips to the beginning of a current

track/ previous/ subsequent track

$REPEAT – repeats a track / CD programme /

entire CD

%Display – shows the status of the set

^BAND – selects waveband

&TUNER PRESET 4,3– selects a preset tuner

station (down, up)

BACK PANEL

*p– 3.5 mm headphone socket

(Telescopic aerial – improves FM reception

)AC MAINS – inlet for mains cord

¡Battery door

English

Environmental information

All unnecessary packaging material has been omitted. We have done our utmost to make the

packaging easy to separate into three mono-materials: cardboard (box), expandable polystyrene

(buffer), polyethylene (bags, protective foam).

Your set consists of materials which can be recycled if disassembled by a specialized

company. Please observe the local regulations regarding the disposal of packing

materials, exhausted batteries and old equipment.

POWER SUPPLY

English

Whenever convenient, use the power supply if you want to

conserve battery life. Make sure you remove the plug from the

set and wall socket before inserting batteries.

BATTERIES (OPTIONAL)

Open the battery compartment and insert six batteries, type

R-20, UM-4 or D-cells, (preferably alkaline) with the correct

polarity as indicated by the "+" and "-" symbols inside the

compartment.

Replace the compartment door, making sure the batteries are

firmly and correctly in place. The set is now ready to operate.

–

If BATT LOW lights up, battery power is running low.

– The BATT LOW indicator eventually goes out if the

batteries are too weak.

– Incorrect use of batteries can cause electrolyte leakage and

will corrode the compartment or cause the batteries to burst.

Therefore:

–

Do not mix battery types

, e.g. alkaline with carbon zinc.

Only use batteries of the same type for the set.

– When inserting new batteries, do not try to mix old

batteries with the new ones.

– Remove the batteries if the set is not to be used for a long

time.

–

Batteries contain chemical substances, so they

should be disposed of properly

For users in the U.K.: please follow the instructions on page 2.

USING AC POWER

Check if the mains voltage

as shown on the type plate

located on the bottom of the set

, corresponds to your local

power supply. If it does not, consult your dealer or service

centre.

If your set is equipped with a voltage selector, adjust the

selector so that it matches with the local mains.

Connect the mains lead to the wall socket and the set is now

ready for use.

To disconnect the set from the mains completely, remove the

plug from the wall socket.

AZ 1560/00 page 5

6 x D-cells - R20 - UM4

MAINS

BASIC FUNCTIONS DIGITAL TUNER

English

SWITCHING ON AND OFF

•Adjust the POWER slider to the desired sound source: CD,

TUNER or TAPE.

•The set is switched off when the POWER slider is in the

TAPE/OFF position and the keys on the tape deck are released.

– The volume, sound settings and tuner presets will be retained

in the set's memory.

ADJUSTING VOLUME AND SOUND

Turn the VOLUME/ SOUND CONTROL CENTER control

clockwise to increase or anti-clockwise to decrease volume on

the set.

™Display shows the volume level indication, VOL and a number

from 0-32.

To adjust the bass, mid and high frequency levels, press

DIGITAL EQUALIZER once or more until the desired option is

displayed. While the option is shown, turn the VOLUME/

SOUND CONTROL CENTER control to increase or decrease

(- 5 to + 5 steps maximum) the desired tone.

™VOLUME can also be adjusted in this way with a level range

from 0-32.

Press DIGITAL DBB to switch dynamic bass boost on or off.

™If on, the DIGITAL DBB light goes on.

Press INCREDIBLE SURROUND to switch the surround sound

effect on or off.

™If on, the INCREDIBLE SURROUND light goes on.

Note: The effect of INCREDIBLE SURROUND may vary with

different types of music.

TUNING TO RADIO STATIONS

Select TUNER source.

™is displayed briefly and then the radio station

frequency is shown.

Press BAND once or more to select your waveband.

Press SEARCH ∞or §and release when the frequency in

the display starts running.

™The TUNER automatically tunes to a station of sufficient

reception. Display shows during automatic tuning.

™If an FM station is received in stereo, STEREO is shown.

Repeat step

if necessary until you find the desired station.

• To tune to a weak station, press SEARCH ∞or §briefly and

repeatedly until you have found optimal reception.

AZ 1560 /00 page 6

CD RE

CD SY

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE

PRO

SOUND CON

BAT

CD REWRITABL

CD SYNCRO STRA

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

STEREO

SHUFFLE

•

VOL

–

•

VOL



DIGITAL TUNER

English

To improve radio reception:

• For

, pull out the telescopic aerial.

Incline and turn the aerial. Reduce its length if the signal is too

strong (very close to a transmitter).

• For

MW (AM), LW

, the set is provided with a built-in aerial so

the telescopic aerial is not needed. Direct the aerial by turning

the whole set.

Programming tuner stations

You can store up to a total of 30 tuner stations in the memory.

Tune to your desired station (see Tuning to radio stations).

Press PROG to activate programming.

™Display: PROG flashes.

Press PRESET 3or 4once or more to allocate a number from

1 to 30 to this station.

Press PROG again to confirm the setting.

™Display: PROG disappears, the preset number and the frequency

of the preset station are shown.

Repeat the above four steps to store other stations.

• You can overwrite a preset station by storing another frequency

in its place.

Tuning to preset stations

Press TUNER PRESET 4or 3until the desired preset station is

displayed.

Changing tuning grid

(some versions only)

In North and South America the frequency step between adjacent

channels in the AM and FM band are 10 KHz and 100 KHz

respectively. In the rest of the world this step is 9 KHz and 50 KHz.

Usually the frequency step has been preset in the factory for your

area.

Check that the set is in the TAPE/OFF position and switched

off.

2. To select 9KHz:

Simultaneously, press PROG and REPEAT

Switch the set on to TUNER and then release the controls.

•

To select 10KHz:

Repeat steps

1-3

but in step

simultaneously, press PROG and TUNING §on the set.

™When you tune to radio stations, the display shows tuning in

either steps of 9or 10.

™All preset stations will be affected and you may need to

reprogramme the preset stations.

AZ 1560/00 page 7

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

SSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

REPEAT

CD PLAYER

English

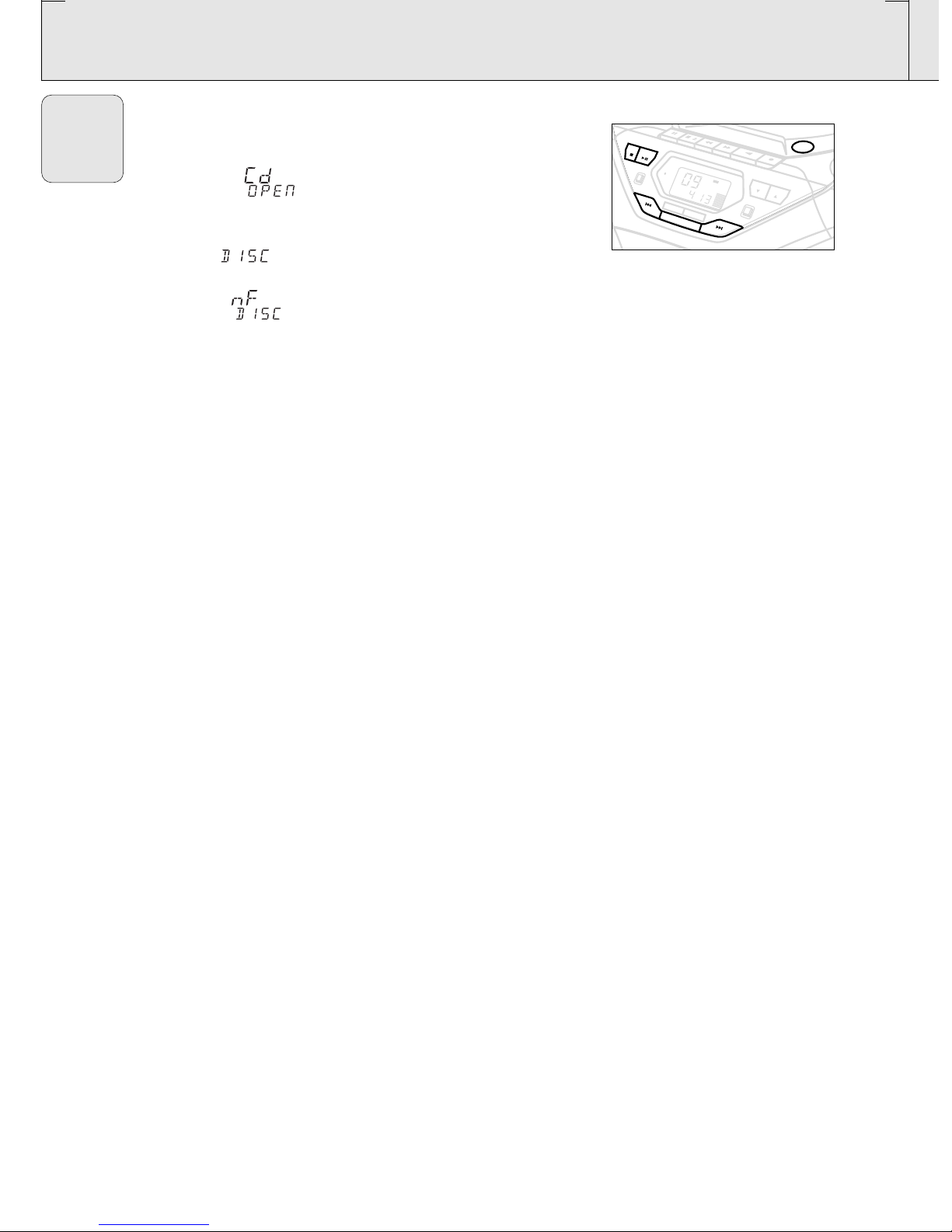

Playing a CD

Select CD source.

Press OPEN•CLOSE to open the CD door.

™Display: when you open the CD door.

Insert a CD or CD-R(W) with the printed side facing up and

press OPEN•CLOSE to close the CD door.

™Display: as the CD player scans the contents of a CD.

The total number of tracks and playing time are then shown.

™Display: is shown if the CD R(W) is not finalised.

Press PLAY•PAUSE 2; to start playback.

™Display: Current track number and elapsed playing time of the

track during CD playback.

To interrupt playback press PLAY•PAUSE 2;. Press

PLAY•PAUSE 2; again to resume play.

™The display freezes and the elapsed playing time flashes when

playback is paused.

To stop CD playback, press STOP 9.

Note: CD play will also stop when:

– the CD door is opened;

– the CD has reached the end (unless you have selected

REPEAT ALL);

– you select another source: TAPE / TUNER.

Selecting a different track

• Press SEARCH ∞or §once or repeatedly until the desired

track number appears in the display.

• If you have selected a track number shortly after loading a CD

or in the PAUSE position, you will need to press

PLAY•PAUSE 2; to start playback.

Finding a passage within a track

Press and hold down on SEARCH ∞or §.

– The CD is played at high speed and low volume.

When you recognize the passage you want,

release SEARCH ∞or §.

– Normal playback continues.

Note: During a CD programme or if SHUFFLE/ REPEAT active,

searching is only possible within a track.

AZ 1560 /00 page 8

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

CD PLAYER

English

Different play modes: SHUFFLE and REPEAT

You can select and change the various play modes before or during

playback. The play modes can also be combined with PROGRAM.

SHUFFLE - tracks of the entire CD/ programme are played in

random order

SHUFFLE and REPEAT ALL - to repeat the entire CD/ programme

continuously in random order

REPEAT ALL - to repeat the entire CD/ programme

REPEAT and SHUFFLE REPEAT - plays the current (random) track

continuously

To select your play mode, press the SHUFFLE or REPEAT

button before or during playback until the display shows the

desired function.

Press PLAY•PAUSE 2; to start playback if in the STOP

position.

• Playback starts immediately if you have selected a SHUFFLE

mode.

To return to normal playback, press the respective SHUFFLE or

REPEAT button until the various SHUFFLE / REPEAT modes are

no longer displayed.

– You can also press

STOP 9

to cancel your play mode.

Programming track numbers

Programme in the STOP position to select and store your CD tracks

in the desired sequence. If you like, store any track more than once.

Up to 20 tracks can be stored in the memory.

Press SEARCH ∞or §once or more to select your desired

track number.

Press PROG.

™Display: PROG and the selected track number. appears

briefly.

™If you attempt to programme without first selecting a track

number, is shown.

Press PROG to confirm the track number to be stored.

Repeat steps

1-2

to select and store all desired tracks.

™is displayed if you attempt to programme more than

20 tracks.

To start playback of your CD programme,

press PLAY•PAUSE 2;.

Note: if you have selected the tracks during CD playback, first

press

STOP 9

then

PLAY•PAUSE 2;.

AZ 1560/00 page 9

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESET

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRESE

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

Reviewing the programme

In the stop position or during playback, press and hold down

PROG for a while until the display shows all your stored track

numbers in sequence.

Erasing a programme

You can erase the programme by:

– pressing STOP 9once in the STOP position;

– pressing STOP 9twice during playback;

• The display shows briefly and PROG disappears.

The programme is also erased by:

– pressing the CD door open;

– selecting another source: TAPE/ TUNER.

CASSETTE PLAYBACK

Select TAPE source.

™The display shows TAPE throughout tape operation.

Press OPEN•STOP /9 to open the cassette door.

Insert a recorded cassette and close the cassette door.

Press PLAY 1to start playback.

To interrupt playback press PAUSE ;. To resume, press this

key again.

By pressing SEARCH 5or 6on the set fast winding of the

tape is possible in both directions.

To stop the tape, press OPEN•STOP /9.

•

The keys are automatically released at the end of the tape,

except if

PAUSE ;

has been activated.

Note: The sound source cannot be changed while playing a

cassette.

CD PLAYER CASSETTE RECORDER

English

AZ 1560 /00 page 10

SYNC

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE

PROG

SOUND CONTROL CENT

BAT

LOW

CD PLAYER CASSETTE RECORDER

English

GENERAL INFORMATION ON RECORDING

• Recording is permissible insofar as copyright or other rights of

third parties are not infringed.

• This deck is not suited for recording on CHROME (IEC II) or

METAL (IEC IV) type cassettes. For recording, use only

NORMAL type cassettes (IEC I) on which the tabs have not

been broken.

• The best recording level is set automatically. Altering the

VOLUME, INCREDIBLE SURROUND, DIGITAL EQUALIZER or DBB

controls will not affect the recording in progress.

• At the very beginning and end of the tape, no recording will

take place during the 7 seconds, when the leader tape passes

the recorder heads.

• To protect a tape from accidental erasure, have the tape in

front of you and break out the left tab.

Recording on this side is no longer possible. To record over this

side again, cover the tabs with a piece of adhesive tape.

Synchro Start CD recording

Select CD source.

Insert a CD and if desired, programme track numbers.

Press OPEN•STOP /9 to open the cassette door.

Insert a suitable tape into the cassette deck and close the

cassette door.

Press RECORD 0to start recording.

– Playing of the CD programme starts automatically from the

beginning of the programme. It is not necessary to start the CD

player separately.

To select and record a particular passage within a track

• Press and hold down on SEARCH ∞or §.

• When you recognize the passage you want,

release SEARCH ∞or §.

• To interrupt CD playback press PLAY•PAUSE 2;.

• Recording will begin from this exact point in the track when

you press RECORD 0.

For brief interruptions during recording, press PAUSE ;. To

resume recording, press PAUSE ;again.

To stop recording, press OPEN•STOP /9.

AZ 1560/00 page 11

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE TUNER PRES

PROG

SHUFFLE REPEAT

BAND

SOUND CONTROL CENTER

BAT

LOW

PROG

SHUFFLE

•

VOL

CD REWRITABLE COMPATIBLE

CD SYNCRO STRAT RECORDING

AZ 1560

CD RADIO CASSETTE RECORDER

STOP PLAY•PAUSE

PROG

SOUND CONTROL CENT

BAT

LOW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de CD de Philips

Philips

Philips AX2412/17 Manual de usuario

Philips

Philips D 8892 Manual de usuario

Philips

Philips AZ6826 Manual de usuario

Philips

Philips AZ1226 Manual de funcionamiento

Philips

Philips FW46/25 Manual de usuario

Philips

Philips AZ783 Hoja de información del producto

Philips

Philips AZ 1402 Manual de usuario

Philips

Philips Shockproof AX2100 Manual de usuario

Philips

Philips AZ7260/00 Manual de usuario

Philips

Philips EXP2460/02 Manual de usuario

Philips

Philips AX5303 Manual de usuario

Philips

Philips AX7200 Manual de usuario

Philips

Philips AX2200 Manual de usuario

Philips

Philips AZ 6821 Manual de usuario

Philips

Philips AZ 9003/01 Manual de usuario

Philips

Philips AZ215 Hoja de información del producto

Philips

Philips AZ 3011 series Manual de usuario

Philips

Philips AZ1140/11 Manual de usuario

Philips

Philips AZ 8420 Manual de usuario

Philips

Philips AZ8052 Manual de usuario

Philips

Philips Magnavox FW380C Manual de usuario

Philips

Philips AZ1835 Manual de usuario

Philips

Philips AZ 1004 Manual de usuario

Philips

Philips AZD102/61 Manual de usuario

Manuales populares de Reproductor de CD de otras marcas

RCA

RCA RP-7923 Manual de usuario

Pioneer

Pioneer DEH-P3550MP XM Manual de usuario

Lasonic

Lasonic MSU-2020 Manual de usuario

THOMSON

THOMSON RCD150 Manual de usuario

Denon

Denon DCD-1420 Manual de usuario

Panasonic

Panasonic SJ-MR100 Manual de usuario

Onkyo

Onkyo DX-7210 Manual de usuario

Sony

Sony MZ-R3 Manual de usuario

Denon

Denon DVM-4800 Manual de usuario

JBL

JBL MR-32 Manual de usuario

RCA

RCA RCD152 Manual de usuario

Technics

Technics SL-PS770A Manual de usuario

Clarion

Clarion compact disc Manual de usuario

Sony

Sony MZ-M10 Manual de usuario

Rotel

Rotel RCD 975 Manual de usuario

Pioneer

Pioneer CLD-D790 Manual de usuario

Optimus

Optimus CD-8250 Manual de usuario

Audiovox

Audiovox CE101A - annexe 1 Manual de usuario
