Philips AQ4130/61 Manual de usuario

AQ4130

Radio Cassette Recorder

User Manual

AQ4130_61 IFU 29/11/05 15:53 Page 1

AQ4130_61 IFU 29/11/05 15:53 Page 2

AQ4130_61 IFU 29/11/05 15:53 Page 3

Korean Controls/Power Supply

Supplied accessories

–

AC power cord

Top and front panels (See 1)

1Cassette recorder keys:

PAUSE ;

–

pauses playback or recording

STOP•EJECT 9

–

stops playback or recording.

–

opens the cassette holder.

F.FWD/REWIND 5 or 6

–

fast winds/rewinds the tape

PLAY 1

–

starts playback

RECORD 0

–

starts recording

2p- 3.5mm stereo headphone jack

Helpful hints:

– Connecting the headphones will switch off

the speakers.

TONE

RADIO (SW) only:for fine tuning

Source selector :TAPE (OFF), RADIO

–

selects tape or radio source of sound

–

switches off the set

Band selector: MW, SW, FM

–

selects wavebands, MW, SW or FM

5VOLUME rotary – adjusts volume level

6TUNING rotary – tunes to radio stations

7MIC

(built-in microphone)

–

for voice recording

Back panel (See 1)

8Telescopic antenna

- improves FM/SW reception.

9AC IN ~ - inlet for power cord

0Voltage selector – (inside the battery

compartment, not for all versions) adjust to

match the local voltage 110/220V before

plugging in the set.

!Battery door - open to insert 4 X 1.5

batteries, type R20 or D-cells

Power supply

Whenever convenient, use the power cord if

you want to conserve battery life. Make sure

you remove the plug from the set and wall

outlet before inserting batteries.

Batteries (not included)

•Insert 4 batteries, type R20 or D-cells

(preferably alkaline) with the

correct polarity. (See 1)

Batteries contain chemical substances, so

they should be disposed of properly.

• Incorrect use of batteries can cause

electrolyte leakage and will corrode the

compartment or cause the batteries to burst:

• Do not mix battery types: e.g. alkaline with

carbon zinc. Only use batteries of the same

type for the set.

• When inserting new batteries, do not try to

mix old batteries with the new ones.

• Remove the batteries if the set is not to be

used for a long time.

AQ4130_61 IFU 29/11/05 15:53 Page 4

Power Supply General Operation / Radio

Using AC power

1 Check if the power voltage, as shown on

the type plate located on the

bottom of the set,corresponds to your

local power supply. If it does not, consult your

dealer or service center.

2 If your set is equipped with a voltage

selector, adjust the selector so that it

matches with the local mains.

3 Connect the power cord to the AC IN ~

inlet and the wall socket.The power cord is

now connected and ready for use.

4 To switch the set off completely, withdraw the

power cord from the wall socket.

•Disconnect the power cord from the wall

socket to protect your set during heavy

thunderstorms.

Helpful hints : To avoid unnecessary energy

consumption, always adjust the Source

selector to

TAPE (OFF)

after using the

set. Also check that the tape deck keys are

released.

The type plate is located on the bottom

of the set.

General operation

Switching on and off and selecting

functions

1 To switch on, push the Source selector

slider to TAPE or

RADIO as desired.

2 To switch off, push the Source selector

TAPE (OFF)

and check the cassette

keys are released.

Helpful hints:

To change from TAPE to RADIO ,or when

you are switching off the set: first, make sure you

press the

STOP•EJECT 9

/key to end

playback and all the cassette keys are released.

Adjusting volume

•Adjust the volume with the

VOLUME

control.

Radio reception

1 Adjust the source selector to

RADIO

2Adjust the band selector to select your

desired waveband, MW, SW or FM.

3Tu r n TUNING to tune to a station.

•In SW, turn TONE for precise tuning.

4To switch off the radio, adjust the source

selector to

TAPE (OFF)

position.

To improve radio reception:

• For FM and SW,extend and turn the

telescopic antenna for best reception. Reduce

its length if the signal is too strong.

• For MW,the set uses a built-in antenna.

Direct this antenna for best reception by

turning the whole set.

AQ4130_61 IFU 29/11/05 15:53 Page 5

Cassette playback

1Push the Source selector slider to TAPE

2Press

STOP•EJECT 9

/to open the

cassette holder and insert a cassette and close

the deck.

3Press

PLAY 1

to start playback.

4To pause playback press

PAUSE ;

To resume, press the key again.

5By pressing

F.FWD/REWIND 5 or 6

fast forwading/ rewinding of the tape is

possible in both directions.To stop fast

winding, press

//.

6To stop the tape, press

//.

Helpful hints:

–During playback, the keys are automatically

released at the end of a tape and the set is

switched off (unless

PAUSE ;

mode has been

activated.)

–During fast forwarding/rewinding, the keys will

not be released at the end of a tape. To switch

off the set, make sure the cassette keys are also

released.

General information on recording

•Recording is permissible insofar as copyright

or. other rights of third parties are not

infringed.

•For recording, use only NORMAL type cas-

settes (IEC type I) on which the tabs have not

yet been broken.This deck is not suited for

recording on CHROME (IEC II) or METAL

(IEC IV) type cassettes.

•The best recording level is set automatically.

Altering the VOLUME will not affect the

recording.

•To protect a tape from accidental erasure,

break out the tabs. If you wish to record again,

cover the tabs with a piece of adhesive tape.

Recording from the Radio

1Select RADIO source.

2Tune to the desired radio station (see Radio

reception).

3Press

//to open the cassette holder.

Insert a blank tape and close the deck.

4Press

REC 0

to start recording.

5For brief interruptions press

;

To resume recording, press

;

again.

6To stop recording, press

//.

Making your recording

1Select TAPE source.

2Follows steps 3-4 under Recording from

the Radio.

3Speak towards the built-in microphone

MIC (see 1).

4Follows steps 6-7 under Recording from

the Radio.

Cassette Recorder

The making of unauthorized copies of

copy-protected material, including com-

puter programmes, files, broadcasts and

sound recordings, may be an infringe-

ment of copyrights and constitute a

criminal offence.This equipment should

not be used for such purposes.

AQ4130_61 IFU 29/11/05 15:53 Page 6

Maintenance & Safety

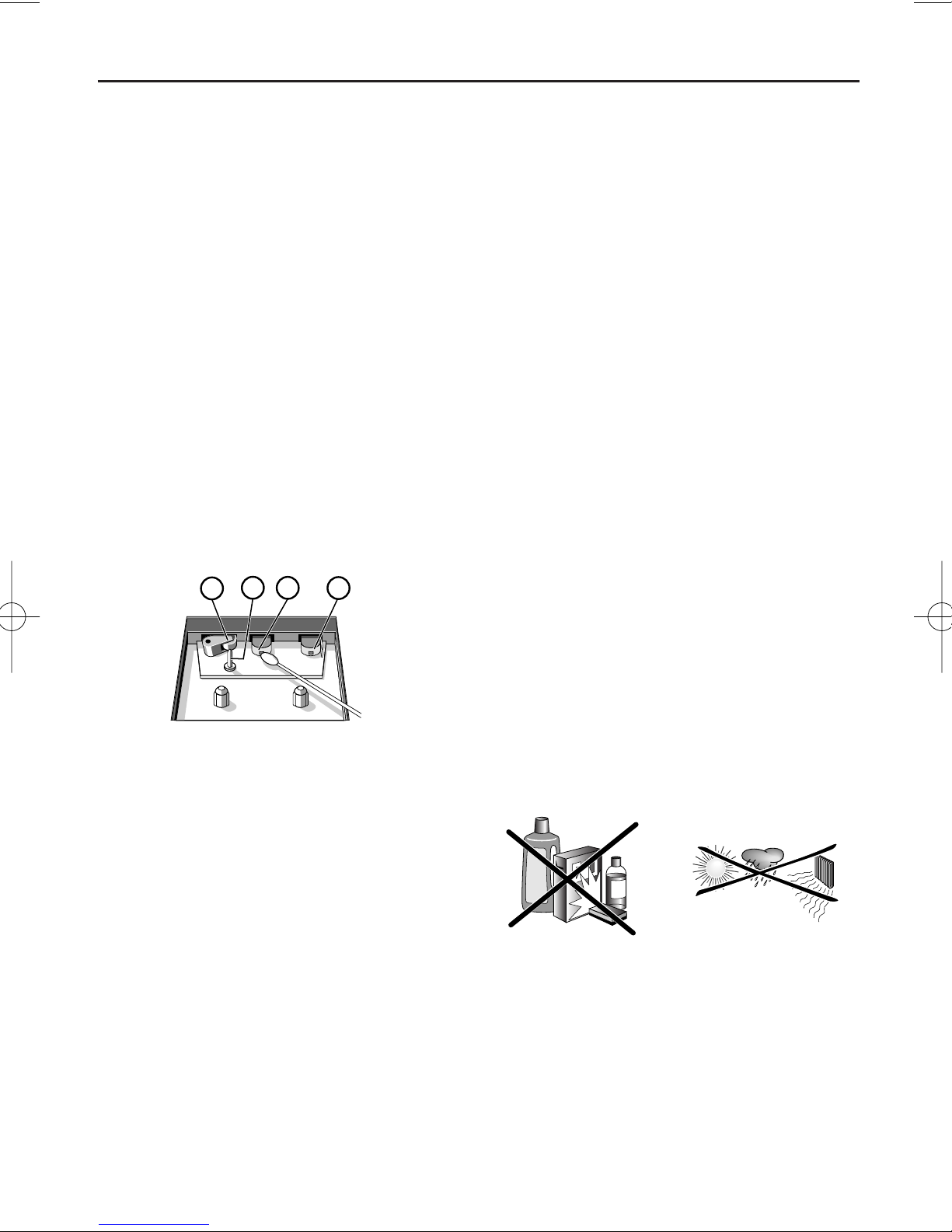

Ta pe deck maintenance

To ensure quality recording and playback of

the tape deck, clean parts A,Band Cas

shown, once a month. Use a cotton bud

slightly moistened with alcohol or a special

head cleaning fluid to clean the deck.

1Open the cassette holder by pressing

2Press 1and clean the roller C.

3Press

;

and clean the heads A,and the

capstan B.

4After cleaning, press

➜Cleaning of the heads can also be done by

playing a cleaning cassette through once.

Safety information

•Place the set on a flat, hard and stable surface

so that the system does not tilt.

•Do not expose the set, batteries to humidity,

rain, sand or excessive heat caused by heating

equipment or direct sunlight.

•The apparatus shall not be exposed to

dripping or splashing.

•Adequate ventilation with a minimum gap of

15cm (6 inches) between the ventilation

holes and surrounding surfaces is necessary to

prevent heat build-up.

•Do not cover the ventilation openings with

items such as newspapers, table-cloths, cur-

tains, etc.

•No objects filled with liquids, such as vases,

shall be placed on the apparatus.

•No naked flame sources, such as lighted

candles, should be placed on the apparatus.

•The mechanical parts of the set contain

self-lubricating bearings and must not be oiled

or lubricated.

•To clean the set, use a dry cloth. Do not use

any cleaning agents containing alcohol,

ammonia, benzene or abrasives as these may

harm the housing.

A AB

AQ4130_61 IFU 29/11/05 15:53 Page 7

Environmental information

All unnecessary packaging material has been omitted.The packaging can be easily separated

into three materials: cardboard, polystyrene and plastic.

Your set consists of materials which can be recycled if disassembled by a

specialized company. Please observe the local regulations regarding the

disposal of packaging, dead batteries and old equipment.

Problem

–Possible cause

•Remedy

No sound /power

–Volume not adjusted

•Adjust the VOLUME

–Power cord not securely connected

•Connect the AC power cord properly

–Batteries dead/ incorrectly inserted

•Insert (fresh) batteries correctly

–Headphones connected to the set

•

Disconnect headphones.

Display does not function properly/

No reaction to operation of any of the

controls

–Electrostatic discharge

•Switch off and unplug the set. Reconnect after a

few seconds

Severe radio hum or noise

–Electrical interference: set too close to TV, VCR or

computer

•Increase the distance.

Poor radio reception

–Weak radio signal

•FM/SW: Adjust the FM telescopic antenna

•MW: Direct this antenna for best reception by

turning the whole set.

Poor cassette sound quality

–Dust and dirt on the heads, etc.

•Clean deck parts, see Maintenance

–Use of incompatible cassette types (METAL or

CHROME)

•Only use NORMAL (IEC

) for recording

Recording does not work

–Cassette tab(s) may be broken

•Apply adhesive tape over the missing tab space

Troubleshooting

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Do not open the set as there is a risk of electric shock. Under no

circumstances should you try to repair the set yourself, as this will

invalidate the guarantee.

AQ4130_61 IFU 29/11/05 15:53 Page 8

AQ4130_61 IFU 29/11/05 15:53 Page 9

Meet Philips at the Internet

http://www.philips.com

YM-548

AQ4130

Printed in China

Korean

AQ4130_61 IFU 29/11/05 15:53 Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Reproductor de casetes de Philips

Philips

Philips AQ6560 - Headphone Stereo Manual de instrucciones

Philips

Philips AZ1209 Manual de usuario

Philips

Philips AQ5130/61 Manual de usuario

Philips

Philips DCC 134 Manual de usuario

Philips

Philips turbo drive VR550 Manual de usuario

Philips

Philips AZ 1605 Manual de usuario

Philips

Philips AZ1065 Manual de usuario

Philips

Philips AQ6455/05 Manual de usuario

Philips

Philips AQ6562/00 Manual de usuario

Philips

Philips AZ 1060 Manual de usuario

Philips

Philips AW 7520 Manual de usuario

Philips

Philips AQ6594 Manual de usuario

Philips

Philips AQ4140 Manual de usuario

Philips

Philips ND 6600 Manual de usuario

Philips

Philips D8274 Manual de usuario

Philips

Philips AQ6401 Manual de usuario

Philips

Philips AZ 1013 Manual de usuario

Philips

Philips D 6650 Manual de usuario

Philips

Philips AQ 4050 Manual de usuario

Philips

Philips AZ1000 - annexe 1 Manual de usuario

Philips

Philips AQ6340/00 Manual de usuario

Philips

Philips AQ414 Manual de usuario

Philips

Philips AZ 8050 Manual de usuario

Philips

Philips AQ 6585/14 Manual de usuario

Manuales populares de Reproductor de casetes de otras marcas

Aiwa

Aiwa TP-VS535 Manual de usuario

Yamaha

Yamaha MT8X Manual de usuario

Manta

Manta MA408 Manual de usuario

Sherwood

Sherwood Newcastle D-480 Manual de usuario

Tascam

Tascam 122MKIII Guía

GPO

GPO W0162B Manual de usuario

Sony

Sony HST-471 Manual de usuario

Sharp

Sharp JC-AV1 Manual de usuario

Pioneer

Pioneer CT-W103 Manual de usuario

Aiwa

Aiwa HS-JX899 Manual de usuario

Sony

Sony TC-K615S Manual de usuario

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder Manual de usuario

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... Manual de usuario

Aiwa

Aiwa HS-TA21 Manual de usuario

Sanyo

Sanyo MCD-ZX700F Manual de usuario

Aiwa

Aiwa CS-P77 Manual de usuario

Sony

Sony Pressman TCM-465V Manual de usuario

Sony

Sony WALKMAN WM-GX808 Manual de usuario
