1 Safety

Read and understand all instructions before you

use the device. If damage is caused by failure to

follow instructions, the warranty does not apply.

• Use of controls or adjustments or

performance of procedures other than

herein may result in hazardous radiation

exposure or other unsafe operation.

• The device is designed for negative ground

(earth) 12 V DC operation only.

• To reduce the risk of trafc accidents, do

not watch video when driving.

• To ensure safe driving, adjust the volume to

a safe and comfortable level.

• Improper fuses can cause damage or

re. When you need to change the fuse,

consult a professional.

• Use only the supplied mounting hardware

for a safe and secure installation.

• To avoid short circuits, do not expose the

device, remote control or remote control

batteries to rain or water.

• The device shall not be exposed to

dripping or splashing.

• Do not place any sources of danger on

the device (e.g. liquid lled objects, lighted

candles).

• Never insert objects into the ventilation

slots or other openings on the device.

• Never place any objects other than discs

into the disc tray/slot.

• To avoid exposure to laser radiation, do

not disassemble the device.

• Risk of damage to the screen! Never touch,

push, rub or strike the screen with any

object.

• Never use solvents such as benzene,

thinner, cleaners available commercially, or

anti-static sprays intended for discs.

• Clean the device with soft, damp cloth.

Never use substances such as alcohol,

chemicals or household cleaners on the

device.

• Risk of swallowing batteries! A coin

type battery is bundled, which can be

swallowed. Keep the battery out of reach

of children at all times!

4EN

2 Your car

entertainment

system

Congratulations on your purchase, and

welcome to Philips! To fully benet from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the car entertainment system, you can

• listen to music,

• watch videos,

• view pictures,

• listen to FM (RDS included) and AM/MW

radio,

• make phone calls via Bluetooth, and

• navigate your road trip.

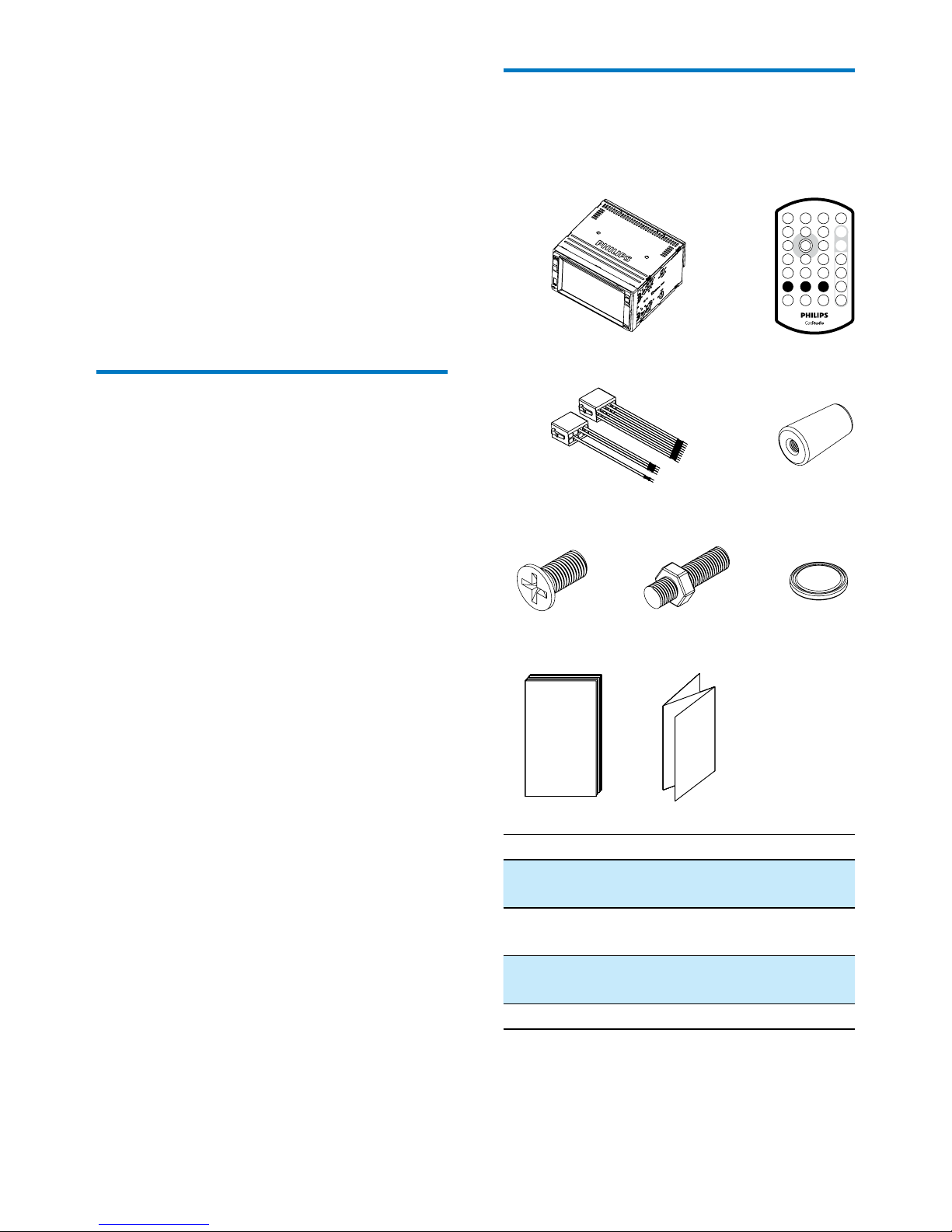

What's in the box

Check and identify the contents of the package:

1Main unit 2Remote control

3ISO male connector

X 2

4Rubber cushion

5Screw X 4

(M5x8mm)

6Hexagon head

screw

7Remote control

battery

8User manual

9Quick start guide

ef g

h i

English

Overview of the main unit

• Press to eject the disc.

• Press to access the navigation system.

• Press and hold to adjust the brightness

of LCD screen.

• Press to turn on the unit.

• Press and hold to turn off the unit.

• Press to mute the speakers or release

them from mute status.

d RESET

• Press to reset the system.

• Insert an SD/SDHC card.

f MAP

• Insert a microSD card that stores the

digital map data.

g iR sensor

• The sensor that receives infra-red

signals from the remote control.

h AV-IN

• Connect to the audio and video

output sockets of an external player by

a composite AV cable.

• Connect to a USB storage device or

iPod/iPhone.

j LCD screen

k +/-

• Press to increase or decrease the

volume.

l MIC

• The built-in microphone for phone

calls.

6EN

Overview of the remote

control

a SOURCE

• Press repeatedly to select a source.

• Press to eject the disc.

• Return to the previous menu or mode.

d VOLUME + / -

• Press to increase or decrease the

volume.

• Access the home menu.

• Enable or disable the maximum sound.

• Switch to video playback mode.

• Enable or disable the FullSound effect.

i DVD AUDIO

• Select an audio language or audio

channel.

j DBB

• Enable or disable the DBB (Dynamic

Bass Boost) sound effect.

k EQ

• Select a preset sound equalizer.

l MUSIC ZONE

• Select a music listening zone.

• Turn on or off the screen.

• Switch to the control interface for

front source or rear source.

o TOP MENU

• Return to top menu.

p DVD MENU

• Access the DVD menu.

• Switch to music playback mode.

• Switch to picture slideshow mode.

• Start, pause, or resume the play.

t OK

• Conrm an option.

u / /TRACK -/TRACK +

• Skip to the previous or next track,

chapter, or le.

• For DVD, press and hold to select a

speed for fast backward or forward

search.

v BAND

• Select a tuner band.

English

w / /PRESET +/PRESET -

• Tune to the previous or next preset

radio station.

• Skip to the previous or next folder.

• Press to turn on the system.

• Press and hold to turn off the system.

• Press to mute the speakers or release

them from mute status.

y NAVI

• Press to access the navigation system.

3 Install the car

entertainment

system

Always follow the instructions in this chapter in

sequence.

These instructions are for a typical installation.

However, if your car has different requirements,

make the adjustment accordingly. If you have

any question regarding installation kits, consult

your local retailer.

Note

•This system is designed for negative ground (earth) 12V

DC operation only.

•Always install this system in the car dashboard. Other

locations can be dangerous as the rear of the system

heats up during use.

•To avoid short-circuit: before you connect, make sure

that the ignition is off.

•Make sure that you connect the yellow and red power

supply leads after all other leads are connected.

•Make sure that all loose leads are insulated with

electrical tape.

•Make sure that the leads do not get caught under

screws iron parts that will move (e.g. seat rail).

•Make sure that all ground (earth) leads are run to a

common ground (earth) point.

•Use only the supplied mounting hardware for a safe

and secure installation.

•Improper fuses can cause damage or re. When you

need to change the fuse, consult a professional.

•When you connect other devices to this system, make

sure that the rating of the car circuit is higher than the

total fuse value of all the connected devices.

•Never connect speaker wires to the metal body or

chassis of the car.

•Never connect speaker wires with stripes to one

another.

8EN

Connect wires

Note

•Make sure that all loose leads are insulated with

electrical tape.

•Consult a professional to connect wires as instructed

below.

•Before connection, check the car's wiring carefully.

1 Connect the ISO male connectors.

ISO male connectors Connect to

1 Green strip, black-

edged green strip

Rear left speaker

2 White strip, black-

edged white strip

Front left speaker

3 Gray strip, black-

edged gray strip

Front right speaker

4 Purple strip, black-

edged purple strip

Rear right speaker

e Red strip Ignition key +12V

DC when ON/ACC

f Blue strip Motor/electric

antenna relay

control lead

g Blue strip, white strip Amplier relay

control lead

h Black strip Ground

i Yellow strip The +12V car

battery which is

energized at all times

2 Connect other wires if necessary.

Caution

•To avoid an accident, the driver must not watch video

while driving. By design, this system disallows watching

video during drive. Park your car in a safe place and

engage the parking brake before watching video.

Note

•When the parking brake of your vehicle is not engaged,

the video blocking system is activated. It blocks the

display of front video source only.

•If the system is not properly connected with the

parking brake control module of your vehicle, video

signals will be blocked by the system, with the below

message displayed on the TFT.

Otros manuales para CED1900BT

Tabla de contenidos

Otros manuales de Receptor de coche de Philips

Philips

Philips CEM5000 Manual de usuario

Philips

Philips CEM2000 Manual de usuario

Philips

Philips CE150 Manual de usuario

Philips

Philips CEM2250/51 Manual de usuario

Philips

Philips CE138 Manual de usuario

Philips

Philips CMB2102/55 Manual de usuario

Philips

Philips CID2680/51 Manual de usuario

Philips

Philips CEM2220BT/10 Manual de usuario

Philips

Philips CE135BT Manual de usuario

Philips

Philips CED780 Manual de usuario

Philips

Philips CEM200/98 Manual de usuario

Philips

Philips CED370 Manual de usuario

Philips

Philips CarStudio CEM2101R/51 Manual de usuario

Philips

Philips CED320/55 Manual de usuario

Philips

Philips CE135BT/55 Manual de usuario

Philips

Philips CED1700/93 Manual de usuario

Philips

Philips CEM3000B Manual de usuario

Philips

Philips 90RC438 Manual de usuario

Philips

Philips CarStudio CEM5100 Manual de usuario

Philips

Philips CED1700/00 Manual de usuario

Philips

Philips CarStudio CEM5100 Manual de usuario

Philips

Philips CE130 Manual de usuario

Philips

Philips CEM3000 Manual de usuario

Philips

Philips CarStudio CEM5100 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
