1 Important

Safety

Read and understand all instructions•

before you use your apparatus. If damage is

caused by failure to follow instructions, the

warranty does not apply.

This apparatus is designed for negative•

ground (earth) 12 V DC operation only.

To ensure safe driving, adjust the volume to•

a safe and comfortable level.

Improper fuses can cause damage or•

ﬁre.When you need to change the fuse,

consult a professional.

Use only the supplied mounting hardware•

for a safe and secure installation.

To avoid short circuit, do not expose the•

apparatus, remote control or remote

control batteries to rain or water.

Never insert objects into the ventilation•

slots or other openings on the apparatus.

Clean the apparatus and frame with a soft,•

damp cloth. Never use substances such as

alcohol, chemicals or household cleaners

on the apparatus.

Never place any objects other than discs•

into the apparatus.

Never use solvents such as benzene,•

thinner, cleaners available commercially, or

anti-static sprays intended for discs.

Visible and invisible laser radiation when•

open. Avoid exposure to beam.

Risk of damage to the apparatus screen!•

Never touch, push, rub or strike the screen

with any object.

Caution

Use of controls or adjustments or performance of•

procedures other than herein may result in hazardous

radiation exposure or other unsafe operation.

Notice

The making of unauthorized copies of copy-

protected material, including computer

programs, ﬁles, broadcasts and sound

recordings, may be an infringement of

copyrights and constitute a criminal offence.

This equipment should not be used for such

purposes.

This apparatus includes these labels:

Class II equipment symbol

This symbol indicates that the apparatus has a

double insulation system.

Recycling

Your product is designed and manufactured

with high quality materials and components,

which can be recycled and reused.

When you see the crossed-out wheel bin

symbol attached to a product, it means the

product is covered by the European Directive

2002/96/EC:

EN 3

English

Never dispose of your product with other

household waste. Please inform yourself about

the local rules on the separate collection of

electrical and electronic products.The correct

disposal of your old product helps prevent

potentially negative consequences on the

environment and human health.

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot

be disposed of with normal household waste.

Please inform yourself about the local rules on

separate collection of batteries.The correct

disposal of batteries helps prevent potentially

negative consequences on the environment and

human health.

Environmental information

All unnecessary packaging has been omitted.

We have tried to make the packaging easy to

separate into three materials: cardboard (box),

polystyrene foam (buffer) and polyethylene

(bags, protective foam sheet.)

Your system consists of materials which can

be recycled and reused if disassembled by

a specialized company. Please observe the

local regulations regarding the disposal of

packaging materials, exhausted batteries and old

equipment.

Any changes or modiﬁcations made to this

device that are not expressly approved by

Philips Consumer Lifestyle may void the user’s

authority to operate the equipment.

2009 © Koninklijke Philips Electronics N.V. All

rights reserved.

Speciﬁcations are subject to change without

notice.Trademarks are the property of

Koninklijke Philips Electronics N.V. or their

respective owners. Philips reserves the right

to change products at any time without being

obliged to adjust earlier supplies accordingly.

4EN

2 Your car audio

system

Congratulations on your purchase, and

welcome to Philips! To fully beneﬁt from the

support that Philips offers, register your product

at www.philips.com/welcome.

Introduction

With the in-car audio system, you can enjoy

your drive while you listen to:

FM or AM (MW) radio•

Audio from CD or MP3 disc•

Audio from your mobile phone•

Audio from a USB drive•

Audio from a SD/SDHC/MMC card•

Audio from external devices•

Besides, you can make a call, answer and hang

up a call on the audio system.

What’s in the box

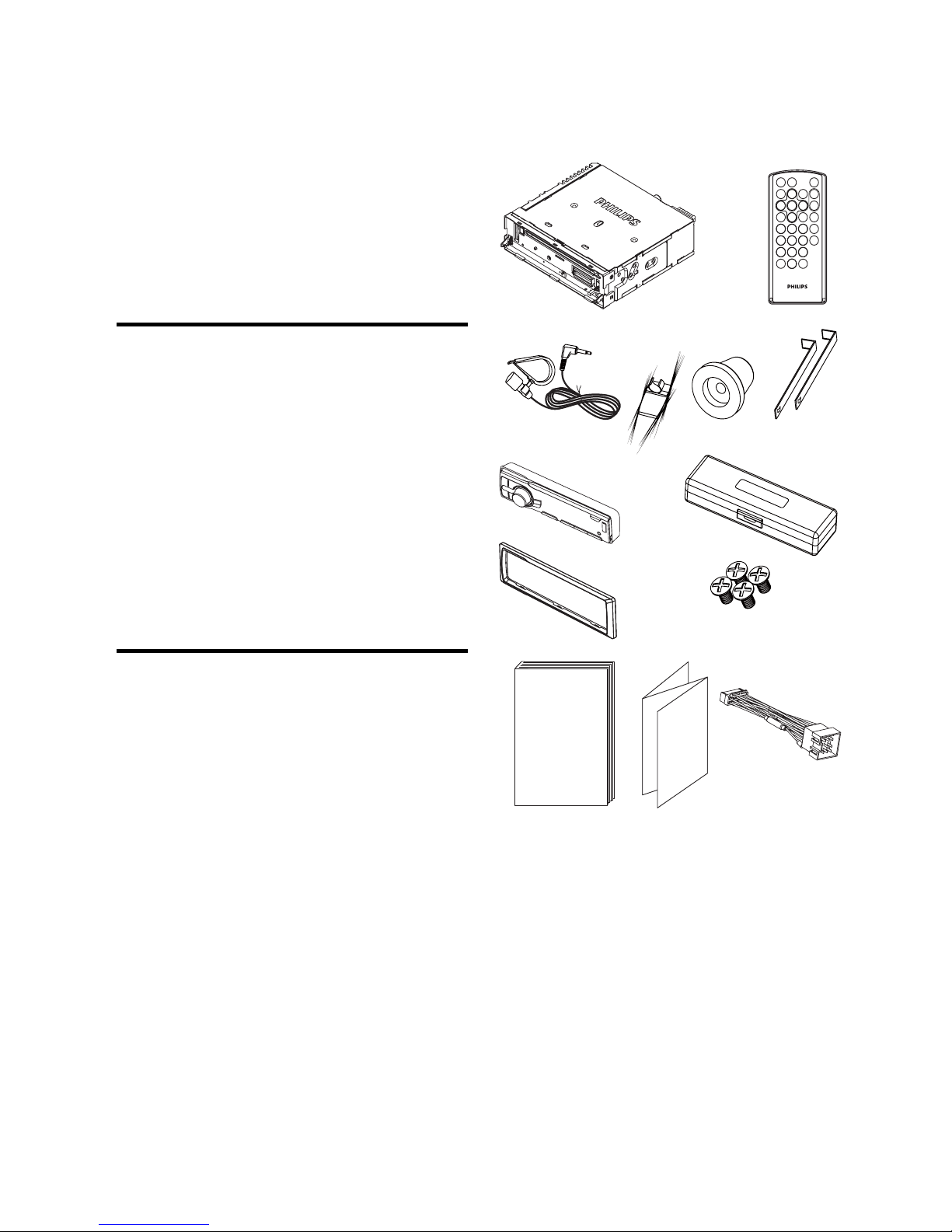

Check and identify the contents of your

package:

aCar audio system

bRemote control

cMicrophone

dMicrophone hold

eRubber cushion

fDisassembly tool (2 pieces)

gFront panel

hCarrying case for front panel

iTrim plate

jScrew (4 pieces)

kUser manual

lQuick start guide

mStandard connector

de f

klm

EN 5

English

Overview of the main unit

a(green/red)

Answer phone (green).•

Dial number (green).•

View call log (green).•

Terminate call (red).•

b/ DBB

Select tuner band.•

Select MP3/WMA folder.•

Scroll up menu.•

Turn on or off Dynamic Bass Boost•

(DBB) sound.

cSOURCE

Select audio source.•

Connect or disconnect bluetooth•

connection.

abdghi

xwut

r q po nml kj

d/MUTE

Turn the unit on or off.•

Adjust volume.•

Conﬁrm selection.•

Enter characters for search.•

Dial phone number.•

Mute or restore the volume.•

eMENU / DISP

Display radio frequency, clock and•

radio program type (if available).

Display track, elapsed time, artist,•

album, title, folder, ﬁle and clock.

Access system menu.•

6EN

Return to previous menu.•

Stop search.•

Disable screen blackout.•

gDisplay panel

Unlock the panel•

iUSB socket

jExternal device socket

Select preset station 6.•

Select preset station 5.•

mSHUF, 4

Set shufﬂe play mode.•

Select preset station 4.•

n3, REP

Set repeat play mode.•

Select preset station 3.•

oINTRO, 2

Turn intro play on or off.•

Select preset station 2.•

p1,

Start play•

Pause or resume play.•

Select preset station 1.•

Tune to a radio station•

Skip/search for MP3/WMA track.•

rEQ/Audio

Select equalizer (EQ) setting.•

Access audio setting menu.•

s/SEARCH

Select tuner band.•

Store radio stations automatically.•

Scroll up or down menu.•

Select MP3/WMA folder.•

Search a track or folder.•

tPanel power connection

uDisc slot

Take disc out.•

wRESET

Restore default settings•

xSD/MMC card slot

Overview of the remote

control

EN 7

English

Tune to a radio station•

Skip/search for a track.•

Mute or restore volume.•

cPWR

Turn the unit on or off.•

dMENU

Access system menu.•

eAUDIO

Access audio setting menu.•

f5/6/7/8/9/0+

Select track or preset radio station.•

Enter phone number.•

Answer phone.•

Dial number.•

h1,

Start play from the beginning of the•

ﬁrst track.

Pause or resume play.•

Select preset station 1.•

Enter phone number.•

iSHUF, 4

Set shufﬂe play mode.•

Select preset station 4.•

Enter phone number.•

jSEL

Conﬁrm selection.•

Tune for radio station•

Skip/search for MP3/WMA track.•

Return to previous menu.•

Disable screen blackout.•

mSOURCE

Select audio source.•

nVOLUME +/-

Adjust volume.•

oEQ

Select EQ setting.•

pDBB

Turn on or off Dynamic Bass Boost•

(DBB) sound.

qSEARCH

Set radio station memory•

automatically.

Search a track or folder.•

rDISP

Display radio frequency, clock and•

radio program type (if available).

Display MP3/WMA elapsed time, last•

listened radio frequency, and clock.

Terminate call•

t3, REP

Set repeat play mode.•

Select preset station 3.•

Enter phone number.•

uINTRO, 2

Turn intro play on or off.•

Select preset station 2.•

Enter phone number.•

8EN

3 Get started

Caution

Use the controls only as stated in this user manual.•

Always follow the instructions in this chapter in

sequence.

If you contact Philips, you will be asked for the

model and serial number of your apparatus.The

model number and serial number are on the

bottom of your apparatus.Write the numbers

here:

Model No. __________________________

Serial No. ___________________________

Install the car audio

These instructions are for a typical installation.

However, if your car has different requirements,

make the corresponding adjustment. If you have

any questions regarding installation kits, consult

your Philips car audio dealer.

Caution

This unit is designed for negative ground (earth) 12 V DC•

operation only.

Always install this unit in the car dashboard. Other

•

locations can be dangerous as the rear of the unit heats

up during use.

To avoid short-circuit: before you connect, ensure that

•

the ignition is off.

Ensure that you connect the yellow and red power

•

supply leads after all other leads are connected.

Ensure that all loose leads are insulated with electrical

•

tape.

Ensure that the leads do not get caught under screws

•

orin parts that will move (e.g. seat rail).

Ensure that all ground (earth) leads are run to a common

•

ground (earth) point.

Use only the supplied mounting hardware for a safe and

•

secure installation.

Improper fuses can cause damage or ﬁre.When you

•

need to change the fuse, consult a professional.

Note on the power supply lead (yellow)

When you connect other devices to this•

apparatus, ensure that the rating of the car

circuit is higher than the total fuse value of

all the connected devices.

Notes on speaker connection

Never connect speaker wires to the metal•

body or chassis of the car.

Never connect speaker wires with stripes•

to one another.

Overview of parts

These are the supplied parts needed to

connect and install this unit.

aIn-car audio system

bSleeve

cFront panel

dStandard connector

eTrim plate

fRubber cushion

gDisassembly tools

hScrews (4 pieces)

fgh

EN 9

English

Connection: for cars with ISO

connectors

Caution

Ensure that all loose leads are insulated with electrical•

tape.

1Pull out the ISO connectors from car

dashboard and connect them to the bigger

end of the supplied standard connector.

2Connect the other end of the supplied

standard connector to the unit.

3Connect the antenna and ampliﬁer as

illustrated, if applicable.

Connector Connect to

1 MIC Microphone

2 REAR LINE

OUT R

Rear right

speaker

3 REAR LINE

OUT L

Rear left speaker

4 SUB OUT Subwoofer

5 ANTENNA Antenna

Connection: for cars without ISO

connectors

Caution

Be sure to connect the black ground (earth) lead ﬁrst.•

A1A2 A3 A4 A5 A6 A7 A8

B1B2 B3 B4 B5 B6 B7 B8

abcde

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de coche de Philips

Philips

Philips CarStudio CEM5100 Manual de usuario

Philips

Philips CEM2100 Manual de usuario

Philips

Philips CEM220/93 Manual de usuario

Philips

Philips CED2000 Manual de usuario

Philips

Philips CE152G Manual de usuario

Philips

Philips CE150 Manual de usuario

Philips

Philips CEM3000B Manual de usuario

Philips

Philips CED1900 Manual de usuario

Philips

Philips CE139DR Manual de usuario

Philips

Philips CEM250X/78 Manual de usuario

Philips

Philips CarStudio CEM2101/00 Manual de usuario

Philips

Philips CarStudio CEM1100 Manual de usuario

Philips

Philips CED230/51 Manual de usuario

Philips

Philips CEM1102 Manual de usuario

Philips

Philips Sonicare 400 Series Manual de usuario

Philips

Philips CarStudio CEM3100 Manual de usuario

Philips

Philips CEM220 Manual de usuario

Philips

Philips CarStudio CEM5100 Manual de usuario

Philips

Philips CE151 Manual de usuario

Philips

Philips CarStudio CE233/19 Manual de usuario

Philips

Philips CEM2101G/51 Manual de usuario

Philips

Philips CE120 Manual de usuario

Philips

Philips CED750/55 Manual de usuario

Philips

Philips CEM210 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
