Philips HR2084/90 ROW Manual de usuario

ServiceManual

Philips Consumer Lifestyle

Published by Philips Consumer Lifestyle Printed in the Netherlands © Copyright reserved Subject to modification

Blender

HR2084/90 ROW

11/01

PRODUCT INFORMATION

HR2084/90 = HR2080 + Fruitﬁlter

Features

- Powerful 650 W

- Speed control knob

- Special buttons for instant results

- 1,5 Litre glass jar

- Serrated blades

- Detachable knife unit

- Measuring cup 50 ml

- Suction feet

- Cord storage

Accessories:

- Fruit filter

Safety:

- Attachment safety system

- This product meets the requirements regarding

interference suppression on radio and TV.

- After the product has been repaired, it should function

properly and has to meet the safety requirements as

officially laid down at this moment.

TECHNICAL INFORMATION

- Power : 650 W

- Voltage / frequency : 220 - 240 V / 50 - 60 Hz

: 110 V / 60 Hz

- Jar capacity : 1,5 Litre

- Speed : 0 - 12000 rpm

- Cord length : 120 cm

- Packaging - F-Box

Dimensions (L x W x H) : 330 x 185 x 370 mm

Weight : 5,1 kg

- Length : 190 mm

- Width : 150 mm

- Height : 190 mm (only Power unit)

- Height with Jar + Lid : 395 mm

Materials:

- Housing : ABS plastic

- Jar : Borosilicate Glass

- Knife unit : Stainless steel

- Jar lid : PP + rubber

- Measuring cup : SAN

- Bottom + 2 sides : ABS

- Switch : ABS lacquered

DISASSEMBLY- AND RE-ASSEMBLY ADVISE

- No specific issues.

REPAIR INSTRUCTION

- No specific issues.

OPTIONAL (accessories)

- No specific issues.

HR2084/90 ROW

2-4

PARTS LIST

Pos Service code Description

9965 000 28659

9965 000 28660

4203 035 88780

4203 035 93951

4203 035 88230

4203 035 88240

4203 035 88390

4203 035 88250

4203 035 88260

9965 000 28666

4203 035 90620

4203 035 88790

4203 035 88880

9965 000 28684

9965 000 28686

4203 035 95751

9965 000 28674

4203 035 88830

4203 035 88840

4203 035 88290

4203 035 88300

4203 035 90610

4203 035 93961

4203 035 88890

4203 035 88850

Blender coupling

Motor HV - 220 - 240 V / 50 - 60 Hz

Housing Black IEC 4.0A

Housing IEC 4.0B

Airtunnel IEC 5.0

Switch actuator IEC 5.0

Safety spring IEC 5.0

Safety Switch assy A IEC 5.0

Safety Switch assy B IEC 5.0

Crimp

Speed indication window

PCB HV IEC 5.0

Bottom

Cordset EU

Cordset GB

Cordset CN

Measuring cup

Jar Lid

Glass Jar IEC 5.0

Sealing ring IEC 5.0

Knife unit IEC 5.0

Interface IEC 4.0A

Interface IEC 4.0B

Interface IEC 5.0

Fruitﬁlter Black IEC 5.0

Please use the parts like below IEC explanation:

IEC 4.0A : Production week till 0813

IEC 4.0B : Production week between 0814 - 0906

IEC 5.0 : Production week from week 0907 onwards

= changed

HR2084/90 ROW

3-4

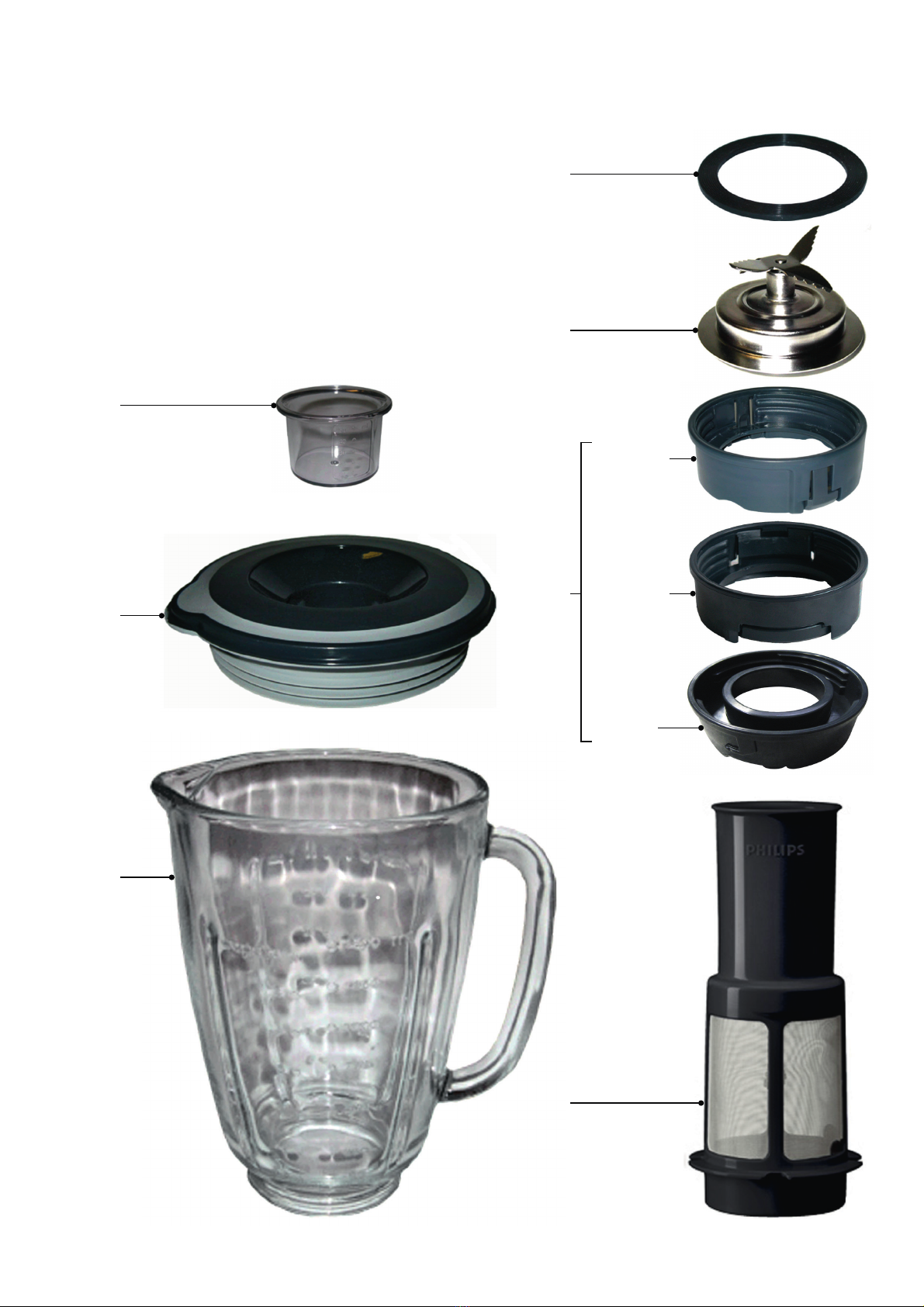

EXPLODED VIEW

(Symbolic photo!)

(Symbolic photo

Colour: Black!)

HR2084/90 ROW

4-4

EXPLODED VIEW

IEC 4.0A

IEC 4.0B

IEC 5.0
