Remote Spray Trainer

Operating Guide

Please read this entire guide before beginning.

Operating and Training Guide

Please read this entire guide before beginning.

2 1-800-732-2677

Thank you for choosing PetSafe®, the best selling brand of electronic training solutions in

the world. Our mission is to be the most trusted brand in the pet ownership experience.

We want to ensure your pet’s safety by providing you with the tools and techniques to

successfully train your pet. If you have any questions, please contact the Customer Care

Center at 1-800-732-2677 or visit our website at www.petsafe.net.

To get the most protection out of your limited warranty, please register your product

within 90 days at www.petsafe.net. By registering, you will enjoy the product’s full

warranty and should you ever need to call the Customer Care Center, we will be able to

help you faster. Additionally, you will not have to save your product receipt as registering

serves as proof of purchase. Most importantly, PetSafe will never give or sell your valuable

information to anyone.

____________________________________________________________________

Table of Contents

Components ...............................................................................................3

How the System Works ................................................................................3

Key Deﬁnitions ...........................................................................................4

Operating Guide

Prepare the Remote Transmitter................................................................5

Prepare the Receiver Collar ......................................................................6

Fit the Receiver Collar..............................................................................8

Find the Best Intensity Level forYour Pet ................................................10

Accessories ............................................................................................10

Training Guide

General Tips...........................................................................................11

Teaching Your Pet the Positive Tone .........................................................11

Using the Negative Tone .........................................................................11

To Train Using Spray Correction............................................................. 11

Teaching Basic Obedience ...................................................................... 12

Frequently Asked Questions ......................................................................17

Troubleshooting ........................................................................................18

To Pair the Remote Transmitter and Receiver Collar...................................18

Caution ....................................................................................................19

FCC .........................................................................................................20

Product Warranty ......................................................................................20

www.petsafe.net 3

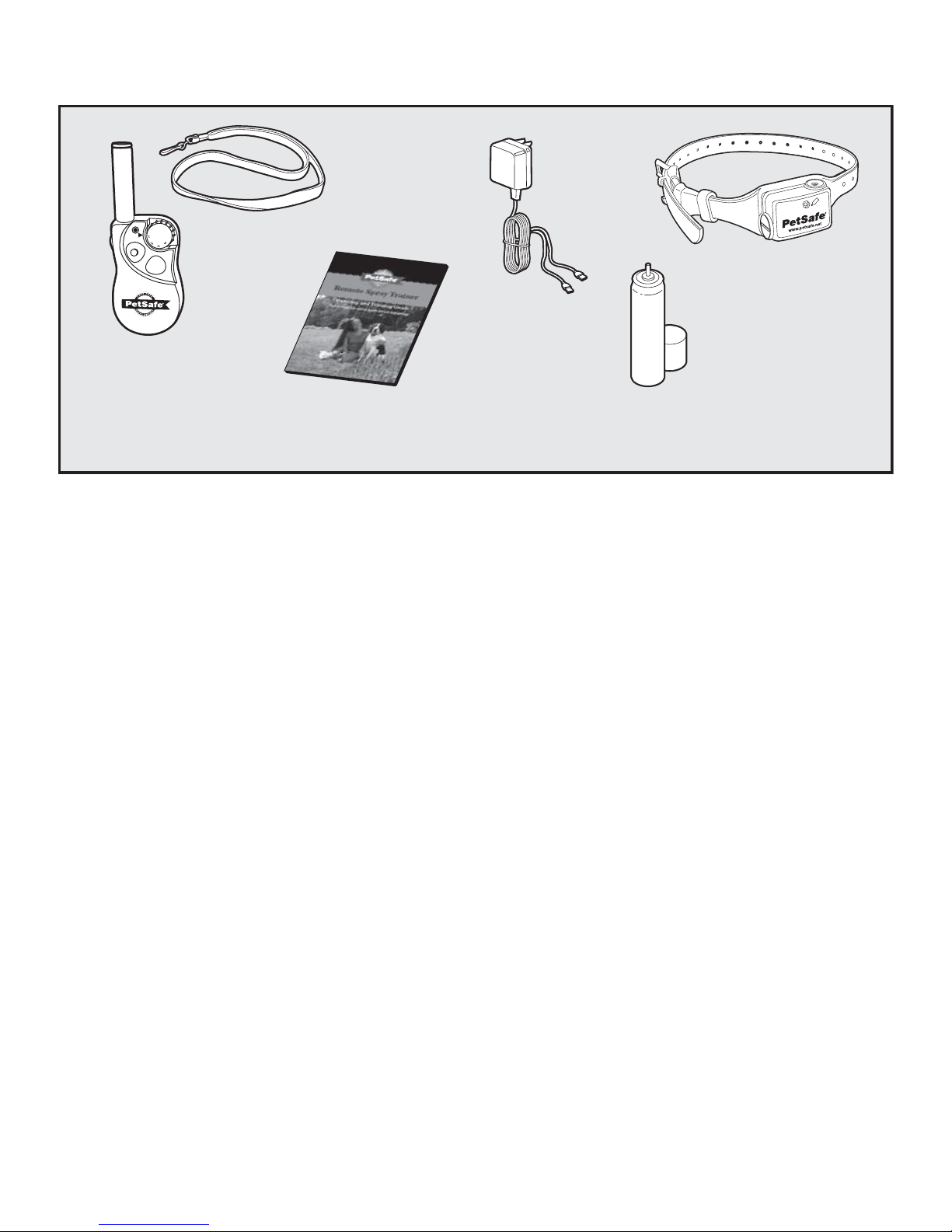

Components

Lemon Spray

(RFA-164)

Lanyard

Charging

Adapter

Remote

Transmitter

Receiver Collar

Operating and

Training Guide

Other Items You May Need

• Scissors

• Non-metallic collar and 10-foot leash for training

How the System Works

The PetSafe®Remote Spray Trainer has been proven safe, comfortable, and effective for pets of any size.

This system assists you in controlling your pet without a leash in a range up to 300 yards. In addition

to having 4 levels of spray, it also incorporates tone to reinforce training. At the push of a button, the

Remote Transmitter sends a signal activating the Receiver Collar to spray. Using the Remote Spray Trainer

consistently and correctly, many misbehaviors that your pet exhibits can be corrected and any basic

obedience commands can be taught.

4 1-800-732-2677

Key Deﬁnitions

Remote Transmitter: Transmits the radio signal to the Receiver Collar. It is waterproof.

Transmitter Indicator Light: Indicates that a button is pressed and also serves as a

low-battery indicator.

Intensity Dial: Provides multiple levels of spray so you can match the correction to

your pet’s temperament.

Upper Button: This button is factory-set to deliver a Negative Tone only.

Lower Button: This button is factory-set to deliver the spray correction set by the Intensity Dial.

Side Button: This button is factory-set to deliver a Positive Tone only.

Universal Charging Adaptor: Used to charge the Receiver Collar and the Remote Transmitter.

Charging Jack: For connecting the charger. Although the Remote Transmitter and Receiver Collar are

waterproof without the charger cover, keep the cover in place when not charging to keep debris out

of the opening.

Continuous Spray: You control when and how much spray is delivered to your dog through the

Receiver Collar. When the spray correction (lower button) is pressed, the spray will be delivered

with 1.5 second intervals. If you continue to press the lower button the spray will time out after

10 seconds. It will remains in timeout until the button is released.

Negative Tone: Use a Negative Tone (Upper Button) with a spray to stop unwanted behaviors.

Timing is critical. The Negative Tone followed by the spray should occur during or immediately

after the unwanted behavior. Once your dog associates the Negative Tone with the spray, you will

only need to use the Negative Tone.

Positive Tone: Use the Positive Tone (Side Button) as a marker to reinforce positive behavior.

Again, timing is critical. Praise or treat the dog immediately following the Positive Tone.

Receiver Collar: Receives the radio signal from the Remote Transmitter. It is waterproof.

Low Spray Indicator: After the yellow LED appears there will be 5-10 additional sprays before

the collar is completely empty.

Two Color LED: Indicates when the Receiver Collar has been turned on or off.This light also

serves as a low battery indicator. Please see page 7 for additional LED functions.

Transmitter

Indicator

Light

Side Button

Upper Button

Transmitter Antenna

Intensity Dial

Lower Button

Charging Jack

(with cover)

Remote Transmitter

Spray Nozzle

Refill Port

Charging

Jack

Two Color LED

Yellow LED

On/Off

Button

Receiver Collar

www.petsafe.net 5

Operating Guide

Prepare the Remote Transmitter

Charge the Remote Transmitter

1. Lift the rubber cover protecting the Remote

Transmitter Charging Jack.

2. Connect the charger connector to the Remote

Transmitter Charging Jack.

3. Plug the charger into a standard wall outlet.

4. Charge the Remote Transmitter for 24 hours for the

first charge. Recharges take only 12 hours.

Note:The Transmitter Indicator Light is solid after 12

hours of charging. For the first charge, continue to charge

the Remote Transmitter for an additional 12 hours.

5. When charging is completed, replace the

rubber cover.

Charger connector placed

in the Remote Transmitter

Charging Jack

Note: Approximate battery life between charges is 40 to 50 hours, depending on frequency of use.

Transmitter Indicator Light - Function and Response

Remote Transmitter Function

Indicator Light Response

Transmitter being charged for up to 12 hours

Flashes

Transmitter being charged for more than 12 hours

Solid in color

Any button being pressed - good battery Solid in color

Any button being pressed - low battery Flashes once per 1/2 second

Any button pressed for tone or spray correction Solid in color

Transmitter Function and Tones

Remote Transmitter Function

Tones

Side button

Good tone

Top button

Negative tone

Lower button Spray Correction set by Intensity Dial

Step

6 1-800-732-2677

Prepare the Receiver Collar

Charge the Receiver Collar

1. Lift the rubber cover protecting the Receiver

Collar Charging Jack.

2. Connect the charger connector to the Receiver

Collar Charging Jack.

3. Plug the charger into a standard wall outlet.

4. Charge the Receiver Collar until the Green Indicator

Light comes on and is solid. Recharges take

only 4-5 hours.

5. When charging is completed replace the rubber cover.

Charger connector

placed in the Collar

Receiver Charging Jack

To turn the Receiver Collar On

1. Press and hold the On/Off button until the Green LED comes on and the Receiver

Collar beeps low to high.

2. Release the On/Off Button. The Green LED will ﬂash once every 5 seconds until the

Receiver Collar is turned off. The ﬂashing light indicates the Receiver Collar is ready

to receive a radio signal from the Remote Transmitter.

3. Once the Receiver Collar has been turned on, press the Upper or Side Button of

the Remote Transmitter. Upon pressing, the Receiver Collar should beep for as

long as the Upper or Side Button is pressed. If it does not, see “To Pair the Remote

Transmitter and the Receiver Collar” in the Troubleshooting section.

Note:To extend the life of the battery, turn the Receiver Collar off when it is not in use.

Turning the Receiver Collar Off

1. Press and hold the On/Off button until the Red LED comes on and the Receiver Collar

beeps high to low.

2. Release the On/Off button.

To extend the life between charging cycles, turn the Receiver Collar off when it is

not in use. Approximate battery life between charges is 40-50 hours, depending

on frequency of use.

Rechargeable Batteries

• The rechargeable Nickel Metal Hydride (NiMH) batteries are not memory sensitive

and do not require depletion before charging.

• The batteries come partially charged from the factory, but will require a full charge (24

hours) before the ﬁrst use.

• Remember - Always keep batteries away from ﬂame.

•

When storing the unit for long periods, remember to regularly give batteries a full

charge (12 hours). This should be done once every 4 to 6 weeks.

• Excessive overcharging can shorten battery life. After initial charge, never leave the

battery plugged in for more than 12 hours.

• If your equipment has not been charged for an extended period, you may experience a

decrease in battery life the ﬁrst few uses. Afterwards, the battery life will return to

previous capacity levels.

Step

www.petsafe.net 7

•You should expect hundreds of recharge cycles from your batteries. However, all rechargeable

batteries lose capacity over time relative to the number of recharge cycles they experience. This

is normal. If your operating time drops to half of the original life, contact the Customer Care

Center to purchase a new battery.

• The batteries should last for a period of 3-5 years.When a battery needs replacement,

you can order a new pack by contacting our Customer Care Center or visit our website at

www.petsafe.net. Please do not open the Receiver Collar or Handheld Transmitter until you

have received the replacement.

Three Color LED – Function and Response

Receiver Function LED Response Receiver Beeper

Response

When the Receiver is turned to the

“ON” position

Green light ﬂashes one time Beeps low to high

Unit is on Green light ﬂashes once every ﬁve seconds None

Spray Activation Red light ﬂashes between corrections when the

button is held down on the transmitter

None

Low Battery Condition Red light ﬂashes three times every ﬁve seconds None

Good Tone Signal being received Green light ﬂashes Good Tone Beep

Negative Tone Signal being received Red light ﬂashes Negative Tone Beep

Low Spray Warning Yellow LED light appears None

8 1-800-732-2677

Fit the Receiver Collar

Important: The proper ﬁt and placement of your Receiver Collar is important

for effective operation.

To assure a proper ﬁt, please follow these steps:

1. Make sure that the Receiver Collar is turned off.

2. Start with your dog standing comfortably.

3. Place the Receiver Collar high on your dog’s neck close to

the ears. Center the Receiver Collar underneath your dog’s

neck, touching the skin. Make sure the PetSafe®logo in the

front of the unit is upright. Note: For long-haired dogs, it may

be necessary to trim the neck hairs along the path of the spray. It

is important that the spray reaches the dog’s snout to be effective.

YES

4. The PetSafe QuickFit™Collar is designed so

you can quickly attach and remove the Receiver

Collar from your dog while maintaining the

desired ﬁt.

a. With the Snap Buckle fastened, thread the

collar through the Metal Buckle.

b. Slide the excess collar through the “C” Loop on top of

the Snap Buckle. This will hold the collar in place.

c. Once the collar ﬁt is determined, simply use the Snap Buckle to

remove and replace the collar.

5. The Receiver Collar should ﬁt snugly, yet loose enough to allow

one ﬁnger to ﬁt under the strap. Allow your dog to wear the collar

for several minutes, then recheck the ﬁt. Check the ﬁt again as

your dog becomes more comfortable with the Receiver Collar.

6. Trim the collar as follows:

a. Mark the desired length of the collar with a pen. Allow for

growth if your dog is young or grows a thick winter coat.

b. Remove the Receiver Collar from your dog and cut off excess.

Important: The Receiver Collar should not be worn for more

than 8 hours out of every 24-hour period

Step

www.petsafe.net 9

Care and Cleaning

For comfort, safety, and effectiveness of this product, please ensure that you check the fit of

your pet’s collar frequently.This Guide describes proper collar fitting. If any skin irritation is

observed, discontinue the use of the collar for a few days. If the condition persists beyond

48 hours, see your veterinarian.

To prevent skin irritation from occurring:

• The Receiver Collar should not be worn for more than 8 hours out of every

24-hour period.

• The spray from the Receiver Collar may stick to the hair under your dogs snout.

Clean your dog’s hair weekly with a washcloth and a mild hand soap. Rinse and dry your

dog’s neck thoroughly.

• If the spray accumulates on the Receiver Collar, wipe the receiver clean with

a damp cloth and dry thoroughly.

Ensure a Proper Spray Pattern

For the PetSafe®Spray Bark Control Collar to perform

properly, the nozzle must be positioned correctly and there

must be a clear path from the Spray Nozzle to your dog’s

snout. Follow these steps:

1. Make sure the PetSafe logo on the front of the unit is upright

and the Spray Nozzle is angled out and pointing up towards

the dog’s snout.

2. For long-haired dogs, it may be necessary to trim the neck

hairs along the path of the spray. It is important that the spray

reaches the dog’s snout to be effective.

To Fill and Reﬁll the Lemon Spray

• Remove the collar from your dog.

• Turn the unit off.

• Hold the Lemon Spray can upright and firmly press the nozzle

down into the Refill Port. Hold for 15 seconds and remove.

Note: If spray leaks out, you may need to press harder to complete

the seal.

• Turn the unit on.

Important: To reset the spray counter, ensure the unit is on.

Press and hold the On/Off Button until the Red and Yellow

LED Lights turn off.

Note: Do not puncture or incinerate the spray collar or the reﬁll canister.

Do not expose to extreme heat or store at temperatures above 120° F.

15 seconds

10 1-800-732-2677

Find the Best Spray Level for Your Pet

The Spray Trainer has four (4) different Spray Levels.This allows you to choose the amount of spray

that is best for your pet. Note: Always start at the lowest level and work your way up.

Once you have placed the Receiver Collar on your pet, it is time to ﬁnd the Spray Level that is

best for your pet.This is called the Recognition Level.

A slight change in your pet’s behavior, such as looking around in curiosity, scratching at his collar,

or ﬂicking his ears, indicates the Recognition Level that is best for him.

Follow the steps below to ﬁnd your pet’s Recognition Level:

1. Press the Upper Button (Negative Tone) for 2 to 3 seconds. If your pet reacts to this, you may

use this button for training, simply substitute the Upper Button (Negative Tone) whenever

Lower Button (Spray) is used in the Training Guide section. If your pet shows no reaction, go to

the next step.

2. Starting at Level 1, press the Lower Button (correction) continuously for 2 to 3 seconds.

3. If your pet shows no reaction, go to the next Spray Level and repeat the process.

4. Repeat each Spray Level several times before moving to the next level.

5.YOUR PET SHOULD NOT VOCALIZE OR PANIC. IF THIS HAPPENS, GO BACK TO

THE PREVIOUS LEVEL AND REPEAT THE PROCESS.

6. If your pet continues to show no response at Level 4, check the ﬁt of the Receiver Collar.

If all of these steps have been done and your pet continues to show no reaction to the spray

correction, contact the Customer Care Center at 1-800-732-2677.

Spray Activation Table Spray Type

1 Short dosage

2 Medium dosage

3 Long dosage

4 Maximum dosage

____________________________________________________________________

Accessories

To purchase additional accessories for your PetSafe®Remote Spray Trainer, contact the Customer Care Center

at 1-800-732-2677 or visit our website at www.petsafe.net to locate a retailer near you.

Component Part Number

Lemon Spray Canister (MSDS sheet available upon request) RFA-164

Snap Buckle RFA-226

Charger 651-005-1

Lanyard RFA-189

Accessory Pack (Receiver and Transmitter Charging Jack Covers with screws) RFA-283

Tabla de contenidos

Otros manuales de Producto para el cuidado de mascotas de Petsafe

Petsafe

Petsafe ssscat PDT17-14118 Manual de usuario

Petsafe

Petsafe Pet Residence 13202 Manual de usuario

Petsafe

Petsafe PPA00-11326 Manual de usuario

Petsafe

Petsafe PDT00-11876 Guía de configuración

Petsafe

Petsafe Stubborn Dog Receiver Collar Manual de usuario

Petsafe

Petsafe ScoopFree PAL19-17124 Manual de usuario

Petsafe

Petsafe ScoopFree Smart Manual de usuario

Petsafe

Petsafe Staywell 200 series Manual de usuario

Petsafe

Petsafe KIT11124 Manual de usuario

Petsafe

Petsafe Stubborn Dog In Ground Fence RF-275-11 Manual de usuario

Petsafe

Petsafe VIBRATION PBC00-12789 Guía de configuración

Petsafe

Petsafe PFD17-15769 Manual de usuario

Petsafe

Petsafe Easy Walk Instrucciones de montaje

Petsafe

Petsafe ProLite Manual de usuario

Petsafe

Petsafe PFD00-15426 Manual de usuario

Petsafe

Petsafe 100m Trainer Guía de configuración

Petsafe

Petsafe Staywell 600 Series Manual de usuario

Petsafe

Petsafe Staywell 300 Series Manual de usuario

Petsafe

Petsafe Staywell 300 Series Manual de usuario

Petsafe

Petsafe In-Ground Fence ZIG00-14654 Manual de usuario

Petsafe

Petsafe PIF-300-2 Guía de configuración

Petsafe

Petsafe ST-900-BD Manual de usuario

Petsafe

Petsafe Extreme Weather Aluminum Pet Door Manual de usuario

Petsafe

Petsafe Ricochet Manual de usuario

Manuales populares de Producto para el cuidado de mascotas de otras marcas

Schwinn

Schwinn Rascal Manual de usuario

K&H

K&H Small Animal Manual de usuario

SHOR-LINE

SHOR-LINE 006.3230.00 Manual de usuario

Datamars

Datamars OMNI MAX Manual de usuario

Trixie

Trixie 24444 Manual de usuario

Roverpet

Roverpet 30DDPP Manual de usuario

SportDOG

SportDOG SD-105S-C Manual de usuario

Staywell

Staywell 400 Series Magnetic Manual de usuario

Dogtek

Dogtek Sonic Birdhouse Manual de usuario

Togfit

Togfit Deluxe Trigger Lock Door Gate Manual de usuario

Girafus

Girafus 227PA Manual de usuario

ubbink

ubbink KoiFeeder Solar Manual de usuario

ULTRACOM

ULTRACOM KOIRA-GPS Manual de usuario

CADOCA

CADOCA Deuba 106911 Manual de usuario

Dogtra

Dogtra RR Deluxe Manual de usuario

Carson

Carson CONVERTIBLE PET YARD 2200 Manual de usuario

Creative Cedar Designs

Creative Cedar Designs K-9 Kabin Manual de usuario

PlexiDor

PlexiDor Electronic Pet Door Manual de usuario
