IDS-306 Switches

Quick Start Guide

____________________________

This guide covers the basic installation and configuration. It is intended for first time

setup or for product evaluation purposes.

Complete details can be found in the following guides at www.perle.com/downloads.

IDS-306 Hardware Installation Guide

IDS Managed Switches User Guide –Pro Feature Set

IDS Managed Switches CLI Guide –Pro Feature Set

What’s in the box?

The IDS switch

Quick Start Guide (this document)

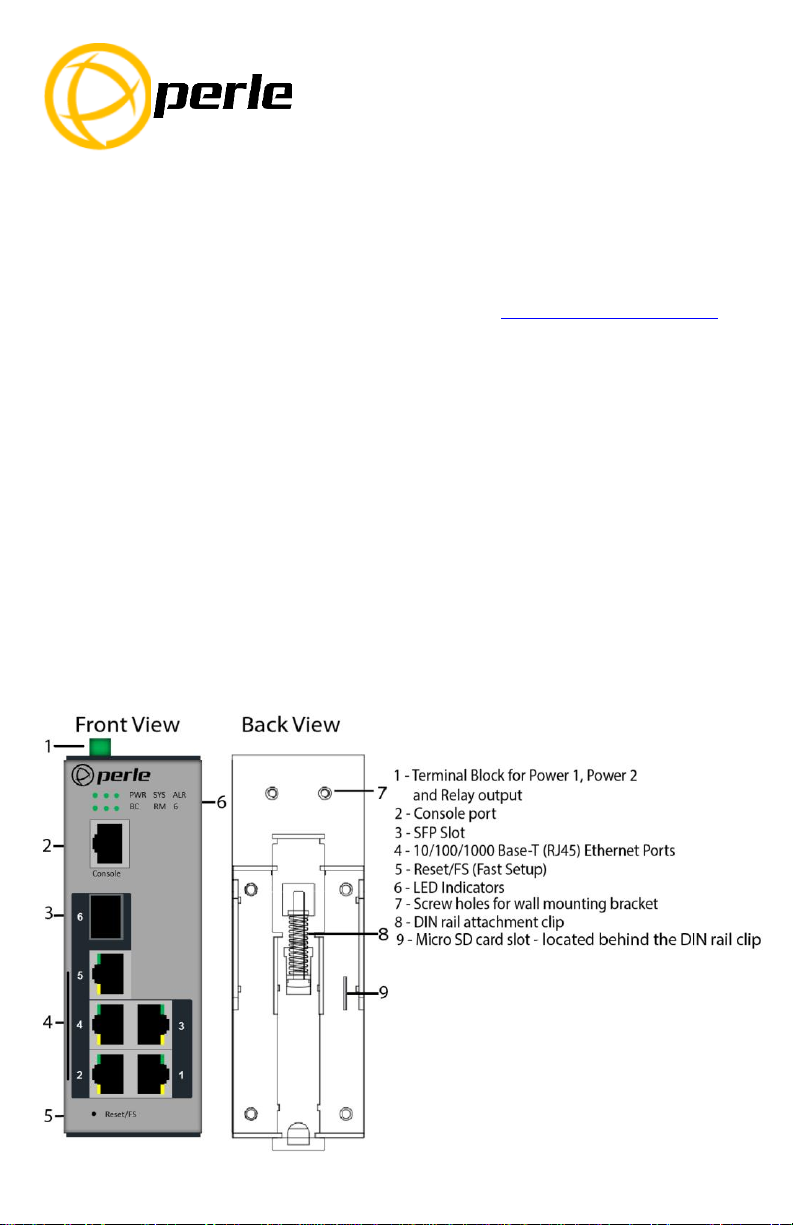

Hardware Overview

IDS-306 Switches Quick Start Guide P/N 5500358-10 (Rev A)

2

Wiring the Terminal Block

Connecting the switch to ground (optional)

If your installation requires additional grounding, refer to the Hardware Installation

Guide for information on connecting ground.

Connecting power to the IDS switch

You may connect both sets of power inputs to provide redundant power.

1. Ensure the power source is off prior to connection.

2. Using a pair of 12-20AWG wires, strip them both 7-8mm (5/16”).

3. Loosen the terminal block screws and connect positive (+) / negative (-) wires in

the +/- terminals.

4. Tighten terminal screws (0.51Nm torque). Ensure the wires are securely fastened.

5. Re-insert the terminal block connector if removed. Turn power on at source.

Check LED indicators for status.

6. Connect P2 (power source 2, beginning at Step 1.

For complete wiring instructions and for all Hazardous Locations and

general safety warnings consult the Hardware Installation Guide.

Inserting a SFP Module

Before connecting fiber cable to the switch, the SFP must be installed, following the

procedure below.

1. Carefully align the SFP with the slot, ensuring the latching mechanisms will

line up. Also ensure the bale on the SFP is closed.

2. Slide the SFP until the connector is seated in the slot and latched. If you are

unable to fully insert the SFP, reverse the orientation and retry.

Connecting a fiber device

Insert the SFP into an SFP slot and connect the LC fiber cable to the SFP.

IDS-306 Switches Quick Start Guide P/N 5500358-10 (Rev A)

3

Connecting Ethernet

Connect network or devices to Ethernet ports (1-5) using Cat5/5e Ethernet cables

LED Indicators

(For detailed information refer to the Hardware Installation Guide)

PWR (Power Inputs)

Green—P1 and P2 Power inputs are within specifications

Orange—P1 or P2 not providing power within specifications

Red—Neither P1 or P2 providing power within specifications

SYS (System status)

Green blinking—System booting

Green solid—System operating normally

Green blinking fast—Fast Setup mode activated

Red—Hardware fault or firmware load error

6 (Port 6 –SFP - Link/Activity status)

Off—Link down

Green flashing—Link and activity

Green blinking slowly—Port in error disable or suspend state.

Ethernet Port Link / Speed (Green and Yellow LEDs)

1000 Mbps Green on, Yellow off

100 Mbps Green on, Yellow on

10 Mbps Green off, Yellow on

Note: Flashing indicates activity

Note: Alr (Alarm), BC (Backup Coupling), RM (Ring Master) see

Hardware Installation Guide

IDS-306 Switches Quick Start Guide P/N 5500358-10 (Rev A)

4

Fast Setup

Fast Setup provides a simple method of doing an initial setup from a PC. It only

requires a PC Ethernet connection and a web browser. Other methods to configure the

IDS Switch can be found in the IDS Switch User’s guide.

1. Your PC must be set to obtain an IP address automatically using DHCP (See

Control Panel ->Network and Sharing Center -> Change adapter settings ->Local

Area Connection Properties ->Internet Protocol Version (TCP/IPv4) ->Properties

->Select Obtain an IP address automatically.

2. Press and hold the reset button(5 )on the switch for 4 seconds and then release it.

Since the reset button is recessed in the switch, a small tool such as a paper clip

will be required. The yellow and green LEDs on an empty RJ-45 connectors will

flash rapidly to indicate where to plug in the Ethernet cable from your PC.

3. Using a web browser, enter to a well known webpage such as www.google.com,

you will be automatically directed to the IDS Get Started screen.

Note: While in Fast setup mode the IDS switch will use an IP address of 169.254.0.1. If step 3 fails to

direct the browser properly, then enter the switch’s IP address into the browser’s address bar.

4. Fill in the required fields, apply changes to save and exit. The configuration

changes will be immediately applied to the switch.

5. The PC can now be reset to its normal network address and the switch can now

be accessed using the conventional IP addressing.

©2016 Perle Systems Limited. All rights reserved.
