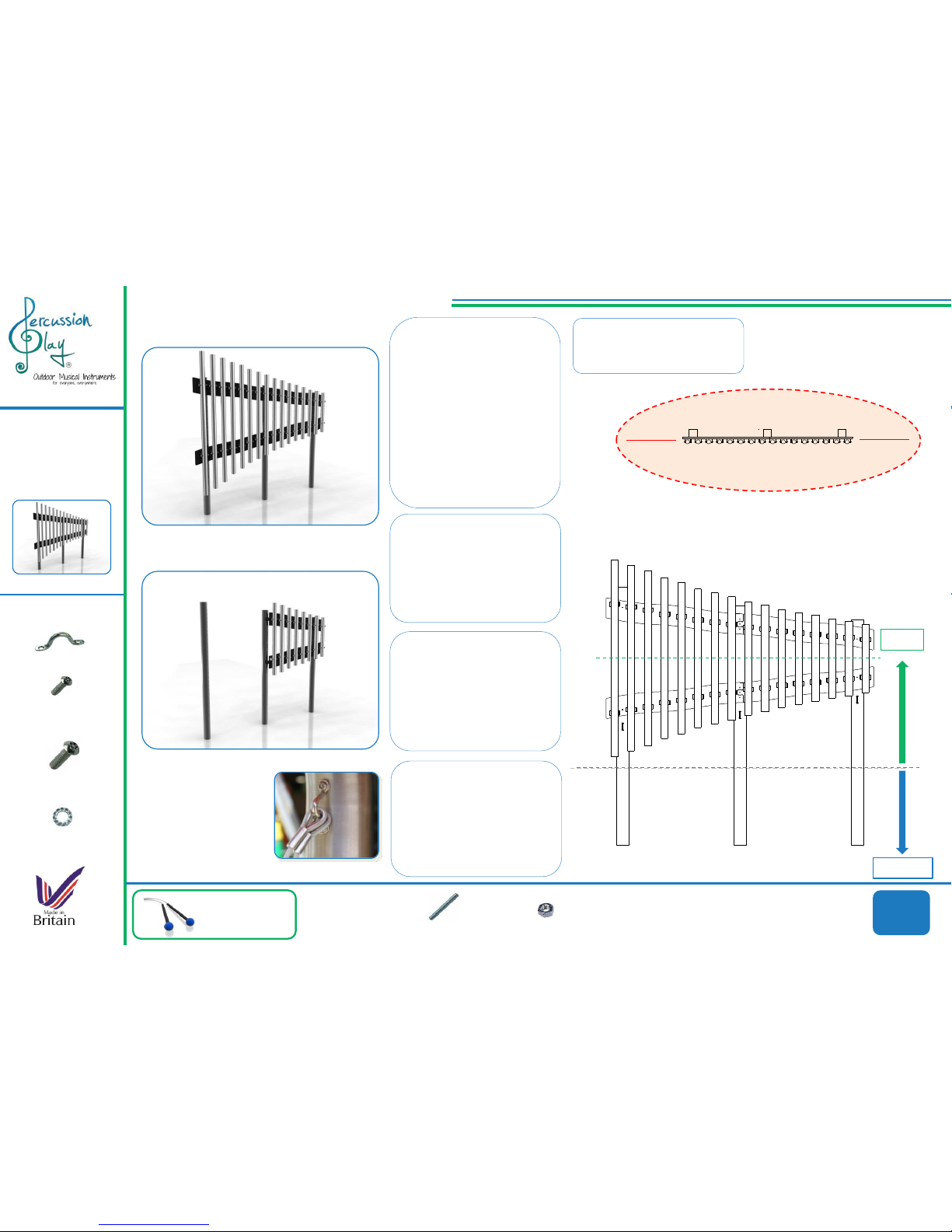

Percussion Play OPC300 Manual de usuario

Ground Fixed

Components:

1. Carefully lay 3 x legs on a

level surface and check

distance between each leg is

equal. Join together the 2

parts of the symphony. Line up

pre drilled holes in the

backboards with the legs and

ensure the instrument is

aligned square with the legs.

Fix in place using M8x40mm

screws supplied (see

installation guide)

2.(See ground fix

sheet)Excavate 3 holes on site

of installation approximately

600mm deep ( adjust depth

according to age range for

intended players)

3. Carefully raise the

instrument from the ground

with legs attached and locate

(lower) legs into holes making

sure they are vertical and level

prior to concreting in place.

Installation Instructions

4. Once happy with location

and levels, fill holes using

rapid hardening concrete. Be

sure to compact concrete

around legs and leave to dry

according to manufactures

guidelines

5. Beaters can be fixed to

Stainless Steel posts with

fixings provided

KS2

KS2 –850mm

Ground Surface

Spares available form

percussionplay.co.uk or from your

local distributor

Pair Small

Beaters X3 25 Kg

BS EN 1176

1.5m

Weight of heaviest part 12kg (Freechimes Left Panel)

1.5m

600mm

Install Instrument

with 1.5m free space

(from widest point)

around it.

Freechimes

Symphony

Page 1 of 4

M6x20mm

Secure Screw

Eye Straps

M8x40mm

Secure Screw

X10

M8 Lock Washer

X10

M10x200 Threaded Bar

M10 Nut

x12

Ground Fix

Components:

Ground Fixed

Assembly Guide PPFREC

25 Kg

Spares available form

percussionplay.co.uk or from your

local distributor

BS EN 1176

Pair Small

Beaters X3

Freechimes

Symphony

Page 2 of 4

COMPONENTS LIST:

Saddle Strap X3

M8 Lock washer X10

M8x40 Pin torx X10

M10 Nut X12

M10x200 Threaded Bar X6

M6x20 Pin torx X6

TX 40 Driver Bit

TX 30 Driver Bit

Tools:

Components:

M6x20mm

Secure Screw

Eye Straps

M8x40mm

Secure Screw

X10

M8 Lock Washer

X10

Ground Fix Installation

(1.1)

Ground Fixed

BS EN 1176

Freechimes

Symphony

Page 3 of 4

M10 BZP Nut

M10x200mm

BZP Bar

Components:

Carefully lay 3 x legs on a level surface. Line up pre drilled holes in the backboards with

the legs and ensure the instrument is aligned square with the legs. Fix in place using

M8x40mm screws supplied

Excavate 3 holes with a 250mm dia meter tapering down to 350mm diameter and 650mm depth

Compact base of hole with 50mm of aggregate. Lower ground Fix posts attached to instrument into

hole (check instrument straight and level, and at correct height before filling with concrete)

50 600

Fill holes with fast drying concrete to manufacturers specifications. If posts protrude above

instrument they can be cut down

Ground Fix Installation

(1.1)

Ground Fixed

BS EN 1176

Freechimes

Symphony

Page 4 of 4

Foundations should not present a hazard. These foundations are

recommended as a guide, for more information on foundation

details for various surface see Part 7 of BS EN 1176.

M10 BZP Nut

M10x200mm

BZP Bar

Components:

Carefully lay 3 x legs on a level surface. Line up pre drilled holes in the backboards with

the legs and ensure the instrument is aligned square with the legs. Fix in place using

M8x40mm screws supplied

Excavate 3 holes with a 250mm dia meter tapering down to 350mm diameter and 650mm depth

Compact base of hole with 50mm of aggregate. Lower ground Fix posts attached to instrument into

hole (check instrument straight and level, and at correct height before filling with concrete)

50 600

Fill holes with fast drying concrete to manufacturers specifications. If posts protrude above

instrument they can be cut down
