Percussion Play Babel Drum Manual de servicio

Install Instrument

with 1.5m free space

(from widest point)

around it.

1.5m

Ground Fixed

Babel Drum

Page 1 of 3

Instrument

Components:

Babel Drums

are pre-

assembled

M10x200 Threaded bar

M10 BZP Nut

1. Using M10 nuts and

150mm bolts supplied locate

through pre drilled holes and

secure bolts in place to

support in ground pole in

concrete. 3 bolts per leg at

120 degree angles. ( See

Assembly Guide)

2.Excavate a hole for the

drum 200mm diameter by

KS2-400/KS1-570mm deep in

desired location upon decision

from customer.

3. Locate (lower) legs into hole

making sure they are vertical

and level prior to concreting in

place.Drum should be

700,870 from ground surface

to top of drum ( depending on

Key Stage).

4. Once happy with location of

the Drum, fill hole using rapid

hardening concrete. Be sure to

compact concrete around legs

and leave to dry according to

manufactures guidelines.

KS2 400mm

Ground Surface

KS1 –700mm

KS2 –870mm

Adult- 1070mm Adult

Installation Instructions

Large 8 note

Small 6 note

Played with hands

22 Kg

13.4 Kg

KS2

Adult 400mm

KS2 600mm

KS1 770mm

KS2 570mm

Ground Fix

Components:

Weight of heaviest part 17.5kg (Large Babel Drum)

Weight of heaviest part 13.4kg (Small Babel Drum)

BS EN 1176

Metric Conversion:

200mm/ 8”

400mm/ 16”

570mm/ 22”

600mm/ 24”

700mm/ 28”

770mm/ 30”

870mm/ 34”

1070mm/ 42”

1.5m/ 59”

CAUTION: Drum

surface can get hot

in direct sunlight, if

possible install in

shaded areas.

Spares available form

percussionplay.com or from your

local distributor

Ground Fixed

Babel Drum

Page 2 of 3

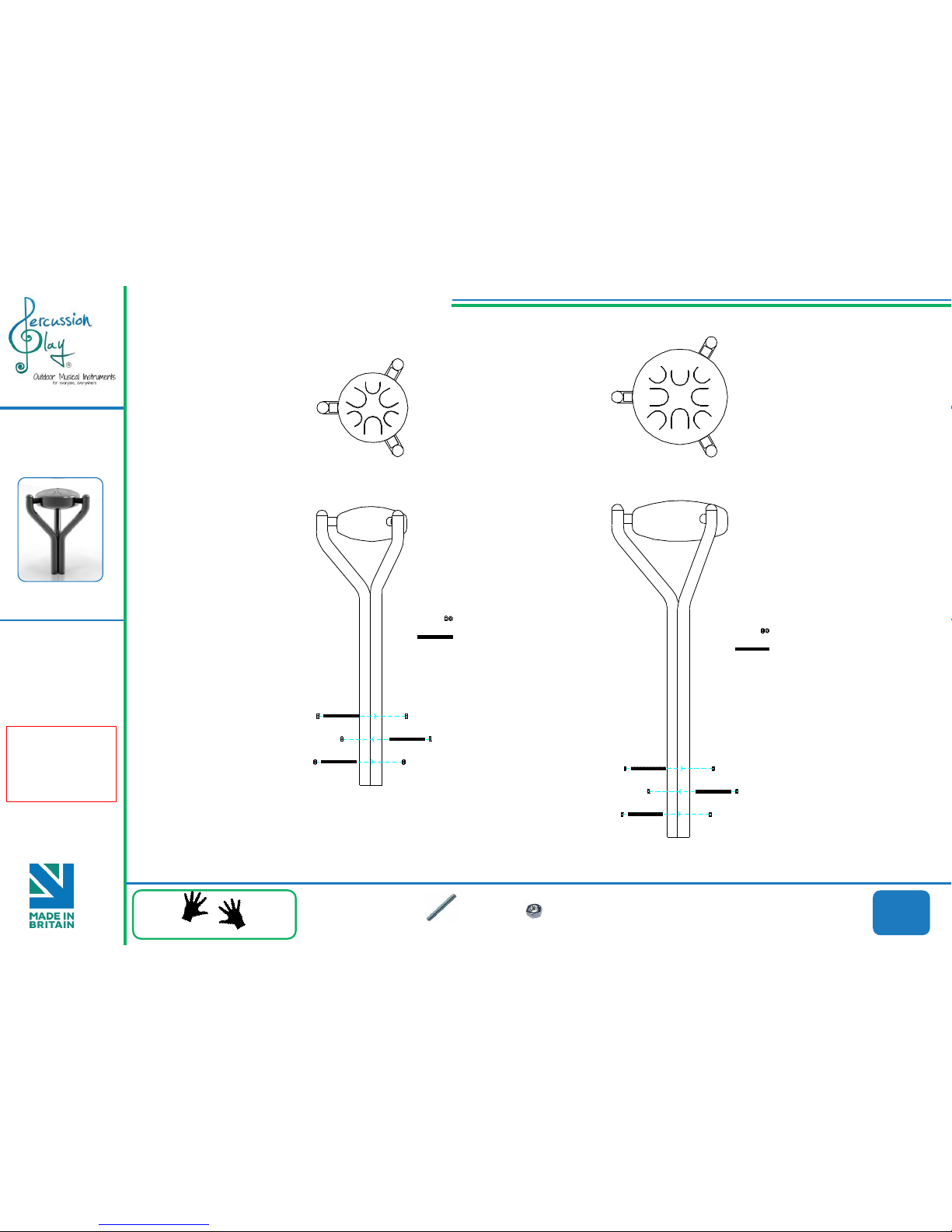

Assembly Guide PPBDL-S

Played with hands

Instrument

Components:

Babel Drums

are pre-

assembled

M10x200 Threaded bar

M10 BZP Nut

Ground Fix

Components:

22 Kg

13.4 Kg

BS EN 1176

CAUTION: Drum

surface can get hot

in direct sunlight, if

possible install in

shaded areas.

Spares available form

percussionplay.com or from your

local distributor

M10 Nut X6

M10x200 Threaded Bar X3

COMPONENTS LIST:

M10 Nut X6

M10x200 Threaded Bar X3

COMPONENTS LIST:

PPBDL FRONTPPBDS FRONT

PPBDL PLAN

PPBDS PLAN

M10 Nut X6

M10x200 Threaded Bar X3

COMPONENTS LIST:

M10 Nut X6

M10x200 Threaded Bar X3

COMPONENTS LIST:

PPBDL FRONTPPBDS FRONT

PPBDL PLAN

PPBDS PLAN

250

450

350

Insert M10x 150 Threaded

bar into pre drilled holes

in Frame of Babel Drum

using M10 BZP Nuts

Excavate a holes with a

250mm diameter tapering

down to 350mm diameter

and 450mm depth

Compact base of hole with

50mm of aggregate.

Lower ground Fix post

attached to instrument

into hole (check

instrument straight and

level before filling with

concrete)

Fill hole with fast drying

concrete to manufacturers

specifications.

40050

If Drum needs to

be positioned

lower a deeper

hole can be

excavated.

Ground Fixed

Ground Fix Installation

(1.1)

1 2

Babel Drum

Page 3 of 3

M10x200 Threaded Bar

M10 BZP Nut

Components:

BS EN 1176

Foundations should not present a hazard. These foundations are recommended as a guide,

for more information on foundation details for various surface see Part 7 of BS EN 1176.

Metric Conversion:

50mm/ 2”

250mm/ 10”

350mm/ 14”

400mm/ 16”

450mm/ 18”
