Pepwave AP One Manual de usuario
COPYRIGHT &TRADEMARKS
Specifications are subject to change without notice. Copyright © 2015 Pepwave Ltd. All Rights Reserved. Pepwave and the
Pepwave logo are trademarks of Pepwave Ltd. Other brands or products mentioned may be trademarks or registered trademarks of
their respective owners.
AP One AC mini
January 2015
User Manual
http://www.pepwave.com
2
Copyright © 2015 Pepwave
Table of Contents
1Introduction and Scope.......................................................................................................... 4
2Product Features and Benefits ............................................................................................ 5
3Package Contents..................................................................................................................... 6
3.1 AP One AC mini .................................................................................................................... 6
4Hardware Overview ............................................................................................................... 7
4.1 AP One AC mini .................................................................................................................... 7
5Installation ................................................................................................................................ 8
5.1 Installation Procedures..................................................................................................... 9
6Using the Dashboard ............................................................................................................10
6.1 General.................................................................................................................................10
6.2 AP...........................................................................................................................................12
7Configuration..........................................................................................................................14
7.1 System ..................................................................................................................................14
7.1.1 Admin Security ..............................................................................................................14
7.1.2 Firmware.........................................................................................................................16
7.1.3 Time..................................................................................................................................16
7.1.4 Event Log .........................................................................................................................17
7.1.5 SNMP.................................................................................................................................18
7.1.6 Controller ........................................................................................................................20
7.1.7 Configuration .................................................................................................................21
7.1.8 Reboot ..............................................................................................................................22
7.2 AP...........................................................................................................................................22
7.2.1 Wireless SSID..................................................................................................................22
7.2.2 Settings.............................................................................................................................32
7.2.3 WDS...................................................................................................................................35
7.3 Network ...............................................................................................................................36
7.3.1 WAN ..................................................................................................................................36
7.3.2 LAN....................................................................................................................................38
7.3.3 PepVPN.............................................................................................................................41
8Tools..........................................................................................................................................44
8.1 Ping .......................................................................................................................................44
User Manual
http://www.pepwave.com
3
Copyright © 2015 Pepwave
8.2 Traceroute...........................................................................................................................44
8.3 Nslookup..............................................................................................................................45
9Monitoring Device Status ....................................................................................................46
9.1 Device ...................................................................................................................................46
9.2 Client List.............................................................................................................................46
9.3 WDS Info ..............................................................................................................................47
9.4 Portal ....................................................................................................................................47
9.5 Rogue AP..............................................................................................................................48
9.6 Event Log .............................................................................................................................48
10 Restoring Factory Defaults .............................................................................................49
10.1 AP One AC mini ..............................................................................................................49
11 Appendix..............................................................................................................................50
User Manual
http://www.pepwave.com
4
Copyright © 2015 Pepwave
1 Introduction and Scope
Our AP Series of enterprise-grade 802.11b/g/n Wi-Fi access points is engineered to
provide fast, dependable, and flexible operation in a variety of environments, all
controlled by an easy-to-use centralized management system. From the small but
powerful AP One AC mini to the top-of-the-line AP One 300M our AP Series offers
wireless networking solutions to suit any business need, and every access point is
loaded with essential features such as multiple SSIDs, VLAN, WDS, and Guest Protect.
A single access point provides as many as 32 virtual access points (16 on single-radio
models), each with its own security policy (WPA, WPA2, etc.) and authentication
mechanism (802.1x, open, captive portal, etc.), allowing faster, easier, and more cost-
effective network builds. Each member of the AP Series family also features a high-
powered Wi-Fi transmitter that greatly enhances coverage and performance while
reducing equipment costs and maintenance.
User Manual
http://www.pepwave.com
5
Copyright © 2015 Pepwave
2 Product Features and Benefits
Key features and benefits of AP Series access points:
High-powered Wi-Fi transmitter enhances coverage and lowers cost of
ownership.
Independent security policies and encryption mechanisms for each virtual access
point allow fast, flexible, cost-effective network builds.
Centralized management via InControl reduces maintenance expense and time.
WDS support allows secure and fast network expansion.
Guest Protect support guards sensitive business data and subnetworks.
WMM (Wi-Fi Multimedia) and QoS (Quality of Service) support keeps video and
other bandwidth-intensive data flowing fast and lag-free.
User Manual
http://www.pepwave.com
6
Copyright © 2015 Pepwave
3 Package Contents
3.1 AP One AC mini
1 x AP One AC mini
1 x Power supply
1 x Instruction sheet
1 x Wall mount
User Manual
http://www.pepwave.com
7
Copyright © 2015 Pepwave
4Hardware Overview
4.1 AP One AC mini
Front View Rear Panel View
LED Indicators
Status
RED –Access point initializing
GREEN –Access point ready
Wi-Fi
OFF –2.4/5GHz Wi-Fi radio off
BLINKING –AP sending/receiving data
GREEN –2.4/5GHz Wi-Fi radio on
Note that this model includes a 2.4GHz Wi-Fi radio and a 5GHz Wi-Fi radio that can
operate simultaneously to increase speed and reduce interference.
User Manual
http://www.pepwave.com
8
Copyright © 2015 Pepwave
5 Installation
Your access point acts as a bridge between wireless and wired Ethernet interfaces. A
typical setup follows:
User Manual
http://www.pepwave.com
9
Copyright © 2015 Pepwave
5.1 Installation Procedures
1. Connect the Ethernet port on the unit to the backbone network using an
Ethernet cable. The port should auto sense whether the cable is straight-
through or crossover.
2. Connect the power adapter to the power connector of the unit. Plug the power
adapter into a power source.
3. Wait for the status LED to turn green.
4. Connect a PC to the backbone network. Configure the IP address of the PC
to be any IP address between 192.168.0.4 and 192.168.0.254, with a subnet
mask of 255.255.255.0.
5. Using Microsoft Internet Explorer 6 or above, Mozilla Firefox 2.0 or above, or
Google Chrome 2.0 or above, connect to https://192.168.0.3.
6. Enter the default admin login ID and password, admin and public
respectively.
7. After logging in, the Dashboard appears. Click the System tab to begin
setting up your access point.
User Manual
http://www.pepwave.com
10
Copyright © 2015 Pepwave

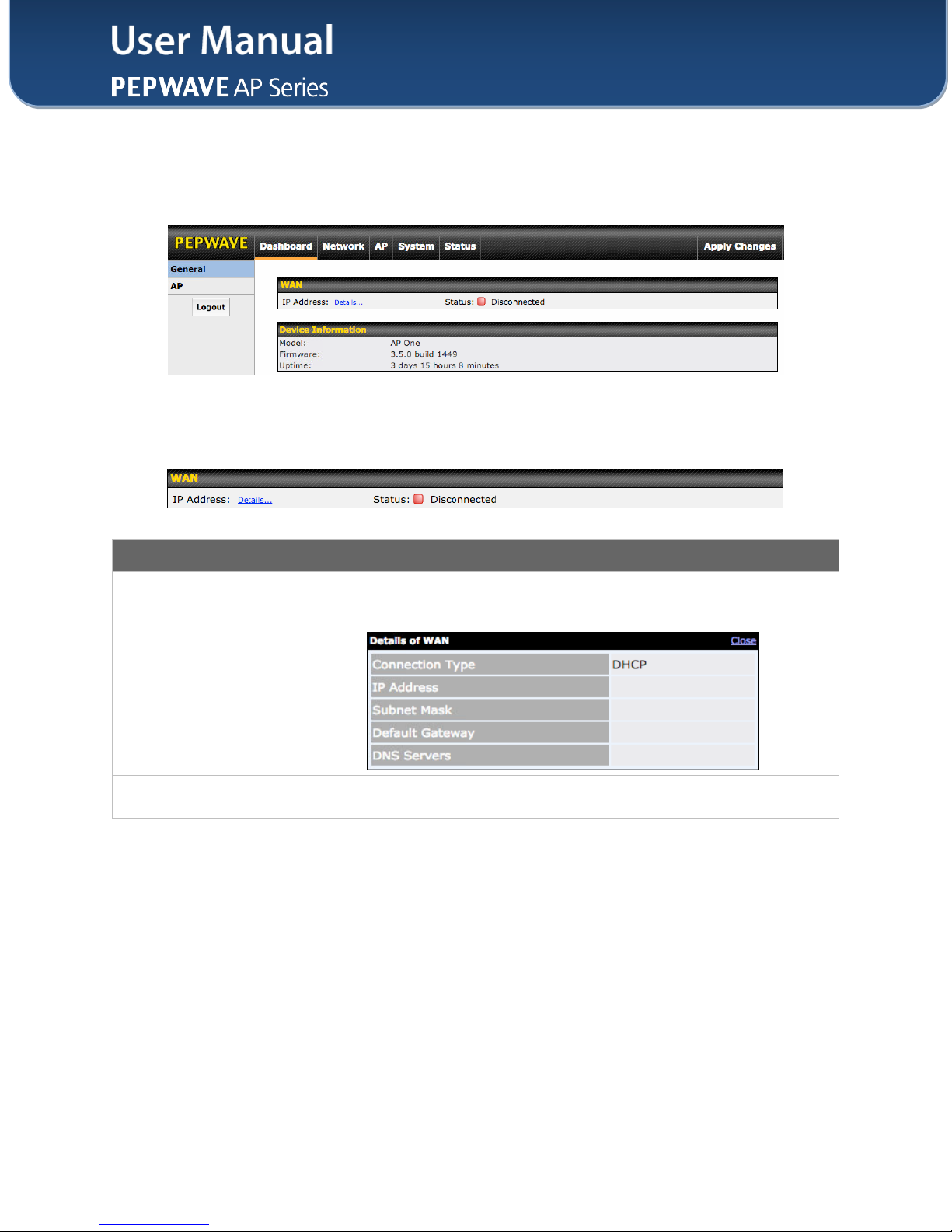

6 Using the Dashboard
The Dashboard section contains a number of displays to keep you up-to-date on your
access point’s status and operation.
6.1 General
This section contains WAN status and general device information.
WAN
IP Address
When your access point is connected to a WAN, this field displays the WAN IP
address. For more information, click the Details… link, which displays the following:
Status
This field displays the current WAN connection status.
