Pepperl+Fuchs HiC2832R1 Manual de usuario

Switch Amplifier

HiC2832R1

<2-channel isolated barrier

<24 V DC supply (bus powered)

<Dry contact or NAMUR inputs

<Application-specific outputs

<2 passive transistor outputs (resistive)

<Line fault detection (LFD)

<Line fault transparency (LFT)

<Reversible mode of operation

<Up to SIL 2 (SC 3) acc. to IEC/EN 61508

Function

This isolated barrier is used for intrinsic safety applications.

The device transfers digital signals (NAMUR sensors/mechanical contacts) from the explosion-hazardous area to the non-explosion-

hazardous area.

Each input controls a passive transistor output with a resistive output characteristic.

The outputs have three defined states: 1-signal = 6.5 V voltage drop, 0-signal = 33 kΩ and 6.5 V voltage drop and fault > 100 kΩ.

This output characteristic offers line fault transparency on the signal lines.

Via switches the mode of operation can be reversed and the line fault detection can be switched off.

During a fault state, the passive transistor outputs switch to their fault state and LEDs indicate the fault according to NAMUR NE 44. A separate

fault bus is available. This fault bus can be monitored if the termination board supports a module fault detection.

This device mounts on a HiC termination board.

Application

This device is compatible to the control:

lYokogawa ProSafe DI card SDV144

Compatibility check to other ESD/DCS systems on request.

Connection

Zone 0, 1, 2

HiC2832R1

Zone 2

Termination Board

10a

24VDC

Fault

1a, 1b

2a, 2b

SL2

SL1

10 kΩ

1.5 kΩ

10 kΩ

1.5 kΩ

Technical Data

General specifications

Signal type Digital Input

Functional safety related parameters

Safety Integrity Level (SIL) SIL 2

Release

date:

2023-06--

05 Date of

Release date: 2023-06-05 Date of issue: 2023-06-05 Filename: 230983_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com [email protected] [email protected]

[email protected].com

Technical Data

Systematic capability (SC) SC 3

Supply

Connection SL1: 1a(-), 1b(-); 2a(+), 2b(+)

Rated voltage Ur19 ... 30 V DC bus powered via Termination Board

Ripple ≤ 10 %

Rated current Ir≤ 30 mA

Power dissipation ≤ 600 mW

Power consumption ≤ 700 mW

Input

Connection side field side

Connection SL2: 5a(+), 5b(-); 1a(+), 1b(-)

Rated values acc. to EN 60947-5-6 (NAMUR), see manual for electrical data

Open circuit voltage/short-circuit current approx. 10 V DC / approx. 8 mA

Switching point/switching hysteresis 1.2 ... 2.1 mA / approx. 0.2 mA

Line fault detection breakage I ≤ 0.1 mA , short-circuit I ≥ 6.5 mA

Pulse/Pause ratio min. 100 µs / min. 100 µs

Output

Connection side control side

Connection SL1: 8a(+), 7a(-); 10a(+), 9a(-)

Rated voltage Ur19 ... 30 V DC with external resistance > 2 kΩ, e. g. 16-channel ProSafe DI card

SDV144 from Yokogawa

Response time ≤ 200 µs

Output I, II signal or fault message, passive transistor output (resistive)

0-signal: 33 kΩ ± 5 % + voltage drop 6.5 V ± 0.5 V

1-signal: voltage drop 6.5 V ± 0.5 V

fault: > 100 kΩ

Fault indication output

Connection SL1: 6b

Output type open collector transistor (internal fault bus)

Transfer characteristics

Switching frequency ≤ 5 kHz

Galvanic isolation

Output/power supply basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff

Output/Output basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff

Indicators/settings

Display elements LEDs

Control elements DIP switch

Configuration via DIP switches

Labeling space for labeling at the front

Directive conformity

Electromagnetic compatibility

Directive 2014/30/EU EN 61326-1:2013 (industrial locations)

Conformity

Electromagnetic compatibility EN IEC 61326-3-2:2018 , NE 21:2017

For further information see system description.

Degree of protection IEC 60529:2001

Protection against electrical shock IEC 61010-1

Ambient conditions

Ambient temperature -40 ... 70 °C (-40 ... 158 °F)

Mechanical specifications

Degree of protection IP20

Mass approx. 100 g

Dimensions 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D)

Mounting on termination board

Switch Amplifier HiC2832R1

Release date: 2023-06-05 Date of issue: 2023-06-05 Filename: 230983_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com [email protected] [email protected]

[email protected].com

Technical Data

Coding pin 1 and 2 trimmed

For further information see system description.

Data for application in connection with hazardous areas

EU-type examination certificate BVS 11 ATEX E 026

Marking 1 II (1)G [Ex ia Ga] IIC

1 II (1)D [Ex ia Da] IIIC

1 I (M1) [Ex ia Ma] I

Input Ex ia

Voltage Uo10.5 V

Current Io17.1 mA

Power Po45 mW (linear characteristic)

Supply

Maximum safe voltage Um253 V AC (Attention! Um is no rated voltage.)

Output

Maximum safe voltage Um253 V AC (Attention! Um is no rated voltage.)

Certificate KIWA 15 ATEX 0037 X

Marking 1 II 3G Ex ec IIC T4 Gc

Galvanic isolation

Input/Output safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V

Input/power supply safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V

Directive conformity

Directive 2014/34/EU EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018 ,

EN 50303:2000

International approvals

FM approval

Control drawing 116-0430 (cFMus)

UL approval E106378

Control drawing 116-0331

IECEx approval

IECEx certificate IECEx BVS 11.0040

IECEx KIWA 15.0019X

IECEx marking [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I , Ex ec IIC T4 Gc

General information

Supplementary information Observe the certificates, declarations of conformity, instruction manuals, and manuals

where applicable. For information see www.pepperl-fuchs.com.

Switch Amplifier HiC2832R1

Release date: 2023-06-05 Date of issue: 2023-06-05 Filename: 230983_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com [email protected] [email protected]

[email protected].com

Assembly

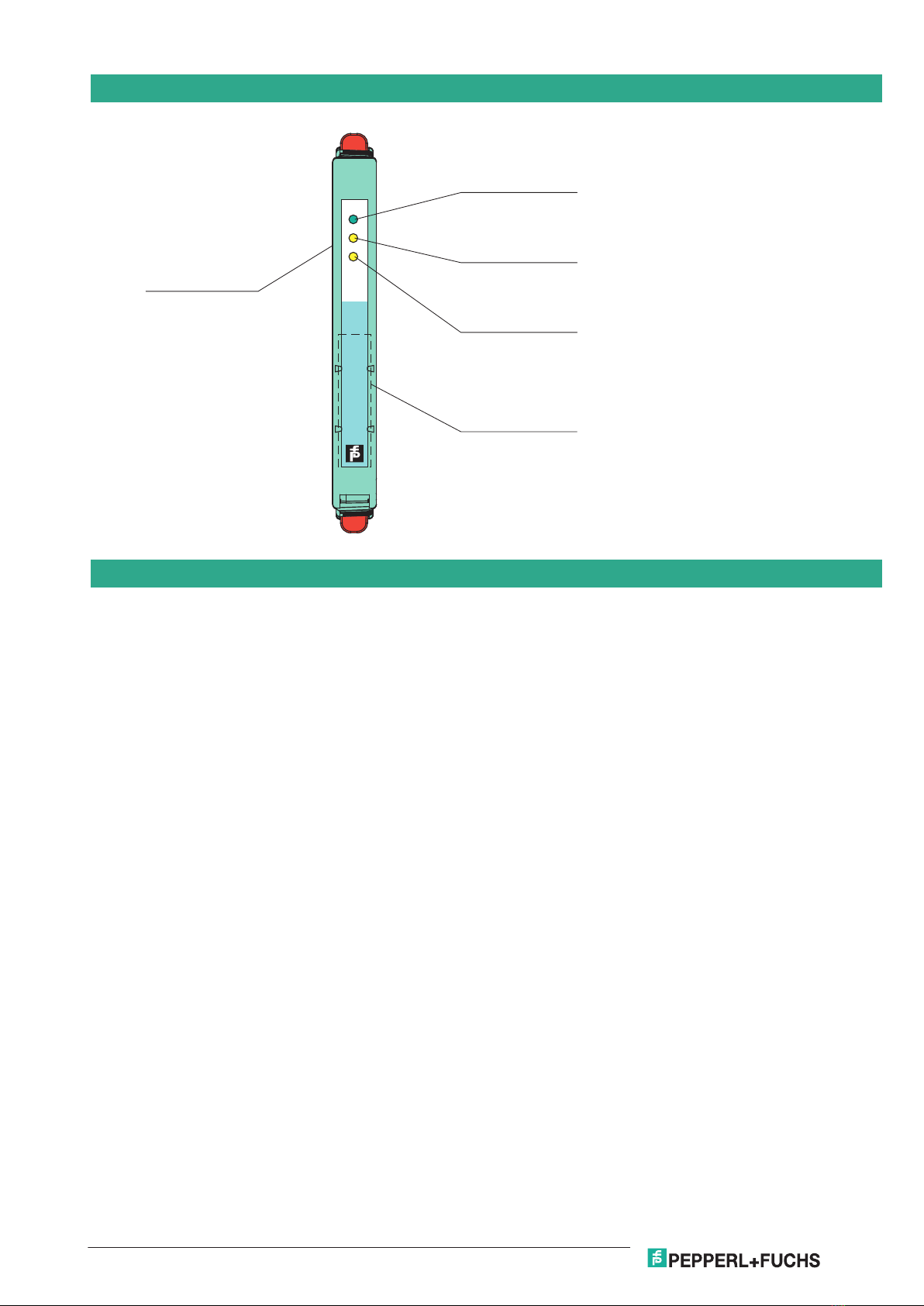

PWR

HiC

2832

2 ch

Digital

Input

CH1

CH2

STATUS/

FAULT

LED green:

Power supply

Front view

LED yellow/red:

Status output 1/

Fault at input 1

LED yellow/red:

Status output 2/

Fault at input 2

Place for labeling

Switch 1 ... 4

Configuration

Configure the device in the following way:

lPush the red Quick Lok Bars on each side of the device in the upper position.

lRemove the device from termination board.

lSet the switches according to the figure in the Configuration section.

Note

The pins for this device are trimmed to polarize it according to its safety parameters. Do not change the setting. For further information

see system description.

Switch Amplifier HiC2832R1

Release date: 2023-06-05 Date of issue: 2023-06-05 Filename: 230983_eng.pdf

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com [email protected] [email protected]

[email protected].com

Release date: 2023-06-05 Date of issue: 2023-06-05 Filename: 230983_eng.pdf

HiC2832R1

Germany: +49 621 776 2222Pepperl+Fuchs Group

Refer to "General Notes Relating to Pepperl+Fuchs Product Information".

USA: +1 330 486 0002 Singapore: +65 6779 9091

www.pepperl-fuchs.com [email protected] [email protected].com

[email protected].com

Switch Amplifier

Switch settings

Switch points

Configuration

S Channel Function Position

1I Mode of operation Inverted I

Normal II

2I Input line fault detection ON I

OFF II

3II Mode of operation Inverted I

Normal II

4II Input line fault detection ON I

OFF II

Characteristic Curve

Refer to the Instruction

Manual to install and

operate the unit

CAUTION

Inverted

Input to output operation

Function

CH1

Switch settings

Input fault detection

Fault enable

Fault disable

Normal

CH2

S1 S4

10 kΩ

1.5 kΩ

10 kΩ

1.5 kΩ

Input

Outputs

(24 V, 4 k)

Normal operation,

Fault detection enabled

Status/fault LED

~ Usupply

-6.5 V

~ 0.45 mA

< 0.1 mA

0 V

~ 9.6 V

LB Off On

~ 8 mA

> 6.5 mA

> 2.1 mA

< 1.2 mA< 0.1 mA
