peplink PEPWAVE HD2 Dome Instrucciones de funcionamiento
Installation recommendation
©Peplink. All rights reserved.
HD2 Dome

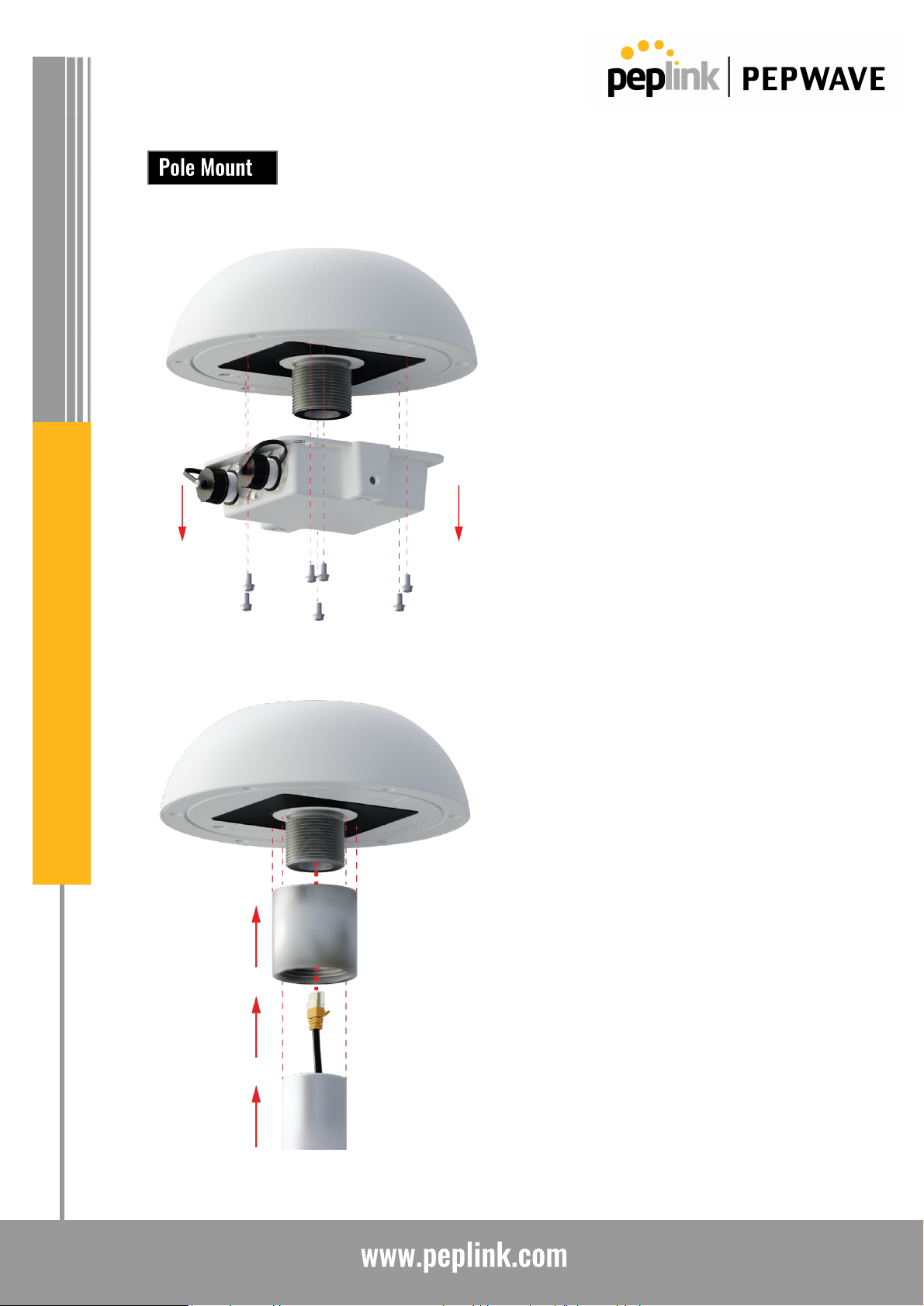

Steps:
1. Detach the unit underneath
the dome by removing the
screws.
2. Plug in the LAN wire to the
single Ethernet port within the
threaded screw.
3. With the M35 screw mount, it
can mount at the end of a
pole or on a rooftop.
4. Tighten the screw mount and
make sure it is secure.
Installation recommendation
©Peplink. All rights reserved.
HD2 Dome
Steps:
1. Position the mounting unit to
the pole.
2. Wrap the metal strip through
the mounting unit and around
the pole. Tighten the strips to
secure mounting unit to the
pole.
3. Position the HD2 Dome to the
mounting unit.
4. Place a washer in between
each screw and hole on the
mounting unit.
5. Tighten the screws into the
back of the dome.
Installation recommendation
©Peplink. All rights reserved.
HD2 Dome
Steps:
1. Drill four holes into the
wall according to the
position of the holes on
the mounting unit.
2. Insert wall plugs into
each of the drilled holes.
3. Align the mounting unit
with the drilled holes.
4. Secure the mounting
unit to the wall with four
screws.
5. Place a washer in
between each screw
and hole on the
mounting unit.
6. Tighten the screws into
the back of the dome
