Pelstar Healt o meter 402LB Manual de usuario

P/N UM402LB REV20220928_web 1

402LB

Physician Beam Scale

User Instructions

PELSTAR, LLC 9500 West 55th St. McCook, IL 60525-7110 USA www.homscales.com

Health o meter®Professional 402LB

P/N UM402LB REV20220928_web 2

Health o meter®Professional 402LB

Thank you for your purchase of this Health o meter®Professional product. Please read this

manual carefully, and keep it for easy reference or training.

TABLE OF CONTENTS

Cautions and Warnings.............................................................................................3

Specifications for This Scale.....................................................................................4

Certifications / Disposal / Service..............................................................................4

Assembly Instructions ...............................................................................................5

Operating Instructions...............................................................................................7

Height Measurement Instructions..............................................................................9

Transportation ..........................................................................................................11

Troubleshooting ........................................................................................................12

Maintenance and Cleaning........................................................................................14

Warranty....................................................................................................................15

Note: This scale has been factory calibrated, and does not

require calibration prior to use.

Please register your scale for warranty coverage at:

www.homscales.com

For User Instructions updates and revisions please go to:

www.homscales.com

P/N UM402LB REV20220928_web 3

CAUTIONS AND WARNINGS

INTENDED USE

This Health o meter®Professional platform scale is intended to be used in a professional medical

environment by trained medical staff. This product was designed to weigh patients who are safely

positioned and standing on the platform. The intended use of the built-in height rod is to measure

patient height. Do not modify the product or use it for anything other than its intended purpose.

To prevent patient/caregiver injury or damage to your scale, please follow the

instructions in this user manual very carefully.

•Do not exceed the specified weight limit for this scale.

•Do not transport the scale with a patient or object on the scale.

•Do not wheel or pull the scale down stairs, doing so may damage internal parts.

•To prevent injury, as well as scale damage during assembly, exercise caution when

assembling the scale pillar.

•Assemble and operate the scale per the enclosed user instructions.

•For accurate weighing, this scale must be placed on a flat, stable surface.

•For accurate weighing, verify before each use the proper operation according to the

procedure described in this manual.

•Do not use in the presence of flammable or explosive materials.

•If the scale becomes damaged, it should not be operated until properly serviced.

Patient/caregiver safety

•This scale is designed for static weighing of patients only. No scale should be used for

patient transfer.

•Patient should wear socks or other form of lightweight foot covering during weighing

event.

•To prevent patient injury, the patient must be attended to throughout the entire weighing

event. Caregivers should ensure that the patient is stable and provide support as

needed when getting onto and off of the scale.

In no event whatsoever shall Pelstar, LLC be liable for damages or injuries arising from

or connected with the assembly, use, or misuse of its products.

P/N UM402LB REV20220928_web 4

SPECIFICATIONS / CERTIFICATIONS / SERVICE

General

The Model 402LB physician beam scale employs a proven and rugged mechanical design to

measure patient weight and height. Each precision scale is designed to provide accurate,

reliable, and repeatable weight measurements. In addition, each scale is designed to provide

the user with features that make the weighing process simple, fast, and convenient.

Weight is displayed in pounds (lb). Height is displayed in inches (in) or in centimeters (cm).

Scale Specifications

Capacity:

400 lb

Environmental:

Operating temperatures: 50°F to 104°F (10°C to 40°C)

Storage temperatures: 32°F to 122°F (0°C to 50°C)

Maximum Humidity: 85% RH

Physical Dimensions:

Scale (Overall Dimensions)

Width: 10-1/2” (26.7 cm)

Depth: 20-1/4” (51.4 cm)

Height: 57-1/2” (146.1 cm)

Weight: 28 lb (12.7 kg)

Platform (Standing Area)

Width: 10-1/2” (26.7cm)

Depth: 14” (35.6 cm)

Height: 3-1/4” (8.3 cm)

Certification Descriptions

Scale Disposal

This Health o meter®Professional scale must be disposed of properly as steel waste.

Follow the national, regional or local regulations which apply to you for disposal of

steel waste.

Customer Service Information

The 402LB physician beam scale is shipped disassembled in one carton. Carefully inspect the

carton for shipping damage before unpacking. If damage is found, contact Customer Service.

For further information or telephone support, please contact Customer Service at:

Telephone: 1 (800) 815-6615 Email: homprocs@homscales.com

Pelstar, LLC has been officially certified as the

manufacturer of Health o meter®Professional medical

devices. The Pelstar, LLC quality assurance system

covers the development, production, sales and service of

medical scales and measuring systems.

P/N UM402LB REV20220928_web 5

ASSEMBLY INSTRUCTIONS

Before Assembly

Each 402LB physician beam scale is shipped disassembled in one carton. Carefully inspect the

carton for shipping damage before unpacking. If damage is found, contact your shipper or a

Health o meter®Professional representative immediately. Claims must be filed with the shipper

as soon as possible after receipt of the package. The following information details what you will

find inside the main carton as you unpack the parts for assembly.

To prevent scratching any components and avoid damaging the scale parts when unpacking, do

not use a box cutter, knife, scissors, or any sharp object to open the protective inner packaging.

Carefully remove each assembly from the carton and unwrap the packing materials. Set the

carton aside for storage.

Parts List

Carton

(1) Scale platform

(1) Pillar

(4) Pillar nuts

(1) User instructions

(1) Wrench

Tools Required

Wrench (included)

P/N UM402LB REV20220928_web 6

ASSEMBLY INSTRUCTIONS (CONTINUED)

Caution: It is recommended that the assembly be performed by two people. Use of a

chair is also recommended for the assembly process.

1.Carefully remove the scale platform and

pillar from the carton and place on a flat,

level, and dry surface. Locate the steel rod

at the base of the pillar. Remove the tie wrap

that holds the steel rod / finger pull loop to

the pillar.

2.Obtain a sturdy chair and place the top of

the pillar with the height rod side facing

down on the seat of the chair, as shown.

Place the platform/base perpendicular to the

platform with the front of the base resting on

the floor and the top of the platform/base

facing the top of the pillar. Remove the four

pillar nuts on the studs and set aside for use

in step 3. Align the four studs on the bottom

of the pillar with the four holes in the top of

the platform/base. Insert the studs into into

the platform/base.

Note: If a chair is not available it is

recommended that one person holds the

platform/base while another person handles

the pillar.

3.Access the underside of the scale base.

Obtain the four pillar nuts removed in step 2

and place onto the studs on the underside of

the scale base. Using the provided wrench,

tighten the pillar nuts to secure the pillar to

the base.

4.Grasp the finger pull loop on the end of the

steel rod and pull towards the lever

extension. Push the lever extension towards

the finger pull loop. Hook the steel rod to the

hole at the end of the lever extension.

Release the finger pull loop and ensure that

the steel rod and lever extension are hooked

together. Carefully position the scale to its

upright position. The scale is now

assembled. Refer to the next page to zero

balance the scale before first use.

Tie wrap

Pillar nuts

Finger pull

loop

Steel rod

Lever

extension

Studs

Steel rod /

finger pull loop

P/N UM402LB REV20220928_web 7

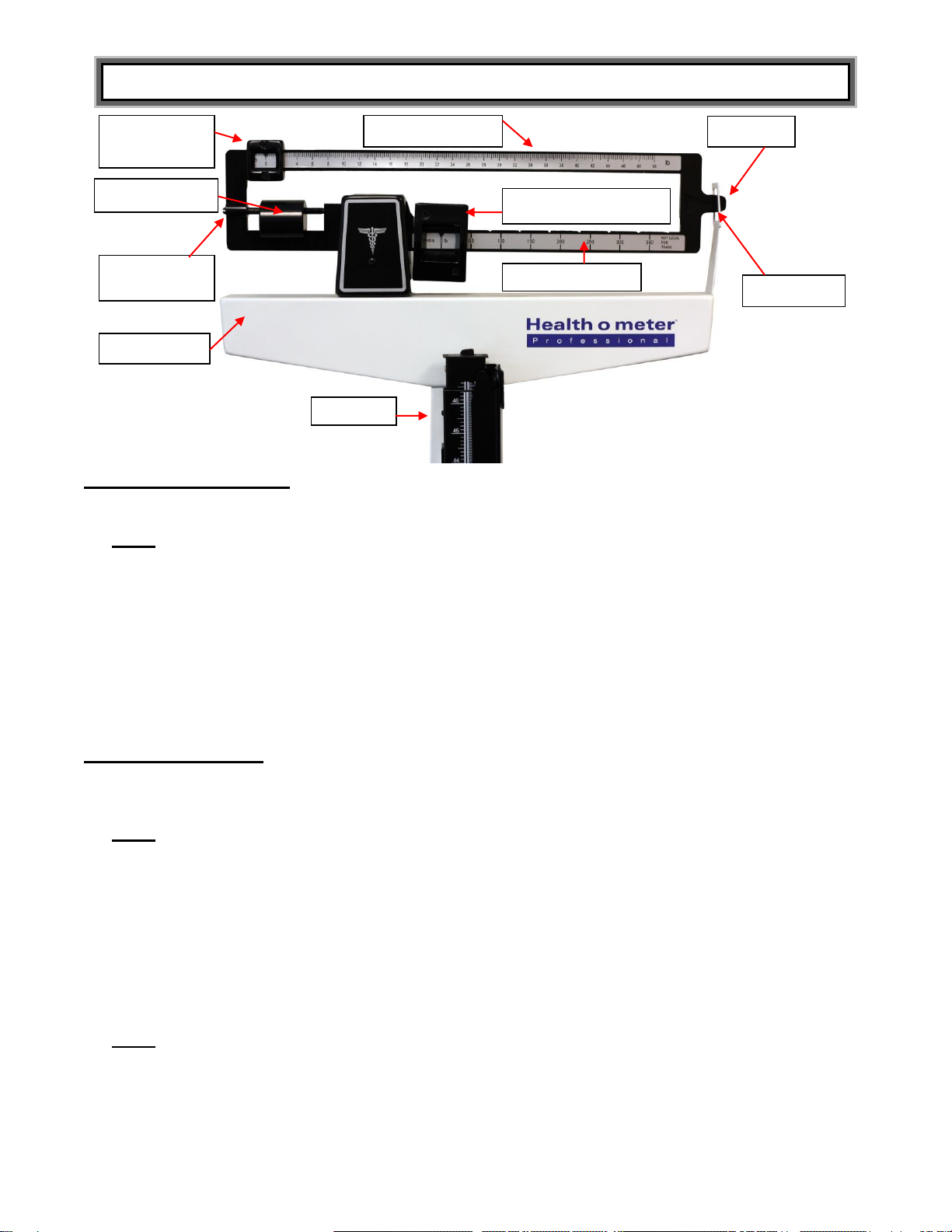

OPERATING INSTRUCTIONS

Zero Balance Adjustment

Before first use, the scale needs to be zero balanced by following the instructions below. The scale

should also be checked and balanced periodically, particularly when moved.

Note: A flat head screwdriver is required.

1. Ensure that the scale is located on a hard, flat, and level surface. Step on and off scale several

times in order to align all internal parts.

2. Place both poise weights on the “0” value on both bars. The beam pointer should float gently up

and down, and not touch the top or bottom of the trig-loop.

3. If the beam pointer is not centered in the trig-loop opening, using a flat head screwdriver, rotate

the balance ball screw to correct the beam pointer. Turn the screw about ¼ turn forwards or

backwards and let poise bar settle. Based on which direction the poise bar moved turn ¼

forwards or backwards again and let poise bar settle until the pointer is centered in the trig loop.

Weighing Instructions

1. Set the upper and lower poise weights to indicate the patient’s approximate weight.

2. Have patient step onto the scale. Ensure they are positioned directly in the center of the

platform. Continue to adjust the upper and lower poise weights until the pointer is centered.

Note: It is not necessary for you to wait for the pointer to stop moving in order to read the

correct weight. As long as the pointer is moving equally within the trig-loop opening, the

patient’s weight can be determined.

3. To read the patient’s weight, observe the location of the indicator arrow built into each poise

weight. Read the value on the poise bar, closest to the indicator arrow.

4. For easy identification, pounds (lb) have black graduations on a silver background, located on

the poise bars.

5. Add the indicated reading of the upper poise value to the indicated reading of the lower poise

value. The total amount is the patient weight. See the example on the next page.

Note: To transport your scale, acquire the optional wheel bracket (Item # 55000). Please refer to

the “Transportation” section on page 11 for assembly instructions.

Upper poise bar

Upper poise

weight

Balance ball

screw

Lower poise weight

Lower poise bar

Pointer

Trig loop

Pillar head

Balance ball

Pillar

P/N UM402LB REV20220928_web 8

OPERATING INSTRUCTIONS (CONTINUED)

Indicator

Value reads 27.25 lb / 27 lb 4 oz

Value reads 100 lb

Combined value: 100 lb +

27.25 lb = 129.75 lb

- Or -

Combined value: 100 lb +

27 lb 4 oz = 127 lb 4 oz

P/N UM402LB REV20220928_web 9

HEIGHT MEASUREMENT INSTRUCTIONS

WARNING: Use caution when sliding height rod up and down. The rod should move

smoothly, do not move the rod in a jerking motion. Fold headpiece down when not in

use.

Note: A patient needs to be a minimum of 23-5/8” (60 cm) tall for height to be measured.

1. With the headpiece in the folded down

position, slide the headpiece up or down to

the estimated height of the patient. Then

raise the headpiece into its horizontal

position.

To lower height rod below 46 ⅜”, push the tab

at the top of the height rod and gently lower the

headpiece.

2. Ensure that the patient’s posture is upright,

and that the patient’s head is straight and

level. Slide the headpiece down until it rests

on the patient’s head.

3. Determine the patient’s height by reading

the value on the measuring strip nearest to

the line on the indicator, as shown on the

next page.

Push tab inward to

lower height rod

below 46 ⅜”

P/N UM402LB REV20220928_web 10

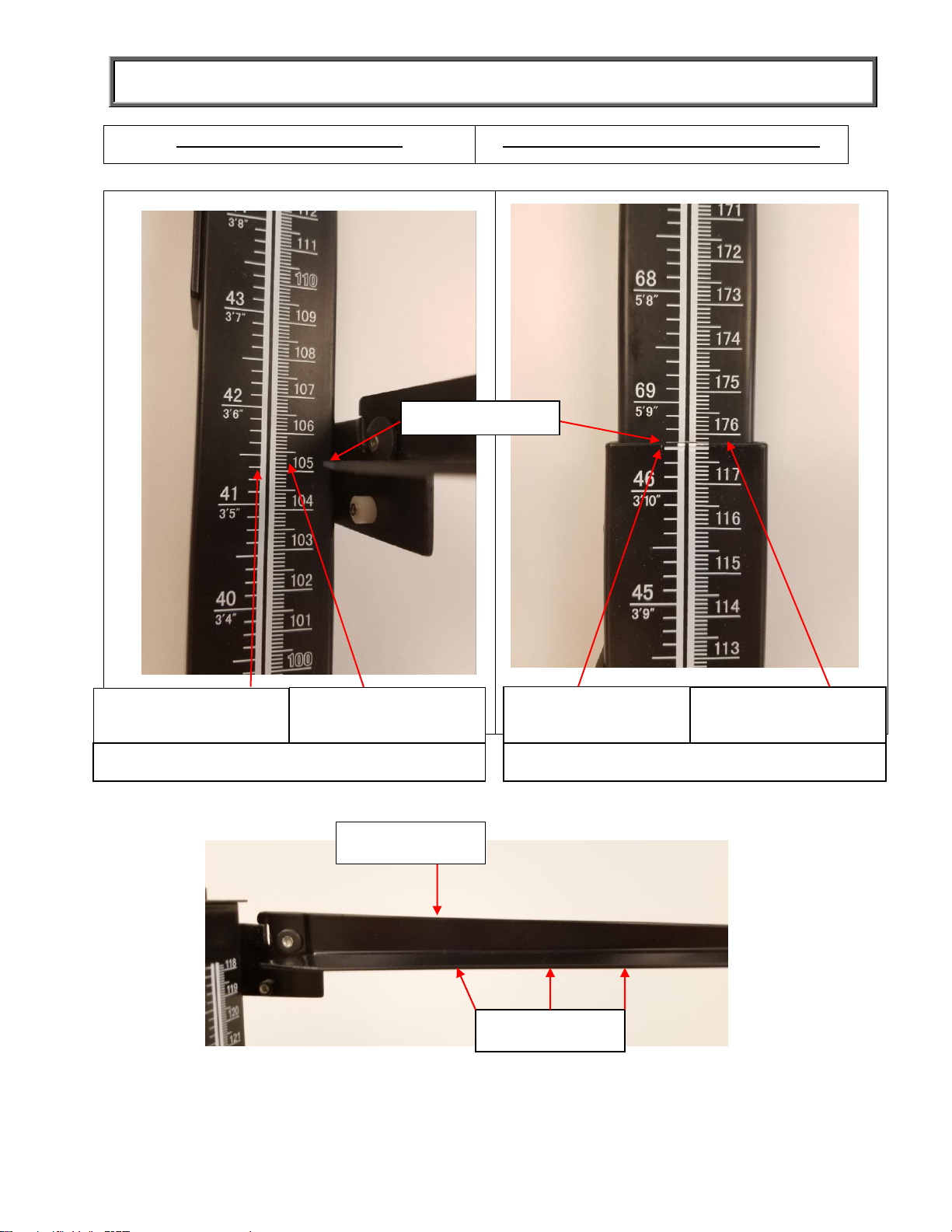

HEIGHT MEASUREMENT INSTRUCTIONS (CONTINUED)

Height Rod Below 46 3/8”

bove 46 3/8”Height Rod Extended A

Cm read: 176 cm +

0.2 cm = 176.2 cm

Cm read: 105 cm +

0.2 cm = 105.2 cm

Inches read: 41” +

3/8” = 41 3/8”

Inches read: 69” +

3/8” = 69 3/8”

Headpiece

Indicator

Feet and Inches read: 5’ + 9 3/8” = 5 ft. 9 3/8”

Feet and Inches read: 3’ + 5 3/8” = 3 ft. 5 3/8”

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Escala de Pelstar

Pelstar

Pelstar Health o meter Professional 500KL-BT Manual de usuario

Pelstar

Pelstar Health o meter Professional 500KL Manual de usuario

Pelstar

Pelstar Health o meter Professional 596KL Manual de usuario

Pelstar

Pelstar Health O Meter 822KLS Manual de usuario

Pelstar

Pelstar Health o meter Professional 522KL Manual de usuario

Pelstar

Pelstar Health O Meter Professional 2500KG Manual de usuario

Pelstar

Pelstar Health o meter Professional 8320KL Manual de usuario

Pelstar

Pelstar Health o meter 844KL-USB Manual de usuario

Pelstar

Pelstar Health o meter 402KL Manual de usuario

Pelstar

Pelstar Health o meter Professional 499KG Manual de usuario

Pelstar

Pelstar Health o meter Professional weigheasier BT Manual

Pelstar

Pelstar Health O Meter 400KL Manual de usuario

Pelstar

Pelstar weigheasier Health o meter 2600KL Manual de usuario

Pelstar

Pelstar weigheasier Health o meter 553KL Manual de usuario

Pelstar

Pelstar Health o meter Professional 1100KG Manual de usuario

Pelstar

Pelstar Health O Meter 3105KL-AM Manual de usuario

Pelstar

Pelstar Health o meter Professional 553KL-HR Manual de usuario

Pelstar

Pelstar Health o meter Professional 894KLT Manual de usuario

Pelstar

Pelstar Health O Meter Professional weigheasier... Manual de usuario

Pelstar

Pelstar Health O Meter 445KL Manual de usuario

Pelstar

Pelstar Health O Meter 499KL Manual de usuario

Manuales populares de Escala de otras marcas

AWS

AWS ZEO-50 Manual de usuario

Gima

Gima Glass Body Fat Analyzer Manual de lista de piezas

Seca

Seca 374 Manual de usuario

TEC

TEC TEC SL59 SERIES Manual de usuario

Axis

Axis B/E Series Manual de usuario

Alecto

Alecto ACW-40 Manual de usuario

Rice Lake

Rice Lake MSI-4260 IS Manual de usuario

IKA

IKA RCT basic safety control Manual de usuario

ADE

ADE M20011 Manual de usuario

Duronic

Duronic KS3000 Manual de usuario

Digi

Digi SM-720 Manual de usuario

Cardinal

Cardinal CS Series Manual de usuario

Korona

Korona Kastella Manual de usuario

A&D

A&D FC-50Ki Manual de usuario

BDA

BDA CAMARGUE Manual de usuario

Tanita

Tanita HD-357 Manual de usuario

Leifheit

Leifheit 03173 Manual de usuario

Lumme

Lumme LU-1340 Manual de usuario
