PEERLESS SGLS01 Guía

Max Load Capacity:

150 lb (68 kg) screen

50 lb (22.7 kg) per shelf

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Installation and Assembly: 32" - 50" Flat Panel TV Stand

Model: SGLS01, SGLB01

2 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

callPeerlesscustomercareat1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Makesure that the supportingsurface will safely supportthe combined load ofthe equipment and allattached hard-

wareandcomponents.

• NeverexceedtheMaximumLoadCapacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrewsfirmly,butdonotovertighten.Overtighteningcandamagetheitems,greatlyreducingtheirholding

power.

• The floor stand is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is

shaken or hit.Always monitor children and do not let children play alone around stand as they could get hurt by a

fallingscreen. Not recommended for usein areas with heavy traffic.

WARNING

Table of Contents

Parts List..........................................................................................................................................................................3, 4

AssemblingFloorStand........................................................................................................................................................4

AttachingScreenUsingUniversalPlatewithAdapterBrackets ................................................................................................7

AttachingScreen with VESA 100 Mounting Pattern...............................................................................................................10

Tools Needed for Assembly

•level

•phillipsscrewdriver

3 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Description Qty. Part # Part #

Ascreen mount bracket 1 201-4156 201-1156

Bhook plate 1 201-4157 201-1157

Cshelf support 1 201-4158 201-1158

Dshelf clamp bracket 1 201-4159 201-1159

Ebase 1 201-4168 201-1168

Funiversal plate 1 201-4109 201-1109

Gadapter bracket 2 200-0751 200-0750

Hupright 1 580-4180 580-1180

Iglass shelf 1 590-0208 590-0208

Jtop cover 1 590-4210 590-1210

Kbutton bumper 9 590-1209 590-1209

L1/4-20 x 12 mm decorative screw 12 520-1325 520-2325

M1/4-20 x 20 mm decorative screw 2 520-1326 520-2326

N1/4-20 nut 10 530-2022 530-1022

O5/16" flat washer 8 540-9446 540-9406

P 3/8-16 x 2.5" socket screw 3 520-9550 520-9550

Q7/32" allen wrench 1 560-9715 560-9715

R4 mm allen wrench 1 560-9646 560-9646

Sadhesive felt 1 570-0043 570-0043

TM10 x 15 mm socket screw 4 520-9262 520-9262

U6 mm allen wrench 1 560-9716 560-9716

Parts List

Some parts may appear slightly different than illustrated.

SGLS01 SGLB01

4 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

M6 x 20 mm (4)

520-9402

M6 x 30 mm (4)

510-9109 multi-washer(6)

580-1036

M8 x 16 mm (6)

520-9257

M8 x 40 mm (4)

520-1136

M4 x 12 mm (6)

504-9013

Phillips Adapter Bracket Fasteners

M4 x 25 mm (4)

504-1015

M5 x 12 mm (4)

520-1027 M5 x 25 mm (4)

520-9543

M6 x 12 mm (4)

520-1128

M6 x 25 mm (4)

520-1208

I.D. 5.6 mm (4)

540-1057

M8 x 25 mm (4)

520-1031

I.D. 8.7 mm (4)

540-1059

1Cut adhesive felt (S) into four pieces as shown in figure 1.1 below and affix to bottom of base (E).

1-1 Attach upright (H) to base (E) using three 3/8-16 x 2.5" socket screws (P). Tighten screws using 7/32"

allenwrench(Q).

1-2

CORDMANAGEMENTHOLE

Runcords through upright (H)using cord management holesas shown in figure 1.2.

fig 1.1 fig 1.2

5 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Insertthree button bumpers (K)into bottom of shelf

clamp bracket (D).

Attach shelf clamp bracket (D) to shelf support

two1/4-20 nuts (N).

Insert six button bumpers (K) into shelf support (C).

2Loosely attach four 1/4-20 x 12 mm screws (L),

washers (O), and 1/4-20 nuts (N) to shelf

support(C).

Slideshelf support (C) onto upright (H) so that 1/4-20

nuts (N) slide into slots of upright (H) as shown in

figure 3 and detail 1. Slide shelf support to desired

position, level, then tighten 1/4-20 x 12 mm screws

(L) using 4 mm allen wrench (R).

HSLOT

fig 3

DETAIL 1

4-1 Place glass shelf (I) on shelf support.

5-1

NOTE: Maxof two shelves can be used

Max height of top shelf is 34" from base.

Max height of second shelf is 28" from base.

3-1

6 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Insert two 1/4-20 x 12 mm screws (L) into screen

mountbracket (A), leaving 1/8" of exposed thread as

shown in figure 9 and detail 3.

Loosely attach four 1/4-20 x 12 mm screws (L),

washers (O), and 1/4-20 nuts (N) to screen mount

bracket(A).

LOA

7Slide screen mount bracket (A) onto upright (H) so

that 1/4-20 nuts (N) slide into slots of upright (H) as

shown in figure 7 and detail 2. Slide screen mount

bracket to desired position, level, then tighten 1/4-20

x 12 mm screws (L) using 4 mm allen wrench (R).

SLOT

fig 7

Snaptop cover (J) onto upright (H). 9

1/8"

fig 9

DETAIL 3

DETAIL 2

7 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Attach universal plate (F) to hook plate (B) using four

M10 x 15 mm socket screws (T). Tighten screws

using 6 mm allen wrench (U).

Attaching Screen Using Universal Plate withAdapter Brackets

For attaching screens with VESA 100 hole pattern, skip to page 10.

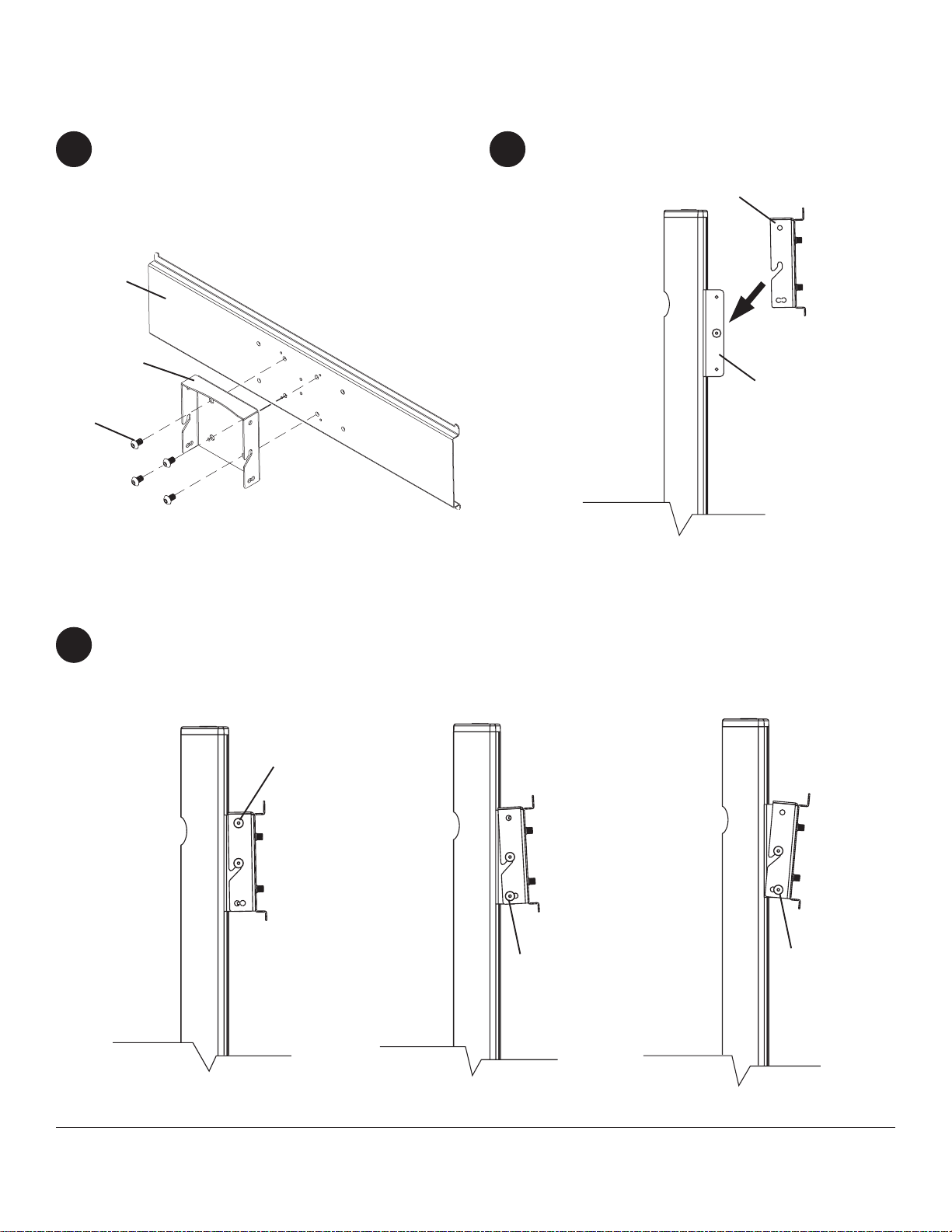

11 Attach hook plate (B) to screen mount bracket (A).

12 Insert two 1/4-20 x 12 mm screws (L) into holes indicated below for desired screen orientation. Tighten all screws

using 4 mm allen wrench (R).

2° Backward Tilt 5° Forward TiltNo Tilt

8 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Note: "X"dimensionsshouldbeequal.

• Tightenscrewsso adapter brackets are firmly

attached. Do not tighten with excessive force.

Overtighteningcancausestressdamageto

screws,greatlyreducingtheirholdingpowerand

possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.)

maximumtorque.

WARNING

Installing Adapter Brackets

Refer to Screen Compatibility Chart to determine the proper fasteners to use.

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.

Place adapter brackets (G) on back of screen, align to holes, and center on back of screen as shown in figure 13.1.

Attach the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers,

and spacers as shown in figure 13.3.

Note: Top and bottom holes must always be used.

Verify that all holes are properlyaligned,and then tighten screws using a phillipsscrewdriver.

• If screws don't get three complete turns in the screen

inserts or if screws bottom out and bracket is still not

tightly secured, damage may occur to screen or

productmay fail.

WARNING

MEDIUMHOLEFORM5SCREWS

SMALLHOLEFORM4SCREWS

LARGEHOLEFORM6SCREWS

fig. 13.2

CENTERBRACKETS

VERTICALLYONBACKOF

SCREEN

fig 13.1

Notes:

• Thenumberoffastenersusedwillvary,

dependinguponthetypeofscreen.

• Multi-washers and spacers may not be

used,dependinguponthe type of screen.

• Use the corresponding hole in the multi-

washer that matches your screw size as

showninfigure 13.2.

SCREWS

SPACERS

fig 13.3

MULTI-

WASHER

MULTI-WASHER

9 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

Mounting and Removing Flat Panel Screen

Hook adapter brackets (G) onto universal plate (F), then slowly swing screen in as shown. Turnscrewsclockwiseat

leastsixtimes to prevent screen from being removed asshownin detail 4.

Note:Tightenusing4 mmallenwrench(R).

Screen can be adjusted horizontally if desired.

Note: It is important to lock screen down!To lock the screen down, tighten screws to adapter bracket as shown in

detail4.

Toremovescreenfrommount,loosenscrews,swingscreenawayfrommount,and liftscreenoffof mount.

DETAIL 4

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

10 of 30 ISSUED: 07-28-06 SHEET #: 202-9156-4 11-20-06

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

Attaching Screen with VESA100 Mounting Pattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and hook plate is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

Choose hole pattern as shown in figure 10. Attach

hook plate (B) to back of screen using four M4 x 12

mm screws. Tighten screws using a phillips screw-

driver.

M4X 12 MMSCREWS

fig 10

Attach hook plate (B) to screen mount bracket (A).

12 Insert two 1/4-20 x 12 mm screws (L) into holes indicated below for desired screen orientation. Tighten all screws

using 4 mm allen wrench (R).

2° Backward Tilt 5° Forward TiltNo Tilt
