peerless-AV FPZ-655 Guía
2 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
NOTE: Read entire instruction sheet before you start installation and assembly.
Table of Contents
Parts List............................................................................................................................................................................ 3, 4
Assembling stand...................................................................................................................................................................5
Attaching Universal Adapter Plate or DedicatedAdapter Plate..............................................................................................6
Installing Adapter Brackets ....................................................................................................................................................8
Cord Management................................................................................................................................................................11
Tools Needed for Assembly
•level
• phillips screwdriver
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, for US
customers please call Peerless customer care at 1-800-865-2112, for all international customers, please contact
your local distributor.
• This product should only be installed by someone of good mechanical aptitude, and fully understands
these instructions.
• Never exceed the Maximum Load Capacity on page 1.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• The stand is not affixed or secured to the floor, and may therefore tip over and/or fall if screen and/or stand is
shaken or hit. Always monitor children and do not let children play alone around stand as they could get hurt by a
falling screen. Not recommended for use in areas with heavy traffic.
WARNING
3 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
AB
C
D
E
F
GHJ
I
KLMN
OPQ
R
S
TUV
W
XY
Z
AA
Parts List SF660-AW
Part #Description Qty
Aadapter plate 1 201-P1110
Bvertival tube 1 104-P1075
Cshelf clamp bracket 1 201-P1159
Dshelf support bracket 1 104-P1072
Eadapter bracket 2 202-P1657
Ftop cover 1 590-P1340
Gbottom cover 1 590-P1341
Hsupport base 1 590-1039
Ishelf support 1 104-P1073
Jbutton bumper 9 590-1209
K1/4-20 x 20 mm decorative screw 2 520-2326
L5/16-18 x 2" socket screw 2 520-1116
M5/16 nut 2 530-9306
NM10 x 15 mm socket screw 4 520-9262
O6 mm allen wrench 1 560-9716
P4 mm allen wrench 1 560-9646
Qadapter support plate 1 104-P1074
RM5 x 55 mm socket pin screw 1 520-1302
SM5 nut 1 530-9409
T1/4-20 x 1.75" carriage bolt 2 560-1764
U1/4-20 nut 2 530-9302
VM5 x 10 mm socket pin screw 4 520-1063
Wglass shelf 1 590-0208
Xcable tie 5 560-9711
Y18" mesh sleeve 2 600-1014
Z3/16" allen wrench 1 560-0071
AA plastic bushing 1 590-1378
4 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
M5 x 25mm (4)
(520-1122)
M5 x 12mm (4)
(520-1064) M6 x 12mm (4)
(520-1050)
M6 x 25mm (4)
(520-1211) M8 x 25mm (4)
(520-1101)
M8 x 12mm (4)
(520-1724) .75" spacer (4)
(540-1059)
Multi-washer (4)
(580-1398)
Security Adapter Bracket Fasteners
5 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
1Attach vertical tube (B) to support base (H) using one plastic bushing (AA), one M5 x 55 mm socket screw (R), and
M5 nut (S) as shown in detail 1. Tighten M5 x 55 mm socket pin screw (R) using 4 mm allen wrench (X).
2Press three button bumpers (J) into shelf clamp bracket (C) as shown in figure 2.1
Press six button bumpers (J) into shelf support (I) as shown in figure 2.2.
Loosely fasten two 1/4-20 x 20 mm decorative screws (K) as shown in figure 2.3.
B
H
J
I
J
C
C
I
K
DETAIL 1
Figure 2.1 Figure 2.2 Figure 2.3
R
S
AA
6 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
3Attach shelf support (I) to vertical tube (B) with clamp bracket (D) using two 1/4-20 x 1.25" carriage bolts (T), and
1/4-20 nuts (U).
4Attach adapter support plate (Q) to adapter plate (A) with four M10 x 15 mm socket screws (N)
using allen wrench (O) as shown in figure 4.1.
Attach adapter support plate (Q) to vertical tube (B) using two 5/16-18 x 2" socket screws (L), and 5/16 nuts (M)
as shown in detail 2.
D
M
I
N
L
Q
A
Q
B
DETAIL 2
T
U
B
Figure 4.1
7 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
Position glass shelf (W) on top of shelf support (I) and under shelf clamp bracket (C) as shown below.
Secure glass shelf (W) in place by tightening two pre-installed 1/4-20 x 20 mm decorative screws (K)
as shown in detail 3.
5
Attach top cover (F) to adapter support plate (Q) with two M5 x 10 mm socket pin screws (V) as shown in figure 6.1.
Attach bottom cover (G) to clamp bracket (D) with two M5 x 10 mm socket pin screws (V) as shown in figure 6.2.
Tighten using 4 mm allen wrench (X).
6
FG
K
DETAIL 3
W
I
C
V
V
FIGURE 6.1
FIGURE 6.2
D
8 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
Note: "X" dimensions should be equal.
• Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can
cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
Installing Adapter Brackets
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (E) on back of screen, align to holes, and center on back of screen as shown below. Attach
the adapter brackets to the back of the screen using the appropriate combination of screws, multi-washers, and
spacers as shown in figure 7.1 and 7.2.
NOTE: Top and bottom holes must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
MEDIUM HOLE FOR M5 SCREWS
SMALL HOLE FOR M4 SCREWS
LARGE HOLE FOR M6 SCREWS
ECENTER BRACKETS
VERTICALLY ON BACK OF
SCREEN
X
X
Notes:
• The number of fasteners used will vary, depending
upon the type of screen.
• Multi-washers and spacers may not be used,
depending upon the type of screen.
• Use the corresponding hole in the multi-
washer that matches your screw size as shown.
MULTI-WASHER
7
NOTE: For flat back screens proceed to step 7-1. For bump-out or recessed back screen skip to step 7-2.
9 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14

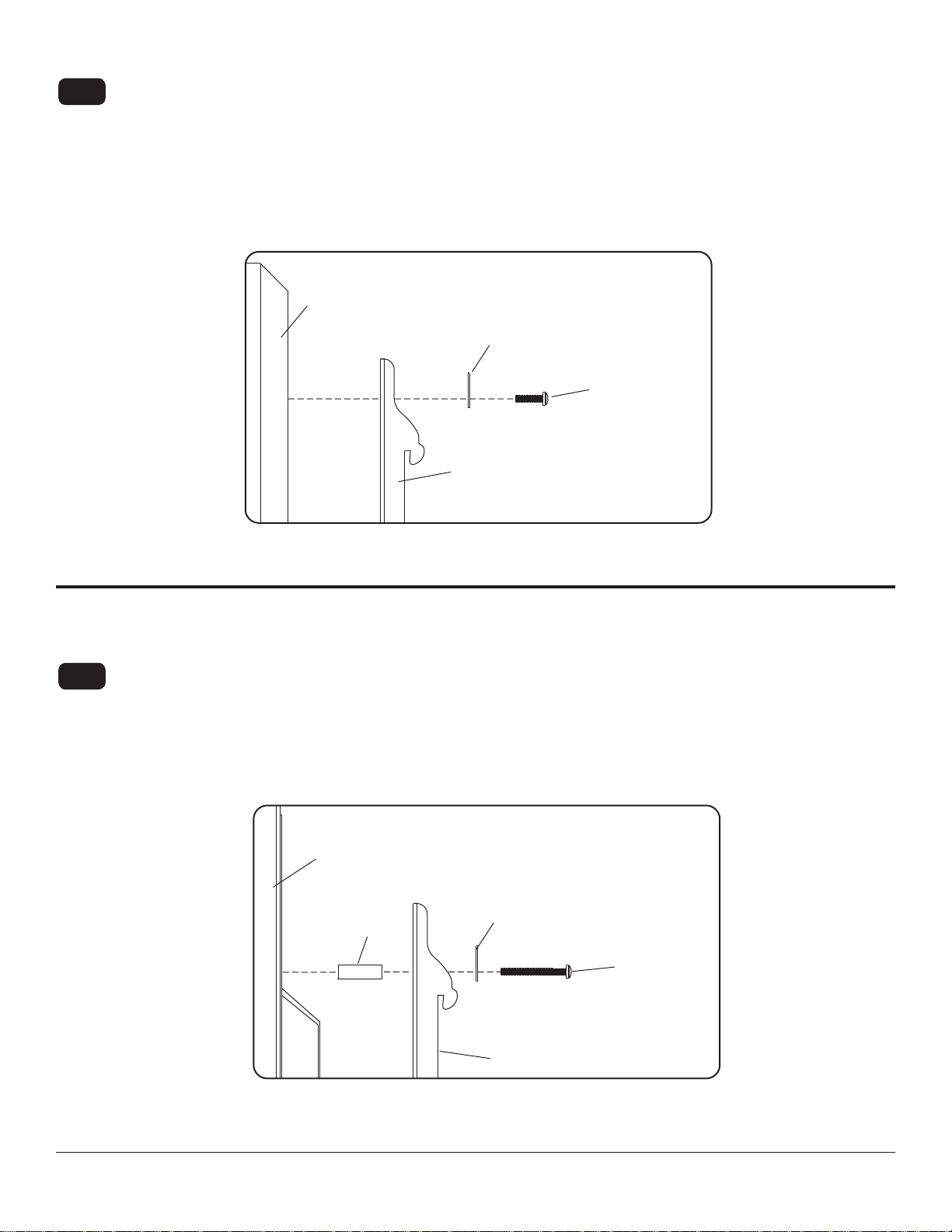

Begin with the shortest length screw, hand thread through multi-washer and adapter bracket into screen as shown
below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten.
If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
Begin with longer length screw, hand thread through multi-washer, adapter bracket and spacer in that order into
screen as shown below. Screw must make at least three full turns into the mounting hole and fit snug into place.
Do not over tighten. If screw cannot make three full turns into the screen, select a longer length screw from the
baffled fastener pack. Repeat for remaining mounting holes, level brackets and tighten screws.
For Flat Back Screen
For Bump-out or Recessed Back Screen
7-1
7-2
SCREW
fig. 7.2
SPACER
ADAPTER
BRACKET (E)
SCREEN fig. 7.1
MULTI-WASHER
SCREW
If you have any questions, please call Peerless customer care at 1-800-865-2112.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
MULTI-WASHER
ADAPTER BRACKET (E)
SCREEN
10 of 33 ISSUED: 1-25-11 SHEET #: 125-9149-7 03-17-14
Mounting and Removing Flat Panel Screen
Hook adapter brackets (E) onto adapter plate (A), then slowly swing screen in as shown. Turn screws clockwise at
least six times to prevent screen from being removed as shown in detail 4.
NOTE: Tighten using 4 mm allen wrench (P).
Screen can be adjusted horizontally if desired.
NOTE: It is important to lock screen down! To lock the screen down, tighten screws to adapter bracket as shown
in detail 4.
To remove screen from mount, loosen screws, swing screen away from mount and lift screen off of mount.
8
E
DETAIL 4
SCREWS
A
E
A
• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.
WARNING
