Peerless-AV ACC-SB Guía

1 of 5 ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11

Model: ACC-SB, ACC-SB-M

CD EFGHI

Description Qty. Part #

hook on bracket 1046-P1218

Bspeaker bracket 1 046-P1222

Cextension bracket 1 046-P1221

Dreinforcement bracket 1046-P1220

Elock bracket 1 046-P1219

FM5 x 6 mm socket pin serrated washer head screw 8 510-1114

G1/4-20 x 1/2" socket pin screw 2 520-1054

H1/4-20 x 3/8" socket pin screw 2 520-1109

I1/4" flat washer 2 540-9440

J4 mm allen wrench 1560-9646

Parts List

WALLARM

(NOT INCLUDED)

Installation and Assembly:

Speaker Bracket

2 of 5 ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11

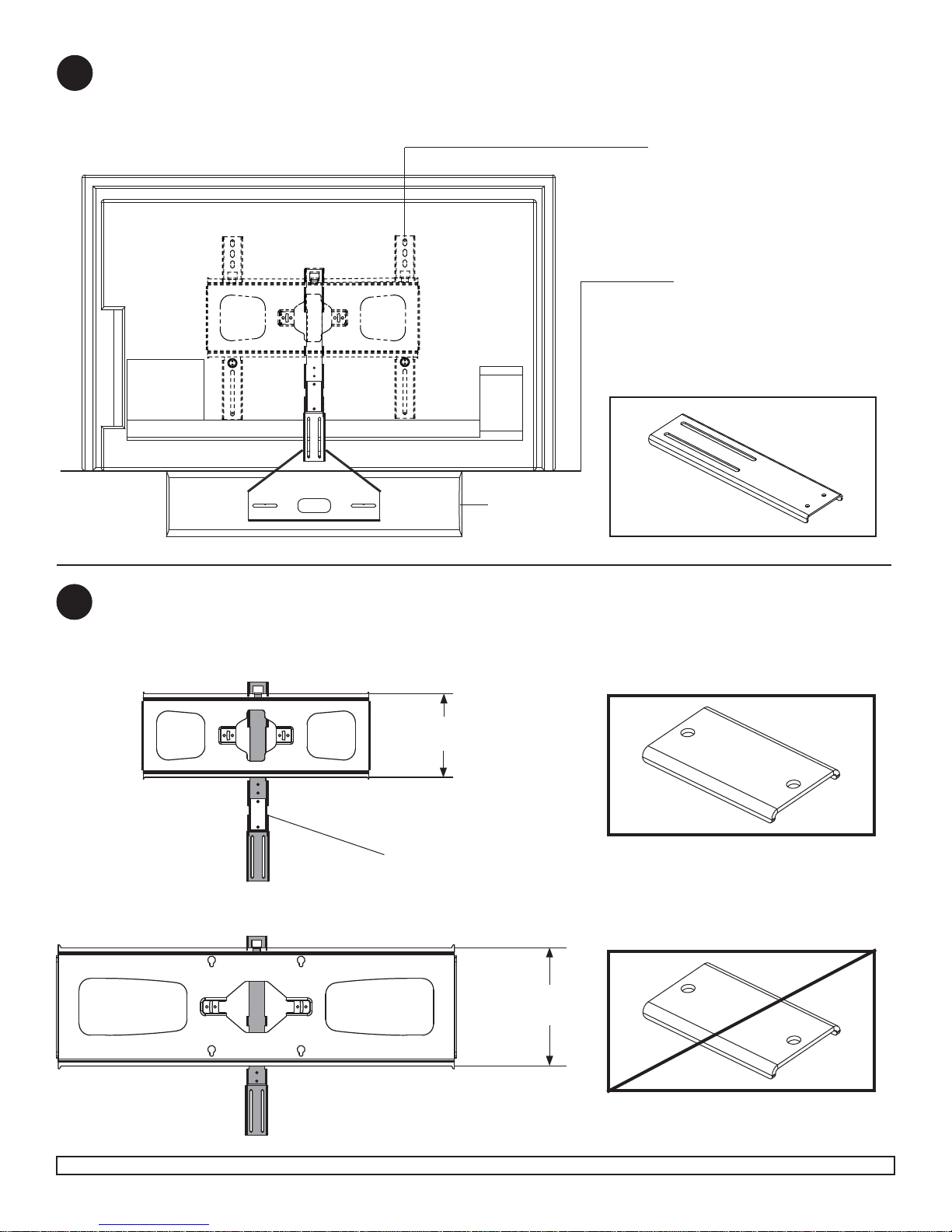

1Lay display face down on a nonabrasive surface. Use detail below to determine if extension bracket (C) is needed.

NOTE: Top of speaker must extend below the bottom of the screen.

If extension bracket (C) is not needed skip to step 2 on page 3.

If extension bracket (C) is needed skip to step 2 on page 5.

1Use ﬁgures 1.1 and 1.2 to determine if reinforcement bracket (D) is needed.

If reinforcement bracket (D) is needed skip to step 2 on page 3.

If reinforcement bracket (D) is not needed skip to step 2 on page 5.

7.38”

(187 mm)

10.41”

(264 mm)

SUA745PU, SUA745PU-M Will Use Reinforcement Bracket

SUA750PU, SUA750PU-M, SUA765PU Will Not Use Reinforcement Bracket

Figure 1.1

Figure 1.2

MAKE SURE THAT

TOP OF SPEAKER IS FLUSH

WITH BOTTOM OF DISPLAY

SPEAKER

HORIZONTAL BRACKET

AND VERTICAL BRACKETS

NOT SUPPLIED

3 of 5 ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11

2Attach reinforcement bracket (D) to adapter bracket

(A) using two M5 x 6 mm socket pin serrated

washer head screws (F). 3Attach adapter bracket (A) to speaker bracket (B)

using two M5 x 6 mm socket pin serrated washer

head screws (F).

4NOTE: Make sure that speaker wires are

connected as indicated in speaker instructions

before attaching speaker bracket (B).

Secure speaker bracket (B) to speaker using two

1/4-20 x 3/8" socket pin screw (H), and two

1/4 ﬂat washers (I).

4NOTE: Make sure that speaker wires are

connected as indicated in speaker instructions

before attaching speaker bracket (B).

Secure speaker bracket (B) to speaker using two

1/4-20 x 1/2" socket pin screw (G), and two

1/4 ﬂat washers (I).

MOTION 6

MYTHOS-XTR50

BBG

SPEAKER WIRES

Attaching Reinforcement Bracket and Speaker Bracket

Attaching Speaker

SPEAKER WIRES

4 of 5 ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11

DETAIL 1

Hook adapter bracket (A) onto wall arm (not included) and secure using lock bracket (E) and two

M5 x 6 mm socket pin serrated washer head screws (F) as shown in detail 1.

WALLARM

(NOT INCLUDED)

5 of 5 ISSUED: 03-08-11 SHEET #: 125-9197-2 05-16-11

2Attach adapter bracket (A) to extension bracket

socket pin serrated washer head screws (F) as

shown below.

4Hook adapter bracket (A) onto wall arm (not included) and secure using lock bracket (E) and two

M5 x 6 mm socket pin serrated washer head screws (F) as shown in detail 2.

DETAIL 2

MYTHOS-XTR50 OR MOTION 6

(AS SHOWN) (NOT SHOWN)

G or H

SPEAKER WIRES

Attaching Speaker Using Extension Bracket

NOTE: Make sure that speaker wires are

connected as indicated in speaker instructions

before attaching speaker bracket (B).

Secure speaker bracket (B) to speaker using two

1/4-20 socket pin screws (Gor H), and two

1/4 ﬂat washers (I).

WALLARM

(NOT INCLUDED)
