Peerless-AV Smartmount ST24D Guía

Max Load Capacity: 200 lb (91 kg)

2300 White Oak Circle • Aurora, IL 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerlessmounts.com

ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Installation and Assembly:

Dedicated Tilt Wall Mount

Model: ST24D

2 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Note: Read entire instruction sheet before you start installation and assembly.

Tools Needed for Assembly

•studfinder("edgetoedge"studfinderisrecommended)

•phillipsscrewdriver

•drill

•5/16" bit for concrete and cinder block wall

•5/32" bit for wood stud wall

•level

•6mm allen wrench

• DonotbegintoinstallyourPeerlessproductuntilyouhavereadandunderstoodtheinstructionsandwarnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

callPeerless customer careat 1-800-865-2112.

• Thisproduct should only be installed bya qualified professional.

• Makesurethatthesupportingsurfacewill safely support the combined load of the equipment and all attached hard-

wareand components.

• Neverexceed the Maximum Load Capacity of 200lb (91 kg).

• If mounting to wood wall studs, make sure that mounting screws are anchored into the center of the studs. Use of an

"edgeto edge" stud finder is highly recommended.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tightenscrews firmly, but donot overtighten. Overtightening candamagethe items, greatly reducingtheir holding

power.

WARNING

Table of Contents

Parts List..............................................................................................................................................................................3

Installation to Double Wood Stud Wall..................................................................................................................................4

Installation to Solid Concrete or Cinder Block .......................................................................................................................5

Attaching PLP Adapter Plate to Tilt Bracket Assembly ........................................................................................................6

Attaching LC Adapter Plate to Tilt Bracket Assembly...........................................................................................................7

MountingandRemovingFlatPanelScreen...........................................................................................................................8

Adjusting the Tilt Angle of the Flat Panel Screen..................................................................................................................9

Accessories

•Metal Stud Fastener Kit (ACC 415) (Not evaluated by UL)

3 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Description Qty Part #

AA wall plate 1 200-1796

BB tilt bracket assemby 1 200-0936

CC #14 x 2.5" wood screw 4 5S1-015-C03

DD Alligator® anchor 4 590-0097

EE M10 x 15 mm socket head screw 4 520-9262

FF 4 mm security allen wrench 1 560-1146

Parts List

EE FF

590-0320

concreteanchor

4 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Installation to Wood Stud Wall

• Tighten wood screws so that wall plate is firmly

attached,but donot overtighten. Overtighteningcan

damagethe screws, greatly reducingtheir holding

power.

• Never tighten in excess of 80 in. • lb (9 N.M.).

• Makesure that mounting screws are anchored into

the center of the stud. The use of an "edge to edge"

studfinder is highly recommended.

WARNING

• Make sure that the supporting surface will safely support the combined load of the equipment and all attached

hardwareandcomponents.

WARNING

CS = center of screen

CL = stud centerline

fig 1.3

Using a stud finder, locate the edges of the wood studs used in mounting this product. Use of an edge-to-edge stud

finder is highly recommended. Based on its edges and using a level, draw a vertical line down the center of each

stud. Mark a point (point 1) on the right stud centerline 2.1" above the center of screen as shown in figure 1.1. Hold

wall plate (AA) over point 1. Using a level to ensure plate is horizontal, mark three more points (points 2, 3, and 4)

as shown in figure 1.2.

Drill 5/32" diameter holes 2-1/2" deep through studs at the four points.

Loosely fasten wall plate (AA) to wall using four #14 x 2-1/2" wood screws (CC) as shown in figure 1.3.

Note: For ease of installation, start with the top right wood screw first and work counterclockwise.

Level, hold, and then tighten all screws.

Skip to step 2 on page 6.

fig 1.1

2.1"

(53mm)

POINT1

POINT2

POINT3 POINT4

CL CL CL

fig 1.2

5 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Installation to Solid Concrete and Cinder Block Wall

1Position wall plate (AA) on wall so that upper slots

are 2.1"above desired center of screen.Usewall

plate (AA), making sure that it is level, as a template

to mark holes. Drill four 5/16" (8 mm) dia. holes to a

minimum depth of 2-1/2" (64 mm). Concrete must be

2000 psi density minimum. Insert anchors (DD) in

holes flush with wall as shown in figure 1.4. Place

wallplate(AA)overanchorsandsecurewith

#14 x 2-1/2" (6 mm x 64 mm) wood screws (CC) as

shown in figure 1.5. Make sure wall plate is level and

tightenallfasteners.

• When installing Peerless wall mounts on cinder block, verify that you have a minimum of 1-3/8" of actual concrete

thickness in the hole to be used for the concrete anchors. Do not drill into mortar joints! Be sure to mount in a solid

part of the block, generally 1" minimum from the side of the block. Cinder block must meetASTM C-90 specifications.

It is suggested that a standard electric drill on slow setting is used to drill the hole instead of a hammer drill to avoid

breakingout the back of the hole when enteringa void or cavity.

• Concrete must be 2000 psi density minimum. Lighter density concrete may not hold concrete anchor.

• Makesurethatthesupportingsurfacewill safely support the combined load of the equipment and all attached hard-

wareand components.

WARNING

CC AA

fig 1.5

CUTAWAY VIEW

INCORRECT CORRECT

wall

plate

wall

plate

plaster/

drywall

plaster/

drywall

concrete concrete

• Tightenwood screws firmly, but donot overtighten.

Overtighteningcan damage thescrews, greatly

reducingtheirholdingpower.

• Never tighten in excess of 80 in • lb (9 N.M.).

• Concreteanchors are notintended for attachment to

concretewall covered with a layerofplaster,drywall,

orother finishing material as shownright. If mounting

toconcrete wall covered with plaster/drywallisun-

avoidable,plaster/drywall (up to 5/8" thick) must be

counterboredas shown below.Besure concrete

anchorsdo not pull away fromconcretewhen tighten-

ing screws. If plaster/drywall is thicker than

5/8", custom fasteners must be supplied by installer.

WARNING

Tighten all fasteners.

concrete

surface

Place plate (AA)over anchors (DD) and secure with screws (CC).

Drill holes and insert anchors (DD).

fig 1.4

6 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Attaching PLP Adapter Plate to Tilt Bracket Assembly

Attach adapter bracket to interface bracket of tilt bracket assembly (BB) using four M10 screws (EE).

Note: Full tilt bracket assembly not shown for clarity.

Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2.

ADAPTERPLATE

(NOTE:INTERFACE

BRACKETSHOWN

WITHOUTFULLTILT

BRACKETASSEMBLYFOR

CLARITY)

7 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place

screen face side down.Attach the interface bracket of tilt bracket assembly (BB) to the LC adapter plate (sold

separately)using four M5 screwsprovidedwith plate as shown.

Attaching LC Adapter Plate to Tilt Bracket Assembly

• Tightenscrews so interface bracket is firmly attached. Do not tighten with excessive force. Overtightening can cause

stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become

detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.

WARNING

GENERICLCADAPTER

PLATE

M5SCREWS

Note: Refer to accompanying instruction sheet for attachment of adapter plate to screen before proceeding with step 2.

(NOTE: INTERFACE

BRACKETSHOWN

WITHOUTFULLTILT

BRACKETASSEMBLYFOR

CLARITY)

8 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

Mounting and Removing Flat Panel Screen

Hook tilt bracket assembly (BB) onto wall plate (AA). Then slowly swing screen in as shown. Tolock the screen

down, tighten security screw to wall plate using security allen wrench (FF) as shown in detail 1.

Screen can be adjusted horizontally if desired.

Toremovescreenfrom mount,loosen securityscrews, swingscreen awayfrom mount,and liftscreenoffof mount.

DETAIL 1

SECURITY

SCREWS

• Always use an assistant or mechanical lifting equipment to safely lift and position the plasma television.

WARNING

9 of 9 ISSUED: 09-15-05 SHEET #: 202-9032-4 10-04-11

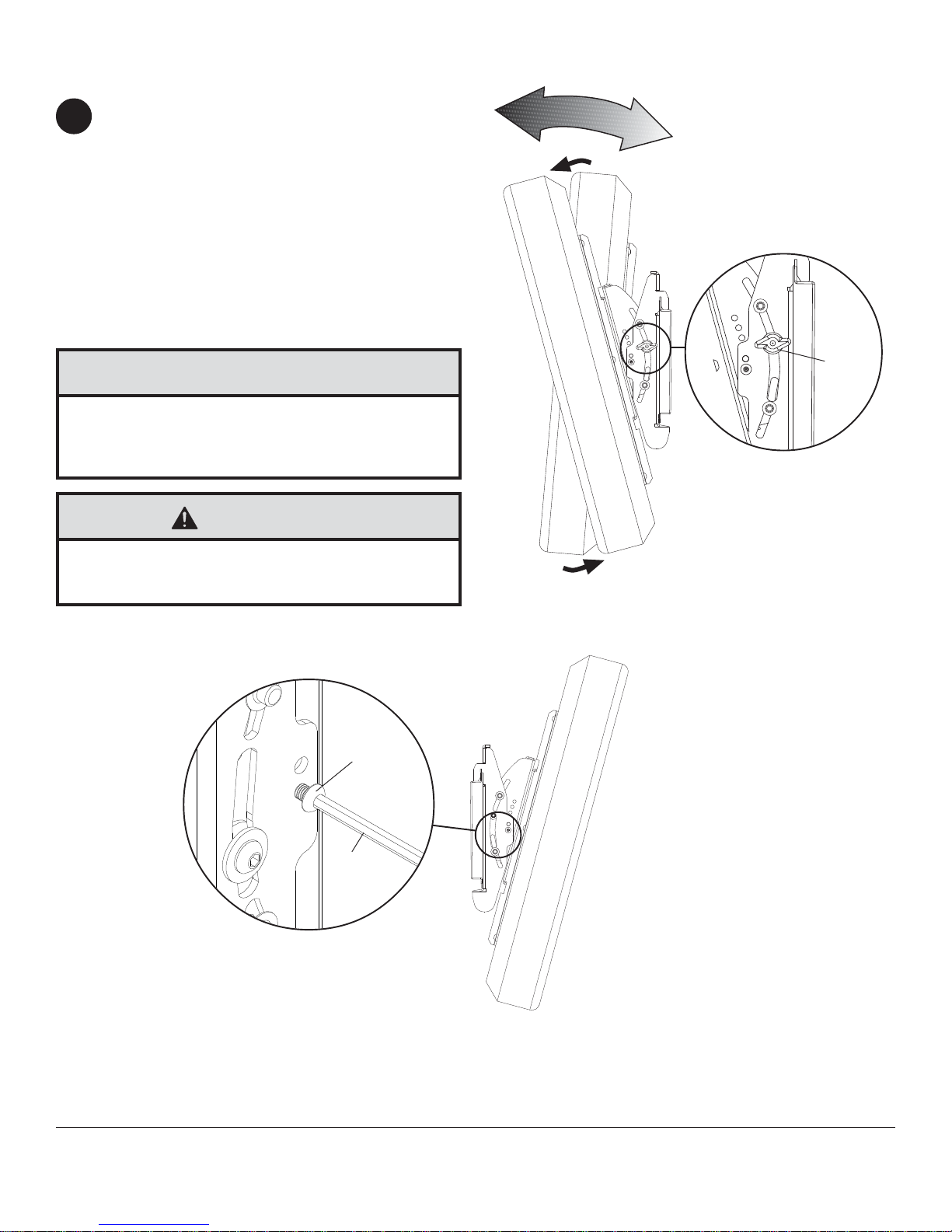

Adjust tension knob on right side of mount shown

in detail 2 to desired tension to balance your

screen size and weight.

Push or pull from top or bottom of screen to adjust

tilt as shown in figure 4.1. The tilt can be adjusted

to a maximum of 15° forward or 5° backward.

Note: To lock the screen into the desired tilt

position, tighten tension screws on both sides of

mount shown in figure 4.2 and detail 3 using

wrench(FF).

fig 4.1

DETAIL 2

TENSION

SCREW

Adjusting the Tilt Angle of the Flat Panel Screen

• Becareful not to pinch fingers whenpushing screen

fromthe bottom.

CAUTION

• Do not tighten screws with excessive force.

Overtighteningcan causedamage to mount. Tighten

screws to 40 in. • lb (4.5 N.M.) maximum torque.

CAUTION TENSION

KNOB

fig 4.2

DETAIL 3

SmartMountisatrademarkandPeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.
