peerless-AV LCT100S Guía
ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
2300 White Oak Circle • Aurora, Il 60502 • (800) 865-2112 • Fax: (800) 359-6500 • www.peerless-av.com
Max Load Capacity: 20 lbs (9 kg)
Installation and Assembly:
Desktop Mount with Desk Clamp and Grommet for 19" - 30"
LCD Screens
Models: LCT100S
GROMMET INSTALLATION DESK CLAMP INSTALLATION
2 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
NOTE: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
• phillips screwdriver
• drill
• 3/8" (10 mm) drill bit
Table of Contents
Parts List.................................................................................................................................................................................3
Installation to Mounting Surface.............................................................................................................................................4
Attaching Adapter Plate Assembly to Screen.........................................................................................................................5
Cable Management................................................................................................................................................................6
WARNING
• Do not begin to install your Peerless product until you have read and understood the instructions and warnings
contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please
call Peerless customer care at 1-800-865-2112.
• This product should only be installed by someone of good mechanical aptitude, has experience with basic building
construction, and fully understands these instructions.
• Make sure that the supporting surface will safely support the combined load of the equipment and all attached
hardware and components.
• Never exceed the Maximum Load Capacity. See page 1.
• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.
• Tighten screws firmly, but do not overtighten. Overtightening can damage the items, greatly reducing their holding
power.
• This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal
injury.
3 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
Description Qt
y
Acolumn assembly 1
Badapter plate assembly 1
Cgrommet assembly 1
Dround rubber pads 2
Esquare rubber pads 2
FM4 x 12 mm phillips screw 4
GM4 x 25 mm phillips screw 4
Hspacer 4
I4 mm allen wrench 1
J2.5 mm allen wrench 1
Kcable clip 1
Lcable tie 5

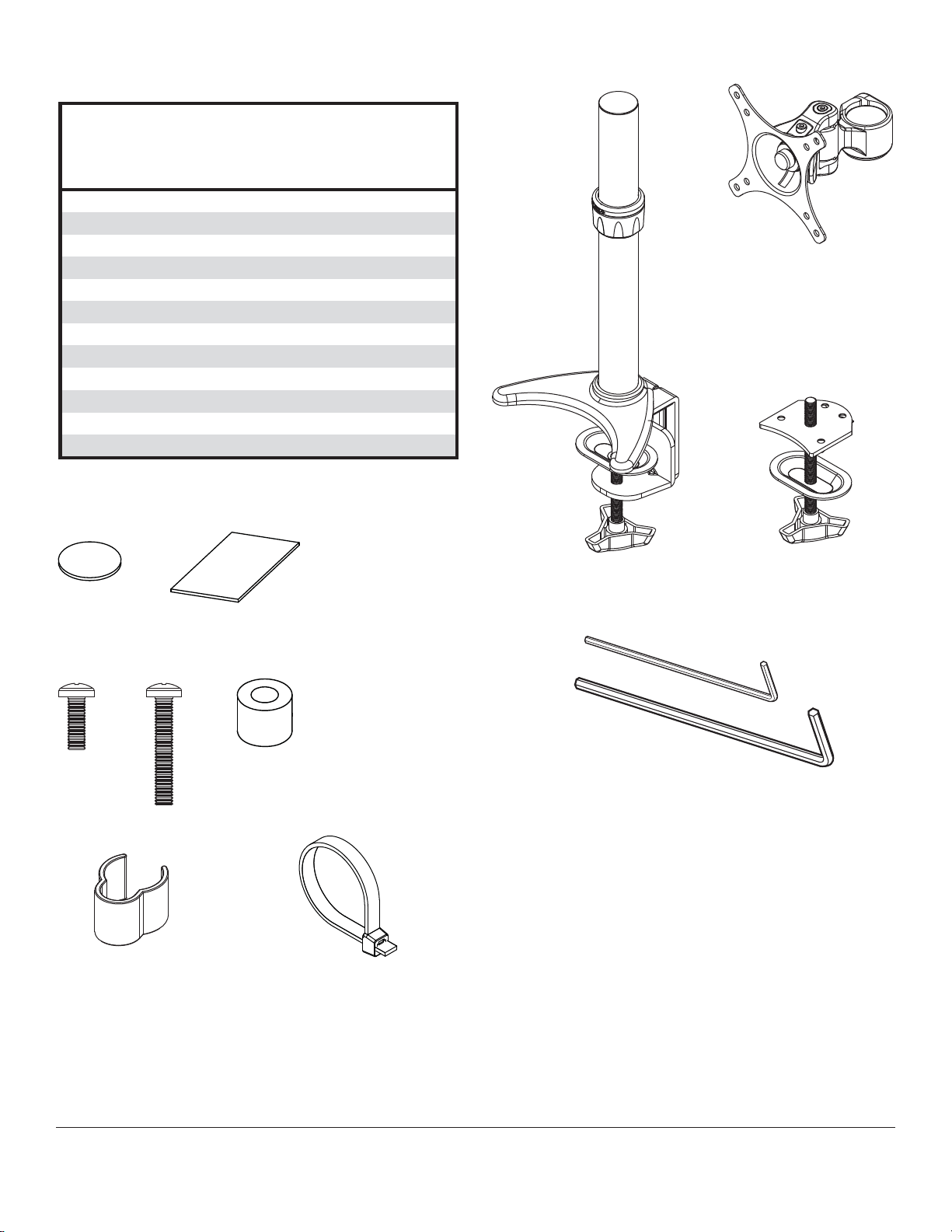

Parts List
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included
with your product. AB
C
DE
FG H
KL
J
I
4 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
D
D
E
E
A
A
A
A
Apply four rubber pads (D, E) to bottom of column
assembly (A) as shown below. Attach column
assembly (A) to mounting surface with a maximum
thickness of 3".
Skip to step four.
1
Clamp Installation Method Remove clamp assembly from column assembly
(A) as shown in figure 1.1. Remove mounting plate
from grommet assembly (C) and attach to column
assembly (A) with four M6 x 8 mm screws using
4 mm allen wrench (I) as shown in figure 1.2.
Apply four rubber pads (D, E) to bottom of column
assembly (A) as shown below.
1
2 3
Grommet Installation Method
fig. 1.1
fig. 1.2
M6 X 8 MM
SCREWS
M6 X 8 MM
SCREWS
CLAMP
ASSEMBLY
MOUNTING
PLATE
A
C
Drill a 3/8" (10mm) dia. hole through mounting
surface with a maximum thickness of 3". Place
column assembly (A) on mounting surface and
secure using grommet assembly (C).
5 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
Attaching Adapter Plate Assembly to Screen
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
screen face side down. If screen has knobs on the back, remove them to allow the adapter plate assembly to be
attached. Place adapter plate assembly (B) on back of screen.
Choose hole pattern as shown in detail 1.
FOR DISPLAYS WITH FLAT BACKS: Attach adapter plate assembly (B) to display using four 12mm screws
(F) as shown in figure 4.1.
FOR DISPLAYS WITH RECESSED BACKS: Attach adapter plate assembly (B) to display using four 25mm
screws (G) and four spacers (H) as shown in figure 4.2.
• Tighten screws so adapter plate assembly is firmly attached. Do not tighten with excessive force. Overtightening
can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to
become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns into the screen inserts or if screws bottom out and plate is still not tightly
secured, damage may occur to screen or product may fail.
WARNING
VESA 100mm
VESA 75mm
VESA 75mm VESA 100mm
DETAIL 1
4
B
B
G
H
F
fig. 4.1
fig. 4.2
6 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
Cables may be routed using cable clip (K).
6
B
K
A
LOCK COLLAR
SET SCREW
CABLES
Loosen and position lock collar to desired height and retighten lock collar as shown in figure 5.1.
Insert adapter plate assembly (B)onto column assembly (A) and let it rest on lock collar as shown in figure 5.2.
Tighten set screw on rear of adapter plate assembly (B) using 2.5 mm allen wrench (J) as shown in figure 5.3.
5
LOCK COLLAR
fig. 5.1 fig. 5.2 fig. 5.3
7 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
© 2013 Peerless Industries, Inc. All rights reserved.
All other brand and product names are trademarks or registered trademarks of their respective owners.
To lock down rotation, tighten set screw shown in detail 2.
To lock down tilt, tighten screw shown in detail 3.
To lock down swivel, tighten screw shown in detail 4.
7
360°
+80/-20°
SET SCREW
DETAIL 2
DETAIL 3
DETAIL 4
TILT SCREW
SWIVEL
SCREW
180°
8 of 8 ISSUED: 07-25-11 SHEET #: 090-9202-5 07-16-13
© 2013 Peerless Industries, Inc.
Peerless Industries, Inc. (“Peerless”) warrants to original end-users of Peerless® products will be free from defects in material and workmanship, under normal
use, for a period of five years from the date of purchase by the original end-user (but in no case longer than six years after the date of the product’s manufacture).
At its option, Peerless will repair or replace, or refund the purchase price of, any product which fails to conform with this warranty.
In no event shall the duration of any implied warranty of merchantability or fitness for a particular purpose be longer than the period of the applicable
express warranty set forth above. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
This warranty does not cover damage caused by (a) service or repairs by the customer or a person who is not authorized for such service or repairs by Peerless,
(b) the failure to utilize proper packing when returning the product, (c) incorrect installation or the failure to follow Peerless’ instructions or warnings when installing,
using or storing the product, or (d) misuse or accident, in transit or otherwise, including in cases of third party actions and force majeure.
In no event shall Peerless be liable for incidental or consequential damages or damages arising from the theft of any product, whether or not secured
by a security device which may be included with the Peerless® product. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
This warranty is in lieu of all other warranties, expressed or implied, and is the sole remedy with respect to product defects. No dealer, distributor, installer or other
person is authorized to modify or extend this Limited Warranty or impose any obligation on Peerless in connection with the sale of any Peerless® product.
This warranty gives specific legal rights, and you may also have other rights which vary from state to state.
LIMITED FIVE-YEAR WARRANTY
