Peerless-AV KIP586-4LG-EUK Manual de usuario

12016-08-03 #:180-9088-1

ENG

KIP586-4LG(-S)-EUK

22016-08-03 #:180-9088-1

This page was intentionaly left blank

ENG

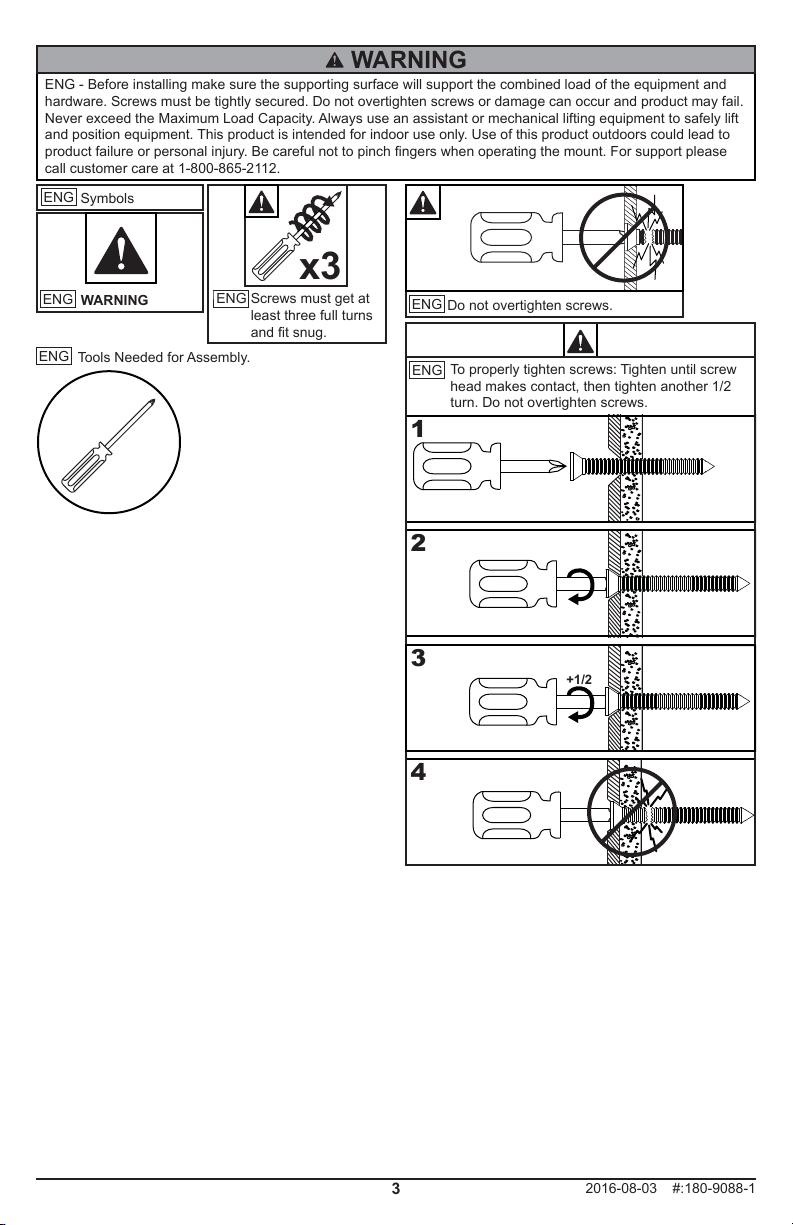

32016-08-03 #:180-9088-1

ENG - Before installing make sure the supporting surface will support the combined load of the equipment and

hardware. Screws must be tightly secured. Do not overtighten screws or damage can occur and product may fail.

Never exceed the Maximum Load Capacity. Always use an assistant or mechanical lifting equipment to safely lift

and position equipment. This product is intended for indoor use only. Use of this product outdoors could lead to

product failure or personal injury. Be careful not to pinch ﬁngers when operating the mount. For support please

call customer care at 1-800-865-2112.

WARNING

Symbols

ENG

WARNING

ENG

x3

Screws must get at

least three full turns

and ﬁt snug.

ENG

Tools Needed for Assembly.

ENG

1

2

ENG To properly tighten screws: Tighten until screw

head makes contact, then tighten another 1/2

turn. Do not overtighten screws.

4

+1/2

3

Do not overtighten screws.

ENG

42016-08-03 #:180-9088-1

A (1)

main assembly

B (2)

base cover

D (1)

top panel

E (4)

corner cover

C (8)

display bracket

F (16)

M8 x 10mm screw

G (8)

10-32 x .375" screw black

H (8)

10-32 x .375" screw zinc

I (5)

cable tie

Parts List KIP586-4LG

Part #

KIP586-4LG-S

Part #Description Qty

Amain assembly 1 151-T1218 151-T1218

Bbase cover 2 151-P1205 151-4205

Cdisplay bracket 8 151-T1213 151-T1213

Dtop panel 1 151-P1214 151-4214

Ecorner cover 4 151-P1215 151-4215

FM8 x 10mm phillips screw 16 520-1605 520-1605

G#10-32 x .375" philips screw black 8 520-1130 520-1130

H#10-32 x .375" phillips screw zinc 8 520-2130 520-2130

Icable tie 5 590-1168 590-1168

52016-08-03 #:180-9088-1

1

G or H (4)

B (2)

A

62016-08-03 #:180-9088-1

2

F (4)

C (2)

x4 x3

72016-08-03 #:180-9088-1

3

82016-08-03 #:180-9088-1

4

E (4)

92016-08-03 #:180-9088-1

5

G or H (4)

D

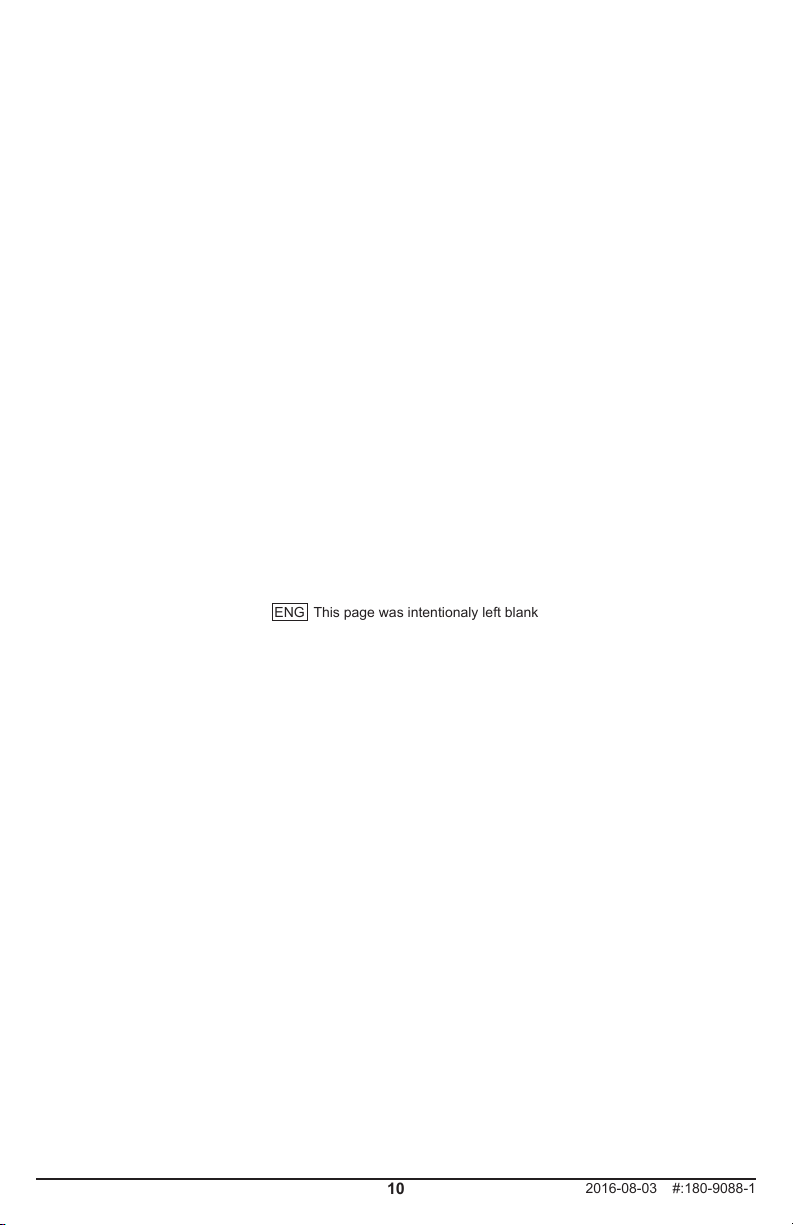

10 2016-08-03 #:180-9088-1

This page was intentionaly left blank

ENG
