Peerless-AV FPZ-670 Guía

Max Load Capacity 400 lb (181.4 kg)

200 lb (90.7 kg) Max Load Capacity per screen

3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com

ISSUED:05-08-08 SHEET#:202-9280-1

Installation and Assembly:

Flat Panel Stand for 50" - 71" Plasma Screens

Model: FPZ-670

Features:

• Fits single or back-to-back 50" - 71" flat panel screen

• Up to Vesa screens with additional PLP screen

• Supportsnon-Vesascreens withadapter plate(sold separately)

• Internal cable management to easily route cords from the screen to the base of the stand

• Basecover is designed to conceal content drivers and surge protectors

• Vertical adjustment on 6" columns for ideal screen viewingheight

• Hook-on design allows screen to rest in place while screen is being secured

• Portraitor landscape orientation

2 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

Note: Read entire instruction sheet before you start installation and assembly.

• Do not begin to install your Peerless product until you have read and understood the instructions and warnings

contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please

callPeerless customer care at1-800-729-0307.

• This product should only be installed by someone of good mechanical aptitude, has experience with basic building

construction, and fully understands these instructions.

• Makesure thatthe supporting surface will safely support the combined load of the equipment and all attached hard-

wareandcomponents.

• Neverexceed the Maximum LoadCapacity.

• Always use an assistant or mechanical lifting equipment to safely lift and position equipment.

• Tighten screwsfirmly,but do notovertighten. Overtightening candamage the items,greatly reducing theirholding

power.

WARNING

Table of Contents

Parts List..............................................................................................................................................................................3

Floor Stand Assembly ..........................................................................................................................................................4

Attaching Adapter Plate to Screen with VESA 200 x 200 Mounting Pattern .........................................................................6

Attaching Adapter Plate to PLP Adapter Bracket .................................................................................................................6

Installing Flat Panel Screen on Floor Stand ..........................................................................................................................7

3 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

Forcustomer care call (800) 729-0307or (708) 865-8870.

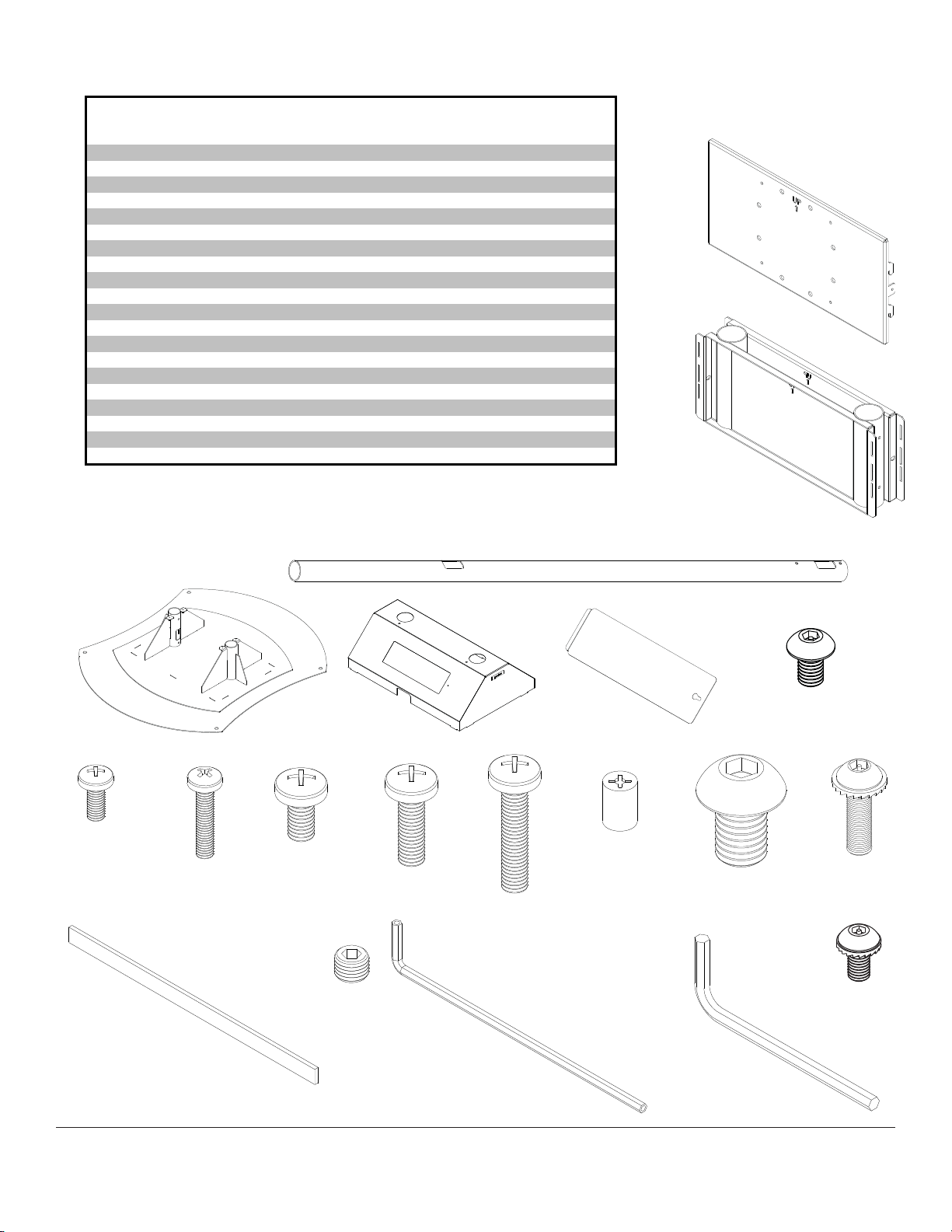

Description Qty. Part #

Amain tube 2 580-1159

Bbase 1 104-1055

Ccarriage 1 104-1063

Dadapter plate 2 104-1065

Ebase cover 1 104-1068

Fcable access cover 1 130-1153

GM5 x 8 mm socket pin screw 2 520-1062

HM4 x 10 mm phillips screw 4 504-9012

IM4 x 20 mm 4 504-9020

JM6 x 12 mm pan head 4 520-1128

KM6 x 20 mm phillips screw 4 520-9402

LM6 x 30 mm phillips screw 4 510-9109

M128 x 313 x 437H retaining spacer 4 590-5005

NM10 x 15 mm socket screw 4 520-9262

OM6 x 20 mm serrated washer head socket pin screw 4 510-9554

Pbumper strip 1 570-1030

Q5/16-24 x 1/4 set screw 8 520-9566

R6 mm allen wrench 1 560-9716

S4 mm allen wrench 1 560-9646

TM5 x 10 mm socket pin serrated washer head 1 510-1126

Parts List

4 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

Slide two main tubes (A) onto base (B) and secure

using four set screws (Q) as shown in figure 2 and

detail 1. Tighten screws using 4 mm allen wrench (S).

1 2

fig 2

For some situations, bumper strip (P) may be

requiredto keep base (B) level. If so, cut bumper

strip(P) intofive equalpieces andadhere onepiece

to each corner and one piece to center of bottom

side of base (B).

Note: The pieces can also be used in other locations

on the base's bottom for other situations.

Slidebase cover(E) downtubes (A)onto base(B) as

shown below. Secure using two M5 x 8 mm socket

pin screws (G). Tighten screws using 4 mm allen

wrench(S).

Note: Make sure that notches on bottom of base

cover fit into holes in base.

Slide cable access cover (F) into base cover (E) as

shown below. Secure using socket pin serrated

washerhead screw (T). Tighten screws using 4mm

allenwrench (S).

BDETAIL 1

5 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

Slide carriage (C) onto main tubes (A). Slide carriage to desired height and secure using four set screws (Q)

as shown in detail 1. Tighten screws using 4 mm allen wrench (T).

Note: Orientation of "UP" arrow is critical.

DETAIL 1

6 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

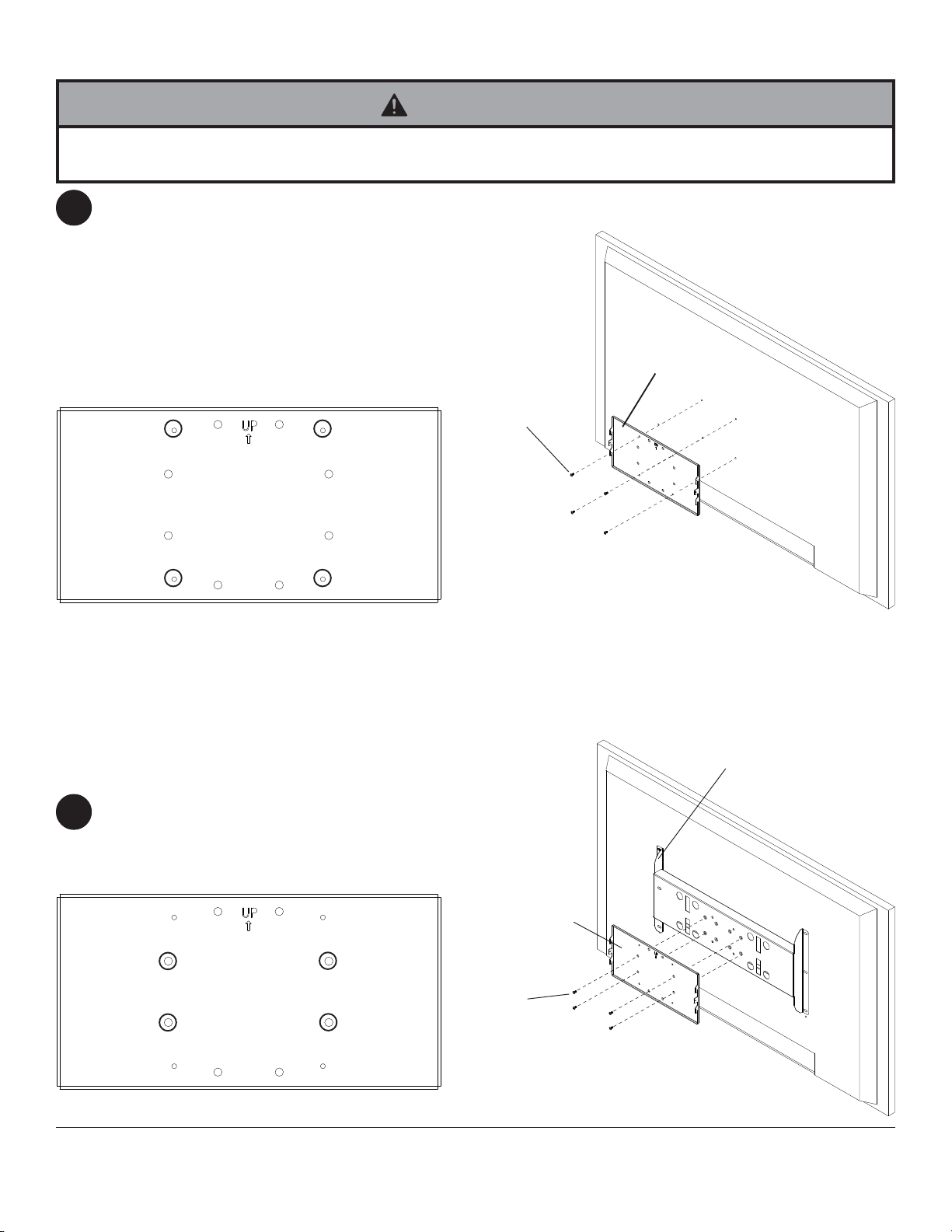

Choose hole pattern as shown in figure 6.1. Attach

adapter plate (D) to back of screen using four M6 x

12 mm screws (J) as shown.

Note: Orientation of "UP" arrow is critical.

*Note: If screw (J) gets less than three threads of

engagement, attach adapterplate(D)to back of

screen using four M6 x 20 mm screws (K). If screw

(K) still gets less than three threads of engagement,

use four M6 x 30 mm screws (L).

Skip to step 7 on page 7.

For screen compatibility please refer to the plasma interface list on our website www.peerlessmounts.com or call

customer care for a screen specific adapter bracket (PLP models). GENERICADAPTER

BRACKET

AttachingAdapterPlatetoScreenwithVESA200x200MountingPattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly

secured, damage may occur to screen or product may fail.

WARNING

AttachingAdapterPlatetoPLPModelAdapterBracket

fig 6.1

fig 6.2

Note: Refer to PLP model adapter bracket instruction

sheet for attachment of adapter bracket to screen.

Choose hole pattern as shown in figure 6.2. Attach

adapter plate (D) to back of screen using four M10 x

15 mm screws (N) as shown. Tighten screws using 6

mmallenwrench(R).

Note: Orientation of "UP" arrow is critical.

7 of 7 ISSUED: 05-08-08 SHEET #: 202-9280-1

To install second screen, repeat steps six and seven for back side of carriage (C).

Hook adapter plate (D) onto carriage (C) and secure using two M6 x 20 mm serrated washer head socket pin screws

(O) as shown in figure 5 and detail 3. Tighten screws using 4 mm allen wrench (S).

DETAIL 3 fig 5

PeerlessisaregisteredtrademarkofPeerlessIndustries,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveowners.

Portrait orientation

Choose hole pattern as shown in figure 6.3. Attach adapter plate (D) to back of screen using four M10 x 15 mm

screws (N) as shown. Tighten screws using 6 mm allen wrench (R).

Note: Orientation of "UP" arrow is critical.

fig 6.3
