T180 PROGRAMMABLE THERMOSTAT

SMART ENERGY MANAGEMENT

HIGHLIGHTS

• 7 Day Programmable

• Energy Star, ASHRAE 90.1, and Title 24 Compliant

• 24 or 110-277 VAC Supply Voltage Selection

• Auto-Staged Fan Available

• Occupancy HVAC Control Input

• Controlled Off Saftey Option

• Key Pad Lockout - Partial or Full

• Setback Capability

• 2-pipe/4-pipe Configuration

• Auto Summer/Winter Changeover Option

• Local or Remote Sensing

• LCD Display with Backlight

• Fahrenheit or Celsius Display

A New Standard in Fan Coil Thermostats

The T180 thermostat brings smart energy management to the fan coil market,

featuring Title 24 and Energy Star compliance. The T180 offers full 7 day, 4

event programmability making it ideal for condominiums, residential care

facilities, or any fan coil application where programmability is mandated by

code.

A Broad Range of Adjustments

Various configurations can supply staged fan, cycled fan, continuous fan,

controlled off and fan coil operation. Additional energy saving features include

range limit adjustment, staged fan, occupancy and setback control.

The T180 retains all of the capability and flexibility that made the T170 a

market favorite including 2/4 pipe support, built-in occupancy detection logic,

remote probe capability, and an ADA-compliant design.

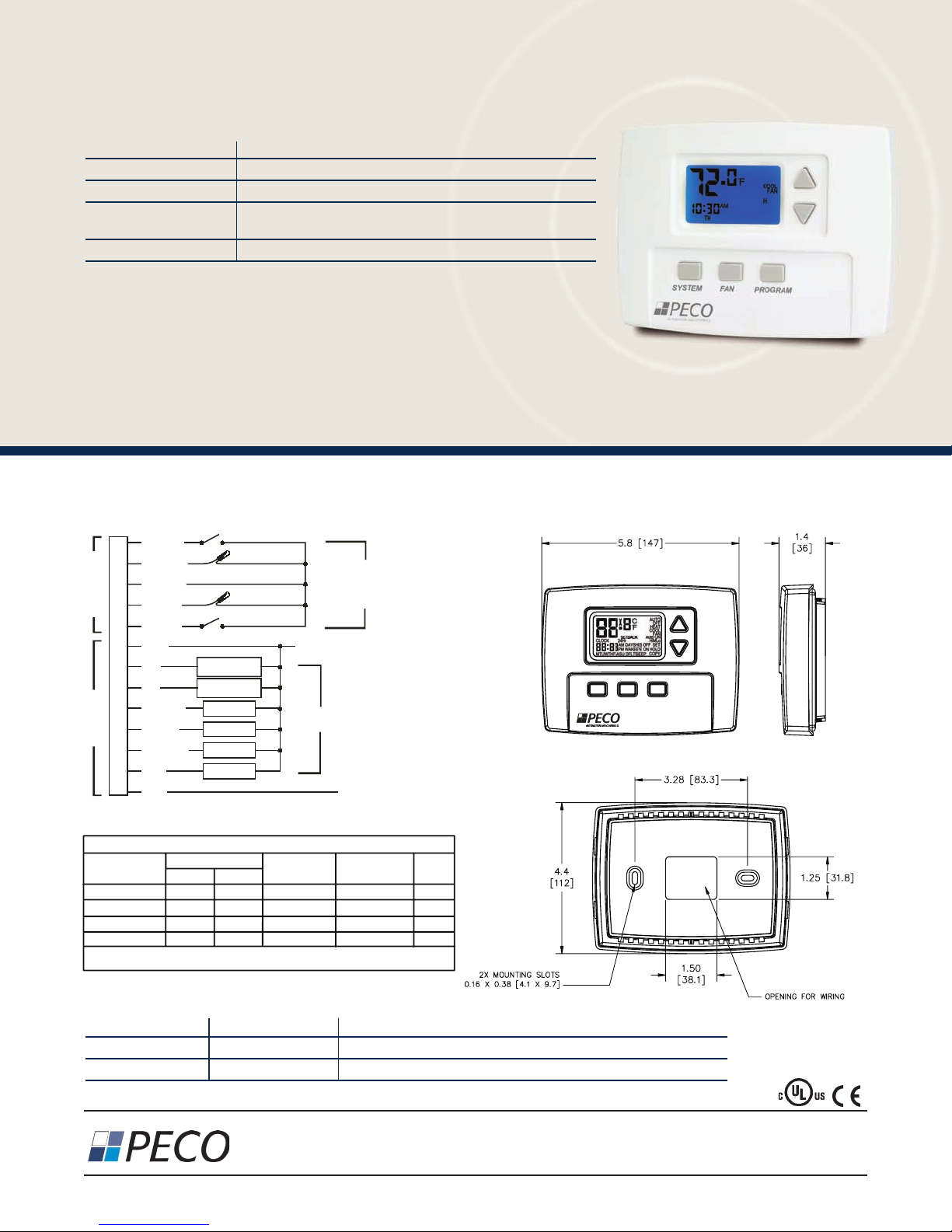

T180 PROGRAMMABLE THERMOSTAT

WIRING DIAGRAM

PECO is a registered trademark of PECO, Inc. The PECO logo is a trademark and/or service mark of PECO, Inc.

Automation and Controls

Division of PECO, Inc.

PO Box 82189, Portland, OR 97282

Phone: 800-874-8547 / 503-233-6401

Email: sales@pecomanufacturing.com

www.pecomanufacturing.com

TECHNICAL SPECIFICATIONS

Temperature Range 50 to 90°F / 10 to 32°C factory default, adjustable inward

Maximum Ambient 130°F / 54°C

Load Connections Wire leads

Mounting Installs on a standard 4" x 4" (101.6mm x 101.6mm) device

box with a 2" x 4" (50.8mm x 01.6mm) horizontal mud ring

Agency Approvals UL, UL Canada

Black

Yellow

White/Black

White/Blue

White/Gray

Blue

Red

White/Brown

White/Red

White/Orange

Brown

L2 / NEUTRAL

Setback Input/ Door Switch

Pipe Sensor

Occupancy Detector

Cool

(Main Output)

Heat

(Secondary Output)

Fan Low

Fan Medium

Fan High

OutsideAir

THERMOSTAT CONNECTIONS

LOW VOLTAGELINE VOLTAGE

White/Yellow

White/Violet

Remote Probe

Circuit Common

OUTPUTS

See Ratings

Accessories

Available

from

PECO

RATINGS

MOUNTING INSTRUCTIONS

SYSTEM FAN PROGRAM

MODEL SELECTION GUIDE

Model Part Number Description

TA180-001 69378 7-Day Programmable, 3 Fan Speeds, 24-277VAC, FC Stat

TB180-001 69379 7-Day Programmable, Staged Fan Speed, 24-277VAC, FC Stat

RATINGS

VOLTAGE RES

AMPS PILOT

DUTY HP

24 VAC NA NA NA 24 VA NA

FLA LRA

120 VAC 5.8 34.8 6.0 125 VA 1/4

240 VAC 2.9 17.4 5.0 125 VA 1/4

277 VAC 2.4 14.4 4.2 125 VA 1/4

COMBINED LOAD CURRENT NOTTO EXCEED 20AMPS
