Operating Guide

Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer

servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before

using this appliance, read the operating guide for further warnings.

Este símbolo tiene el propósito, de alertar al usuario de la presencia de “(voltaje) peligroso” sin ais-

lamiento dentro de la caja del producto y que puede tener una magnitud suficiente como para constituir

riesgo de descarga eléctrica.

Este símbolo tiene el propósito de alertar al usario de la presencia de instruccones importantes sobre la

operación y mantenimiento en la información que viene con el producto.

PRECAUCION: Riesgo de descarga eléctrica ¡NO ABRIR!

PRECAUCION: Para disminuír el riesgo de descarga eléctrica, no abra la cubierta. No hay piezas útiles dentro.

Deje todo mantenimiento en manos del personal técnico cualificado.

ADVERTENCIA: Para evitar descargas eléctricas o peligro de incendio, no deje expuesto a la lluvia o humedad

este aparato Antes de usar este aparato, Iea más advertencias en la guía de operación.

Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur la présence d’une tension dangereuse

pouvant être d’amplitude suffisante pour constituer un risque de choc électrique.

Ce symbole est utilisé dans ce manuel pour indiquer à l’utilisateur qu’il ou qu’elle trouvera d’importantes

instructions concernant l’utilisation et l’entretien de l’appareil dans le paragraphe signalé.

ATTENTION: Risques de choc électrique — NE PAS OUVRIR!

ATTENTION: Afin de réduire le risque de choc électrique, ne pas enlever le couvercle. Il ne se trouve à l’intérieur

aucune pièce pouvant être reparée par l’utilisateur. Confiez I’entretien et la réparation de l’appareil à un réparateur

Peavey agréé.

AVERTISSEMENT: Afin de prévenir les risques de décharge électrique ou de feu, n’exposez pas cet appareil à la

pluie ou à l’humidité. Avant d’utiliser cet appareil, lisez attentivement les avertissements supplémentaires de ce

manuel.

Dieses Symbol soll den Anwender vor unisolierten gefährlichen Spannungen innerhalb des Gehäuses

warnen, die von Ausreichender Stärke sind, um einen elektrischen Schlag verursachen zu können.

Dieses Symbol soll den Benutzer auf wichtige Instruktionen in der Bedienungsanleitung aufmerksam

machen, die Handhabung und Wartung des Produkts betreffen.

VORSICHT: Risiko — Elektrischer Schlag! Nicht öffnen!

VORSICHT: Um das Risiko eines elektrischen Schlages zu vermeiden, nicht die Abdeckung enfernen. Es befinden

sich keine Teile darin, die vom Anwender repariert werden könnten. Reparaturen nur von qualifiziertem

Fachpersonal durchführen lassen.

ACHTUNG: Um einen elektrischen Schlag oder Feuergefahr zu vermeiden, sollte dieses Gerät nicht dem Regen

oder Feuchtigkeit ausgesetzt werden. Vor Inbetriebnahme unbedingt die Bedienungsanleitung lesen.

2

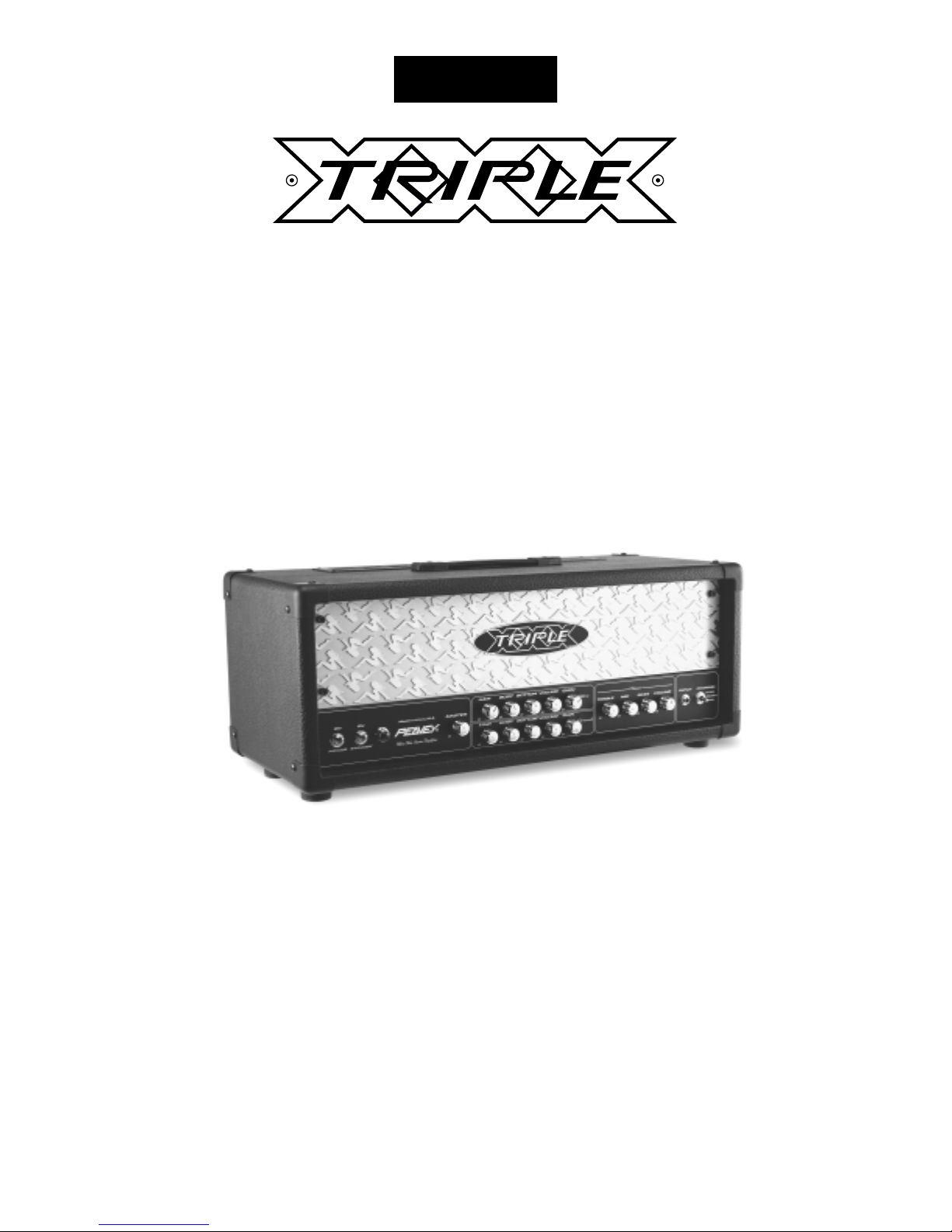

As hot as the name implies, this newest member of the Ultra™Tube Series rips. From its high-gain

input to paralleled speaker output jacks, the Peavey Electronics Triple XXX is not for the faint of

heart. Engineered for today’s discriminating guitarist, this amplifier is loaded with practical features

useful in real-world applications. Delivering an earth-quaking 120 Watts of pure tube power, the

Triple XXX is easily controllable thanks to a master volume pot, as well as independent volume

controls for each of its three channels. The Ultra and Crunch channels also have gain controls to

further assist in taming this beast while achieving killer sound. Tone contour is accomplished through

passive controls for Bass, Mid, and Treble on the Clean channel, while the Ultra and Crunch

channels utilize Peavey’s exclusive Bottom, Body, and Hair active controls. Designed to work

equally well into 4, 8, or 16-Ohm loads, matching this monster to a cabinet is limited only by your

imagination. With footswitchable channel and effects loop, the Triple XXX lets you keep your hands

on the guitar - and your eyes on your dream.

FEATURES

• Three 12AX7 preamp tubes

• Four 6L6GC power amp tubes driven by a 12AX7

• Power amp convertible to use four EL34 tubes

• Footswitchable effects loop with independent send and return controls

• Damping switch (Tight, Medium, Loose)

• Special noise gate circuitry on Ultra and Crunch channels

• Line out with level control

• Cabinet impedance switch (4, 8, or 16 Ohms)

• Heavy-duty power, standby and channel select toggle switches

• Classic power status indicator lamp

• Chrome-plated brass control knobs

3

ENGLISH

(1) POWER SWITCH

This two-way toggle switch applies mains power to the unit. The red POWER STATUS LAMP

(3) will illuminate when this switch is in the ON position.

(2) STANDBY SWITCH

This two-way toggle switch allows the amp to be placed in the STANDBY mode. In the

STANDBY position the tubes stay hot but the amplifier is not operational. Switching to the ON

position places the amp in active mode.

(3) POWER STATUS LAMP

This indicator illuminates when mains power is being supplied to the amp.

(4) MASTER VOLUME

This control sets the overall volume level of the amp. Once the desired balance between the

three channels in the amplifier has been achieved, the entire output level of the unit can be

increased or decreased by rotating this control. Clockwise rotation increases level;

counterclockwise rotation decreases level.

(5) HAIR

This control, on both the Ultra and Crunch channels, varies the high frequency response of

the amplifier. It is an active control (shelving type) and allows 15 dB of boost or cut.

(6) BODY

This control, on both the Ultra and Crunch channels, varies the mid frequency response of

the amplifier. It is an active control (peak/notch type) and allows 15 dB of boost or cut.

(7) BOTTOM

This control, on both the Ultra and Crunch channels, varies the low frequency response of the

amplifier. It is an active control (shelving type) and allows 15 dB of boost or cut.

(8) VOLUME

This control, on all three channels, sets the overall level of its respective channel.

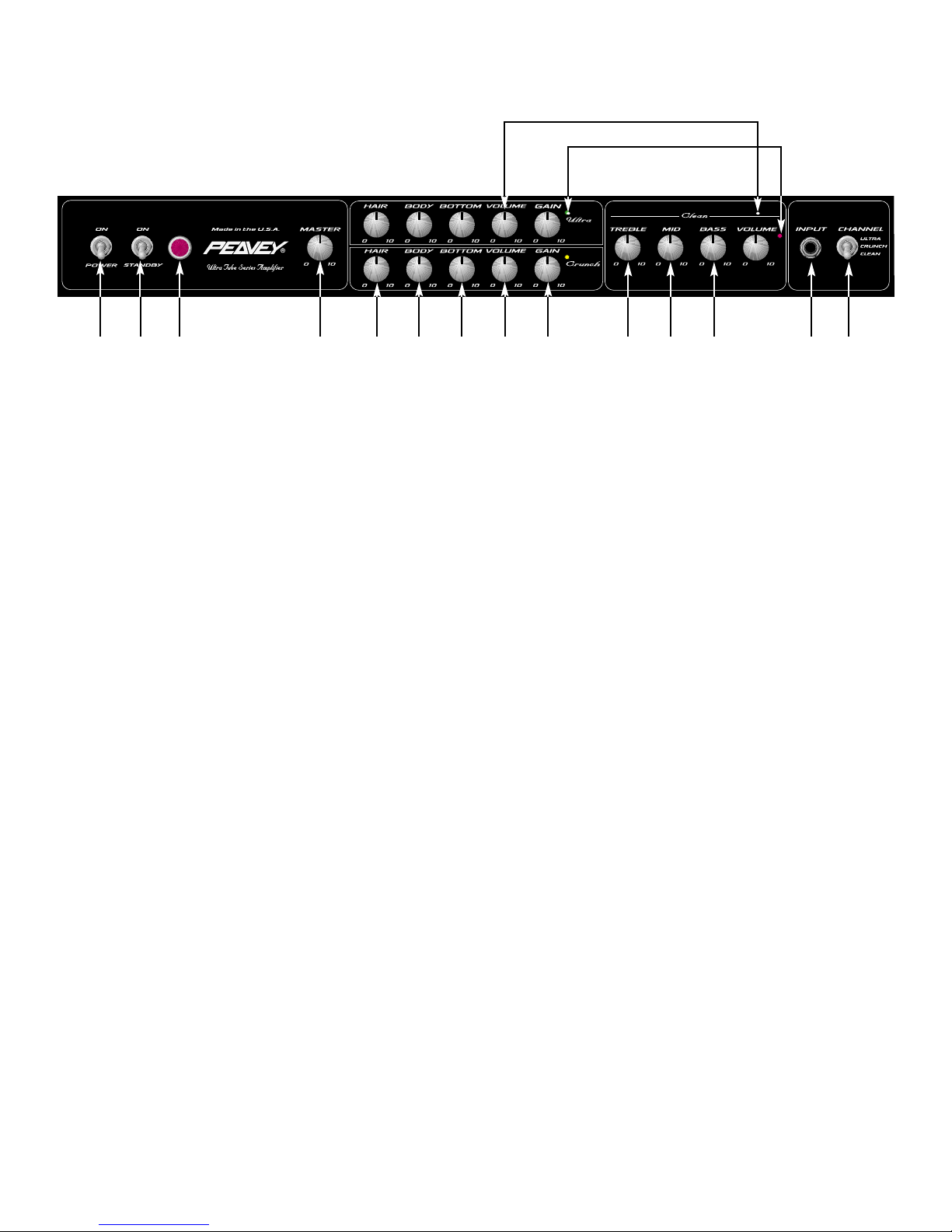

FRONT PANEL

1 2 43 65 87 9 11 12 13 14 15

10

8

4

(9) GAIN

This control, on both the Ultra and Crunch channels, controls the input volume level of the

channel. Rotating this control clockwise will increase the amount of preamp distortion and

sustain.

(10) CHANNEL ACTIVATION LEDs

These indicators signify which channel is active. Ultra channel activation illuminates the red

LED; Crunch channel activation illuminates the yellow LED; and Clean channel activation

illuminates the green LED.

(11) TREBLE

This passive control regulates the high frequencies for the Clean channel.

(12) MID

This passive control regulates the mid frequencies for the Clean channel.

(13) BASS

This passive control regulates the low frequencies for the Clean channel.

(14) INPUT

This 1/4" jack is designed to accommodate most any guitar output signal. Input signal gain

can be adjusted by the GAIN (9) controls (Ultra and Crunch channels only).

(15) CHANNEL SELECT SWITCH

This three-position toggle switch allows selection between the amplifier’s three channels. LED

(10) illumination indicates which channel is active. Channel switching can also be

accomplished by footswitch. See the FOOTSWITCH section of this manual for explanation of

switch operation. The CHANNEL SELECT SWITCH must be set in the Ultra position in order

for the footswitch to operate properly.

5

(16) EFFECTS SEND LEVEL

This calibrated (0 – 10) control sets the level of signal being sent to external effects and/or

signal processors. Clockwise rotation increases the amount of signal being sent;

counterclockwise rotation decreases the amount. For the quietest operation, the EFFECTS

SEND LEVEL should be set as high as possible. Generally, the SEND and RETURN levels

should be set oppositely. If the EFFECTS SEND LEVEL is set low, the EFFECTS RETURN

LEVEL (19) is set high to achieve unity gain. If volume boost is desired, turn both controls to

higher settings.

(17/18) EFFECTS SEND / EFFECTS RETURN

These 1/4" mono (TS) jacks allow signal to be sent to and returned from external effects

and/or signal processors. Using shielded cables with 1/4" mono (TS) phone plugs, patch from

EFFECTS SEND to the input of the external device, and from the output of the external

device to EFFECTS RETURN. Only devices that do not increase signal gain should be used

in this effects loop (chorus, delay, reverb, etc.). If the footswitch is used, the EFFECTS

SELECTOR (33) switch must be depressed to activate the effects loop. See the

FOOTSWITCH section of this manual for explanation of switch operation.

(19) EFFECTS RETURN LEVEL

This calibrated (0 – 10) control sets the level of signal being returned from external effects

and/or signal processors. Clockwise rotation increases the amount of signal being returned;

counterclockwise rotation decreases the amount. Again, SEND and RETURN levels should

be set oppositely, with the SEND level being high and the RETURN level low to ensure the

quietest operation.

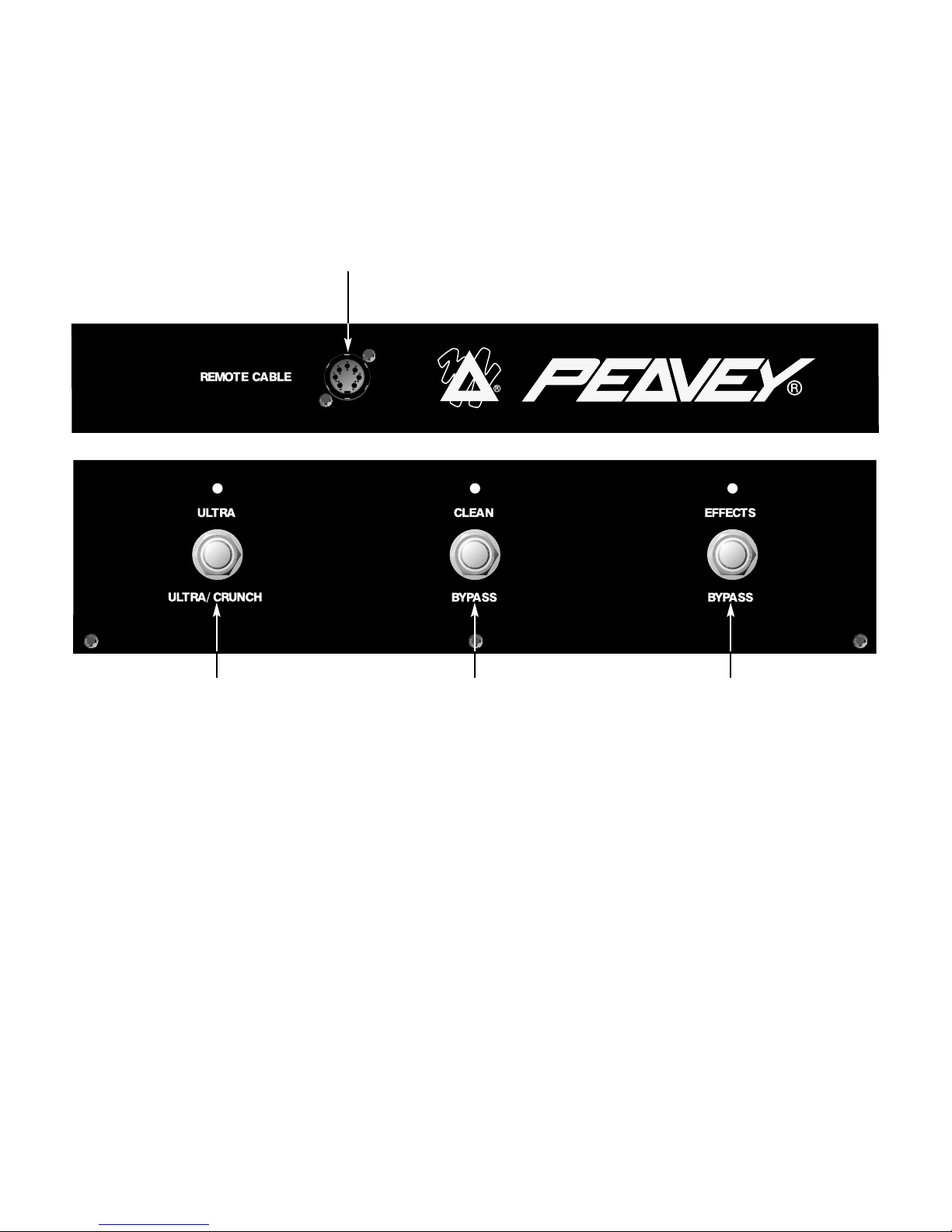

(20) REMOTE SWITCH

This seven-pin DIN connector is provided for the connection of the remote footswitch. The

footswitch cable should be connected before the amp is powered up. See the FOOTSWITCH

section of this manual for explanation of switch operation.

(21) BIAS TEST TERMINALS

These terminals are provided to measure the bias of the amplifier’s power tubes. A knob

behind the back panel grill allows for adjustment. Bias adjustment should only be done by a

qualified technician.

(22) DAMPING SWITCH

This three-position switch allows adjustment of the amplifier’s damping factor. Damping is the

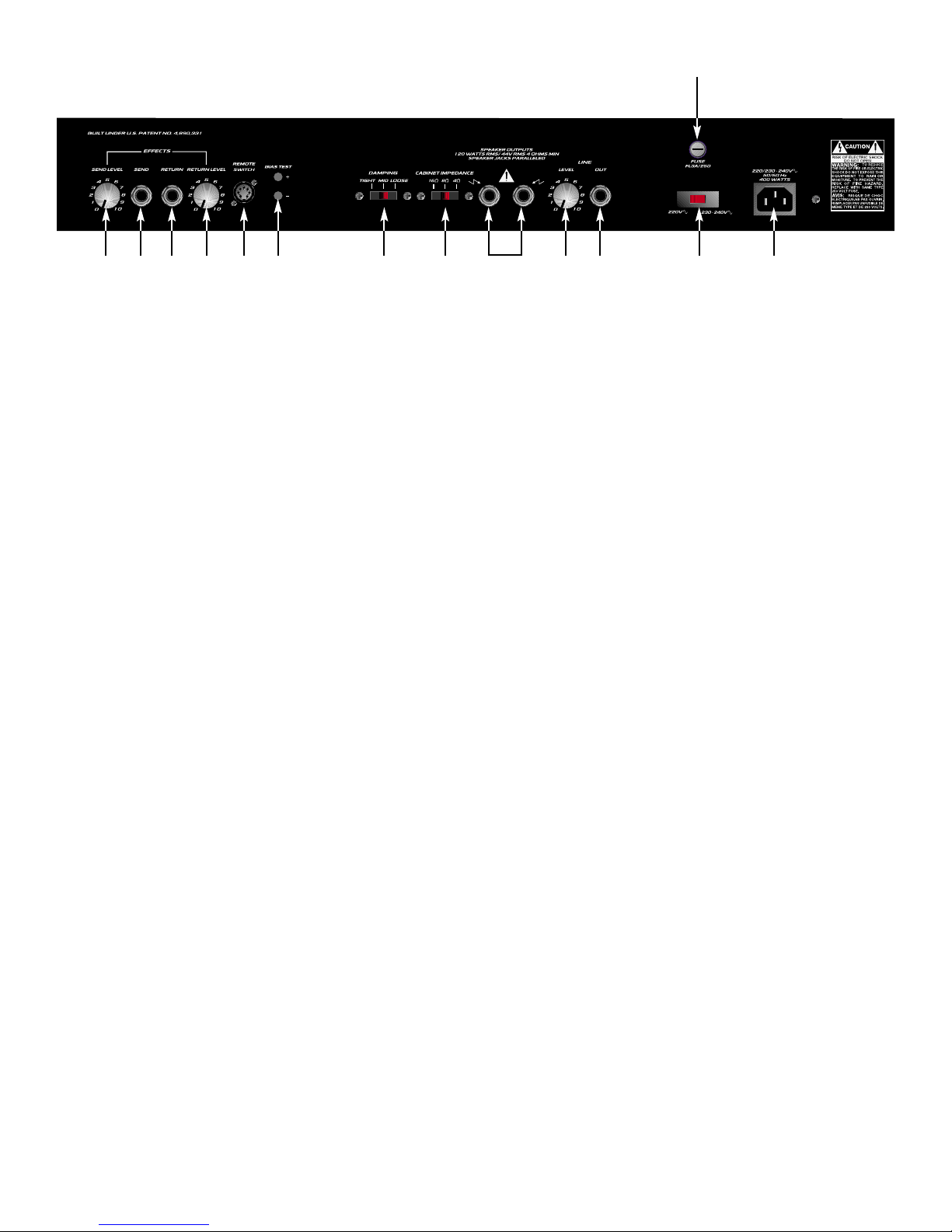

REAR PANEL

16 17 18 19 20 21 22 23 2524 26 28 29

27

6

ability of an amplifier to control speaker cone motion after a signal disappears. A high

damping factor (TIGHT) reduces cone vibration quicker than a low (LOOSE) factor. This

switch works much like the resonance and presence controls on other Peavey amps, if those

controls were turned simultaneously. If the DAMPING SWITCH is changed, the volume of the

amp will also change and require re-adjustment.

(23) CABINET IMPEDANCE SWITCH

This three-position switch allows appropriate selection of speaker cabinet impedance. If two

enclosures of equal impedance are used, the switch should be set to half the individual value.

For example, two 16-Ohm enclosures necessitate an 8-Ohm setting, while two 8-Ohm

enclosures would require a 4-Ohm setting. Minimum speaker impedance is 4 Ohms.

(24) SPEAKER OUTPUTS

These paralleled 1/4" mono (TS) jacks are provided for the connection of speaker

enclosure(s). Again, minimum speaker impedance is 4 Ohms. The CABINET IMPEDANCE

SWITCH (23) should be set to match the load of the speaker cabinet(s).

(25) LINE OUT LEVEL

This control sets the level of signal being sent out of the LINE OUT (26) jack. It may be used

to balance the level of slave power amp/speaker systems driven from the LINE OUT (26) to

the level of cabinets driven from the SPEAKER OUTPUTS (24).

(26) LINE OUT

This 1/4" mono (TS) jack provides a post-power amp signal to drive another power

amp/speaker system while maintaining the amplifier’s tone.

(27) FUSE

A fuse is located within the cap of the fuse holder. This fuse must be replaced with one of the

same type and value to avoid damaging the amplifier and voiding the warranty. If the amp

repeatedly blows the fuse, it should be taken to a qualified service center for repair.

WARNING: THE FUSE SHOULD ONLY BE REPLACED AFTER THE POWER CORD HAS

BEEN DISCONNECTED.

(28) GROUND POLARITY SWITCH

This three-position, rocker-type switch should normally be placed in the center (0) position. If

hum or noise is noticed coming from the speaker enclosure(s), the switch may be placed in

the “+” or “-” position to minimize hum/noise. If changing the polarity does not alleviate the

problem, consult your authorized Peavey dealer, the Peavey factory, or a qualified service

technician.

(29) IEC MAINS CONNECTOR

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug

and ratings for the intended operating voltage is included in the carton. The mains cord

should be connected to the amplifier before connecting to a suitable AC outlet.

U.S DOMESTIC AC MAINS CORD

The mains cord supplied with the unit is a heavy-duty, 3-conductor type with a conventional

120 VAC plug with ground pin. If the outlet used does not have a ground pin, a suitable

grounding adapter should be used, and the third wire should be grounded properly.

Never break off the ground pin on any equipment. It is provided for your safety.

7

(30) CABLE CONNECTOR

This 7-pin DIN connector is provided for connecting the footswitch to the amplifier REMOTE

SWITCH (20) via the cable included in the carton. Connections at the switch and the amplifier

should be made before the amp is powered up.

(31) ULTRA / CRUNCH SELECTOR

This switch selects between the Ultra and Crunch channels on the amplifier. The adjacent

LED will illuminate when the Ultra channel is selected. When the LED is dark, the Crunch

channel is selected. The CLEAN SELECTOR (32) must be in the BYPASS mode to activate

either the Ultra or Crunch channel.

(32) CLEAN SELECTOR

This switch selects the Clean channel and will activate regardless of the position of the

ULTRA / CRUNCH SELECTOR (31). The adjacent LED will illuminate when the Clean

channel is selected. This switch must be in the BYPASS position, indicated by a dark LED, in

order to utilize the ULTRA / CRUNCH SELECTOR (31).

(33) EFFECTS SELECTOR

This switch activates the amplifier’s effects loop (16 – 19). The adjacent LED will illuminate

when the effects loop is active.

FOOTSWITCH 30

8

NOTE: FOR UK ONLY

If the colors of the wires in the mains lead of this unit do not correspond with the colored markings

identifying the terminals in your plug, proceed as follows: (1) The wire that is colored green and

yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored

green, or colored green and yellow. (2) The wire that is colored blue must be connected to the

terminal that is marked with the letter N or the color black. (3) The wire that is colored brown must

be connected to the terminal that is marked with the letter L or the color red.

31 32 33

Power Amplifier Section:

Tubes:

Four 6L6GCs with 12AX7 driver

Rated Power and Load:

120 W RMS into 16, 8, or 4 Ohms

Power @ Clipping:

(typically @ 5% THD, 1 kHz, 120 VAC line)

120 W RMS into 16, 8, or 4 Ohms

Frequency Response:

±3 dB 50 Hz to 20 kHz @ 90 W RMS into 8 Ohms

Hum and Noise:

Greater than 76 dB below rated power

Power Consumption:

Domestic: 400 W, 50/60 Hz, 120 VAC

Export: 400 W, 60 Hz, 220-230/240 VAC

Preamp Section:

Tubes:

Three 12AX7s

The following specs are measured @ 1 kHz with the controls

preset as follows:

Low and High EQ @ 10, Mid EQ @ 0

Ultra and Crunch Posts @ 10

Bottom, Body, and Hair EQ @ 5

Effects Send @ 0

Effects Return @ 10

Master Level @ 5

Nominal Levels are with Pre Gain @ 5

Minimum Levels are with Pre Gain @ 10

Clean Channel:

Nominal Input Level: -20 dBV, 100 mV RMS

Minimum Input Level: -30 dBV, 30 mV RMS

Maximum Input Level: 0 dBV, 1.0 mV RMS

Crunch Channel:

Nominal Input Level: -80 dBV, 0.1 mV RMS

Minimum Input Level: -90 dBV, 0.03 mV RMS

Ultra Channel:

Nominal Input Level: -80 dBV, 0.1 mV RMS

Minimum Input Level: -90 dBV, 0.03 mV RMS

Effects Send:

Load Impedance: 47 k Ohms or greater

Minimum Output: -10 dBV, 300 mV RMS

Maximum Output: 0 dBV, 1 V RMS

Effects Return:

Impedance: High-Z, 80 k Ohms

Minimum Input Sensitivity: -10 dBV, 300 mV RMS

Maximum Input Sensitivity: 0 dBV, 1 V RMS

Line Output:

Load Impedance: 47 k Ohms or greater

Adjustable Output: ±20 dBV, 0.1 V RMS-10 V RMS

Remote Footswitch:

Special 3-button unit with LED indicators (supplied)

System Hum and Noise @ Nominal Level:

(Clean channel, 20 Hz to 20 kHz unweighted)

Greater than 74 dB below rated power

(Special noise gate circuitry for Ultra & Crunch)

Equalization: (Clean channel only)

Custom Low, Mid, and High passive type EQ

Voicing: (Ultra and Crunch channels only)

Active Bottom, Body, and Hair (Edge) EQ

Boost/Cut ±12 dB

Dimensions and Weight:

11.0" (279 mm) H x 26.5" (673 mm) W x 11.0" (279 mm) D

52 lbs. (23.6 kg)

TRIPLE XXX SPECIFICATIONS

9

10

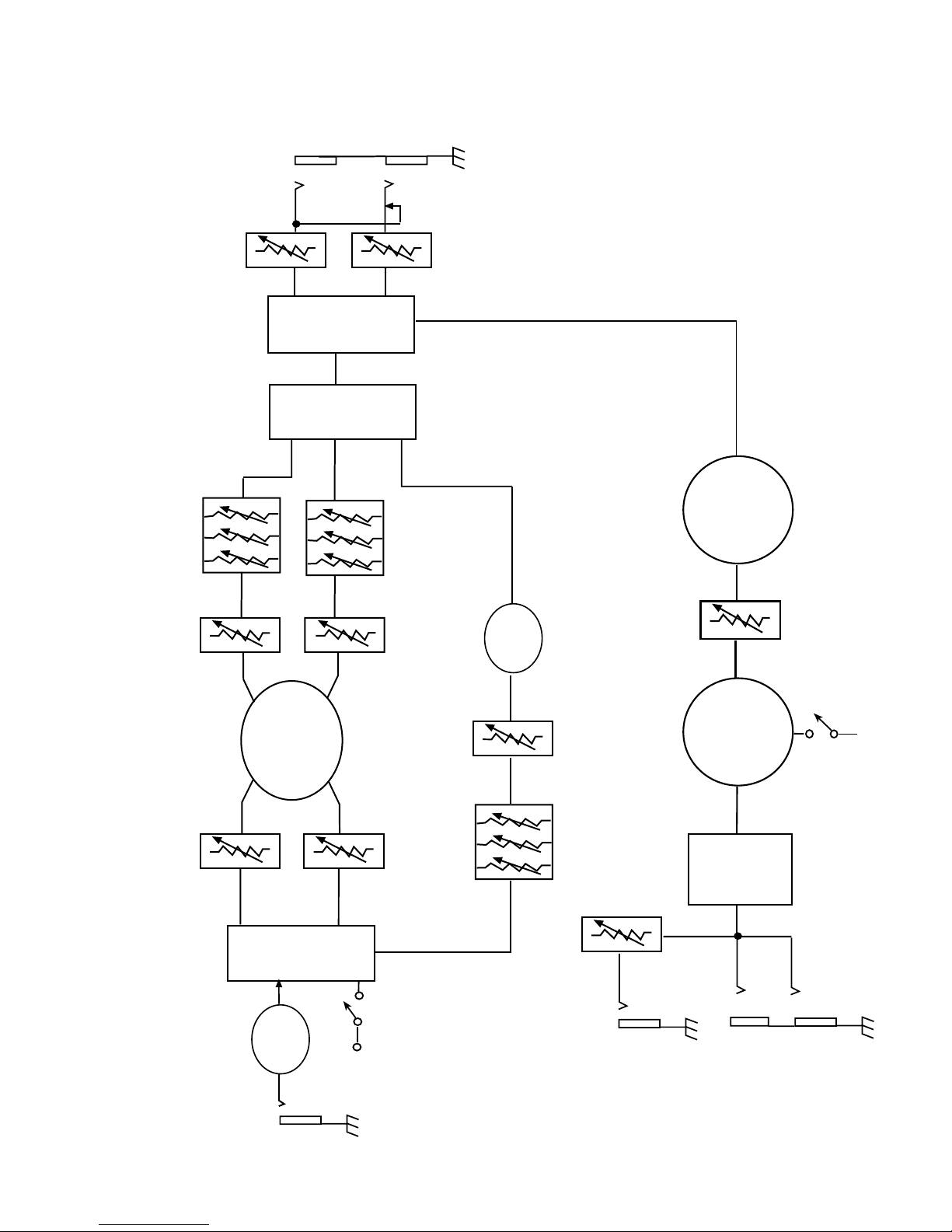

This block diagram shows the signal path within the unit. In order to thoroughly

understand the unit's functions, please study the block diagram carefully.

TUBE

STAGE

SWITCH

LOGIC

RETURN

SEND

F.S.W

CHANNEL

ULTRA

TUBE

STAGES

SWITCH

LOGIC FX LOOP

BYPASS

EFFECTS

LOOP

VOICING

INPUT

BOT. BODY HAIR

BOT. BODY HAIR

ULTRA

CLEAN

TUBE

STAGE

CLEAN

BASS MID TREBLE

MASTER

VOLUME

TUBE

STAGES

TUBE

POWERAMP

IMPEDANCE

SWITCH

SEND

RETURN

LEVEL

LINE

OUT

CRUNCH

PRE

PRE POST

POST

CRUNCH

PRE

DAMPING

SWITCH

4Ω8Ω16Ω

Triple XXX Block Diagram
