PeakTech 1286 Manual de usuario

PeakTech®1286, 1326, 1331

User manual

PC Oscilloscope

1. Safety instructions for operating the appliance

This product complies with the requirements of the following European Union Directives for CE

conformity: 2014/30/EU (Electromagnetic Compatibility), 2014/35/EU (Low Voltage), 2011/65/EU

(RoHS) with the Commission's amendment of Directive (EU) 2015/863. Overvoltage category II;

pollution degree 2.

To ensure the operational safety of the unit and to avoid serious injuries due to current or voltage surges

or short circuits, it is essential to observe the following safety instructions when operating the unit.

Damage caused by non-observance of these instructions is excluded from claims of any kind.

General:



Read these operating instructions carefully and make them available to subsequent users.



It is essential to observe the warning notices on the unit; do not cover or remove them.



Pay attention to the use of the unit and use it only in its appropriate overvoltage

category.



Familiarise yourself with the functions of the meter and its accessories before taking the

first measurement.



Do not operate the meter unattended or secured against unauthorised access.



Use the unit only for its intended purpose and pay particular attention to warnings on

the unit and information on maximum input values.

Electrical safety:



Voltages above 25 VAC or 60 VDC are generally considered dangerous voltage.



Work on dangerous voltages only by or under the supervision of qualified personnel.



When working on dangerous voltages, wear suitable protective equipment and observe the

relevant safety rules.



Do not exceed the maximum permissible input values under any circumstances

(serious risk of injury and/or destruction of the unit).



Pay special attention to the correct connection of the test leads depending on the

measuring function to avoid a short circuit in the unit.



Remove the test probes from the object to be measured before changing the measuring function.



Never touch the bare test probes during measurement, only hold the test leads by

the handle behind the finger guard.



Discharge any capacitors present before measuring the circuit to be measured.



Note the different properties of the galvanic isolation of the various interfaces and

connections.

Measurement

environment:



Avoid any proximity to explosive and flammable substances, gases and dust. An electric

spark could cause an explosion or deflagration - danger to life!



Do not carry out measurements in corrosive environments, the unit could be damaged or

contact points inside and outside the unit could corrode.



Avoid working in environments with high interference frequencies, high-energy circuits or

strong magnetic fields, as these can negatively affect the unit.



Avoid storage and use in extremely cold, humid or hot environments, as well as

long-term exposure to direct sunlight.



Use units in humid or dusty environments only according to their IP protection class.



If no IP protection class is specified, use the unit only in dust-free and dry indoor

areas.



When working in damp or outdoor areas, take special care to ensure that the handles of

the test leads and test probes are completely dry.



Before starting measurement operation, the unit should be stabilised to the ambient

temperature (important when transporting from cold to warm rooms and vice versa).

Maintenance and care:



Never operate the appliance if it is not completely closed.



Before each use, check the unit and its accessories for damage to the insulation, cracks,

kinks and breaks. If in doubt, do not take any measurements.



Maintenance and repair work on the unit may only be carried out by qualified personnel.



Clean the cabinet regularly with a damp cloth and a mild detergent. Do not use

corrosive abrasive cleaners.



Do not make any technical changes to the unit.

2. Safety symbols and terms

2.1 Safety symbols

You can find the following symbols in this operating manual or on the meter.

WARNING!

"Warning" indicates conditions and operating steps that pose a danger to the operator.

CAUTION!

"Caution" indicates conditions and operations that may cause damage to the product or

other property.

Danger: High

voltage

Seeoperating

instructions

Protectiveconductor

terminal

Unit dimensions

Earthterminal

(Earth)

This product can only be used in the specified applications. Read the following safety instructions before

operating the unit.

Warning:

To avoid fire or electric shock, please use the correct power supply. Only use the power supply unit from

the manufacturer.

Warning:

The channels of the oscilloscope are not electrically separated. The channels should apply common

ground when measuring. To prevent short circuits, the ground contacts of the probes must not be

connected to different non-isolated DC levels.

Warning:

The channels should use a common ground in measurement mode. To prevent short circuits, the

ground contacts of the probes must not be connected to different non-insulated DC levels.

The oscilloscope earth wire connection device diagram:

Sample

Oscilloscope

AC Adapter

Electrical Outlet

Signal Input

The diagram of the earth wire connection setup when the oscilloscope is powered via the PC's USB

port:

Ground Clip

Sample Oscilloscope

(PC USB power) PCElectrical Outlet

Signal Inp

It is not allowed to measure from the mains while the oscilloscope is powered by the AC adapter or

when the oscilloscope is powered from the USB port of the PC:

Warning:

If the oscilloscope is connected to an input signal greater than 42V peak (30Vrms) or circuits

greater than 4800VA, please follow the instructions below to avoid fire or electric shock:

Only use insulated probes and test leads.

Check all accessories before use and replace if damaged. If in doubt, do not take any

measurements.

Remove the USB cable connecting the oscilloscope to the computer.

Never exceed the maximum specified input voltages. As the voltage is transmitted directly to the

oscilloscope with the aid of the probe, the unit may be damaged or there is a risk of injury from

electric shock.

Do not use exposed BNC or banana plugs.

Do not insert any metal objects into the connections.

To avoid fire or electric shock when a probe input is connected to more than 42V peak (30 Vrms) or to

circuits of more than 4800VA:

•

Use only insulated probes and adapters supplied with the meter or specified for the oscilloscope.

•

Before use, check probes and accessories for mechanical damage and replace if damaged.

•

Remove all probes and accessories from the oscilloscope when not in use.

•

Do not apply voltages greater than 400 V difference to earth potential to the inputs when measuring

in a CAT II environment.

•

Do not apply voltages greater than 400 V difference between the isolated inputs when measuring in

a CAT II environment.

•

Do not apply input voltages above the oscilloscope's rating. Be careful when performing 1:1 tests,

as the voltage is transmitted directly to the oscilloscope via the probe tip.

•

Do not touch the exposed part of the BNC inputs.

•

Do not insert any metal objects into the connections.

•

Always use the oscilloscope in the manner specified.

•

Rated voltages mentioned in the warning are the limits for "operating voltage". The specified V ACrms

(50-60Hz) for AC sinusoidal applications and as V DC for DC applications. Overvoltage category II

refers to local level, which becomes applicable for appliances and portable devices.

3. Device overview

3.1 P 1286

AC power adapter connection

USB Host Port: For WiFi Dongle (Optional)

USB port: For direct connection to the PC

LAN Port: Network port for integrating the oscilloscope into a network.

Probe compensation: test signal output (3.3/1KHz)

Multi port: trigger output; pass/fail output; EXT trigger input, function generator

Channel 2 Signal Input

Channel 1 Signal Input

Note: If you operate the oscilloscope in a network and thus connect the unit to a PC via the LAN

port, it is necessary to supply the oscilloscope with power using the AC power adapter.

3.2 P 1326 / P 1331

AC power adapter connection

USB Host Port: For WiFi Dongle (Optional)

USB port: For direct connection to the PC

LAN Port: Network port for integrating the oscilloscope into a network.

Probe compensation: test signal output (3.3/1KHz)

Channel 4 Signal Input

Channel 3 Signal Input

Channel 2 Signal Input

Channel 1 Signal Input

Note: If you operate the oscilloscope in a network and thus connect the unit to a PC via the LAN port,

it is necessary to supply the oscilloscope with power using the AC power adapter.

4. Connection with the PC

To operate the PC oscilloscope, you need the latest version of the software and the latest driver. The

software for the oscilloscope can be found on the CD included in the scope of delivery or on our

homepage, PeakTech.de on the product page. The installation of the driver is explained in subitem 6

PeakTech® Oscilloscope Software Help.

To install the software, open the installation file and execute it. The installation of the software is then

carried out automatically.

After installation, open the software and connect the PC oscilloscope to the computer using the

USB cable supplied. In the upper left corner of the software, you will now see that the software has

found the oscilloscope.

Click on USBFound and then on the displayed device in the window that opens. The oscilloscope can

also be connected to the PC via the LAN port. To connect via LAN, go to point 22. Using the LAN

port.

4.1 Conduct the General Examination

It is recommended that after receiving a new oscilloscope, a check of the instrument is carried out as

follows:

Check whether the unit has been damaged during transport.

If you find that the cardboard packaging or the protective foam pads are badly damaged, save

them until the entire unit and its accessories have passed the electrical and mechanical test.

Checking the accessories

Check probes and other accessories for possible damage or bare or bent cables and wires

before putting them into operation. If in doubt, do not take any measurements and inform your

dealer.

Checking the unit

If you notice any damage to the exterior of the unit or if the unit does not function properly or

does not pass the performance test, please contact your dealer. If the unit has been damaged

during transport, please keep the outer packaging.

4.2 Performing the functional test

Check the proper functioning of the meter as follows:

Do a quick functional test to check the normal operation of the unit. First connect the oscilloscope to

the PC, then carry out the following steps:

In the software interface, click to restore the factory settings. The default setting of the

damping coefficient of the probe in the software is 10X.

Set the oscilloscope probe switch to 10X and connect the probe to CH1 channel.

Connect the probe tip and earth terminal to the probe compensation connector on the oscilloscope.

Click on at the top right of the software interface to start AUTO set mode.

The square waveform of 1 kHz and 3.3VSS is displayed.

Check channel 2 by repeating steps 2 and step 3.

4.3 Performing the probe compensation

When you connect the probe to an input channel for the first time, you must adapt the probe to the input

channel. An uncompensated or incorrectly compensated probe will result in measurement errors.

Perform the probe compensation as follows:

Click on (main menu) in the software interface. Select channel and set the divider ratio to x10. Set

the switch on the probe to 10x and connect the probe to channel 1 of the oscilloscope. If you use a probe

with a gripper tip, make sure that the gripper tip keeps close contact with the probe.

Connect the probe tip to the signal output of the probe compensator and connect the reference terminal

to the ground terminal of the probe compensator, then click (Auto-Set) on the top right of the software

interface.

Check the displayed waveforms and adjust the probe until correct compensation is achieved (see fig. 8

and 9).

Overcompensated

Correctly compensated

Undercompensate

Fig. 8 Waveform representation of the probe compensation

Repeat the steps if necessary.

Fig. 9 Scanning head adjustment

10-

4.4 Setting the probe damping factor

The probe has several probe damping factors that affect the vertical scaling factor of the oscilloscope.

If the set probe attenuation factor is to be changed or checked, press the function menu key for the

respective channel and then the selection key corresponding to the probe until the correct value is

displayed.

This setting remains valid until it is changed again.

Note: The damping factor of the probe in the menu is preset to 10X at the factory.

Make sure that the value set on the attenuation switch of the probe corresponds to the attenuation value

set on the oscilloscope.

The values that can be set with the switch on the probe are 1 X and 10X (see Fig. 10).

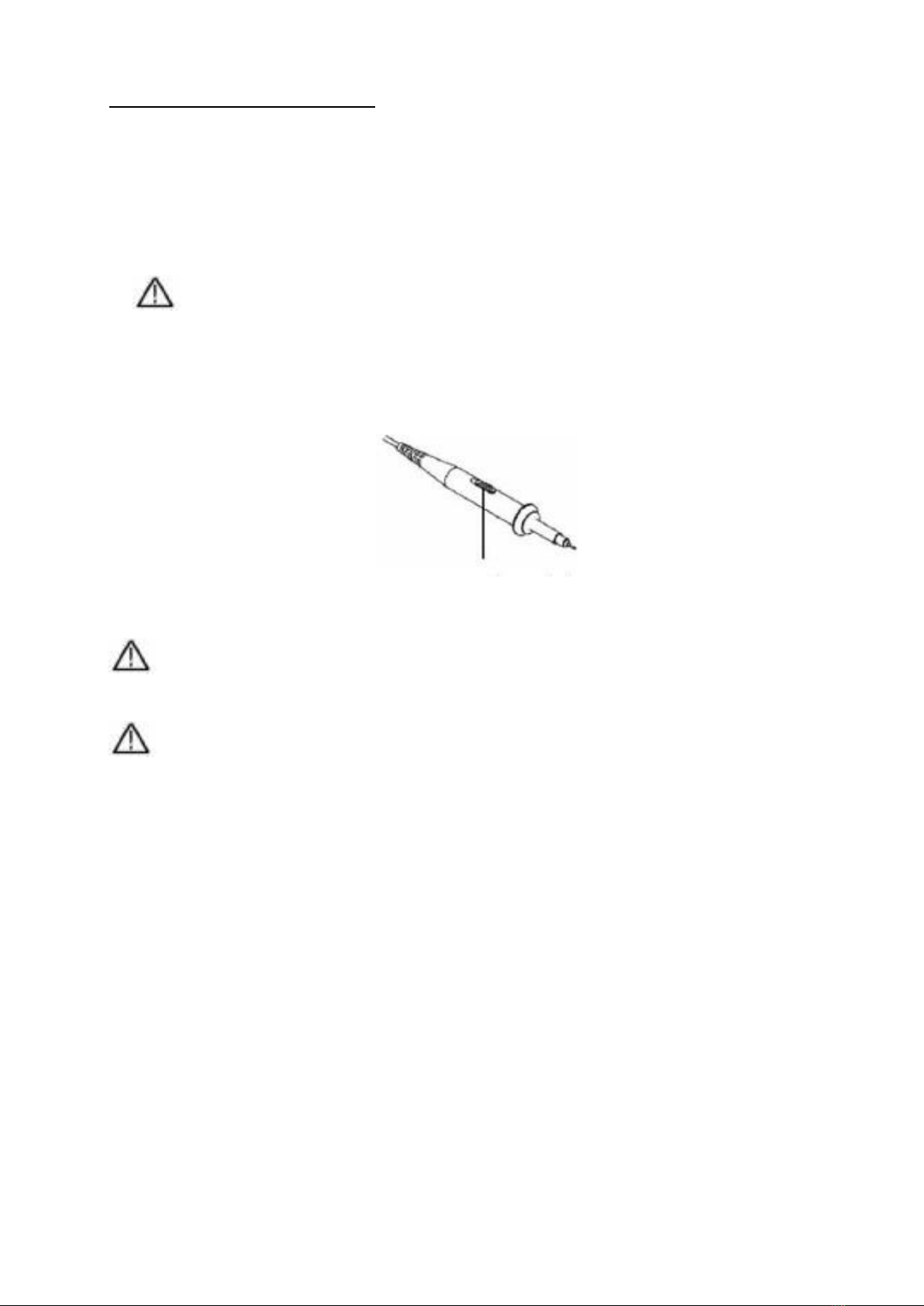

Fig. 10 Damping switch

Note: When the attenuator switch is set to 1X, the probe limits the bandwidth of the

oscilloscope to 5 MHz. You must set the switch to 10X if you want to use the entire bandwidth

of the oscilloscope.

Warning:

To avoid electric shock, always keep your fingers behind the protective safety ring of the

probe during measurement.

To protect yourself from electric shock, do not touch any metal parts of the probe tip when it

is connected to the power supply.

Before taking any measurements, always connect the probe to the oscilloscope and connect

the ground terminal to the earth potential.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de prueba de PeakTech

PeakTech

PeakTech 2700 Manual de usuario

PeakTech

PeakTech P 3441 Manual de usuario

PeakTech

PeakTech 1190 Manual de usuario

PeakTech

PeakTech 1220 Manual de usuario

PeakTech

PeakTech 1145 Manual de usuario

PeakTech

PeakTech 1240 Manual de usuario

PeakTech

PeakTech 1240 Manual de usuario

PeakTech

PeakTech 3365 Manual de usuario

PeakTech

PeakTech 1280 Manual de usuario

PeakTech

PeakTech 1350 Manual de usuario

PeakTech

PeakTech 3730 Manual de usuario

PeakTech

PeakTech 5002 Manual de usuario

PeakTech

PeakTech 2695 Manual de usuario

PeakTech

PeakTech 9020A Manual de usuario

PeakTech

PeakTech 5125 Manual de usuario

PeakTech

PeakTech 3705 Manual de usuario

PeakTech

PeakTech 3690 Manual de usuario

PeakTech

PeakTech 2710 Manual de usuario

PeakTech

PeakTech 1206 Manual de usuario

PeakTech

PeakTech 1115 Manual de usuario

PeakTech

PeakTech 5600 Manual de usuario

PeakTech

PeakTech 1200 Manual de usuario

PeakTech

PeakTech P3730 Manual de usuario

PeakTech

PeakTech 2525 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
