Model 685B0001A10

Electronic Vibration Switch

Installation and Operating Manual

For assistance with the operation of this product,

contact PCB Piezotronics, Inc.

Toll-free: 800-959-4464

24-hour SensorLine: 716-684-0001

Fax: 716-684-3823

E-mail: [email protected]

Web: www.imi-sensors.com

The information contained in this document supersedes all similar information that

may be found elsewhere in this manual.

Service –Due to the sophisticated

nature of the sensors and associated

instrumentation provided by PCB

Piezotronics, user servicing or repair is

not recommended and, if attempted,

may void the factory warranty. Routine

maintenance, such as the cleaning of

electrical connectors, housings, and

mounting surfaces with solutions and

techniques that will not harm the

physical material of construction, is

acceptable. Caution should be observed

to ensure that liquids are not permitted

to migrate into devices that are not

hermetically sealed. Such devices

should only be wiped with a dampened

cloth and never submerged or have

liquids poured upon them.

Repair –In the event that equipment

becomes damaged or ceases to

operate, arrangements should be made

to return the equipment to PCB

Piezotronics for repair. User servicing or

repair is not recommended and, if

attempted, may void the factory

warranty.

Calibration –Routine calibration of

sensors and associated instrumentation

is recommended as this helps build

confidence in measurement accuracy

and acquired data. Equipment

calibration cycles are typically

established by the users own quality

regimen. When in doubt about a

calibration cycle, a good “rule of thumb”

is to recalibrate on an annual basis. It is

also good practice to recalibrate after

exposure to any severe temperature

extreme, shock, load, or other

environmental influence, or prior to any

critical test.

PCB Piezotronics maintains an ISO-

9001 certified metrology laboratory and

offers calibration services, which are

accredited by A2LA to ISO/IEC 17025,

with full traceability to SI through

N.I.S.T. In addition to the normally

supplied calibration, special testing is

also available, such as: sensitivity at

elevated or cryogenic temperatures,

phase response, extended high or low

frequency response, extended range,

leak testing, hydrostatic pressure

testing, and others. For information on

standard recalibration services or

special testing, contact your local PCB

Piezotronics distributor, sales

representative, or factory customer

service representative.

Returning Equipment –Following

these procedures will ensure that your

returned materials are handled in the

most expedient manner. Before

returning any equipment to PCB

Piezotronics, contact your local

distributor, sales representative, or

factory customer service representative

to obtain a Return Warranty, Service,

Repair, and Return Policies and

Instructions Materials Authorization

(RMA) Number. This RMA number

should be clearly marked on the outside

of all package(s) and on the packing

Service, Repair, and Return

Policies and Instructions

list(s) accompanying the shipment. A

detailed account of the nature of the

problem(s) being experienced with the

equipment should also be included

inside the package(s) containing any

returned materials.

A Purchase Order, included with the

returned materials, will expedite the

turn-around of serviced equipment. It is

recommended to include authorization

on the Purchase Order for PCB to

proceed with any repairs, as long as

they do not exceed 50% of the

replacement cost of the returned

item(s). PCB will provide a price

quotation or replacement

recommendation for any item whose

repair costs would exceed 50% of

replacement cost, or any item that is not

economically feasible to repair. For

routine calibration services, the

Purchase Order should include

authorization to proceed and return at

current pricing, which can be obtained

from a factory customer service

representative.

Contact Information –International

customers should direct all inquiries to

their local distributor or sales office. A

complete list of distributors and offices

can be found at www.pcb.com.

Customers within the United States may

contact their local sales representative

or a factory customer service

representative. A complete list of sales

representatives can be found at

www.pcb.com. Toll-free telephone

numbers for a factory customer service

representative, in the division

responsible for this product, can be

found on the title page at the front of this

manual. Our ship to address and

general contact numbers are:

PCB Piezotronics, Inc.

3425 Walden Ave.

Depew, NY14043 USA

Toll-free: (800) 828-8840

24-hour SensorLineSM: (716) 684-0001

Website: www.pcb.com

E-mail: [email protected]

PCB工业监视和测量设备 - 中国RoHS2公布表

PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table

部件名称

有害物质

铅(Pb)

汞

(Hg)

镉

(Cd)

六价铬(Cr(VI))

多溴联苯 (PBB)

多溴二苯醚(PBDE)

住房

PCB板

电气连接器

压电晶体

环氧

铁氟龙

电子

厚膜基板

电线

电缆

塑料

焊接

铜合金/黄铜

本表格依据 SJ/T 11364 的规定编制。

O：表示该有害物质在该部件所有均质材料中的含量均在 GB/T 26572 规定的限量要求以下。

X：表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。

铅是欧洲RoHS指令2011/65/ EU附件三和附件四目前由于允许的豁免。

CHINA RoHS COMPLIANCE

DOCUMENT NUMBER: 21354

DOCUMENT REVISION: D

ECN: 46162

Component Name

Hazardous Substances

Lead

(Pb)

Mercury

(Hg)

Cadmium

(Cd)

Chromium VI

Compounds

(Cr(VI))

Polybrominated

Biphenyls

(PBB)

Polybrominated

Diphenyl

Ethers (PBDE)

Housing

PCB Board

Electrical

Connectors

Piezoelectric

Crystals

Epoxy

Teflon

Electronics

Thick Film

Substrate

Wires

Cables

Plastic

Solder

Copper Alloy/Brass

This table is prepared in accordance with the provisions of SJ/T 11364.

O: Indicates that said hazardous substance contained in all of the homogeneous materials for this part is below the limit

requirement of GB/T 26572.

X: Indicates that said hazardous substance contained in at least one of the homogeneous materials for this part is above

the limit requirement of GB/T 26572.

Lead is present due to allowed exemption in Annex III or Annex IV of the European RoHS Directive 2011/65/EU.

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

685B-Series Electronic Vibration Switch

Operating Guide with Enclosed Warranty Information

3425 Walden Avenue, Depew, New York 14043-2495

Phone (716) 684-0003

Fax (716) 684-3823

Toll Free Line 1-800-959-4IMI

MANUAL NUMBER: 34181

MANUAL REVISION: H

ECO# 47640

PAGE 2

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Table of Contents

Introduction...................................................................................................................... Page 3

General Features

Specifications.................................................................................................................. Page 4

Installation and Wiring..................................................................................................... Page 5

Installation & Dimensional Drawings

Pin Location Diagram- Models with Internal Accelerometer and Triac Relays

Pin Location Diagram- Models with Internal Accelerometer and Electromechanical Relays

Pin Location Diagram- Models with External Accelerometer and Triac Relays

Pin Location Diagram- Models with External Accelerometer and Electromechanical Relays

Configuring the 685B...................................................................................................... Page 11

Internal Diagram- Models with Triac Relays

Internal Diagram- Models with Electromechanical Relays

Using Calibration Mode

Connecting the Remote Reset

Connecting the Raw Vibration Output

Optional Accessories...................................................................................................... Page 14

080A209 Adapter Plate

699A05 Portable 4-20 mA Calibrator

ESD Sensitivity............................................................................................................... Page 16

Ordering Information/ Model Matrix................................................................................ Page 17

PAGE 3

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Introduction

The 685B-Series is an electronic vibration switch designed to monitor vibration levels and trip an alert when a

specified limit is exceeded. A second onboard relay trips an alarm that can be used to shut down a piece of

equipment or act as a secondary alert level. An onboard accelerometer with precision electronics insures

reliability and accuracy.

General Features

Embedded or external piezoelectric accelerometer for improved accuracy and frequency response.

Vibration range can be measured in acceleration, velocity or displacement (factory set).

Provides dual 5 Amp Triac (SPST) or 10 Amp Form C (SPDT) relay outputs.

Adjustable trip limits and time delay via single turn potentiometers.

Accommodates normally open (NO) and normally closed (NC) wiring schemes.

Continuous or latching switch action.

Local reset button and remote reset capability.

LED indicators for power, alert and alarm.

Screw terminal blocks for easy wiring.

Mounts directly to the equipment being monitored via four bolt pattern.

Flexible design allows for various custom requirements.

4-20 mA field calibration feature for improved accuracy.

Raw vibration & 4-20 mA outputs as standard.

PAGE 4

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Specifications

Power Supply Voltage: …… 85-240 VAC, 12-30 VDC (factory set)

Power Supply Current: …… 150 mA max

Sensor Type: …… Piezoelectric Sensing Element

Standard Vibration Ranges: …… 0-5g pk, 0-1.5 ips pk, 0-3 ips pk, 0-50 mils pk-pk, 0-15 mils pk-pk

(factory set)

Frequency Response +/-3dB: …… 2Hz to 1Khz (120 – 60,000cpm)

Turn on Time Delay: …… 20 seconds

Alert/Alarm Time Delay: …… 0-45 seconds

Alert/Alarm Function Select: …… Latch or Continuous

Alert/Alarm Switches: …… 5A/245Vac Triac (SPST) or 10A/245Vac – 5A/30Vdc Form C Relay (SPDT)

Operating Temperature Range: …… -22 to 158°F (-30 to 70°C)

Storage Temperature Range: …… -40 to 257°F (-40 to 125°C)

Relative Humidity:.….. NEMA 4X Rating

Case Dimension W x H x D: …… 3.5 x 2.8 x 3.5in. (90 x 70 x 90mm)

Weight: …… 1.85 lbs. (839 grams)

Case Material: …… Aluminum Alloy

Input/Output Electrical Connectors: …… Screw Terminals

Screw Terminal Wire Size: …… 24-14 AWG (0.2-2.5 mm2)

Wiring Interface: …… Cord Grips (wire comp. dia. 0.2”- 0.35”) or ½” NPT Conduit Hubs

Mounting Hole Size: …… 0.21 inches

Mounting Screw Torque: …… 2- 5 ft. lbs. (3-7Nm)

LED Indicators:

Power: - Green

Alarm: - Red

Alert: - Yellow

Alert/ Alarm Setpoint: …… Single Turn Potentiometer (10-100% Full Scale Range)

Reset Function: …… Momentary Pushbutton Switch and/or Remote to Common.

PAGE 5

SENSORS AND INSTRUMENTATION FOR MACHINE CONDITION MONITORING

Installation and Wiring

Installation

The 685B-Series is designed to be mounted directly on the equipment to be monitored using a four-bolt pattern.

There are also options to retrofit existing 3 bolt pattern installations. (Model 080A209 mounting plate required-

see optional accessories on page 13). Use grease between all surfaces to insure specified frequency response,

otherwise performance will be degraded. The axis of vibration measured by models with internal accelerometers

is perpendicular to the mounting orientation of the unit.

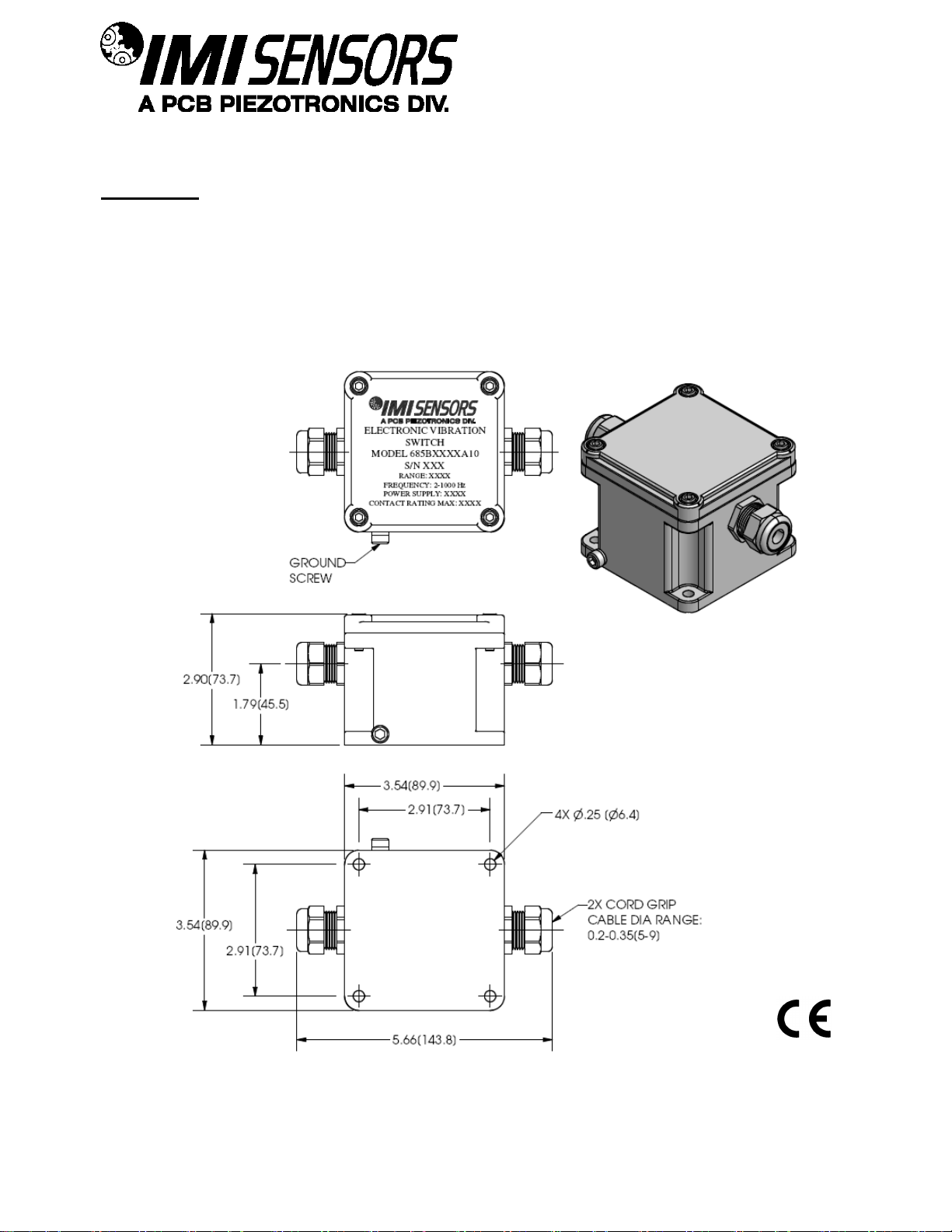

Standard Model Dimension Drawing with Cord Grips

Inch (mm)

Tabla de contenidos

Otros manuales de Cambiar de PCB Piezotronics

PCB Piezotronics

PCB Piezotronics IMI Sensors 686B61 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685A11 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A31 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B46 Series Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B77B Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y686C01 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691C42T Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS EP686B71 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0411C14 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B1001A10 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0000A10 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B01 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI Sensors 691A80 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B-Series Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0401C14 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 685B0001C14 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI Sensors 685B0000A33 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS Y685B0001A13 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686 Series Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 691B44 Series Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B0X-0026 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI Sensors 685B Series Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS EX686B71 Manual de usuario

PCB Piezotronics

PCB Piezotronics IMI SENSORS 686B0X-0027 Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
