SAPPHIRE PURE PERFORMANCE II
Electronic Emission Notices
Federal Communications Commission (FCC) Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with instructions contained in this manual, may cause harmful interference
to radio and television communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- REORIENT OR RELOCATE THE RECEIVINGANTENNA
- INCREASE THE SEPARATION BETWEEN THE EQUIPMENT AND THE RECEIVER
- CONNECT THE EQUIPMENT INTO AN OUTLET ON A CIRCUIT DIFFERENT FROM
THAT OF THE RECEIVER
- CONSULT THE DEALER OR AN EXPERIENCED AUDIO/TELEVISION TECHNICIAN
NOTE: Connecting this device to peripheral devices that do not comply with Class B
requirements, or using an unshielded peripheral data cable, could also result in
harmful interference to radio or television reception.
The user is cautioned that any changes or modifications not expressly approved
by the party responsible for compliance could void the user’s authority to operate
this equipment.
To ensure that the use of this product does not contribute to interference, it is
necessary to use shielded I/O cables.
Copyright
This manual is copyrighted with all rights reserved. No portion of this manual may be
copied or reproduced by any means.
While every precaution has been taken in the preparation of this manual, no responsibility
for errors or omissions is assumed. Neither is any liability assumed for damages resulting
from the use of the information contained herein.
Trademarks
All brand names, logos and registered trademarks mentioned are property of their
respective owners.
2
PP-I7RS400 User’s Manual
TABLE OF CONTENTS
HARDWARE CONFIGURATION .................................................................... 4
Key Features .................................................................................................. 4
MOTHERBOARD LAYOUT ............................................................................ 7
REAR PANEL ................................................................................................ 8
AUDIO CONFIGURATION .............................................................................. 10
SPEAKER CONFIGURATION ........................................................................ 10
Method 1: 2/4/6 Channel audio output on back panel only ................... 10
Method 2: Using S-Bracket connectors ................................................. 12
CONNECTORS ............................................................................................. 14
Floppy Disk Drive Connector - CN3 ...................................................... 14
IDE Connectors - CN1, CN2 .................................................................. 14
Six Channel Audio Output Connector - J19 ......................................... 15
TV Out Header - J3 ................................................................................ 16
IEEE1394 Connector - J23 .................................................................... 17
Chassis Alarm Lead - JP12 .................................................................. 18
Fan Power Connectors - CPUFAN1, SYSFAN1................................. ..... 19
Power LEDs - D55, D54................................. .......................................... 19
CD-IN Header - J18 ............................................................................... 20
AUX-IN Header - J20 .............................................................................. 20
Front Panel Audio Header - FP-S1 ........................................................ 21
USB Headers - FP-U1, FP-U2 ............................................................... 22
Front Panel Header - FP1 ...................................................................... 23
Serial ATA Hard Disk Connectors - SATA1/SATA2/SATA3/SATA4 ............ 24
JUMPER SETTING ....................................................................................... 26
JP9-CMOS Clear .................................................................................... 26
JP2-Onboard AC97 Sound Select ......................................................... 26
JP13-Onboard LAN Select ..................................................................... 26
JP3-Onboard IEEE1394 Select ............................................................. 26
3
SAPPHIRE PURE PERFORMANCE II
SLOTS ......................................................................................................... 27
CPU INSTALLATION .................................................................................... 28
MEMORY CONFIGURATIONS ...................................................................... 32
DDR DIMM Sockets Location ................................................................ 32
Install DDR DIMMs ................................................................................. 32
Memory Configurations ......................................................................... 33
BIOS SETUP ................................................................................................ 34
Starting Setup ......................................................................................... 34
Main Menu .............................................................................................. 35
Standard CMOS Features ...................................................................... 36
Advanced BIOS Features ....................................................................... 37
Advanced Chipset Features .................................................................. 37
Integrated Peripherals ........................................................................... 37
Power Management Setup .................................................................... 37
PnP/PCI Configurations ........................................................................ 37
PC Health Status.................................................................................... 37
Set Supervisor/User Password ............................................................. 38
BIOS Update Procedure ........................................................................ 39
SATA RAID SETUP ...................................................................................... 40
Creating RAID Sets ................................................................................ 40
Deleting RAID Sets ................................................................................ 40
Resolving Conflict .................................................................................. 41
DRIVER AND RAID SOFTWARE INSTALLATION ........................................ 41
Microsoft Windows Driver Installation ................................................... 41
Install Windows2000/XP........................................................................ 41
APPENDIX .................................................................................................... 42
4
PP-I7RS400 User’s Manual
HARDWARE CONFIGURATION
Key Features
Chipset
• ATI® RS400+SB400 Chipset.
Processor
• Supports Intel® Celeron® , Pentium® 4 processors in the LGA775 -pin
package (with 0.8V~1.6V voltage).
• Supports 64-bit PSB (Processor System Bus) frequency of 400MHz/
533MHz/800MHz (100MHz/133MHz/200MHz bus clock).
VRM 10.0 (Voltage Regulator Modules) on Board
• Flexible motherboard design with on board VRD 10.0, easy to upgrade
with future Intel® Celeron, Pentium® 4 processors.
• 0.8375V to 1.600V in 12.5mV steps.
System Memory
•Supports four 184pin DDR RAM sockets.
• DIMM size support from 64MB to 4GB.
•Support Dual Channel 128-bit Wide Memory Interface.
• Support 266/333/400 DDR RAM memory type.
System BIOS
•PnP, APM, ATAPI and Windows® 2000/XP.
• Full support of ACPI & DMI.
•Auto detects and supports LBA harddisks with capacities over 160GB.
•Easy to upgrade BIOS.
Plug and Play
•Supports Plug and Play specification 1.1.
•Plug and play for Windows® 2000and XP.
•Fully assignable PCI interrupts.
TV Out
• Integrated TV encoder.
• 10-bit DAC with 4-tap filter.
• PAL/NTSC TV Out with Composite and S-Video Output via header.
• ATI’s exclusive “Composite Dot Crawl” freeze option for PAL and
NTSC to improve the picture quality.
• TV-Out power management support.
5
SAPPHIRE PURE PERFORMANCE II
Onboard I/O
• Onboard two PCI fast IDE ports supporting up to 4 ATA, ATA2 , Ultra
ATA33/66/100/133 IDE HDDs, CD-ROMs, ZIP drives and LS-120
drives as boot drive.
• One ECP/EPP parallel port.
• One 16550 Compatible UART serial ports.(Via a header)
• One floppy port supports two FDD of 1.44MB, 2.88MB capacity.
• Eight USB ports (four ports via two headers).
• PS/2 keyboard connector.
• PS/2 mouse connector.
• One front panel sound connector.
• Infrared (IrDA) is supported via a header.
Extended USB Support
• Includes two OHCI host controllers,increasing the number of external
ports to eight.
• Includes one OHCI USB2.0 Host Controller that supports all eight
ports(Bandwidth shared between eight ports).
• This Sapphire motherboard support USB 2.0 feature only on
Windows® 2000(with SP4 or above) and XP(with SP1 or above) OS.
Onboard VGA
• Integrated ATI PCI-E X300 graphics core.
• Supports display (CRT or TV out).
• Integrated DAC and CRT controllers.
• High resolution video playback.
• Up to 2048x1536,non-interlaced screen resolution for CRT.
Onboard Marvell 88E8052 PCI Express Gigabit LAN
• Full compliance with IEEE 802.3u 100 Base-T specifications
and IEEE 802.3X Full Duplex Flow Control.
• Supports 10 Mb/s, 100 Mb/s and 1000 Mb/s operation.
• Supports Wake-On-LAN function and remote wake-up.
Onboard IEEE1394
•Compliant with 1394 open HCI specifications v1.0 and v1.1.
• Integrated 400Mbit 2-port PHY.
6
PP-I7RS400 User’s Manual
PCI Express Graphics Interface
• One 16-lane (x16 port) PCI Express port intended for Graphics Attach,
Fully compliant to the PCI Express Base Specification revision 1.0a.
• A base PCI Express frequency of 2.5GB/s only.
• PCI Express supports and Enhanced Addressing Mechanism.
PCI Express x1 Port
• One 1-lane (x1 port) PCI Express port.
• Fully compliant to the PCI Express Base Specification revision 1.0a.
• Two virtual channel support for full unsynchronized data transfers.
• Supports full 2.5Gb/s bandwidth in each direction per x1 lane.
Power Management
• Supports SMM, APM and ACPI.
• Break switch for instant suspend/resume on system operations.
• Energy star “Green PC” compliant.
• Hardware monitoring circuit is supported, provide voltage, fan speed,
etc. monitoring (optional).
• External Modem Ring-in Wake-up support.
• Supports suspend-to-RAM(STR)(optional).
Onboard AC97 6 Channel Sound
•Integrated AC97 controller with standard AC97 Codec.
• Direct Sound and Sound Blaster compatible.
•Full-Duplex 16-bit record and play back.
•PnP and APM 1.2 support.
•Windows® 2000/XP drivers ready.
•Line-in, Line-out, Mic-in.
• Supports ALC650/ALC655 AC97 codes for six sound channel output.
Onboard Serial ATA host Controller
•Independent DMA operation on four ports.
• Data transfer rates of 150MB/s.
• RAID 0/1 feature support .
Expansion Slots
• 1 PCI Express x16 slot.
• 1 PCI Express x1 slot.
•5 PCI bus master slots - ver. 2.2 compliant.
Static electricity can harm delicate components of the motherboard.
To prevent damage caused by static electricity, discharge the static
electricity from your body before you touch any of the computers
electronic components.
7
SAPPHIRE PURE PERFORMANCE II
MOTHERBOARD LAYOUT
The following diagrams show the relative positions of the jumpers, connectors,
major components and memory banks on the Sapphire motherboard.
NOTE
1) Be sure to check the cable orientation in order to match the colored strip to
the pin1 end of the connector.
2) When you start up the system, please wait for 5 seconds after you power
on AC.
3) It is not recommended to add a metal spacer plate on the back of the
Socket775. Otherwise, some components will be short and damaged.
LGA775 Socket
FOXCONN
REMOV E
JP2
8
PP-I7RS400 User’s Manual
PIN SIGNAL DESCRIPTION
1 VCC +5V/5VSB (optional)
2 -Data 0 Negative Data Channel 0
3 +Data0 Positive Data Channel 0
4 GND Ground
5 VCC +5V/5VSB (optional)
6 -Data 1 Negative Data Channel 1
7 +Data 1 Positive Data Channel 1
8 GND Ground
REAR PANEL
The back panel provides the following connectors:
PS/2 Mouse Connector
The Sapphire motherboard provides a standard PS/2® mouse mini DIN
connector for attaching a PS/2® mouse.You can plug a PS/2® mouse directly
into this connector.
PS/2 Keyboard Connector
The Sapphire motherboard provides a standard PS/2® keyboard mini DIN
connector for attaching a PS/2® keyboard.You can plug a PS/2® keyboard directly
into this connector.
USB 2.0 Connector
The Sapphire motherboard provides a OHCI (Open Host Controller Interface)
Universal Serial Bus root for attaching USB devices such as keyboard, mouse
or other USB-compatible devices.You can plug the USB device directly into the
connector.
USB 2.0 Connector DescriptionUSB 2.0 Connector
9
SAPPHIRE PURE PERFORMANCE II
VIA VT6307 IEEE 1394 Connector
The Sapphire motherboard provides a IEEE 1394 Connector and allows you
to connect a IEEE 1394 device directly to the connector.
TV Out Connector
The Sapphire motherboard provides a Video out port to connect a 15-pin
analog video monitor.
SPDIF Connector
The Sapphire motherboard provides a S-Bracket (SPDIF) Connector that
allows you to connect a S-Bracket (coaxial) for a Digital Interface (SPDIF).
LAN Jack
The mainboard provides one standard RJ-45 jack for connection to Local
Area Network(LAN).You can connect a network cable to the LAN jack.
Parallel Port Connector - LPT1
The Sapphire motherboard provides a 25-pin female centronic connector as
LPT. A parallel port is a standard printer port that supports Enhanced Parallel
Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.
Audio Port Connector
Line_Out is a connector for Speakers or Headphones. Line In is used for
external CD player, Tape player, or other audio devices. Mic In is a connector
for microphones.
The ALC650/655 embeds an internal analog switch (by driver software)
to select LINE input or Surround output, and select MIC input or CENTER/
LFE output.
10
PP-I7RS400 User’s Manual
AUDIO CONFIGURATION
After installing the audio driver, you can select 2/4/6 channel surround audio
output in software utility and then connect surround speakers to appropriate
audio ports.
There are two ways to obtain 2/4/6 channel audio output:
1. 2/4/6 channel audio output of back panel only. All surround speakers
connect to audio connector.
2. S-Bracket (optional cable). You have installed S-Bracket into the
computer, and then connect two front speakers to back panel’s
“Line-out” port, and the rest of speakers to S-Bracket. Please refer to
page 13.
SPEAKER CONFIGURATION
Method 1: 2/4/6 Channel audio output on back panel only.
After installing the audio drivers, you can attach the speakers for 2/4/6 channel
audio output. Always connect the speakers to the LINE OUT connectors.

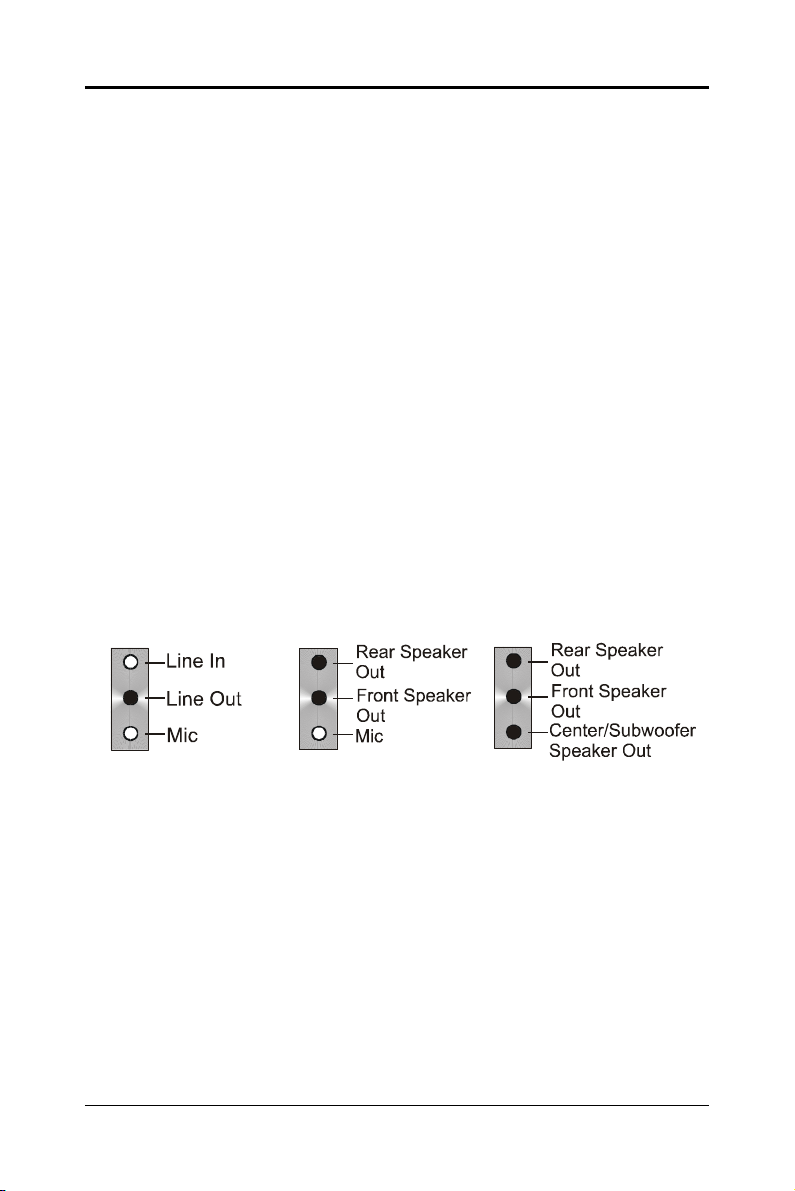

Different connector configurations for 2/4/6 channel operations are listed below:
2-Channel 4-Channel 6-Channel
In 2-channel configuration,
Line Out, Line In and MIC
functions all exist.
When set to 4-channel
configuration, Line In
is replaced by Rear
Speaker Out. Line in
function does not exist.
When set to 6-channel
configuration, Line In
is replaced by Rear
Speaker Out. Mic is
replaced by Center/
Subwoofer Speaker Out.
Line in and Mic do not
exist function.
Este manual sirve para los siguientes modelos
3
Tabla de contenidos
Otros manuales de Placa madre de PC Partner
PC Partner
PC Partner 35C96801 Series Manual de uso y cuidado
PC Partner
PC Partner 35C96200 Series Manual de usuario
PC Partner
PC Partner 357757 Series Manual de uso y cuidado
PC Partner
PC Partner LXA826D Manual de usuario
PC Partner
PC Partner MB600N Manual de instalación y operación
PC Partner
PC Partner 35880101 Manual de uso y cuidado
PC Partner
PC Partner 35C92000 Series Manual de usuario
PC Partner
PC Partner 35891700 Series Manual de uso y cuidado
PC Partner
PC Partner P4X266AS4-258X Manual de usuario
PC Partner
PC Partner 35889700 Series Manual de usuario
PC Partner
PC Partner 35892900 Series Manual de uso y cuidado
PC Partner
PC Partner P4M266MS4-181M Manual de usuario
PC Partner
PC Partner 35-AA09 0 Series Manual de uso y cuidado
PC Partner
PC Partner S650MS4-260 Manual de usuario
PC Partner
PC Partner 35884903 Manual de uso y cuidado
PC Partner
PC Partner 35-AA14-X0-XX Manual de uso y cuidado
PC Partner
PC Partner P4X266EAS4-284E Manual de usuario
PC Partner
PC Partner 845AS4-281 Manual de usuario
PC Partner
PC Partner P4X266EAS4-258E Manual de usuario
PC Partner
PC Partner 35833101 Manual de usuario
Manuales populares de Placa madre de otras marcas
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manual de usuario
Gigabyte
Gigabyte GA-9IVDT Manual de usuario
Texas Instruments
Texas Instruments ADS8372EVM Manual de usuario
Commell
Commell MS-C73 Manual de usuario
IBT Technologies
IBT Technologies MB860 Manual de usuario
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manual de usuario
