OnSite™ Model 2603 & 2620

WAN Access Router

Quick Start Guide

Important—This is a Class A device and is intended for use in a light

industrial environment. It is not intended nor approved for use in an

industrial or residential environment.

Part Number: 07M2620-QS, Rev. G

Revised: July 25, 2014

Sales Office: +1 (301) 975-1000

Technical Support: +1 (301) 975-1007

E-mail: support@patton.com

WWW: www.patton.com

2OnSite Model 2603 & 2620 Quick Start Guide

1.0 Power up the router

Your router comes with one of the following power supply options:

•External AC adapter with included power cord

•Internal AC power supply

•Internal DC power supply—no power accessories are included

• This device contains no user serviceable parts. The

equipment shall be returned to Patton Electronics for

repairs, or repaired by qualified service personnel.

• Mains Voltage: Do not open the case the when the

power cord is attached. Line voltages are present

within the power supply when the power cords are con-

nected. The mains outlet that is utilized to power the

devise shall be within 10 feet (3 meters) of the device,

shall be easily accessible, and protected by a circuit

breaker.

• For AC powered units, ensure that the power cable

used meets all applicable standards for the country in

which it is to be installed, and that it is connected to a

wall outlet which has earth ground.

• For units with an external power adapter, the adapter

shall be a listed Limited Power Source.

• Hazardous network voltages are present in WAN ports

regardless of whether power to the unit is ON or OFF.

To avoid electric shock, use caution when near WAN

ports. When detaching the cables, detach the end away

from the device first.

• Do not work on the system or connect or disconnect

cables during periods of lightning activity.

The interconnecting cables shall be acceptable for external

use and shall be rated for the proper application with

respect to voltage, current, anticipated temperature, flam-

mability, and mechanical serviceability.

Use only a 12V certified Limited Power Source external

power adapter marked LPS.

WARNING

CAUTION

OnSite Model 2603 & 2620 Quick Start Guide 3

1.1 Models with external AC adaptor

1. Connect female plug of the AC power cord to the AC adapter provided.

2. Connect the barrel-type connector of the AC adapter to the barrel-type Power jack

on the OnSite router.

3. Insert the male plug of the AC power cord into an AC power outlet (100–240

VAC).

1.2 Models with internal AC power supply

1. Insert the female end of the AC power cord into the internal power supply connec-

tor.

2. Connect the male end of the power cord into an AC power outlet (100–240 VAC).

1.3 Models with internal DC power supply

1. Strip insulation 1/4-inch from the electrical wires that will connect the DC power

source to the OnSite router.

2. Connect the positive (+) terminal from the power source to the positive (+) termi-

nal on the OnSite router.

3. Connect the ground terminal from the power source to the ground terminal (E) on

the OnSite router.

4. Connect the negative (-) terminal from the power source with to the negative (-)

terminal on the OnSite router.

Figure 1. Connecting the DC power supply

Note “+”, “E”, and “-” may be unlabeled.

1.4 Power-up indication

The Power LED blinks as the OnSite router is powering up. When the Power LED stops

blinking and remains lit, the router is ready for you to configure.

2.0 Configure the IP address

The OnSite router is shipped with a factory-configured IP address assigned to the

Ethernet LAN port (green outline). The address is 192.168.200.10/24. In most cases,

you must change the address to be on the same subnet as your PC, as described in the

+E-

4OnSite Model 2603 & 2620 Quick Start Guide

procedures below. If you are not sure which IP address to use for your installation,

contact your network administrator.

2.1 Connecting a PC and logging in

1. Using the included combination RS232/Ethernet cable and DB9-RJ45 adapter,

connect a PC’s serial port to the OnSite router’s Console port (see figure 2).

Figure 2. Connecting OnSite router to the PC’s serial port

2. Start a HyperTerminal session on the PC using the settings:

9600 bps, 8 data bits, 1 stop bit, no parity, no flow control

3. Log in to the OnSite router using the factory-default login and password:

Password: superuser

2.2 Modifying the IP address

1. Display current IP interface settings for the OnSite Ethernet LAN port.

ip list interfaces <enter>

IP Interfaces:

ID | Name | IP Address | DHCP | Transport

---|------|----------------|----------|--------------

1 | ip1 | 192.168.200.10 | disabled | <eth1>

----------------------------------------------------

2. Modify the IP address for the LAN port according to your network requirements.

ip set interface ip1 ipaddress 10.10.10.5 255.255.255.0

Note The above IP address (10.10.10.5/24) is only an example. You must

choose an IP address on the same subnet as your PC.

3. Verify the new address is correct and save it in system boot memory.

ip list interfaces <enter>

system config save <enter>

Link

Frame

Link

100M

WANEthernet

Power

Console

ipLinkGateway

High SpeedWANAccess Router

Model 2603

Connect to Console port

Serial port

PC with

terminal emulator

OnSite Model 2603 & 2620 Quick Start Guide 5



Now you can connect the OnSite router to your local IP network and complete the

remaining configuration from your PC using a standard web browser.

3.0 Connect to the local IP network

Connect the OnSite router’s (green) Ethernet port to the same Ethernet segment as your

PC (see figure 3).

Note The Model 2620 does not have an MDI-X switch, so you must use a

cable wired straight-through to connect the Model 2620’s Ethernet port

to the IP network.

If you have a Model 2603, press the MDI-X switch until the Ethernet Link LED turns on.

Figure 3. Connecting the OnSite to the local IP network (Model 2603/K shown)

You can check the network connection with the ping command. For example, you

would ping 10.10.10.5 from your PC.

4.0 Log onto the web management interface

You will now access the web management Graphical User Interface (GUI) to configure

the OnSite using a standard web browser (such as Internet Explorer or Netscape

browser).

1. At your PC, open a web browser and enter the IP address you assigned to the

OnSite router’s Ethernet LAN port in step 2 of section 2.2 “Modifying the IP

address” on page 4.

2. Log in to the web management home page using the username superuser and the

password superuser.

Crossover

10/100

EthernetWAN

Power

MDI-X

RXTX

Connect to

Ethernet port

MDI-X switch

6OnSite Model 2603 & 2620 Quick Start Guide

Figure 4. OnSite web management home page

3. Now you can use the OnSite router’s web management pages to complete your

configuration (see section 6.0 “Complete the installation” on page 7).

5.0 Connect the WAN port

The OnSite 2603/T, 2603/K, and 2620 come with a T1/E1 WAN interface (presented on

an RJ-48C connector with selectable line impedances of 100-ohms for T1 and 120-

ohms for E1 lines). The Model 2603 has one RJ-48C connector and the 2620 has two.

The Model 2603/K and 2620/KK also come with dual BNC connectors for alternate con-

nection to unbalanced 75-ohm E1 lines.

To connect the WAN port on a Model 2620 or Model 2603/T, or if you plan to use the

RJ-48C port on a 2603/K, refer to section “Connecting to the RJ-48C WAN port”. Oth-

erwise, refer to section “Connecting to the unbalanced 75-ohm TX and RX WAN ports

(Model 2603/K and 2620/KK only)” to install cables onto the BNC connectors on the

2603/K and 2620/KK models.

Connecting to the RJ-48C WAN port

1. Obtain a twisted-pair cable with an RJ-48C plug connector at each end.

2. Plug one end of the cable into the RJ-48C socket (labeled WAN) on the OnSite

Router.

3. Plug the other end of the cable into the T1/E1 device.

4. Repeat steps 1 through 3 to install the remaining WAN cables on a Model 2620

Connecting to the unbalanced 75-ohm TX and RX WAN ports

(Model 2603/K and 2620/KK only)

1. Obtain a coaxial cable with a BNC connector at each end.

2. Plug one end of the cable into the transmit socket (labeled TX) on the OnSite

Router. Plug the other end of the cable into the receive port of the E1 device.

OnSite Model 2603 & 2620 Quick Start Guide 7

3. Plug one end of the cable into the receive socket (labeled RX) on the OnSite

Router. Plug the other end of the cable into the transmit port of the E1 device.

6.0 Complete the installation

To finish configuring your OnSite, and for detailed information about installing, config-

uring, operating, and troubleshooting, refer to the Models 2603, 2621, and 2635 OnSite

Series High Speed Routers User Manual available online at www.patton.com/manuals/

2600SER.pdf.

A.0 Customer and Technical Support

Toll-Free VoIP support: call sip:[email protected] with a VoIP SIP phone

Online support: www.patton.com

E-mail support: support@patton.com—answered within 1 business day

Telephone support:

•Standard: +1 (301) 975-1007 (USA), Monday–Friday: 8:00 am to 5:00 pm EST

(1300 to

2200 UTC/GMT)

•Alternate: +41 (0)31 985 25 55 (Switzerland), Monday–Friday: 8:00 am to 5:00 pm

CET (0900 to 1800 UTC/GMT)

Fax: +1 (253) 663-5693 (USA) or +41 (0)31 985 25 26 (Switzerland)

B.0 Compliance Information

B.1 Compliance

EMC:

•FCC Part 15, Class A

•EN55022, Class A

•EN55024

Safety:

•UL60950-1/CSA C22.2 No. 60950-1

•IEC/EN 60950-1

•AS/NZS 60950-1

PSTN Regulatory:

•These devices are not intended for connection to the PSTN.

8OnSite Model 2603 & 2620 Quick Start Guide

B.2 Radio and TV Interference (FCC Part 15)

This equipment generates and uses radio frequency energy, and if not installed and

used properly—that is, in strict accordance with the manufacturer's instructions—may

cause interference to radio and television reception. This equipment has been tested

and found to comply with the limits for a Class A computing device in accordance with

the specifications in Subpart B of Part 15 of FCC rules, which are designed to provide

reasonable protection from such interference in a commercial installation. However,

there is no guarantee that interference will not occur in a particular installation. If the

equipment causes interference to radio or television reception, which can be deter-

mined by disconnecting the cables, try to correct the interference by one or more of the

following measures: moving the computing equipment away from the receiver, re-ori-

enting the receiving antenna, and/or plugging the receiving equipment into a different

AC outlet (such that the computing equipment and receiver are on different branches).

B.3 CE Declaration of Conformity

Product Description: OnSite 2603, 2620

We certify that the apparatus described above conforms to the requirements of Council

Directive 2004/108/EC on the approximation of the laws of the member states relating

to electromagnetic compatibility; and Council Directive 2006/95/EC on the approxima-

tion of the laws of the member states relating to electrical equipment designed for use

within certain voltage limits.

The safety advice in the documentation accompanying this product shall be obeyed.

The conformity to the above directive is indicated by the CE sign on the device.

The signed Declaration of Conformity can be downloaded from www.patton.com/certi-

fications/.

B.4 Authorized European Representative

D R M Green

European Compliance Services Limited.

Avalon House, Marcham Road

Abingdon,

Oxon OX14 1UD, UK

The safety notices in the documentation accompanying the

products shall be obeyed. The conformity to the above direc-

tive is indicated by the CE sign on the device.

OnSite Model 2603 & 2620 Quick Start Guide 9

The information in this document is subject to change without notice. Patton Electron-

ics assumes no liability for errors that may appear in this document.

Trademarks statement

The term OnSite is a trademark of Patton Electronics Company. All other trademarks

presented in this document are the property of their respective owners.

Warranty, Trademark, & Compliance Information

For warranty, trademark and compliance information, refer to the Models 2603, 2621,

and 2635 OnSite Series High Speed Routers User Manual available online at www.pat-

ton.com/manuals/2600SER.pdf.

In accordance with the requirements of council directive

2002/96/EC on Waste of Electrical and Electronic Equip-

ment (WEEE), ensure that at end-of-life you separate this

product from other waste and scrap and deliver to the

WEEE collection system in your country for recycling.

10 OnSite Model 2603 & 2620 Quick Start Guide

NOTES

____________________________________________________________________

Otros manuales para OnSite 2603

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de Patton

Patton

Patton SmartNode 4960 Series Manual de usuario

Patton

Patton SmartNode 4900 Manual de usuario

Patton

Patton SmartNode 5300 Manual de usuario

Patton

Patton DiamondLink 3201 Manual de usuario

Patton

Patton SL4020 Manual de usuario

Patton

Patton ForeFront 6400 Manual de usuario

Patton

Patton ForeFront 6500 Manual de usuario

Patton

Patton SmartLink 4020 Manual de usuario

Patton

Patton SmartNode 5200 Manual de usuario

Patton

Patton OnSite 2603 Manual de usuario

Patton

Patton IPLINK 2800 series Manual de usuario

Patton

Patton SmartNode 5300 Manual de usuario

Patton

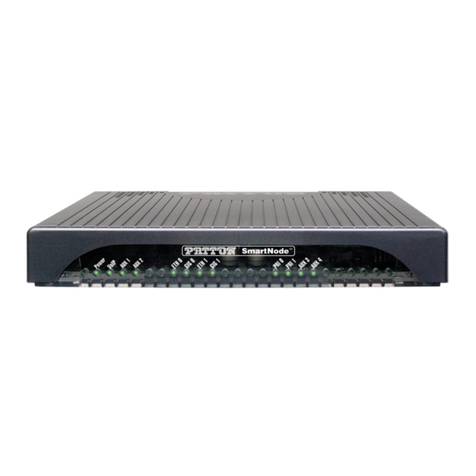

Patton SmartNode 5570 Manual de usuario

Patton

Patton SmartNode 5200 Manual de usuario

Patton

Patton OnSite 3300 Manual de usuario

Patton

Patton BODi rS BD007 Series Manual de usuario

Patton

Patton SmartNode SN4960 Manual de usuario

Patton

Patton OnSite 3210 Series Manual de usuario

Patton

Patton OnSite OS3300 Manual de usuario

Patton

Patton IPLink 2603 Series Manual de usuario

Patton

Patton SmartNode 4980 series Manual de usuario

Patton

Patton SmartNode 5400 Series Manual de usuario

Patton

Patton 2805 Manual de usuario

Patton

Patton SmartNode 4660 Series Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
