Patchwork Technology BlackBox air Manual de usuario

User Guide

Mount to the windscreen using supplied suction mount and arm.

Warranty Void if suction mount fails !! - It is advised that the suction mount is

removed from the windscreen when the unit is not in operation and reattached on a

day to day basis.

For a more permanent xing, a mounting kit that can be secured to the vehicle is available

for an additional cost.

Touch Screen

On/O button

Mini USB

Charge port

Display

Installing the Unit

If the tilt function is required, the unit needs to be securely mounted on a at surface with

the ‘Y’ pointing towards the direction of travel.

12v DC Plug

Plug into 3 pin socket on vehicle.

USB Power Socket

Charge the screen via supplied USB Cable.

It is recommended that the charge cable

is always connected to the screen whilst

in use.

Magnetic Antenna

Install centrally across the width of the

roof (if the roof is not metal use the

roof mount plate supplied).

Important!! Completely uncoil the

cable and route around the cab.

Warning - Please

disconnect the unit

from the power supply,

if you need to jump

start your vehicle.

GPS Receiver and Tilt unit

To access the

setup screens

press Setup

on the Home

screen.

To return to the

Home screen

press the Home

button.

Guidance Setup

Set the working

width for guidance

and coverage. Set the coverage

recording On/O

method (see over).

To oset the

antenna position

if not central or

when using an

oset mower.

To congure

the built in tilt

correction.

The following overview highlights where to nd the common settings for guidance and

area measurement.

Setup

Coverage Recording On/O Method

On Screen - Coverage recording can be turned on and o manually via the Recording

On/O button (see Guidance Screen Overview).

Always Record - Coverage recording continually records and cannot be turned o.

Auto Record - Air+ software feature (see Air+ Features > Auto Record for details).

Enable Tilt Correction (If required)

1) Press Tilt Compensator 2) Set Tilt to ‘On’, enter

Height, distance from the

ground to the antenna.

3) Position the vehicle on a

known level surface, press

Zero Tilt.

Local Setup

To access the

local setup

screen, press

Unit Setup.

Next select Local

Setup.

Select the country

of use.

Select the display

language.

Set the units of

measurement for

the display.

Hardware Setup

To access the

hardware setup

screen, press the

Hardware Setup

icon.

Press and hold

on the white dot

then slide nger to

adjust the screen

brightness, release

nger to set*.

Press and hold

on the white dot

then slide nger to

adjust the screen

volume, release

nger to set*.

Setup

*Alternatively press directly on the bar to adjust.

Important! Before starting a job ensure the correct Bluetooth device is connected and that

the GPS Quality level is within the green. This ensures the best GPS performance for use

with guidance and area measurement.

1) Press Start Job. 2) Enter the Farm/Field

name and Conrm.

3) Check working Width,

select Guidance Mode and

press Conrm to begin job.

Start Job

Use this method for starting a job, to save Boundary Maps, use Field Recognition and the

following Air+ features:- Pause/Resume job, Boundary Printing and Coverage Job Data

Sync.

Starting a Job

Guidance Modes

Straight - Sets a straight guidance line between set point A and point B, which is then replicated

both sides of the original line at equal intervals based on the entered width.

Curved - Creates a curved guidance line based on the path driven between set point A and

point B. The line is then replicated both sides of the original line at equal intervals based on the

entered width.

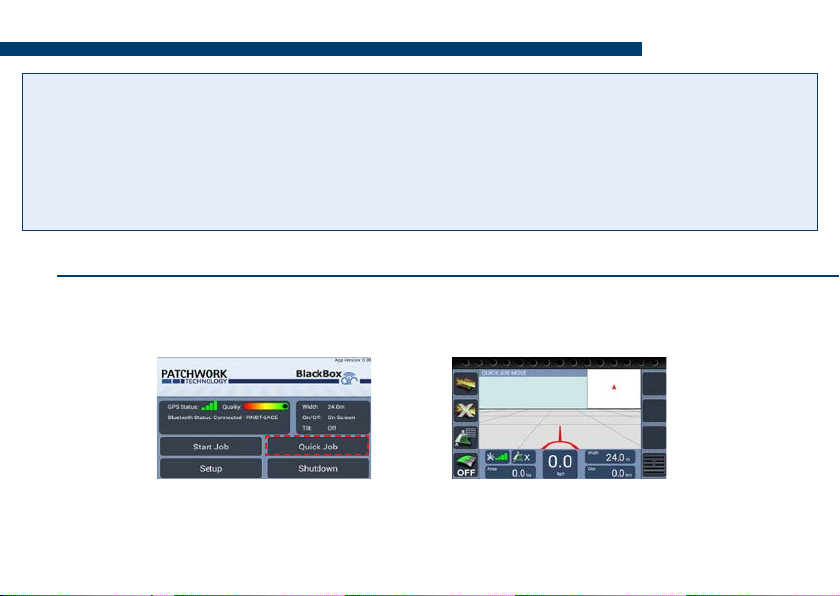

1) Press Quick Job. 2) Launches the Guidance

screen, ready for work.

Quick Job

Use this method to start a job, when a job or multiple jobs do not require boundary maps

to be saved or job recording.

If a Farm or Field name has been entered incorrectly or is no longer required it can be

easily renamed or deleted from the system using the job maintenance tools.

List Bar

Renaming/Deleting a Farm or Field

Previous Scroll Up Scroll Down Delete Edit Conrm

1) Select Start Job > Farm. 2) Highlight the Farm

name and go to step 3) to

adjust the farm.

Or press Conrm and go

to step 4) to adjust the

eld.
