Paslode IM250A-Li2 Manual

CLEANING PROCEDURE

www.paslode.com

Literature Part Number: 916310

Part No. 916200

Model IM250A-Li2

Cordless 16 Ga

Angled Finish Nailer

This procedure provides a simple but

effective

way to clean your Paslode

Cordless

tool and maintain reliable

operation. Regular cleaning and

lubrication will also extend part life and

provide maximum nail driving power.

To disassemble the tool for cleaning,

only a flat head screwdriver and the

9/64” Hex Key Wrench provided with

the tool are needed.

Paslode

recommends that an aerosol

“Tool

Cleaner", such as Paslode Tool

Cleaner

(Part No. 219348), be used for

cleaning.

This cleaner is available

through your local

Paslode Dealer.

If a different type of Degreaser Cleaner

selected, make sure that it will not

damage

plastic and electrical parts.

Chemical damage

to electrical parts may

result in the tool being

made inoperable.

To begin, you will need the

following items:

1. Flat Head Screwdriver

2. Hex Key Wrench (provided with tool)

3. Paslode Tool Cleaner #219348

4. Paslode Lubricating Oil #401482

5. Clean Lint Free Rag

DANGER

Remove all fasteners, fuel, and battery

prior to servicing the tool.

DANGER

Step 1

Use a flat head screwdriver to remove

the grill.

Step 2

Remove filter by hand and clean with

mild soap or replace if necessary.

Step 3

Use the 9/64” Hex Key Wrench

(#900736) to unscrew the 4 Socket

Head Cap Screws that attach the cap.

Set the grill, filter, and cap aside.

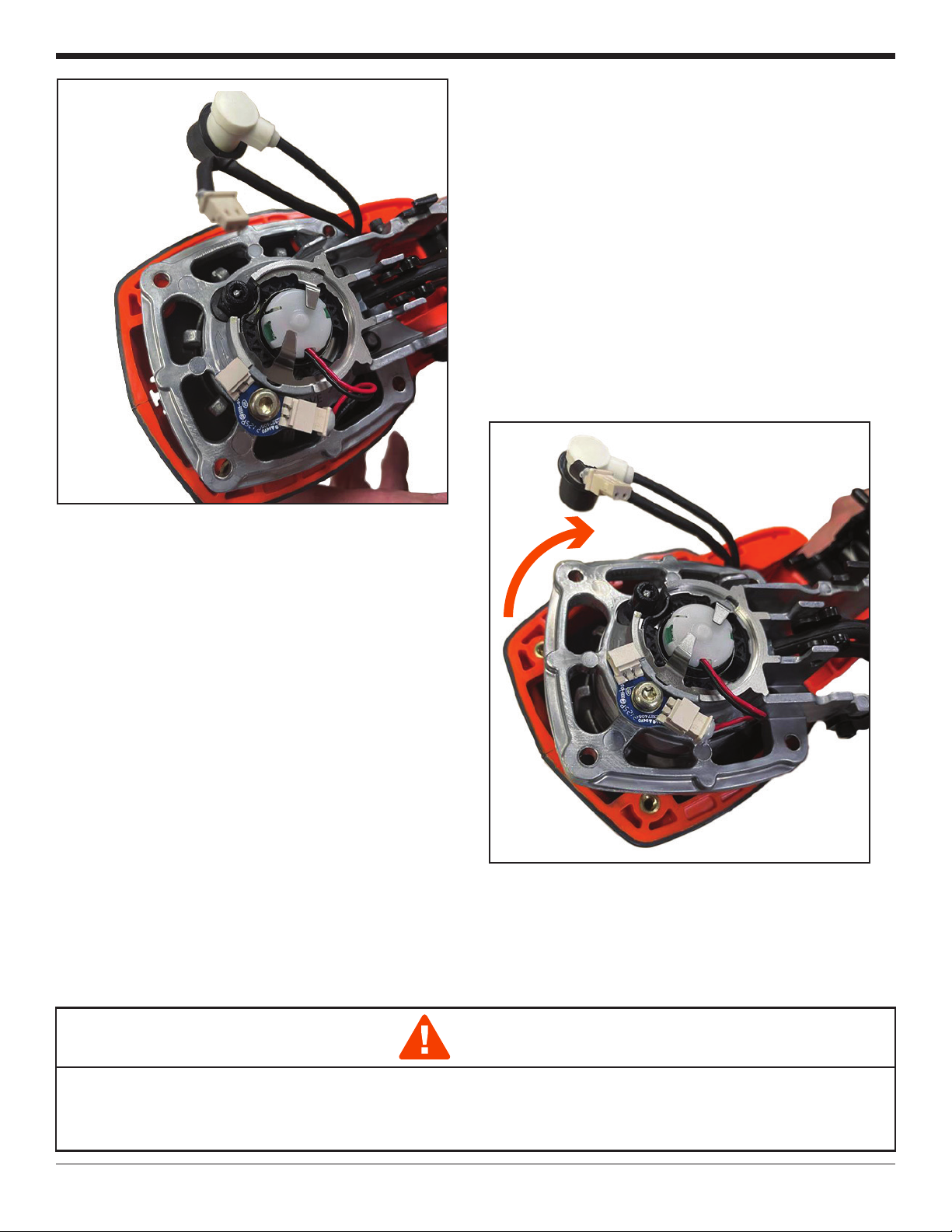

Step 4

Carefully unplug the Electrical Connector

to the Fan Motor Circuit Board and the

Spark Plug Wire.

NOTE:

Position of wires in the wire clip is

critical. Placing the wires outside the wire

clip can cause electrical damage to the

tool.

Step 5

Rotate the Cylinder Head Assembly

clockwise 1/8 of a turn and lift the cylinder

head from the from the Motor Assembly.

ROTATE CLOCKWISE

Step 6

You have now separated the tool into the

two major assemblies, allowing access to

the areas that require periodic cleaning

and lubrication.

Never operate the Paslode Cordless tool unless all four Socket Head Cap Screws are

ﬁrmly tightened on the cylinder head. Failure to do this could result in

tool damage, ﬁre and personal injury.

DANGER

Step 7

Spray the Cylinder Head with Cordless

Tool Cleaner. Allow the dirt and debris to

drip off.

Step 8

Using a clean, lint free rag, wipe off any

remaining cleaner or dirt. Make sure the

Seal Rings and Spark Plug are completely

clean and clear of debris. Repeat Step 7 to

remove any heavy deposits or residue.

Step 9

Lightly lubricate the Seal Rings with

Paslode Lubricating Oil, part #401482.

Make sure oil is applied evenly around the

Seal Rings. Set the Cylinder Head

Assembly aside.

Note:

Paslode Lubricating Oil is

specially formulated for use in the

Paslode Cordless Tool. The use of other

types of lubricants may cause rapid

build-up of combustion residue or result

in premature part failure.

Step 10

Push the Piston Assembly to the "down

position” using a screwdriver handle or a

clean piece of wood.

Step 11

Spray a liberal amount of tool cleaner into

the inside of the Sleeve and Combustion

Chamber. Invert the Motor Assembly, and

let excess cleaner and dirt drain out.

Step 12

Using a clean area of a lint-free rag, wipe

off any remaining cleaner or dirt. Repeat

Steps 11 and 12 to remove any heavy

deposits or remaining residue.

Step 13

With Motor Assembly tilted up, squeeze

4-5 drops of Paslode Lubricating Oil into

Sleeve (Area "A") and 3-4 drops onto

lower lip of Combustion Chamber (Area

"B") and apply 4-5 drops around the top

of the Combustion Chamber (area C).

Rotate Motor Assembly while oiling to

ensure oil is evenly distributed around

Sleeve and Combustion Chamber.

See Tool Cutaway Illustration on page 10.

Note: Do not over oil the tool.

Excessive oiling may cause staining of

work surface.

Step 14

Hold Motor Assembly upright, and push

down and release several times to allow oil

on lower lip of Combustion Chamber to be

evenly distributed.

Step 15

Manually push the Driver Blade up and

down to distribute the oil in the Sleeve

evenly.

Reassemble the Paslode Cordless tool

following disassembly Steps 1-4, pages 2-3

in Reverse order.

Reassembly Note:

Before tightening Cap Screws, depress

the nose of the tool down on its work

contacting element to close Combustion

Chamber. Make sure cylinder head is

centered to the motor, and that the Cap

Assembly does not pinch exposed wires,

Cap Screws must be tightened securely.

Combustion

Chamber

Tool

Cutaway

Illustration

Sleeve

Piston

“Mid-Check”

Area

Motor Assembly

DANGER

Do not attempt to operate the tool unless

the cap assembly is securely attached to

the housing. Operating the Paslode

Cordless tool with a loose or missing cap

assembly can result in the escape of

burning gases, tool damage, and injury to

tool user and property.

DANGER

After the tool is completely reassembled

and all screws are tightened, test the tool

for proper operation. Some smoke may be

noticeable from the exhaust ports on the

ﬁrst few cycles as excess oil is burned off.

Consult the operating manual for

instructions if the tool malfunctions.

NOTE

C C
