SANDERO

Installation manual:

Parrot MKi + Parrot

CK3100 range

The brand name DACIA SANDERO and the DACIA logo are the property of DACIA.

This document is only valid for the vehicle model SANDERO® year 2008 to 2011, excluding all other models in the same range and excluding

later modifications made to the vehicle by the manufacturer.

The Parrot brand name and logos are the exclusive property of Parrot SA.

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Accessories required

Disassembly

15min

Mounting kit

20min

Reassembly

15min

Testing

15min

Total

1h 05min

YES

+IGN

YES

ISO

N/A

UNIKA

FRONT LOUDSPEAKER

TEL mode

ALL

MUSIC mode

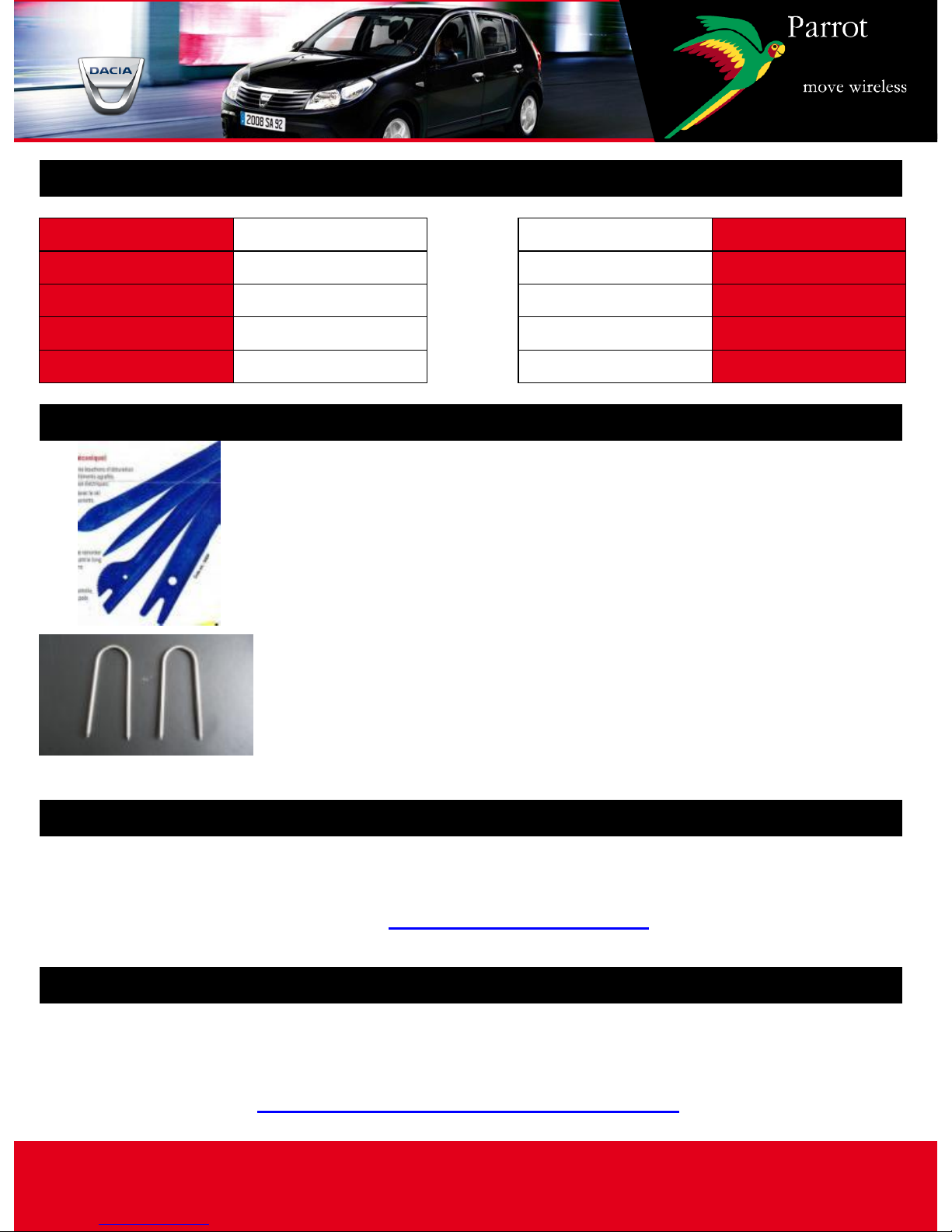

Fitting time (estimated) / Main features

Tools

-Multimeter or Test lamp

- Wire tie

-Electrical tape

"Please contact your wholesaler to purchase accessories. A list of wholesalers is

available at www.certified.parrot.com. "

To get the most out of your hands-free kit we recommend that you update your

software regularly. The update procedure can be found at

www.parrot.com/usa/support/downloads

Updating

Plastic trim removal tools

FACOM / BOJO

FACOM DX-25 kit (n°4 tools)

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

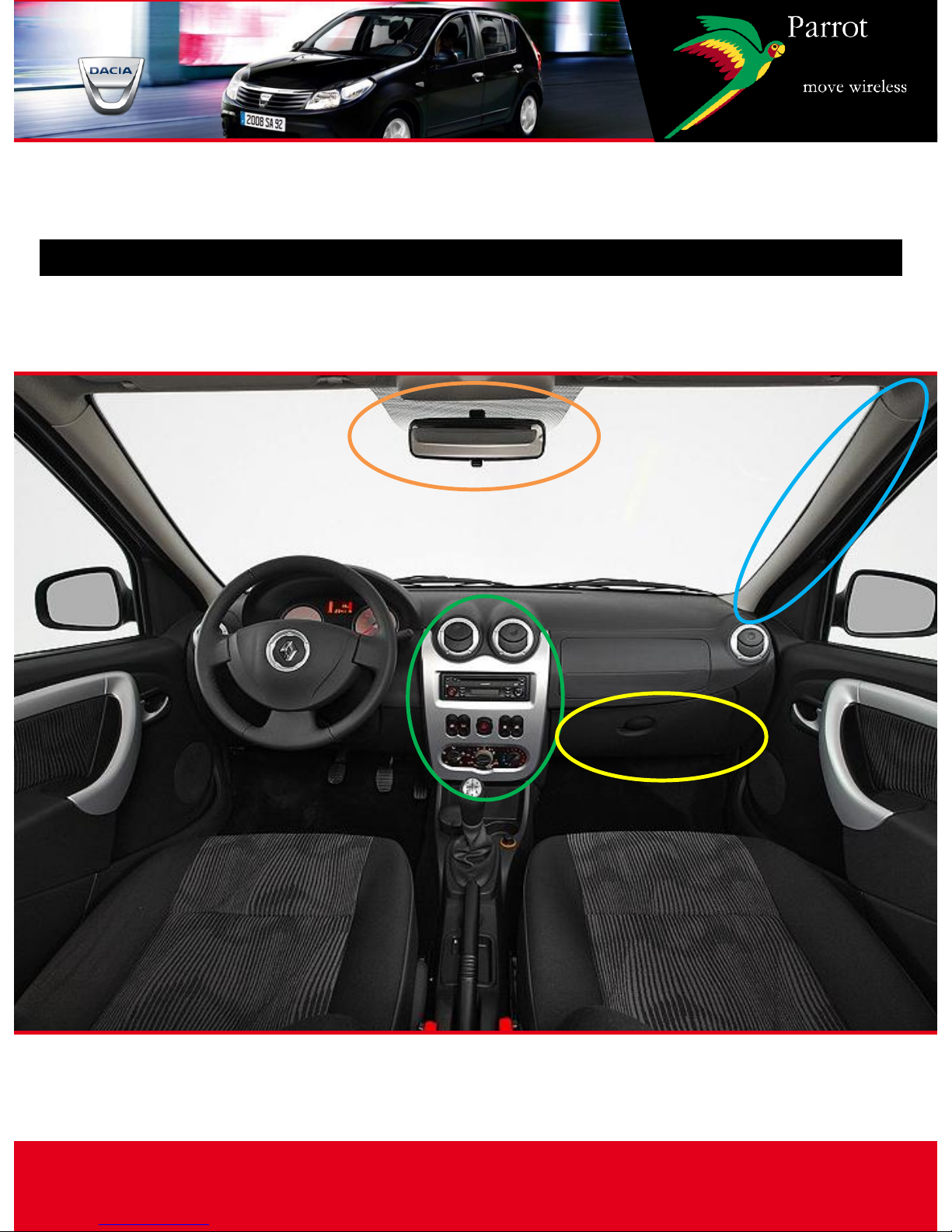

Disassembly

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Disassembly

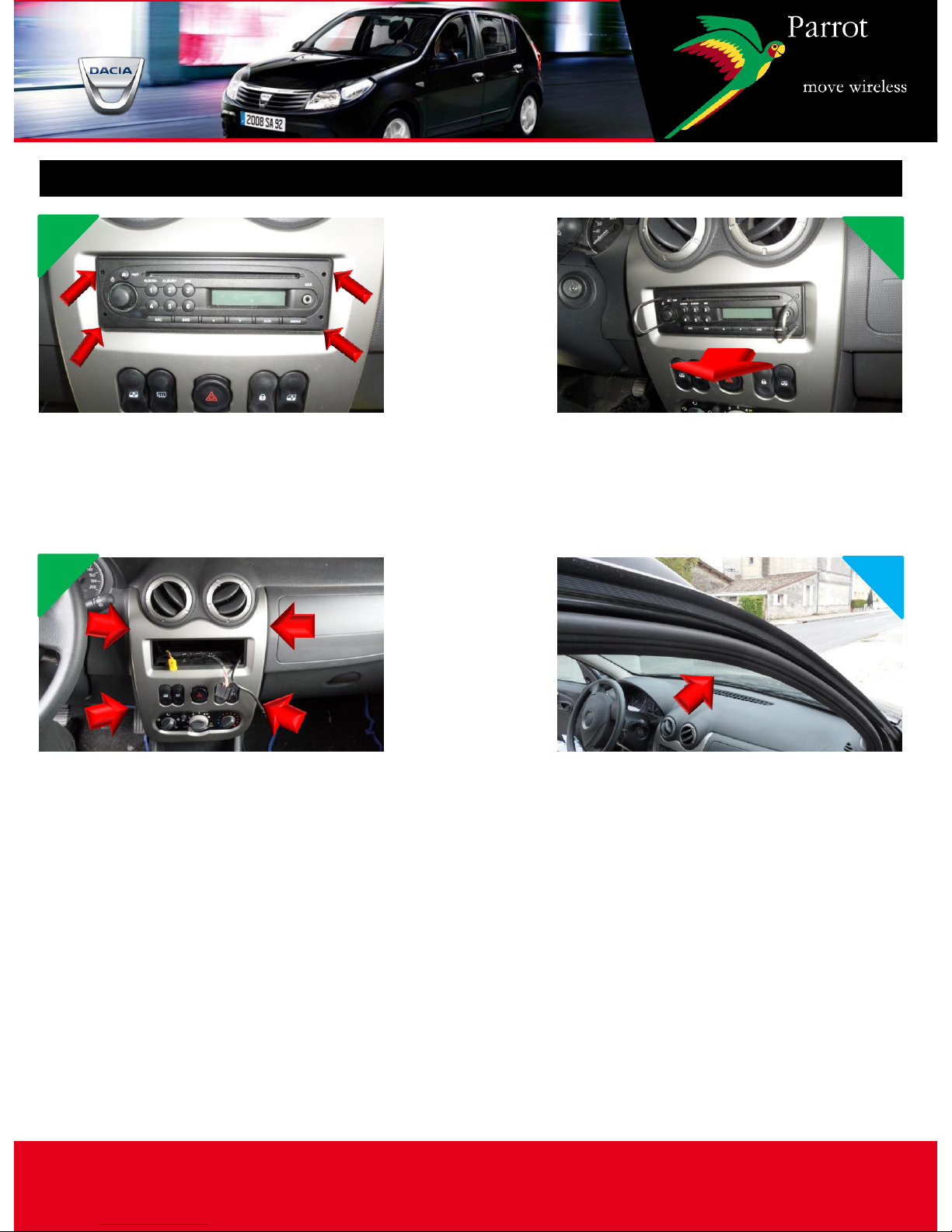

Insert the removal tools into the

slots on each side of the radio.

Unclip the radio, pull it out and

unplug the connectors and the

antenna. Then remove the radio.

Remove the passenger side door

seal.

Using the plastic trim removal

tools, unclip the car stereo and

air conditioning surround

starting at the bottom and

moving towards the top.

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Microphone passage

Glue the bracket (supplied) to the

windscreen, after having

thoroughly degreased the surface.

Run the cable under the headliner

to the passenger side support.

Run the cable along the passenger

side windshield support while

replacing the door seal.

Then pass the cable under the

dashboard on the bottom of the

glove box.

To finish, run it to the radio

housing.

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Feeding the accessory cable

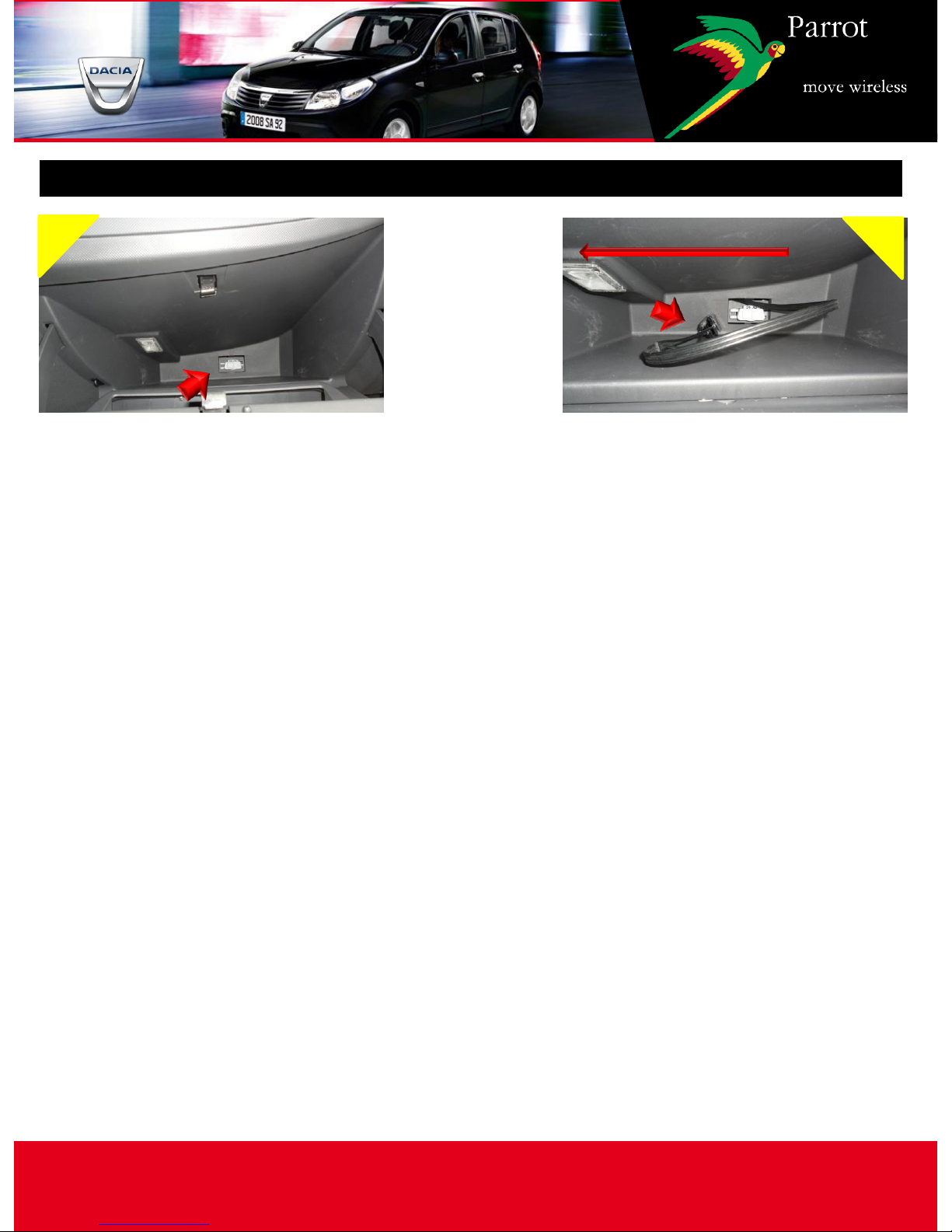

In the bottom of the glove box,

insert the cable into the hole

next to the DIAG socket.

Then bring it out into the radio

housing taking care to leave

enough length.

1 2

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

ISO

adapter

Fitting the hands-free system 1 / 2

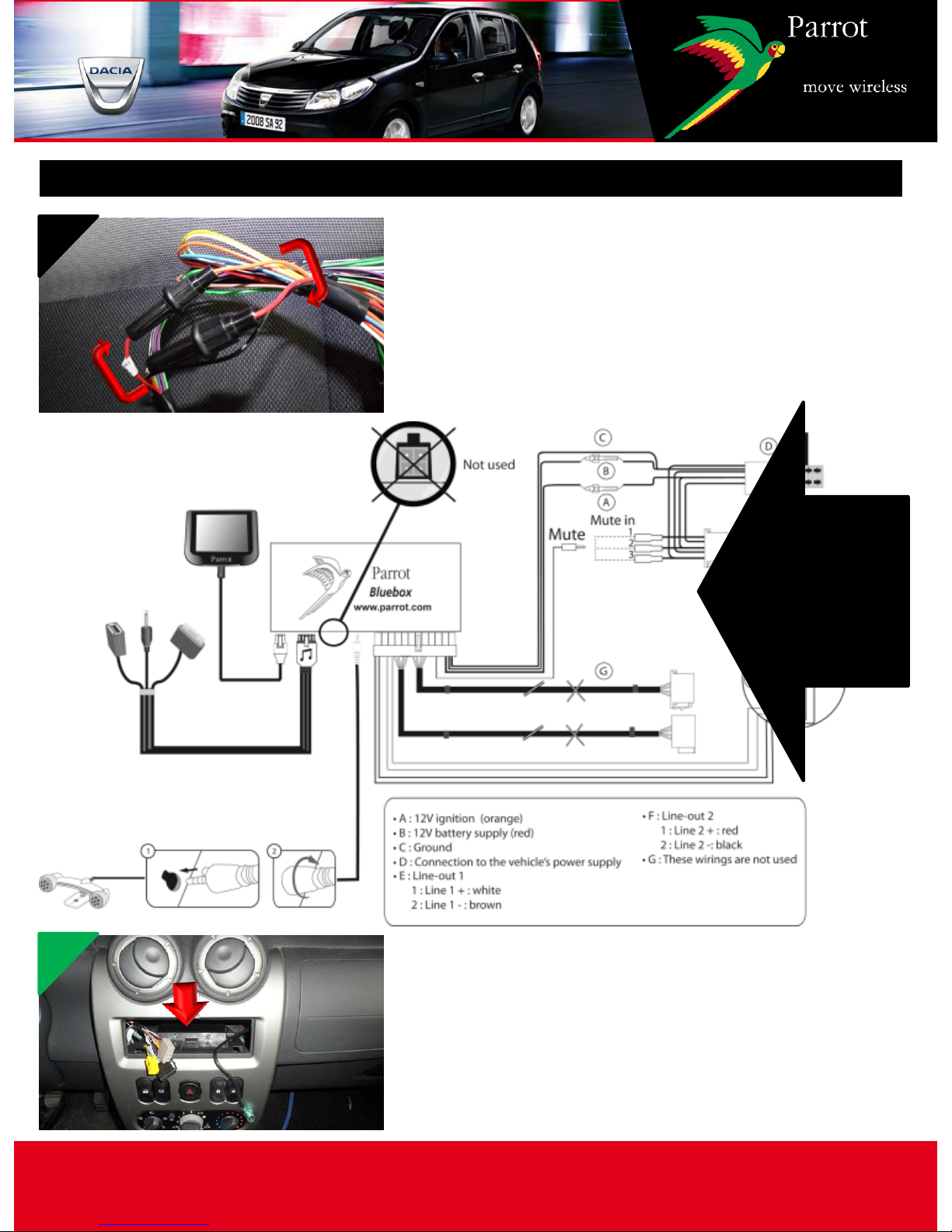

On the kit connector (supplied), reverse the

fuses (i.e. swap the red and orange wires) and

connect all the cables to the blue box as shown

in the diagram below. Test everything before

reassembling...

...then store the box under the radio housing.

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Fitting the hands-free system 2 / 2

Glue the bracket (supplied) under

the cover of the central console

between the air vents, after

carefully degreasing the surface.

Pass the cable into the air

conditioning housing while clipping

the console cover (TAKE CARE to

avoid cutting the screen cable).

Re-clip the assembly and insert

the screen.

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Testing

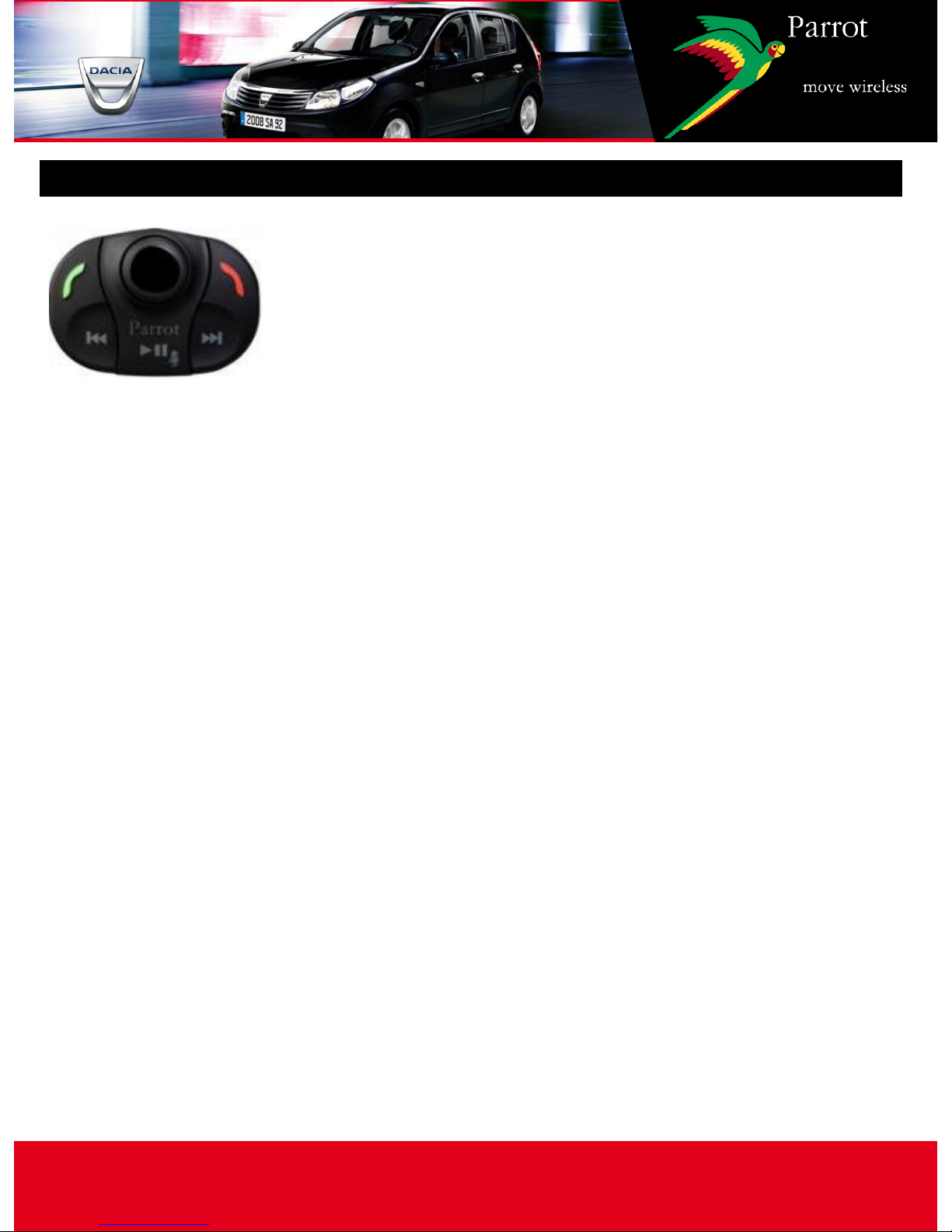

Before refitting the system, switch the kit on using the

ignition (or by starting the car). By pushing the central knob

of the remote control, check:

1 - that the menu is displayed on the screen (language or

iPod etc)

2 - that the radio system is muted when the kit is in use (click

in the blue box)

3 - that the sound through all speakers is properly muted

4 - that there is sound through the front speakers for spoken

menus

5 - then turn off the ignition, verify that the kit turns off and

that the message “goodbye” is displayed on the screen

(otherwise reverse the fuses on the kit power supply

harness)

6 - pair a telephone with the kit and make a call (check that

both the microphone and the kit are working)

This sheet is designed to help you with the installation of a Parrot product and is purely for information. Any installation performed in

compliance with the instructions appearing in this document is done under the sole responsibility of the installer, who is entirely responsible

authorisation of Parrot SA. Pictures for information only.

SANDERO

Reassembly

Refit the system using the following procedure:

1 - reconnect the connectors and the antenna to the radio, slide it into its housing.
