Paradyne SMD2000-24E Manual de usuario

SMD2000-24E 24-Port SHDSL Mini DSLAM

Installation Instructions

Document Number SMD2-A2-GN10-00

July 2005

Contents

Software and Firmware License Agreement ................................................. 2

Product Documentation Online ..................................................................... 3

Unpacking and Inspecting the Equipment .................................................... 4

Site Selection Criteria ................................................................................... 4

Installing Uplink Interface Modules (Optional) .............................................. 5

Tabletop Installation ...................................................................................... 7

Rack Installation ............................................................................................ 8

Powering Up the SMD2000-24E ................................................................... 9

Connecting the SHDSL RJ21 Cable ............................................................. 11

Connecting to the Remote SHDSL Modems ................................................ 12

Verifying the Connection(s) ........................................................................... 13

Connecting the Uplink Lines ......................................................................... 14

Default Settings ............................................................................................. 15

Data Storage ................................................................................................. 17

Reset Button ................................................................................................. 19

LED Indicators .............................................................................................. 20

Pin Assignments ........................................................................................... 23

Technical Specifications ................................................................................ 26

EMI Notices .................................................................................................. 27

CE Marking ................................................................................................... 27

Important Safety Instructions ........................................................................ 27

Warranty, Sales, Service, and Training Information ...................................... 28

Software and Firmware License Agreement

The terms and conditions of this License Agreement (the “Agreement”) will apply to the

software and/or firmware (individually or collectively the “Software”) incorporated into

the Paradyne product (the “Product”) purchased by you and any derivatives obtained

from the Software, including any copy of either. If you have executed a separate written

agreement covering the Software supplied to you under this purchase, such separate

written agreement shall govern.

Paradyne Corporation (“Paradyne”) grants to you, and you (“Licensee”) agree to accept

a personal, non-transferable, non-exclusive, right (without the right to sublicense) to use

the Software, solely as it is intended and solely as incorporated in the Product

purchased from Paradyne or its authorized distributor or reseller under the following

terms and conditions:

1. Ownership: The Software is the sole property of Paradyne and/or its licensors. The

Licensee acquires no title, right or interest in the Software other than the license

granted under this Agreement.

2. Licensee shall not use the Software in any country other than the country in which

the Product was rightfully purchased except upon prior written notice to Paradyne

and an agreement in writing to additional terms.

3. The Licensee shall not reverse engineer, decompile or disassemble the Software in

whole or in part.

4. The Licensee shall not copy the Software except for a single archival copy.

5. Except for the Product warranty contained in the manual, the Software is provided

“AS IS” and in its present state and condition and Paradyne makes no other

warranty whatsoever with respect to the Product purchased by you. THIS

AGREEMENT EXPRESSLY EXCLUDES ALL OTHER WARRANTIES, WHETHER

EXPRESS OR IMPLIED, OR ORAL OR WRITTEN, INCLUDING WITHOUT

LIMITATION:

a. Any warranty that the Software is error-free, will operate uninterrupted in your

operating environment, or is compatible with any equipment or software

configurations; and

ONCE YOU HAVE READ THIS LICENSE AGREEMENT AND AGREE TO ITS

TERMS, YOU MAY USE THE SOFTWARE AND/OR FIRMWARE INCORPORATED

INTO THE PARADYNE PRODUCT. BY USING THE PARADYNE PRODUCT YOU

SHOW YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE AGREEMENT.

IN THE EVENT THAT YOU DO NOT AGREE WITH ANY OF THE TERMS OF THIS

LICENSE AGREEMENT, PROMPTLY RETURN THE UNUSED PRODUCT IN ITS

ORIGINAL PACKAGING AND YOUR SALES RECEIPT OR INVOICE TO THE

LOCATION WHERE YOU OBTAINED THE PARADYNE PRODUCT OR THE

LOCATION FROM WHICH IT WAS SHIPPED TO YOU, AS APPLICABLE, AND YOU

WILL RECEIVE A REFUND OR CREDIT FOR THE PARADYNE PRODUCT

PURCHASED BY YOU.

b. ANY AND ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE AND NON-INFRINGEMENT.

Some states or other jurisdictions do not allow the exclusion of implied warranties

on limitations on how long an implied warranty lasts, so the above limitations may

not apply to you. This warranty gives you specific legal rights, and you may also

have other rights which vary from one state or jurisdiction to another.

6. IN NO EVENT WILL PARADYNE BE LIABLE TO LICENSEE FOR ANY

CONSEQUENTIAL, INCIDENTAL, PUNITIVE OR SPECIAL DAMAGES,

INCLUDING ANY LOST PROFITS OR LOST SAVINGS, LOSS OF BUSINESS

INFORMATION OR BUSINESS INTERRUPTION OR OTHER PECUNIARY LOSS

ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE,

WHETHER BASED ON CONTRACT, TORT, WARRANTY OR OTHER LEGAL OR

EQUITABLE GROUNDS, EVEN IF PARADYNE HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY THIRD

PARTY.

7. The rights granted under this Agreement may not be assigned, sublicensed or

otherwise transferred by the Licensee to any third party without the prior written

consent of Paradyne.

8. This Agreement and the license granted under this Agreement shall be terminated

in the event of breach by the Licensee of any provisions of this Agreement.

9. Upon such termination, the Licensee shall refrain from any further use of the

Software and destroy the original and all copies of the Software in the possession of

Licensee together with all documentation and related materials.

10. This Agreement shall be governed by the laws of the State of Florida, without

regard to its provisions concerning conflicts of laws.

Product Documentation Online

Complete documentation for Paradyne products is available at www.paradyne.com.

Select Support →Technical Manuals. Select:

Command Line Interface for 4000E and 12000E BACs, Micro DSLAMs, and

Network Extenders User's Guide (Document Number CLI-A2-GB20)

Network Management System User's Guide (Document Number NMS-A2-GB20)

SNMP for 12000/4000 BLCs and Micro DSLAMs User's Guide (Document Number

SNMP-A2-GB20)

To order a paper copy of a Paradyne document, or to speak with a sales representative,

please call 1-727-530-2000.

Unpacking and Inspecting the Equipment

HANDLING PRECAUTIONS FOR STATIC-SENSITIVE DEVICES

This product is designed to protect sensitive components from

damage due to electrostatic discharge (ESD) during normal

operation. When performing installation procedures,

however, take proper static control precautions to

prevent damage to equipment. If you are not sure

of the proper static control precautions, contact

your nearest sales or service representative.

The following components should be included in your package:

1 – SMD2000-24E

4 – Rubber Pads

2 – Rack Mount Brackets

10 – #6 Phillips Bracket Screws

4 – #10 Phillips Rack Screws

4 – #12 Phillips Rack Screws

1 – DB9 Socket to RJ45 Plug Adapter

If there is visible damage, do not attempt to connect the device. Contact your sales

representative.

Site Selection Criteria

In choosing a location for the installation of this product:

Select a restricted access area where admittance is limited to trained and

authorized service personnel.

Ensure that the internal temperature of a rack containing this equipment will not

exceed the maximum recommended ambient temperature of 149° F (65° C).

Place the chassis such that connecting cables will not become a tripping hazard or

pull loose from the chassis.

Do not block power supply vents or otherwise restrict airflow when installing this

equipment.

Ensure that installation of this equipment in a rack will not cause the rack to become

top-heavy or unstable.

Do not overload the electrical branch circuit of the power source for this equipment.

For tabletop use, attach the enclosed rubber feet to the bottom of the chassis.

For rack installation, attach the enclosed rack mount brackets to the sides of the

chassis with the screws provided.

Installing Uplink Interface Modules (Optional)

An SMD2000-24E does not require installation of an Uplink Interface Module (UIM) for

operational purposes. A UIM offers additional upstream network ports to supplement the

two E1 uplink ports already provided. You may wish to install a UIM if your network

requires an Ethernet uplink connection or if you require an additional E1 or T1 backhaul.

The SMD2000-24E supports the following 1-port UIMs only:

UIM-E1

UIM-T1

UIM-10/100

CAUTION:

Disconnect all power sources from the SMD2000-24E before installing a UIM.

Procedure

To install a UIM:

1. Remove the Chassis Cover. Using a Phillips Screwdriver, remove the eight

flathead screws securing the SMD2000-24E chassis cover and set them aside.

Carefully lift off the chassis cover and set it aside.

Side

Top

Rear

Bottom

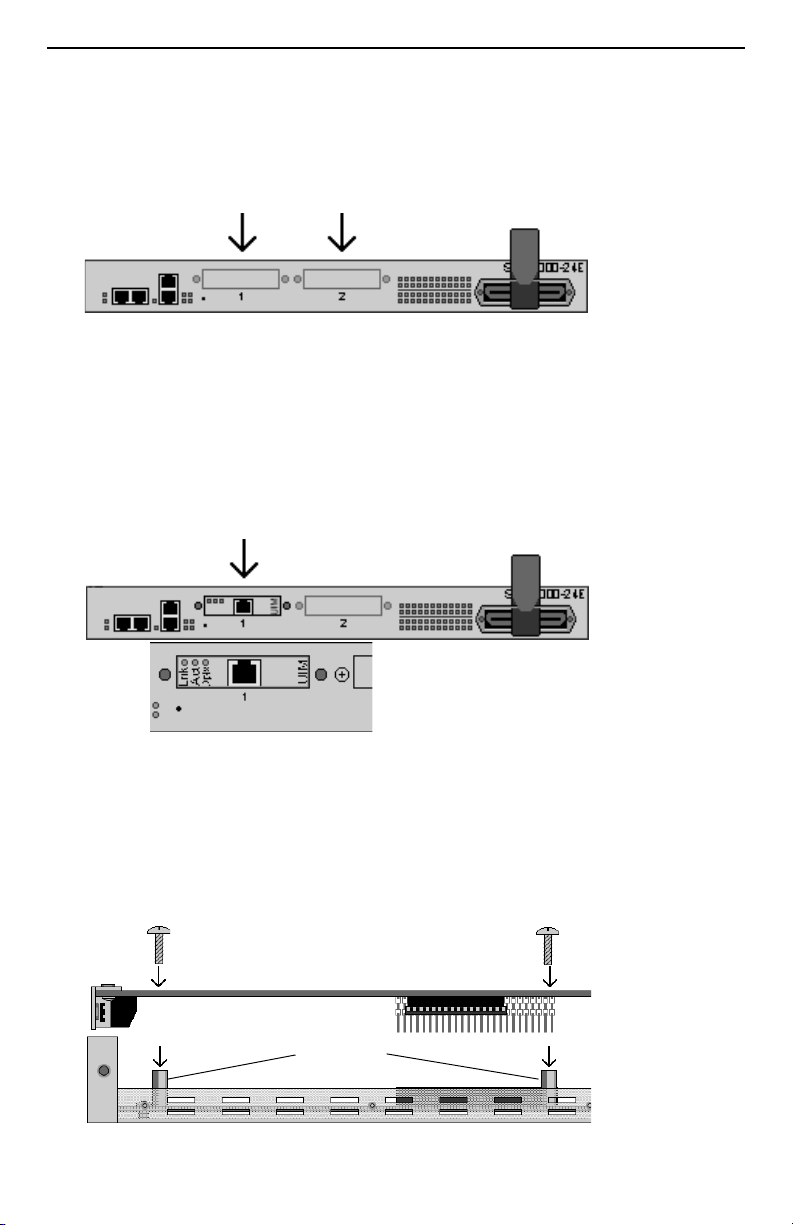

2. Mount the UIM on the SMD2000-24E Printed Circuit Board (PCB). A

UIM may be installed in either Port 1 or Port 2, or both for redundancy purposes.

Using a Phillips screwdriver, remove the flathead screws from both sides of the

chosen port on the chassis faceplate. Remove the slot cover.

CAUTION:

If a slot cover is removed from Port 1 or Port 2, it must be replaced with a UIM.

Do not operate the SMD2000-24E with an open UIM port.

3. Carefully slide the faceplate of the UIM under the lip of the SMD2000-24E faceplate

at the selected port opening such that the UIM PCB is face down and the UIM label

shows through the port opening with the UIM model name along the right edge.

4. Align and secure the PCBs. Ensure that the connector key pins and the four

mounting holes on the UIM PCB are lined up with the board-to-board connector and

the four corresponding standoffs on the SMD2000-24E PCB. Gently press down

with even pressure on all four corners of the UIM until the board-to-board connector

is fully seated. Using a Phillips screwdriver, secure the UIM PCB to the

SMD2000-24E PCB at the standoffs with the four provided pan-head screws.

Standoffs

UIM Side View

5. Secure the faceplate. Using a Phillips screwdriver, secure the UIM faceplate to

the SMD2000-24E faceplate with the two flathead screws included in your UIM

packaging.

6. Replace the chassis cover. Replace the chassis cover and secure with the

original eight flathead screws as depicted in Step 1 on page 5.

Tabletop Installation

Procedure

To install the SMD2000-24E on a table, desk, shelf, or remote cabinet:

1. Affix the four provided rubber pads to the bottom of the chassis for surface grip.

2. Place the SMD2000-24E such that the cables will not become a tripping hazard or

pull loose from the chassis. Ensure that the air supply vents on the sides of the

chassis are not blocked.

Bottom of Chassis

Rack Installation

Procedure

To install the SMD2000-24E in a rack:

1. Using a Phillips screwdriver, attach the two provided rack mount brackets to the

sides of the SMD2000-24E with the ten provided bracket screws.

2. Mount the chassis onto the rack and secure the rack mount brackets to the sides of

the rack using one of the two provided sets of four rack mount screws (whichever

size fits the rack being used).

3. Check the rack for stability, ensuring that installation of the SMD2000-24E has not

caused the rack to become top-heavy. Ensure that all cables are secured such that

they will not become a tripping hazard or pull loose from the chassis.

Powering Up the SMD2000-24E

CAUTION:

Turn your DC power source off until you have completed connection of the

SMD2000-24E as described below.

Do not operate your SMD2000-24E without a ground connection.

Procedure

To connect the SMD2000-24E to power:

1. Connect a ground wire to the SMD2000-24E. Line up the 2-hole terminal lug of

your ground wire with the two holes on the small, unpainted section on the left side

of the back of the chassis. Secure the terminal lug to the chassis with two #10-32

screws.

2. Connect the other end of the ground wire to a frame ground. This can vary

from location to location, but typically all equipment in a Central Office is grounded

to a common copper bus.

3. Select a terminal block. Either terminal block on the back of the SMD2000-24E

may be used to power the chassis. Both terminals may be connected if redundancy

(backup) is desired.

The two terminal blocks on the SMD2000-24E are independent feeds. Chassis

power is supplied by only one terminal block at a time; the second supply is merely

backup. Likewise, the two terminal blocks do not load-share. Each terminal block

must be supplied with the adequate amperage to run the chassis.

4. Using a Phillips screwdriver, remove the left screw from the chosen terminal block

(labeled "+" on the chassis). Slide the ring terminal of your positive power lead onto

the shaft of the screw and re-insert the screw into the terminal block (same "+"

terminal from which it was removed).

5. Remove the right-hand screw (labeled "–") from the same terminal block, slide the

ring terminal of your negative lead onto the shaft of the screw and re-insert the

screw into the terminal block (same "–" terminal from which it was removed).

CAUTION:

Be sure to attach the positive lead to the positive terminal and the nagative

lead to the negative terminal as indicated on your SMD2000-24E terminal

block labels.

6. Attach the other ends of the power leads to a fuse panel. The negative (–) lead

connects to a "Batt" (Battery) terminal and the positive (+) lead connects to a

"Return" terminal on your DC power supply.

Positive (Return) Lead

Negative (Batt) Lead

Tabla de contenidos

Otros manuales de Hardware de red de Paradyne

Paradyne

Paradyne Hotwire 6210 Instrucciones de funcionamiento originales

Paradyne

Paradyne Fan Tray Assembly 8820-S3-900 Manual de usuario

Paradyne

Paradyne MIM-4E1 Manual de usuario

Paradyne

Paradyne JetFusion 2008 Manual de usuario

Paradyne

Paradyne Hotwire 5216 Manual de usuario

Paradyne

Paradyne iMarc DSL 9720 CSU/DSU Manual de usuario

Paradyne

Paradyne BitStorm 2600 Manual de usuario

Paradyne

Paradyne MIM-4T1 Manual de usuario

Paradyne

Paradyne FrameSaver NP 64+ Manual de usuario

Paradyne

Paradyne ACCULINK 317x E1 Manual

Paradyne

Paradyne Hotwire 7996 Manual de usuario

Paradyne

Paradyne JetFusion Integrated Access Device Manual de usuario

Paradyne

Paradyne ACCULINK 3160 Manual de usuario

Paradyne

Paradyne Hotwire 5620 Manual de usuario

Paradyne

Paradyne ACCULINK 316x Manual

Paradyne

Paradyne Hotwire 5620 RTU Manual de usuario

Paradyne

Paradyne JetFusion 2208 Manual de usuario

Paradyne

Paradyne COMSPHERE 3610 Manual de lista de piezas

Paradyne

Paradyne 24-Port SHDSL Mini DSLAM SMD2000-24T Manual de usuario

Paradyne

Paradyne COMSPHERE 3800PLUS Manual

Paradyne

Paradyne 7510-A2-GB20-00 727 Manual de usuario

Paradyne

Paradyne Fan Tray 8820-S2-900 Manual de usuario

Paradyne

Paradyne Micro Interface Module MIM-2000F Manual de usuario

Paradyne

Paradyne iMarc SLV 9820-2M Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
