Paradyne IMarc SLV 9820-2M Manual de usuario

iMarc™SLV

Models 9820-2M and 9820-8M

Installation Instructions

Document Number 9820-A2-GN10-70

May 2003

Contents

Product Documentation Online ..................................................................... 2

iMarc SLV 9820 In-Line Models .................................................................... 2

Package Checklist ........................................................................................ 3

Preparation ................................................................................................... 3

Cables You Can Order .................................................................................. 4

iMarc SLV 9820 Front Panel ......................................................................... 5

iMarc SLV 9820 Rear Panel .......................................................................... 5

Installing the Power Supply and Cord ........................................................... 6

Connecting the COM Port to an Async Terminal or PC ................................ 7

Menu Hierarchy ............................................................................................ 8

A Quick Guide to Configuration .................................................................... 11

Installing and Setting Up the iMarc SLV 9820 Unit ....................................... 12

Verifying that Self-Test Passed ..................................................................... 13

Setting the System Clock .............................................................................. 13

Assigning the Node IP Address .................................................................... 13

Configuring Physical Interfaces .................................................................... 14

Automatic Configuration ............................................................................... 15

Connecting to the Network ........................................................................... 16

Setting Up Service Provider Connectivity at the Central Site ....................... 17

Configuring SNMP Trap Managers and Traps .............................................. 17

Verifying the End-to-End Path ...................................................................... 18

Connecting to the DTE (Router or FRAD) .................................................... 19

Important Safety Instructions ........................................................................ 21

Warranty, Sales, Service, and Training Information ...................................... 24

Trademarks ................................................................................................... 24

Patent Notification ......................................................................................... 24

NOTE: The FrameSaver®

product line has been

renamed to iMarc.

Product Documentation Online

Complete documentation for this product is available at www.paradyne.com.

Select Support →Technical Manuals →iMarc IP/Frame Relay Devices.

Select the following documents:

iMarc Technical Description (9000-A2-GB30)

iMarc Configuration Reference (9000-A2-GB31)

iMarc SNMP Reference (9000-A2-GB32)

iMarc Operations Guide (9000-A2-GB33)

To order a paper copy of a Paradyne document, or to speak with a sales representative,

please call 1-727-530-2000.

iMarc SLV 9820 In-Line Models

iMarc™SLV 9820 models include the following:

Model 9820-2M – Operates at 56 kbps to 2048 kbps, supports up to 120 PVCs,

and monitors Level 1 through Level 3 data for performance statistics and alarms.

Model 9820-8M – Operates at 1024 kbps to 8192 kbps, supports up to 250 PVCs,

and monitors Level 1 and Level 2 data for performance statistics and alarms.

Package Checklist

Verify that your package contains the following:

❑iMarc SLV unit

❑Universal power supply with an attached cable and ferrite choke

❑Power cord appropriate for the wall-plug standard in your country (depends on

model ordered).

❑Ferrite choke (9820-2M only)

Be sure to register your warranty at www.paradyne.com/warranty.

Preparation

If you ordered a wall mounting kit (Feature No. 9001-F1-891) for your iMarc unit, install

the wall mounting before you start installing the unit. Follow the same guidelines below

when installing the wall mounting. Contact your sales representative to order this

feature.

Before starting the installation, make sure you have:

❑A dedicated, grounded power outlet that is protected by a circuit breaker within

6 feet of the iMarc unit.

❑A clean, well-lit, and ventilated site that is free from environmental extremes.

❑One to two feet of clearance for cable connections.

❑A physical connection to the frame relay network via an NTU, with either an

EIA-530-A, V.35, or X.21 user interface. This connection is made using the

appropriate cable attached to the Network port of the iMarc unit.

This cable is not supplied with your iMarc unit, and you will need to order the

appropriate cable kit for your application, V.35, X.21, or EIA-530-A (see LAN

adapter on page 4 for the Feature No. you need to order).

❑An async (asynchronous) terminal or PC (personal computer) to set up the

access unit.

❑Node IP Addresses and Subnet Masks (see your network administrator).

See the appropriate manual for additional information:

Troubleshooting: see the iMarc Operations Guide

Technical Specifications, Connectors, Cables, and Pin Assignments: see the iMarc

Technical Description

Cables You Can Order

If connecting to . . . Order a . . .

Feature

Number

Part

Number

PC with a D-Sub9

interface/connector

Standard EIA-232

straight-through cable,

D-Sub9-to-DB25

(14 feet / 4.3 meters)

3100-F2-550 035-0313-1431

LAN adapter Adapter DB25

plug-to-8-position modular

receptacle

3100-F1-920 002-0069-0031

COM Port-to-LAN adapter

cable

(14 feet / 4.3 meters)

3100-F2-910 035-0315-1431

Equipment with

X.21 interfaces,

DB15 connectors

X.21 cable kit, which

includes an:



X.21 network cable

(10 feet / 3 meters)



X.21 DTE

adapter cable,

EIA-530-A-to-X.21

(1 foot / .3 meters)

9008-F1-521



035-0384-1031



035-0302-0131

Equipment with

V.35 interfaces,

MS34 connectors

V.35 cable kit, which

includes a:



V.35 network cable

(10 feet / 3 meters)



V.35 DTE adapter,

EIA-530-A-to-V.35

9008-F1-522



035-0383-1031



002-0095-0131

Equipment with

EIA-530-A interfaces,

DB25 connectors

EIA-530-A

straight-through cable

(10 feet / 3 meters)

9008-F1-523 035-0385-1031

Equipment with HSSI

interfaces,

HD50 connectors

EIA-530-A to HSSI

interface converter,

which includes an:



EIA-530-A

DCE-to-HSSI DTE

Cable

(6 feet / 1.8 meters)



EIA-530-A

DTE-to-HSSI DCE

Cable

(6 feet / 1.8 meters)

9008-F1-524 002-0170-0031

Contact your sales representative to order cables.

iMarc SLV 9820 Front Panel

(2 Mbps Model Shown)

iMarc SLV 9820 Rear Panel

Safety Instructions

Please refer to the Important Safety Instructions on page 21.

98-16189

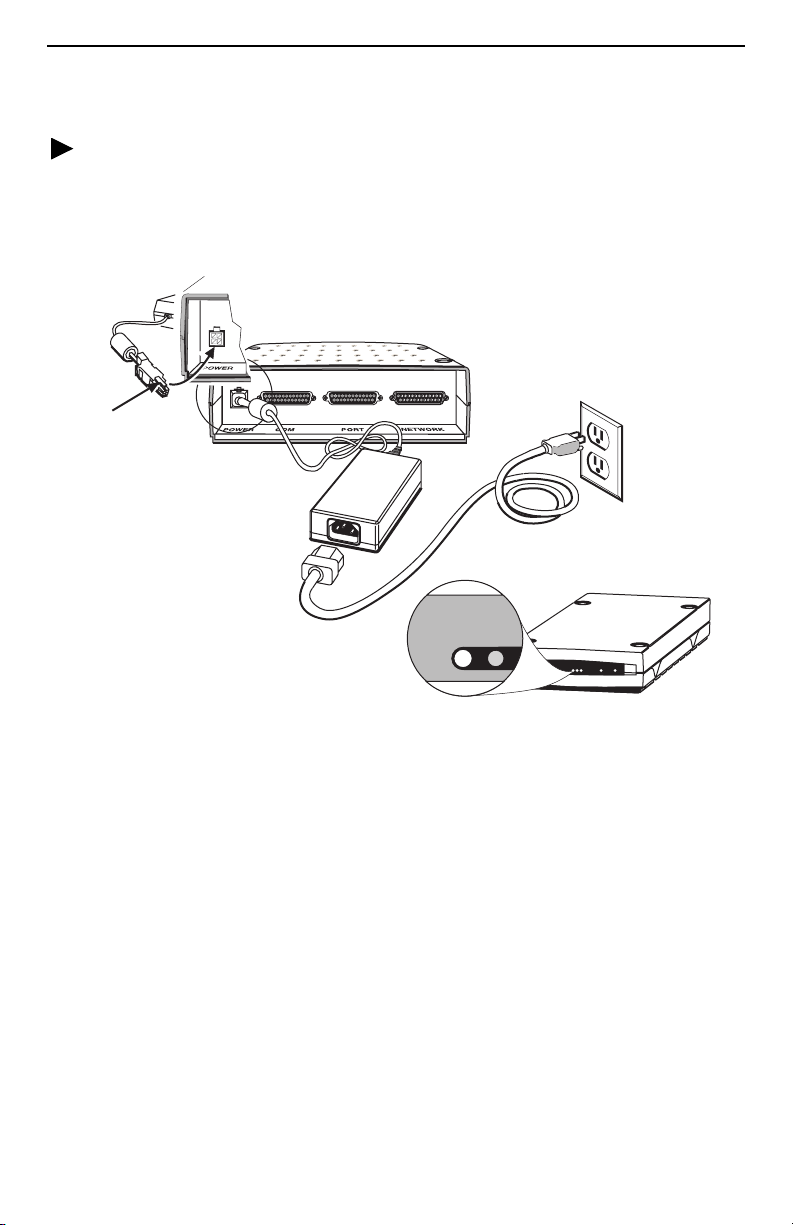

Installing the Power Supply and Cord

Procedure

1. Insert the power supply’s 4-prong plug into the POWER jack.

When inserting the plug at the rear of the iMarc unit, align the plug with the notch

above the POWER jack. Make sure the locking tab snaps securely into the jack.

2. Insert the socket end of the power cord into the power supply’s receptacle.

3. Plug the power cord into the grounded power outlet.

Verification Check:

❑Did any LEDs light?

— If yes, the iMarc unit has power.

— If no, refer to Troubleshooting in the iMarc Operations Guide.

02-16197-01

Power Cord /

Transformer

ALM

Locking

Ta b Grounded

Power

Outlet

Connecting the COM Port to an Async Terminal or PC

The iMarc unit must first be directly connected to a PC or asynchronous terminal

(providing VT100 terminal emulation) to set up access and management of the unit.

Procedure

1. Configure the VT100-compatible terminal or PC to be compatible with the

access unit:

— Baud Rate set to 19.2 Kbps.

— Character length set to 8 data bits.

— Parity set to none.

— Stop bit set to 1.

— Flow Control set to None.

2. Insert the DB25 end of the EIA-232 cable into the iMarc unit’s COM port.

3. Insert the other end of the cable into the PC or VT100-compatible terminal.

4. Tighten the screws on each side of the connector to secure them.

5. Install the ferrite choke as close to the COM port connector as possible, making

sure the choke snaps shut around the cable. A ferrite choke is not required for a

Model 9820-8M.

6. Press Enter (or Return, depending on your keyboard) to display the Main Menu.

Verification Check:

❑Did the Main Menu appear?

— If yes, continue with the installation.

— If no, recheck terminal and iMarc unit compatibility (see settings in Step 1), or

press the Enter key.

Refer to Troubleshooting in the iMarc Operations Guide for other possible

explanations.

02-16198-02

To Connect to a PC

or Async Terminal

COM

Port

Menu Hierarchy

The Menu Hierarchy shows the organization of the iMarc unit’s screens.

S t a t u s System and Test

Status

Self-Test Results

Last System Reset

Health and Status

Test Status

LMI Reported

DLCIs

DLCI

Status

CIR (bps)

IP Path

ConnectionStatus

Device Name

IP Address

Status

Discovery Source

PVC Connection

Status

Source Link, DLCI, EDLCI Status

Primary Destination Status

Alternate Destination Status

I P R o u t i n g T a b l e Destination

Mask

Gateway

Hop

Type

Interface

TTL

Network Interface

Status

Operating Rate

Performance

Statistics

Service Level Verification

DLCI

Frame Relay

Clear All Statistics

Display LEDs and

Control Leads

I d e n t i t y System

NAM

Tes t Network PVC

Tests

PVC Loopback

Send Pattern

Monitor Pattern

Connectivity

Data Port PVC

Tests

PVC Loopback

Send Pattern

Monitor Pattern

Data Port Physical

Tests

DTE Loopback

IP Ping

Lamp Test

Abort All Tests

Configuration System Frame Relay and LMI

Class of Service Definitions

Service Level Verification

General

Network Physical

Frame Relay

DLCI Records

Data Ports Physical

Frame Relay

DLCI Records

PVC Connections Source Link, DLCI, EDLCI

Primary Destination Link, DLCI, EDLCI

Alternate Destination Link, DLCI, EDLCI

IP Path List Add and Display Static Paths

Management and

Communication

Options

Node IP

Management PVCs

General SNMP Management

Telnet and FTP Session

SNMP NMS Security

SNMP Traps

Communication Port

External Modem (on Com Port)

Auto-

Configuration

Frame Relay Discovery Mode

Automatic Circuit Removal

Control Modem Call

Directories

Directory Number

Directory Phone Number

System

Information

Device Name

System Name, Location, Contact

Date

Time

Administer Logins Login ID

Password

Access Level

Change Operating

Mode

Back-to-Back Mode

Standard Mode

Select Software

Release

Current Release

Alternate Release

Switch & Reset

LMI Packet

Capture Utility

Capture Interface

Packet Capture Start/Stop

Status

Packets in Buffer

Display LMI Trace Log

Reset Device

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de red de Paradyne

Paradyne

Paradyne Hotwire 6210 Instrucciones de funcionamiento originales

Paradyne

Paradyne 8310 MVLt Manual de usuario

Paradyne

Paradyne SLV Manual de usuario

Paradyne

Paradyne T1 Access Mux 916x Manual de uso y cuidado

Paradyne

Paradyne BitStorm IP DSLAM 1900 Manual del producto

Paradyne

Paradyne ACCULINK 3160 Manual de usuario

Paradyne

Paradyne 7112 Manual de usuario

Paradyne

Paradyne COMSPHERE 3610 Manual de usuario

Paradyne

Paradyne 4000E Manual de usuario

Paradyne

Paradyne 3151 Manual técnico

Paradyne

Paradyne FrameSaver SLV 9124 Manual de uso y cuidado

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne HotWire 7924 Manual de usuario

Paradyne

Paradyne Application Module 9109 OCU-DP Manual de usuario

Paradyne

Paradyne Hotwire 8784 Manual de usuario

Paradyne

Paradyne 7511 Manual de usuario

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne 8540 Manual de usuario

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne Hotwire 7996 Instrucciones de funcionamiento originales

Paradyne

Paradyne GranDSLAM 4200 Manual de usuario

Paradyne

Paradyne COMSPHERE 3610 Manual de operación y mantenimiento

Paradyne

Paradyne Micro Interface Module MIM-2000F Manual de usuario

Paradyne

Paradyne Hotwire 5216 Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario

Paradyne iMarc SLV 9820-2M Manual de usuario

Manuales populares de Hardware de red de otras marcas
