FrameSaverSLV 9626

Installation Instructions

Document Number 9626-A2-GN10-00

August 1999

Product Documentation on the World Wide Web

We provide complete product documentation online. This lets you search the

documentation for specific topics and print only what you need, reducing the waste of

surplus printing. It also helps us maintain competitive prices for our products.

Complete documentation for this product is available at www.paradyne.com.

Select

Library

→

Technical Manuals

→

FrameSaver Frame Relay Devices.

Select the following document:

9024-A2-GB20

FrameSaver SLV

9x24

User’s Guide

To request a paper copy of a Paradyne document:

Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396)

Outside the U.S.A., call 1-727-530-8623

Package Checklist

Verify that your package contains the following:

FrameSaver SLV (service level verifier) 9626 unit

Power cord with a desktop 120 Vac power transformer

RJ48S modular cable for U.S. network access



FrameSaver SLV

9626 Quick Reference

(Document No. 9626-A2-GL10)

RJ49C cable for ISDN DBM interface

Be sure to register your warranty at www.paradyne.com/warranty.

Before You Begin

Make sure you have:

A dedicated, grounded power outlet that is protected by a circuit breaker within

6 feet of the FrameSaver SLV unit

A clean, well-lit, and ventilated site that is free from environmental extremes

One-to-two feet of clearance for cable connections

A physical connection to the frame relay DDS network

An async (asynchronous) terminal or PC (personal computer) and an EIA-232

cable to connect to and set up the FrameSaver unit

Node IP Addresses and Subnet Masks (see your network administrator for this

information)

IP Addresses of trap manager(s)

An RJ11 cable for the modem

See the User’s Guide for additional information on:



Troubleshooting



Technical Specifications



Cables, Connectors, and Pin Assignments

Cables You May Need to Order

If connecting to a . . . Order a . . . Model/Feature

Number

LAN Customer converter with a DB25

plug on one end and an 8-pin

modular jack on the other end, with

a custom 8-conductor cable and

LAN adapter

3100-F2-910

Contact your sales representative to order cables.

Safety Instructions

Please refer to the

Important Safety Instructions

and

EMI Warnings

beginning on

page 18.

Installing the Power Supply and Cord

1. Insert the 4-prong plug into the POWER jack.

When inserting the plug at the rear of the FrameSaver unit, align the plug with the

notch above the POWER jack. Make sure the locking tab snaps securely into the

jack.

POWER

COM

DBMMDM

NET

99-16478

Power Cord /

Transformer

Insert the 3-prong plug

into an ac outlet.

ALM

The front panel

OK LED lights.

3-Prong

Grounded

AC Outlet

Locking

Tab

POWER

4. Plug the power cord into the grounded power outlet.

Verification Check:

Did any LEDs light?

– If yes, the FrameSaver unit has power.

– If no, refer to

Troubleshooting

in the User’s Guide.

Connecting the COM Port to an Asynchronous Terminal

The FrameSaver unit must first be directly connected to a VT100-compatible

asynchronous terminal or a PC providing VT100 terminal emulation to set up

access and management of the unit.

1. Configure the terminal or PC to be compatible with the FrameSaver unit:

– COM Port in use by your PC: COM1 or COM2.

– COM Port Baud Rate set to 19.2 kbps.

– Character length set to 8 data bits.

– Parity set to none.

– Stop bit set to 1.

– Flow Control set to None.

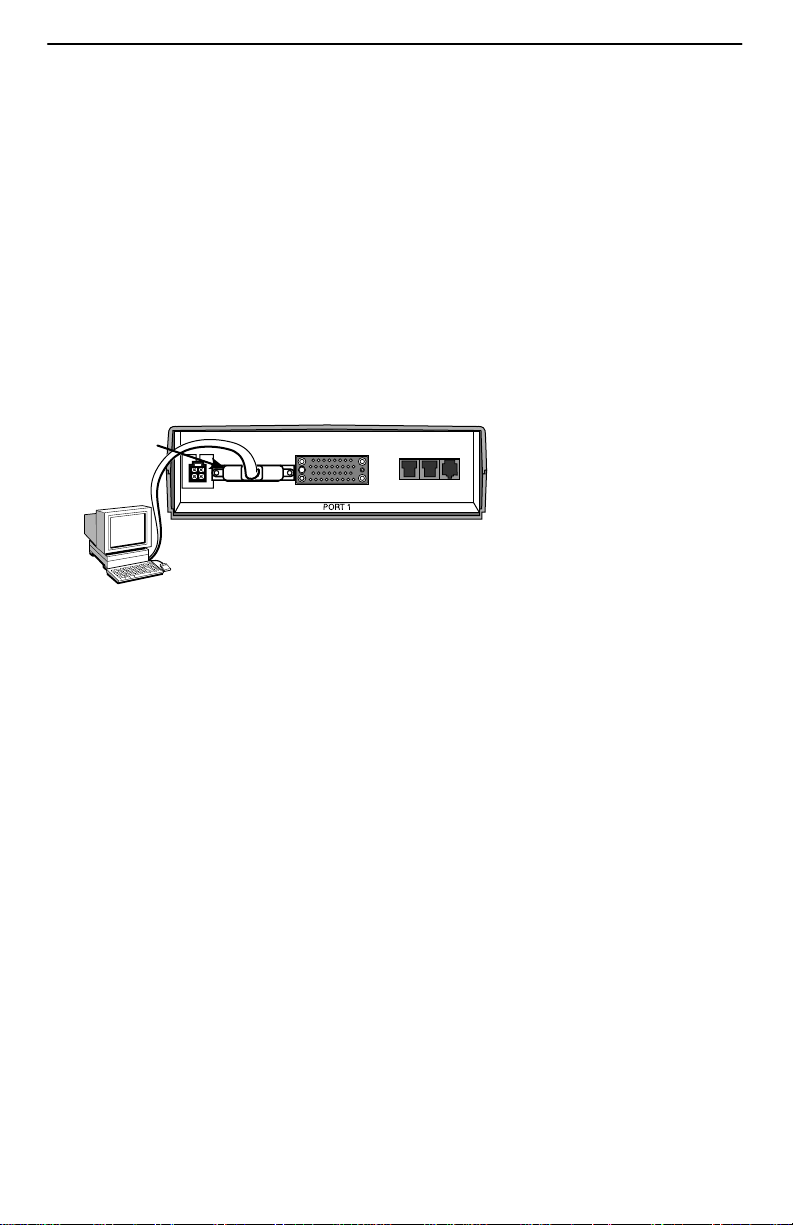

2. Insert the DB25 end of the EIA-232 cable into the FrameSaver unit’s COM port.

POWER

COM

DBMMDM

NET

To Connect to a PC

or Async Terminal

COM

Port

99-16348

3. Insert the other end of the cable into the terminal or PC.

4. Tighten the screws on each side of the connector to secure them.

5. Press Enter on the keyboard (or Return, depending upon your keyboard) to display

the Main Menu.

Verification Check:

Did the Main Menu appear?

– If yes, continue with the installation.

– If no, recheck terminal and FrameSaver unit compatibility (see settings in

Step 1), or press the Enter key.

Refer to

Troubleshooting

in the User’s Guide for other possible explanations.

A Quick Guide to Configuration

The FrameSaver unit should operate using the default (factory-set) configuration

options, except for changes specified in these installation instructions. Refer to the

following table for instructions on how to navigate through the menus.

Press the . . . To . . .

Esc key Go back one screen or menu level. To see a visual

representation of the menu levels, see

Menu Hierarchy

the Quick Reference.

Tab key, or up (↑),

down (↓), left (←) and

right (→) arrow keys

Move the cursor from one menu item to the next.

Enter or Return key Complete the menu or option selection.

Spacebar Display the next available setting when changing a

configuration option. All the available settings for an

option appears at the bottom of the screen.

As an example, follow these steps to go to the Configuration Edit/Display menu so you

can start setting up the unit. To load a configuration for editing:

1. From the Main Menu, press the down arrow key twice so the cursor is on

Configuration.

2. Press Enter to display the Configuration menu. The Load Configuration From

menu appears.

3. Press Enter to select Current Configuration (the cursor is already on this

selection). The Configuration Edit/Display menu appears.

This sequence of steps would be shown as the menu selection sequence:

Main Menu

→

Configuration

To save a configuration option change:

1. Press Ctrl-a to switch to the function keys area at the bottom of the screen.

2. Type sor S(Save) and press Enter. The Save Configuration To menu appears.

3. Press Enter again to save your changes to the Current Configuration.

4. Press Esc until the Configuration Edit/Display menu reappears to continue

configuring the unit.

Press Ctrl-a, type m(MainMenu), and press Enter to return to the Main Menu.

The following sections guide you through installation and setup of the FrameSaver unit.

It is assumed that the unit is configured for factory default settings at the start of the

installation, and that the Auto-Configuration feature will be used. For more information

about configuration options, refer to the configuration option tables in the User’s Guide.

Verifying that Self-Test Passed

To verify that the unit passed its self-test, go to the System and Test Status screen.

Main Menu

→

Status

→

System and Test Status

The results of the self-test appears directly under the screen title.

If any failure messages appear, reset the unit by disconnecting, then reconnecting the

power cord. The unit will perform the self-test again. If the failure reappears, call your

service representative for assistance.

Setting the System Clock

To set up the system clock:

1. Select System Information.

Main Menu

→

Control

→

System Information

2. Move the cursor to the Date, then the Time field to enter:

– Date in the mm/dd/yyyy format (month/day/year)

– Time in the hh:mm format (hours:minutes)

3. Save the settings.

Assigning the Node IP Address

1. Set up the node.

Main Menu

→

Configuration

→

Management and Communication

→

Node IP

2. Minimally, enter the following options:

– Node IP Address

– Node Subnet Mask

3. Save the configuration.

Setting Up the Modem

The unit has an integral modem for remote management. It is already set up for dial-in

access to the system, with Port Use set to Terminal.

If using the modem for dialed IP network connectivity (SNMP, Telnet, FTP, or

trap dial-out):

1. Select Modem Port.

Configuration

→

Management and Communication

→

Modem Port

2. Minimally, change Port Use to Net Link, and assign the interface’s IP Address and

Subnet Mask if it is different from the Node’s. Change Link Protocol to SLIP, if

necessary (PPP is the default setting).

3. Save the configuration.

Setting Up Call Directories if Trap Dial-Out Is Desired

1. Set up directory phone numbers.

Main Menu

→

Control

→

Modem Call Directories

2. Select Directory Number A (for Alarm).

3. Enter the phone number(s). Valid characters include:

– ASCII text

– B for blind dialing

– W for wait for dial tone

– P for pulse dialing unless B specified

– T for tone dialing unless B specified

– Space, underscore ( _ ), comma (,) for a 2-second pause, and dash (–)

readability characters

4. Save the phone number(s).

Setting Up Management

1. Select General SNMP Management.

Configuration

→

Management and Communication

→

General SNMP Management

2. Minimally, set Name 1 Access to Read/Write.

3. Save the configuration.

Setting Up Local Management at the Central Site

1. Create a DLCI for the data port.

Configuration

→

Data Ports

→

DLCI Records

2. Save the configuration.

3. Create a Management PVC using the data port DLCI just created.

Configuration

→

Management and Communication

→

Management PVC

Minimally, enter the following options:

– Name for the management PVC

– Interface IP Address and Subnet Mask, if different from the Node’s

– Primary Link for this Management PVC (the user data port)

– Primary DLCI (i.e., the data port DLCI)

4. Save the configuration.

Automatic Configuration

The FrameSaver unit provides several automatic configuration features. Frame Relay

Discovery and configuration is one of these features.

Main Menu

→

Auto-Configuration

The default discovery mode is 1MPort. In this mode, for each DLCI discovered on the

network, a multiplexed network DLCI and a standard data port DLCI will be configured

and connected, and a Management PVC will be embedded in the network DLCI.

NOTE:

When auto-configuration creates a multiplexed DLCI, but a standard DLCI is

needed, change the DLCI to standard from the network DLCI Records screen:

Configuration

→

Network

→

DLCI Records

Other modes can be selected. See

Setting Up Automatic Configuration

Setup

of the

User’s Guide for information about other modes and how the Frame Relay Discovery

Mode can be changed.

No automatic configuration occurs until the network cable is connected. If you do not

want management links configured or automatic configuration, change the default

setting for the Frame Relay Discovery feature.

Connecting to the Network

1. Insert the 8-pin connector on the RJ48S network cable into the NET interface.

POWER

COM

DBMMDM

NET

99-16481

RJ48S

Jack

2. Insert the other end of the cable into the RJ48S modular jack.

3. Check that the Network DM (Data Mode) is on, and OOS (out of service) and

OOF/NS (out of frame/no signal) LEDs are off. If yes, the network interface is set

up correctly and is operational. If not, make sure both ends of the network cable

are properly seated and secured.

4. Verify that the network physical options are configured correctly.

Main Menu

→

Configuration

→

Network

→

Physical

5. Check Health and Status messages in the left column of the System and Test

Status screen to see the LMI status and verify that LMI is up.

Main Menu

→

Status

→

System and Test Status

If LMI Down, Net1-FR1 appears for more than three minutes, or any other

network-related status message appears, refer to the status information in

Operation and Maintenance

of the User’s Guide for possible reasons.

If the unit does not have ISDN backup capability, proceed to

Configuring SNMP Trap

Managers and Trap Dial-Out

on page 13.

Setting Up the ISDN DBM

These instructions are for units with ISDN backup capability. The ISDN BRI DBM

supports up to 2 B-channels.

The following guidelines apply:

Central site configuration guidelines:

– Set up the ISDN DBM physical interface.

– Configure a Link Profile for each remote site.

– Configure the unit to answer calls from the remote sites.

– Leave Automatic Backup Configuration disabled.

– Manually create DLCIs for the configured ISDN Links.

– Manually specify ISDN DLCIs as alternate DLCIs for PVC Connections and

Management PVCs after the primary DLCIs have been automatically discovered

on the primary network link or have been manually configured.

Remote site configuration guidelines:

– Set up the ISDN DBM physical interface.

– Configure a Link Profile for the central site in the first link profile, called HQ_Site.

When Automatic Backup Configuration is enabled, a backup DLCI will be

created automatically on the first ISDN link for each DLCI discovered on the

network interface.

– Configure the remote unit to originate calls to the central site. (A BRI DBM is

already configured to originate calls.)

– Enable the Automatic Backup Configuration feature.

– Set the criteria by which automatic backup will take place.

Setting Up the DBM Physical Interface

1. Configure the DBM interface.

Main Menu

→

Configuration

→

ISDN

→

Physical

2. Minimally, set the following configuration options:

– Interface Status set to Enable.

– Originate or Answer set to Answer for a central site, and set to Originate for a

remote site.

Service Profile ID1 (SPID)

Local Phone Number 1

Service Profile ID2 (SPID)

Local Phone Number 2

3. Save the configuration and return to the ISDN menu.

Setting Up ISDN Link Profiles

1. Select Link Profiles, then New.

2. Set up the ISDN Link Profiles.

– Name for the destination entered (e.g., Tampa). The default setting is HQ_Site.

– Link Status set to Auto.

– Phone numbers entered:

Originating System Answering System

Outbound phone number.

Valid characters can include:

Numbers (0–9)

Special characters * and #

Spaces

Inbound Calling ID1 and ID2. These

are the phone numbers of units that

calls will be accepted from.

Valid characters can include:

Numbers (0–9)

Remember to include local dial-out numbers (i.e., 9, then the number).

3. Save the configuration.

Otros manuales para FrameSaver SLV 9626

Tabla de contenidos

Otros manuales de Hardware de red de Paradyne

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne 24-Port SHDSL Mini DSLAM SMD2000-24T Manual de usuario

Paradyne

Paradyne 4929 DSLAM Manual de usuario

Paradyne

Paradyne 7510 DSU Manual de instalación

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne COMSPHERE 3800PLUS Manual

Paradyne

Paradyne Hotwire 8775 MSDSL Manual de usuario

Paradyne

Paradyne FrameSaver NP 64+ Manual de usuario

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne Hotwire 5446 Manual de usuario

Paradyne

Paradyne 3163 Manual de usuario

Paradyne

Paradyne Hotwire 6210 Instrucciones de funcionamiento originales

Paradyne

Paradyne Hotwire 5620 Manual de usuario

Paradyne

Paradyne Hotwire 5100 Manual de usuario

Paradyne

Paradyne COMSPHERE 3550 Series Manual de usuario

Paradyne

Paradyne Comsphere 3510 Manual de usuario

Paradyne

Paradyne ACCULINK 3163 DSU Manual de usuario

Paradyne

Paradyne Dual DSU 7511 Manual de usuario

Paradyne

Paradyne 7510-A2-GB20-00 727 Manual de usuario

Paradyne

Paradyne Hotwire 7995 Manual de usuario

Paradyne

Paradyne 7112 Manual de usuario

Paradyne

Paradyne COMSPHERE 6700 Series Manual de usuario

Paradyne

Paradyne Application Module 9109 OCU-DP Manual de usuario

Paradyne

Paradyne MIM-4T1 Manual de usuario

Manuales populares de Hardware de red de otras marcas

Matrix Switch Corporation

Matrix Switch Corporation MSC-HD161DEL Manual de usuario

B&B Electronics

B&B Electronics ZXT9-IO-222R2 Manual de usuario

Yudor

Yudor YDS-16 Manual de usuario

D-Link

D-Link ShareCenter DNS-320L Manual de usuario

Samsung

Samsung ES1642dc Instrucciones de uso

Honeywell Home

Honeywell Home LTEM-PV Instrucciones de montaje

evertz

evertz 7700 Series Manual de usuario

D-Link

D-Link ShareCenter DNS-343 Manual de usuario

Asante

Asante AsanteBridge 1012 Manual de usuario

FireBrick

FireBrick FB2700 Manual de usuario

Audiovox Electronics

Audiovox Electronics ARWH2T Manual de usuario

ADC

ADC DSX-1 Manual

NetComm

NetComm NF2 Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 5620 Manual de usuario

Dell EMC

Dell EMC XC6420 Series Manual de usuario

Lanner

Lanner NCA-1020A Manual de usuario

Allied Telesis

Allied Telesis AT-TN121-A Manual de usuario

Arista

Arista CCA-ETM-Q12 Manual de usuario
