Magellan Wireless Expansion Module 1

1.0 Introduction

This manual details how to connect, program and operate the Magellan wireless

expansion module (MG-RCV3) when used in conjunction with an Esprit security

system or as a stand-alone system.

When connected to an Esprit security system, the MG-RCV3 functions as an arm/

disarm module, whereby up to eight Magellan remote controls (MG-REM1) can

perform actions such as remote arming and disarming, communicating panic alarms

and activating programmable outputs (PGMs). In stand-alone mode, the remote

controls will only activate the four on-board PGMs.

1.1 Technical Specifications

• Di-pole antenna

• Error Correction Algorithm

• Compatibility Any Magellan wireless transmitter

• Frequency: 433MHz or 868MHz

• Range (line of sight): Remote controls = 100m (300ft)

• Sensitivity: -120 dBm

• Current consumption: 50 mA

• Dimensions (no antenna): 15cm H x 16cm L x 3cm W

(6in H x 6.5in L x 1.1in W)

• Operating temperature: 0°C to 49°C (32°F to 120°F)

• PGM outputs: 4 on-board PGM outputs:

PGM1 and PGM2 - 150mA PGM

transistor outputs

PGM3 - form C relay output rated

at 5A/28Vdc, N.O./N.C. (PGM4

optional)

• Programming keypad: Esprit 636 or 646 LED keypad

MGRCV3ES_EI01.fm Page 1 Wednesday, May 4, 2005 3:27 PM

2 Reference & Installation Manual

Specifications may change without prior notice.

1.2 System Features

• Auto-Panel Recognition

• Supports up to 8 users

• Supports up to 8 Magellan remote controls (MG-REM1)

• 4 on-board programmable outputs (PGMs)

• On-board anti-tamper switch

• Stand-alone operation (trigger PGMs only) or in conjunction with an Esprit

control panel (arm/disarm, panic alarms, PGM activation)

• Programming keypad (636, 646) connects directly to the MG-RCV3

2.0 Installation

The following sections detail how to mount and connect the MG-RCV3.

2.1 Location

The location of the MG-RCV3 affects its performance. In order to ensure the

best possible signal reception, the following list of location criteria should be

respected whenever possible:

• Select an installation site that is free of obstacles that reflect and absorb

radio frequency (RF) signals, as well as interference that may distort signals.

Avoid installation near or in the path of strong RF fields (i.e. neon lights,

computers), on or near metal objects, circuit breaker boxes, air conditioners,

• Approvals: 433MHz

868MH

zCompliant to all EU and EFTA

countries except Greece according

to RTT&E directives.

868MHz version is not UL approved

MGRCV3ES_EI01.fm Page 2 Wednesday, May 4, 2005 3:27 PM

Magellan Wireless Expansion Module 3

and heater ducts since they may cause interference and reduce the module’s

sensitivity

• Select a site that is not susceptible to drastic temperature changes

• Mount the MG-RCV3 as high as possible

• Avoid mounting the MG-RCV3 in the basement as the range of the module is

reduced when mounted below ground level. However, if it is absolutely

necessary to mount the module in the basement, mount the module as high

and as close to the underside of the first floor as possible

• Mount the MG-RCV3 on a wall allowing at least 5cm (2in) around the module

to permit adequate ventilation and heat dissipation

For the maximum allowable distance between the control panel and

the MG-RCV3, refer to Figure 2.2 on page 6.

2.2 Noise Level Test

The MG-RCV3 performs a test on power-up that verifies the noise level in the

surrounding environment. If the environment is too noisy, the module’s RX LED

will illuminate (refer to Figure 2.2 on page 6) and will remain illuminated until

the module is powered up again. In such cases, power down the MG-RCV3,

change its location, and then power up. Repeat this procedure until the

module’s RX LED no longer illuminates. If all possible mounting locations have

been tested and the environment is still too noisy, be aware that the wireless

system may not function properly.

2.3 Connections and Mounting

1. Using a screwdriver, remove the screw on the MG-RCV3’s front cover and

then remove the front cover.

2. Firmly screw the antenna into the connector marked ANT on the MG-RCV3

(refer to Figure 2.1 on page 5).

3. Remove the printed circuit board (PCB) by applying outward pressure to

the mounting clips (refer to Figure 2.1 on page 5) and then lifting the PCB.

4. Using a drill or screwdriver, punch out the four mounting holes on the back

cover (refer to Figure 2.1 on page 5).

5. Align the six orientation holes (refer to Figure 2.1 on page 5) of the PCB

MGRCV3ES_EI01.fm Page 3 Wednesday, May 4, 2005 3:27 PM

4 Reference & Installation Manual

with the six pins on the back cover and snap the PCB into place. If placed

correctly, the antenna will lean directly over the groove in the back cover.

6. Temporarily mount the MG-RCV3 in its proposed location (refer to section

2.1 on page 2) with masking tape or any other temporary adhesive.

7. If connecting the MG-RCV3 to an Esprit control panel, connect the module

to the control panel in a star or daisy chain configuration (refer to Figure 2.2

on page 6). When used as a stand-alone module, connect the module

using an external 12Vdc power supply that is equipped with a backup

battery connector (refer to Figure 2.3 on page 7).

8. Verify the environment noise surrounding the MG-RCV3 (refer to section

2.2 on page 3).

9. Assign the users and/or remote controls, and then program the remote

control buttons (refer to section 4.3 on page 11).

10. Test the location of the MG-RCV3 by performing an action using an

assigned remote control from a typical distance and location.

11. Permanently mount the MG-RCV3.

Do not cut, bend, or alter the antenna. Ensure that the electrical wires

do not cross over the antenna when connected.

MGRCV3ES_EI01.fm Page 4 Wednesday, May 4, 2005 3:27 PM

Magellan Wireless Expansion Module 5

Figure 2.1: Mounting

MGRCV3ES_EI01.fm Page 5 Wednesday, May 4, 2005 3:27 PM

6 Reference & Installation Manual

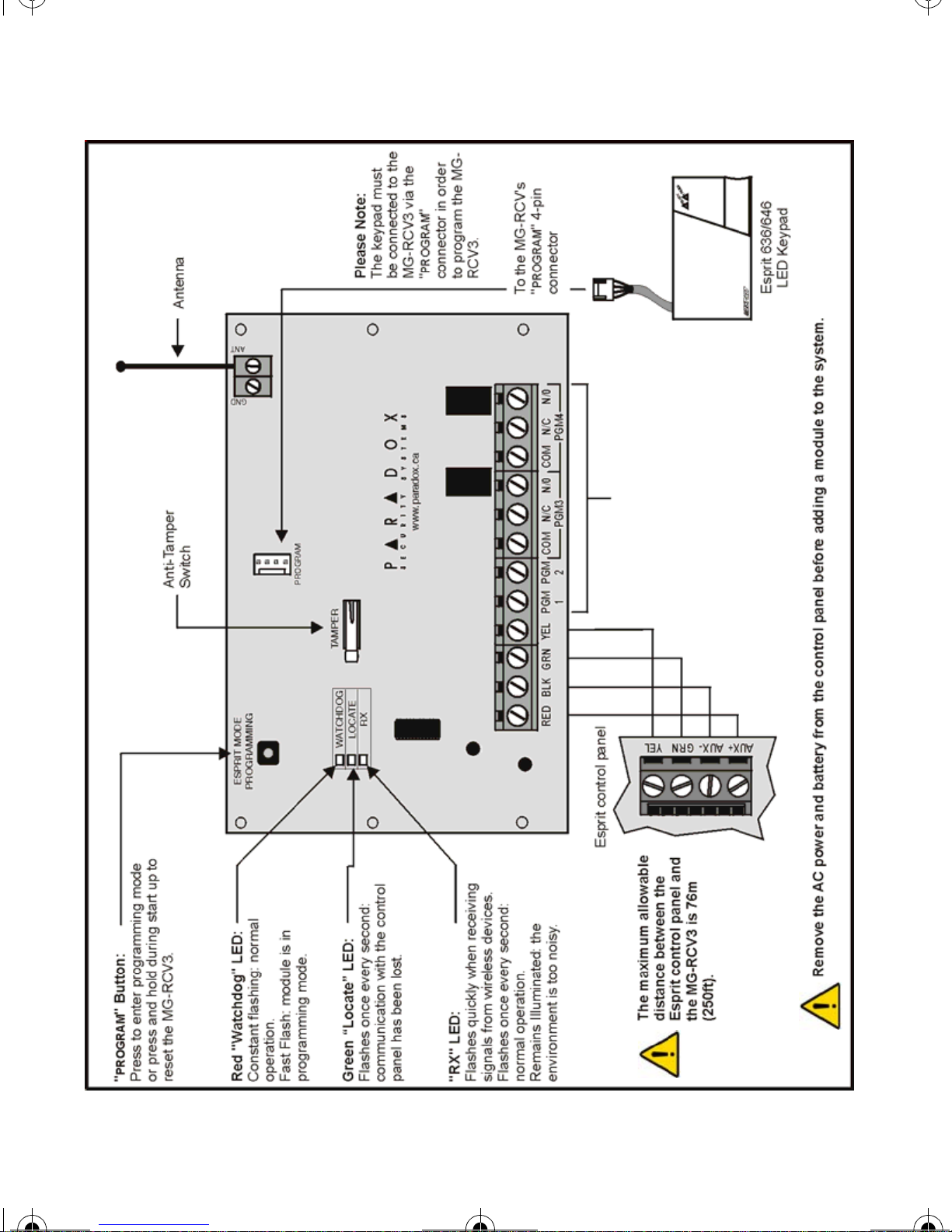

Figure 2.2: Connection with an Esprit Control Panel

Refer to Figure 2.4 on

page 8 for PGM

connections.
